DW -40° C Freezers
A choice of 4 capacities in a cabinet finished in powder coated galvanised steel with a bottom mounted system.
Features:- Temperature range: –10°C to –40°C
- Capacities: 270L, 450L, 780L
- Bottom mounted system
- Static Refrigeration System
- Cabinet finish in galvanised steel ⁄ powder coated
- Low Noise Design
- Port Entry
- Built-in Data Logger
- Built-in Alarms
- Door Ajar Alarms
- Digital display with built-in alarms
- High ⁄ Low Temperature Alert
- High ⁄ Low Readout
- Manual Defrost
- TPG Registration

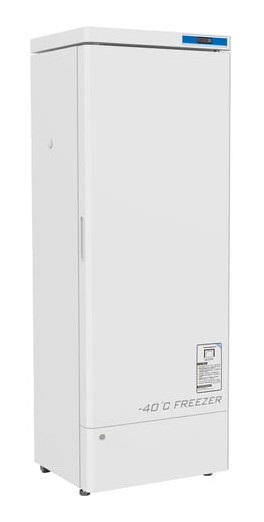

DW270 -40° C Freezer

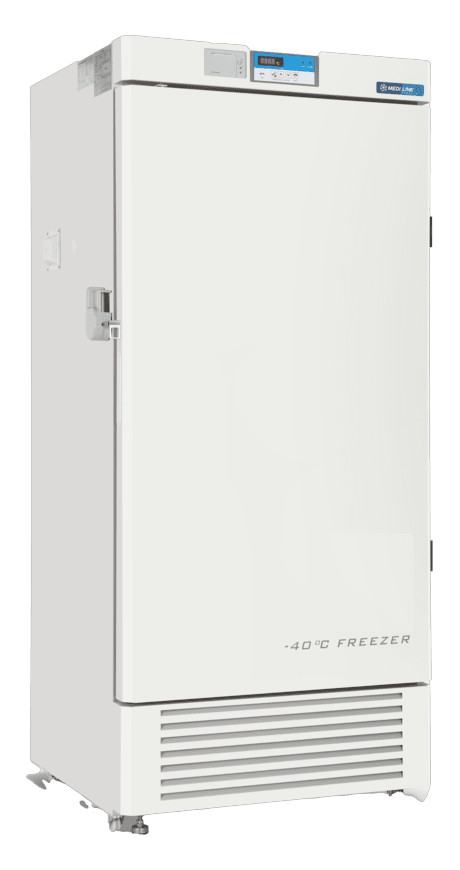

DW450 -40° C Freezer

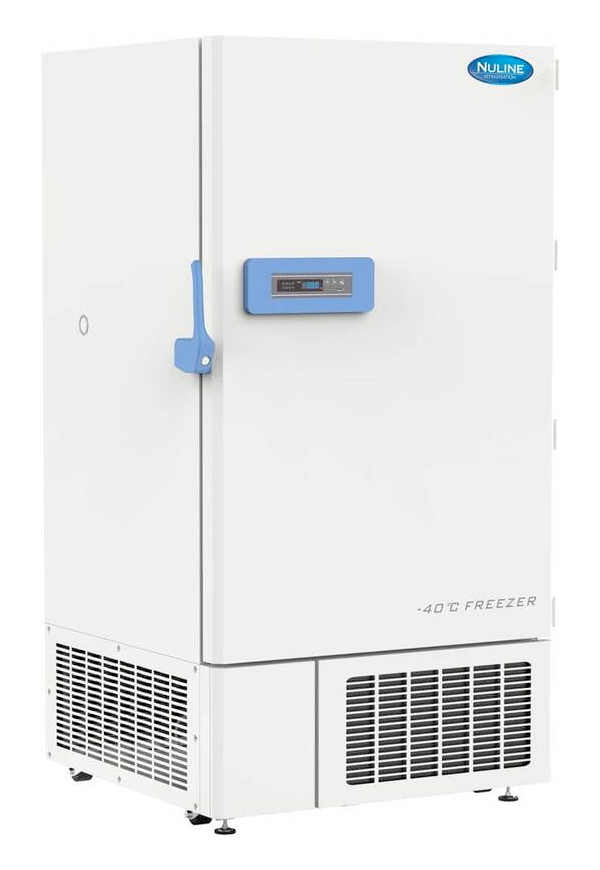

DW780 -40° C Freezer
| DW –40° C Freezers |
| Model |
DW270 |
DW450 |
| Capacity |
270 L |
439 L |
| External Dimensions (inc. castors or legs) |
700w x 640d x 1792h |
850w x 740d x 1935h |
| Internal Dimensions |
500w x 460d x 1235h |
650w x 560d x 1305h |
| Net Weight |
90kg |
175kg |
| Energy Consumption |
2.86(kWh/24h)⁄(@ 25°C) |
4.68(kWh/24h)⁄(@ 25°C) |
| Voltage |
240V 50Hz |
| Temperature Range |
–10°C to –40°C |
| Ambient Temperature Range |
16°C to 32°C |
| Refrigerant |
R290 |
R507 |
| Cooling System ⁄ Defrost |
Static |
| Exterior Cabinet Finish |
Enamelled Steel |
| Inner Liner Material |
ABS |
Stainless Steel |
| Door |
Solid |
| Door Hinge |
RH |
| Door Handle |
Lockable |
| Type of Controller |
Digital |
| Temperature Display |
External |
| Data Logger |
Optional |
Built-in |
| Door ajar alarm |
Yes |
| High And Low Readout |
Visual ⁄ Audible |
Remote Alarm Contacts
(BMS Connectivity for Alarms only)
(BMS Connectivity for Temperatures) |
Yes
Optional |
| Port entry |
Yes |
| Battery Back-Up for Controller |
Yes |
| Power Requirement |
10amp GPO |
| Watts |
255W |
440W |
| Castors |
2 Castors + 2 Leveling Feet |
4 Castors (2 with Brake) |
| Adjustable Shelves |
Fixed Drawers x 7 |
Fixed Drawers x 14 |
| Usable Shelf Area mm |
494w x 418.5d |
320w x 518.5d |
| High ⁄ Low Temperature Alarm |
Yes |
Warranty
(*refer to warranty sheet) |
24 Months * |
| ** Specifications may change without prior notice ** |
| DW –40° C Freezers |
| Model |
DW780 |
| Capacity |
778 L |
| External Dimensions (inc. castors or legs) |
1205w x 1025d x 1955h |
| Internal Dimensions |
865w x 696d x 1286h |
| Net Weight |
286kg |
| Energy Consumption |
8.47(kWh/24h)⁄(@ 25°C) |
| Voltage |
240V 50Hz |
| Temperature Range |
–10°C to –40°C |
| Ambient Temperature Range |
16°C to 32°C |
| Refrigerant |
R290 |
| Cooling System ⁄ Defrost |
Static ⁄ Manual |
| Exterior Cabinet Finish |
Enamelled Steel |
| Inner Liner Material |
Stainless Steel |
| Door |
Solid |
| Door Hinge |
RH |
| Door Handle |
Lockable |
| Type of Controller |
Digital |
| Temperature Display |
External |
| Data Logger |
Built-in |
| Door ajar alarm |
Yes |
| High And Low Readout |
Visual ⁄ Audible |
Remote Alarm Contacts
(BMS Connectivity for Alarms only)
(BMS Connectivity for Temperatures) |
Yes
Optional |
| Port entry |
Yes |
| Battery Back-Up for Controller |
Yes |
| Power Requirement |
10amp GPO |
| Watts |
700W |
| Castors |
2 Castors + 2 Leveling Feet |
| Adjustable Shelves |
3 |
| Usable Shelf Area mm |
865w x 650d |
| High ⁄ Low Temperature Alarm |
Yes |
Warranty
(*refer to warranty sheet) |
24 Months * |
| ** Specifications may change without prior notice ** |
