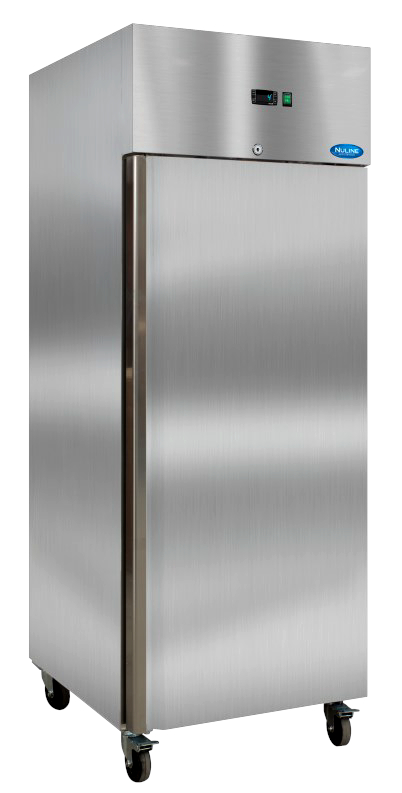

MF Lab Freezers

Choose from our premium quality stainless steel range of refrigerators and freezers.

Slide out and fully adjustable shelves make for easy adjustment to suit you requirements.

Easy to operate control panel and interior illumination are some of the standard features.

• Features — Freezers:

• Upright Storage Freezers
• Top mounted system
• Five (5) adjustable PVC coated shelves per door
• Castors
• Automatic defrost and water disposal
• Digital Display with Built in Alarms
• Freezer Cabinet temperature is –18° to –22° C
• Operating ambient temperature is 43° C & 80% humidity (double door 38°)
• Cabinet Finish In Stainless Steel Interior ⁄ Exterior
• Available in Glass Door (TNG) or Solid Door (TN)
• Hi ⁄ Lo Read Out
• As a standard fitting when facing the door, the door hinge is Right Hand and the door handle is on the Left Hand. It is an option to have the door reversed.
• TGA Registration

• Optional Equipment:

• Temp Alert & Data Logger, NUL-TA-600-T (using smart phone App)
• Temperature Data Logger, NUL-RC5
• Door ajar alarm, NUL-DA
• Port entry, NUL-PE
• Remote alarm, NUL-VFC
• Chart recorder, NUL-CR
• Battery backup for controller, NUL-BB
• Tray Slides (set of 2), NUL-MFTS
• Additional shelves

Top Mounted System — Freezer
Model	MF70BT(G)	MF140BT(G)
Capacity	700 L	1400 L
External Dimensions (inc. castors or legs)	740w x 830d x 2050h	1480w x 830d x 2050h
Internal Dimensions	600w x 690d x 1475h	1340w x 690d x 1475h
Net Weight Kg	Solid door 122 Glass door 130	Solid door 202 Glass door 230
Voltage	240 V
Watts	Solid door 410W Glass door 440W	Solid door 700W Glass door 730W
Power Requirement	10 amp GPO
Refrigerant	R290
Warranty (*refer to warranty sheet)	24 Months *
Temperature Range	–18°C to –22°C
Ambient Temperature Range	10°C to 32°C
Interior ⁄ Exterior Cabinet Finish	Stainless Steel
Cooling System ⁄ Defrost	Fan Forced ⁄ Automatic
Type of Controller	Digital
Temperature Display	External
Data Logger	Optional
High ⁄ Low Readout	Visual ⁄ Audible
Remote Alarm Contacts (BMS Connectivity for Alarms only) (BMS Connectivity for Temperatures)	Optional Optional
Port Entry	Optional
Battery Back-Up for Controller	Optional
Castors	Yes
Shelves size	530 x 652
Adjustable Shelves	5	10
Door	Solid ⁄ Heated Glass
Door Hinge	RH	LH ⁄ RH
Door Handle	Full Length
Castors or Legs (height increase by 120mm with castors)
** Specifications may change without prior notice **
