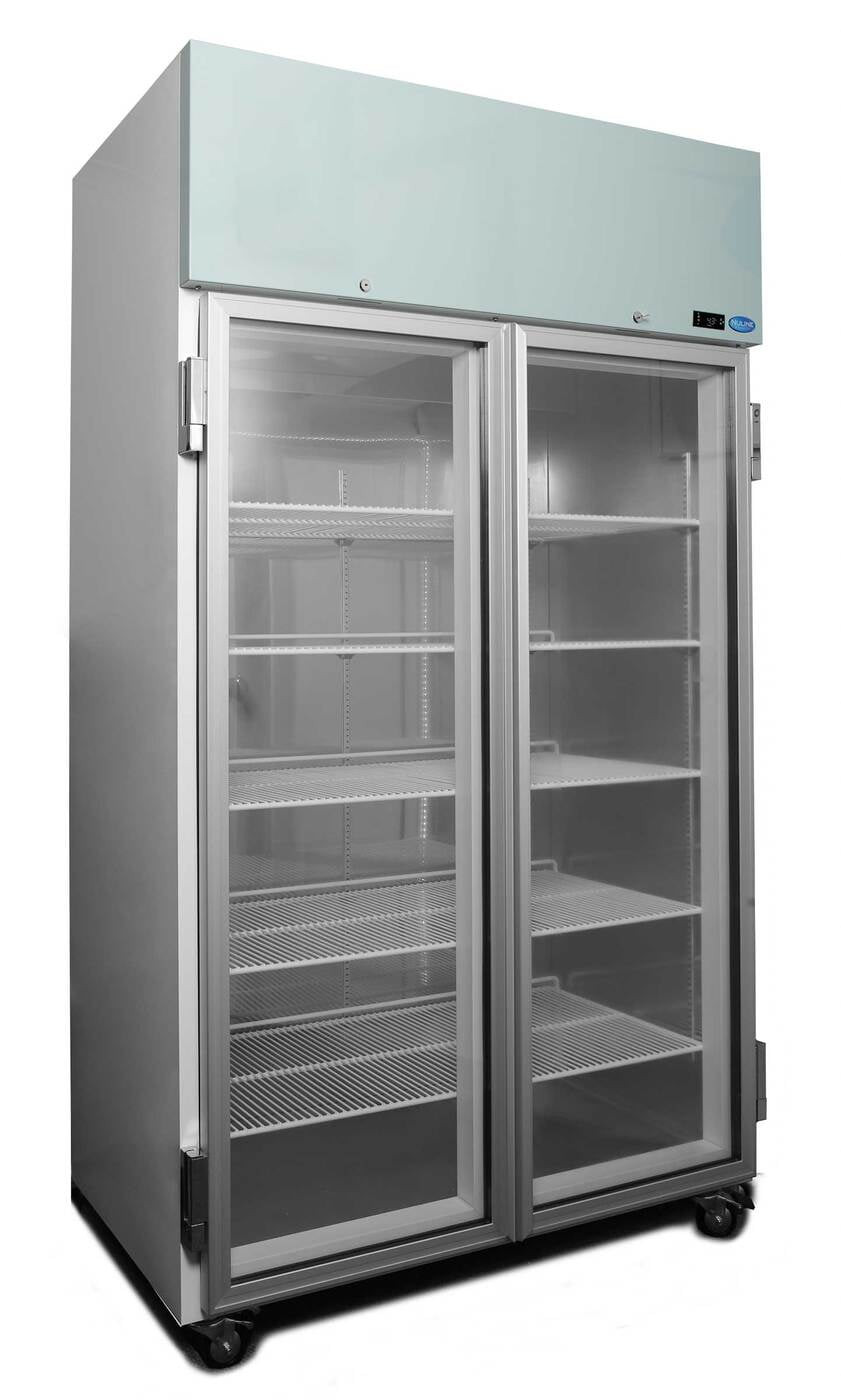

NLAB Laboratory & Medical Refrigerators
NLAB Laboratory, Medical Refrigerator
The NLAB series is another proudly Australian made range of quality cabinets manufactured by in Australia.
NLAB is the premium of the medical & laboratory range. Available in either glass or solid door with stainless steel interior and colour bond exterior.
Adjustable shelves and easy to operate control panel. Voltage free connection and LED lighting are standard features. This model is also available as Intrinsically safe.
Features:- E-Glass & Heated cabinet facia to prevent condensation up to 80% R.H.
- Cabinet temperature range 2°C to 8°C
- Ambient temperature range 10°C to 32°C
- Audible alarm
- Lockable handle
- Automatic Water disposal
- Voltage free alarm connection
- Digital Display with Built in Alarms
- LED illumination
- Hi ⁄ Lo Read out
- TGA Registration
| Top Mounted System |
| Model |
NLAB 1000 ⁄ 2 |
NLAB 1614 ⁄ 3 |
| Capacity |
1000 L |
1614 L |
| External Dimensions (without castors) |
1200w x 700d x 2100h |
1880w x 700d x 2100h |
| Internal Dimensions |
1100w x 550d x 1555h |
1780w x 550d x 1520h |
| Net Weight |
125 Kg |
175 Kg |
| Voltage |
240 V |
| Power Requirement |
10 amp GPO |
| Cooling System ⁄ Defrost |
Fan Forced ⁄ Automatic |
| Refrigerant |
R134a |
Warranty
(*refer to warranty sheet) |
24 Months * |
| Usable Shelf Area in mm (w/d) |
1080 x 530 |
565 x 530 |
| Adjustable Shelves |
5 |
15 |
| Type of Controller |
Digital |
| Temperature Display |
External |
| Data Logger |
Optional |
| Castors |
Yes |
| Exterior Cabinet Finish |
White Colourbond |
| Interior Cabinet Finish |
Stainless Steel |
| High ⁄ Low Readout |
Visual ⁄ Audible |
Remote Alarm Contacts
(BMS Connectivity for Alarms only)
(BMS Connectivity for Temperatures) |
Yes
Optional |
| Port Entry |
Optional |
| Battery Back-up for Controller |
Optional |
| Door |
Solid ⁄ Glass E-Glass |
| Door Hinge |
LH ⁄ RH |
LH ⁄ RH ⁄ RH |
| Light |
LED |
| Castors or Legs (height increase by 120mm with castors) |
| ** Specifications may change without prior notice ** |
Optional Equipment:- Temp Alert & Data Logger, NUL-TA-600-T (using smart phone App)
- Temperature Data Logger, NUL-RC5
- Door ajar alarm, NUL-DA
- Port entry, NUL-PE
- Remote alarm, NUL-VFC
- Chart recorder, NUL-CR
- Battery backup for controller, NUL-BB
- Stainless Steel Interior
- Additional shelves
