NLMB Lababoratory Refrigerator

NLMB1006 is a Premium Quality Pharmacy and Laboratory Refrigerator.

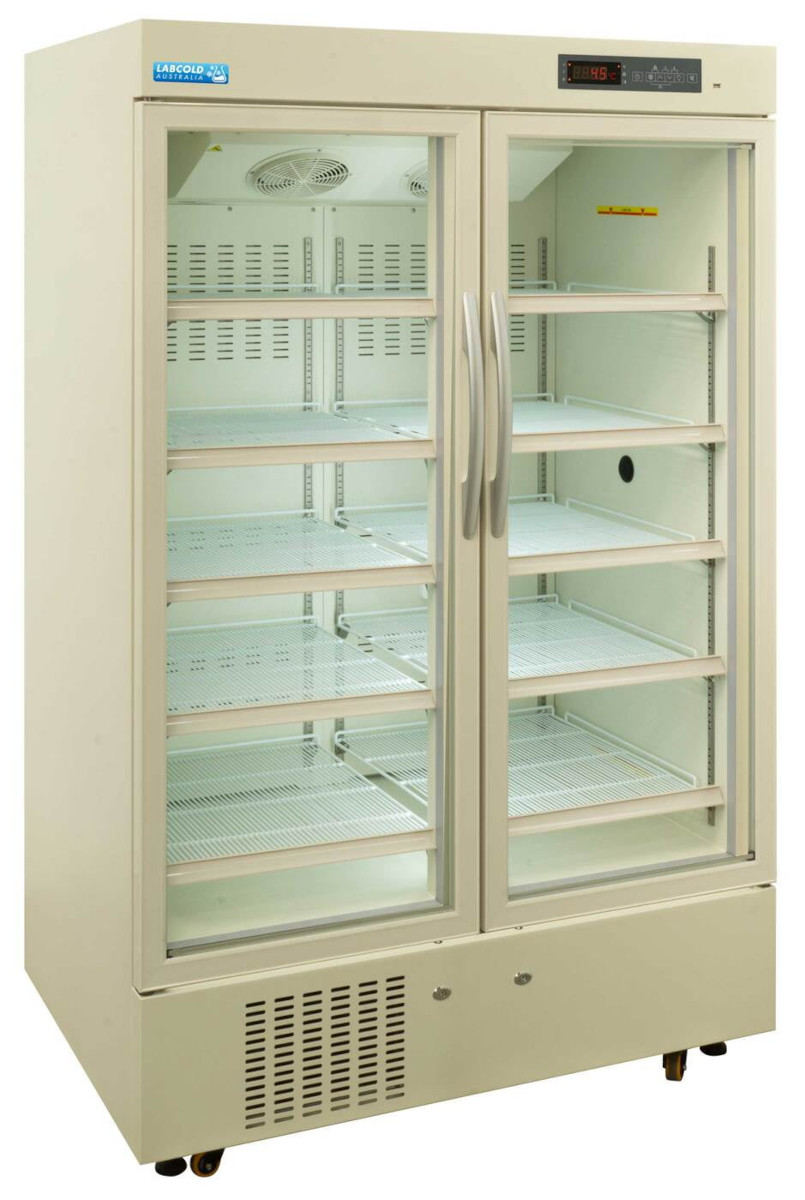

NLMB1006 Laboratory Refrigerator

NLMB1006 ⁄ Laboratory Refrigerator

Choose from our range of Australian made cabinets with built in quality and reliability.

Available in either glass or solid door. Select from our range or have it made to suit your requirements. This cabinet is also available as “Spark Safe” and “Intrinsically Safe”.
“Spark Safe” is for the refrigerator chamber.
“Intrinsically Safe” is the motor and electrical elements on top of the refrigerator away from floor gases.

Standard Features:
Bottom mounted system
Upright Laboratory refrigerator
E-Glass & Heated glass doors to prevent condensation up to 80% R.H.
Digital Display with Built in Alarms
Cabinet temperature range 2°C to 8°C
Ambient temperature range 10°C to 32°C
Even temperature throughout by its fan-forced system
Easy to use, built-in data logger
Door ajar alarms
Automatic Water disposal
Port Entry
Glass or Solid Doors
Interior light LED
Hi ⁄ Lo Read out
Castors
White colourbond interior and exterior finish with Stainless steel interior floor
TGA Registration

Bottom Mounted System
Model	NLMB1006	NLMB ⁄ 3
Capacity	1006 L	1171 L
External Dimensions (ncluding castors)	1220w x 872d x 1865h	1880w x 700d x 2005h
Internal Dimensions	1100w x 684d x 1325h	1780w x 600d x 1350h
Weight	189 Kg	175 Kg
Voltage	240 V 50hZ
Power Requirement	10 amp GPO
Temperature Fluctuation	+⁄- 1.5°C
Cooling System ⁄ Defrost	Fan Forced ⁄ Automatic
Light	Yes
Refrigerant	R600	R134a
Warranty (*refer to warranty sheet)	24 Months *
Usable Shelf size mm	510w x 620d	585w x 530d
Number of Shelves	10	12
Interior ⁄ Exterior Cabinet Finish	Enamelled Steel	White Colourbond
Door	Heated Glass ⁄ Self-Closing	Glass ⁄ Solid
Door Handle	Yes
Type of Controller	Microprocessor
Temperature Display	External ⁄ Digital
Data Logger	Built-in
Door Ajar Alarms	Visual ⁄ Audible
High and Low Readout	Visual ⁄ Audible
Remote Alarm Contacts (BMS Connectivity for Alarms only) (BMS Connectivity for Temperatures)	Yes Optional
Clip on Data Strip	Yes
Port Entry	Yes (25mm)
Battery Back-up for Controller	Yes (lasts approx. 8 hours)
Castors	Yes
Specifications may change without prior notice

Additional Features:
Four (4) rows of PVC coated shelves behind each door
Cabinet temperature is – NLMB 2°C to 8°C

More Bottom Mounted System
Model	NLMB ⁄ 1	NLMB ⁄ 2
Capacity	488 L	820 L
External Dimensions (without castors)	750w x 700d x 1980h	1200w x 700d x 1885h
Internal Dimensions	650w x 600d x 1450h	1100w x 600d x 1350h
Weight	95 Kg	125 Kg
Voltage	240 V	240 V
Power Requirement	10 amp GPO	10 amp GPO
Watts	775W	984W
Refrigerant	R134a	R134a
Warranty (*refer to warranty sheet)	24 Months *	24 Months *
Shelves size	630 x 530	1080 x 530
Number of Shelves	4	4
Digital Display
Castors
Interior ⁄ Exterior Cabinet Finish	White Colourbond	White Colourbond
Insulation	50 mm	50 mm
High ⁄ Low Temperature Alarm
Fan Forced Refrigeration System
Door Lock
Solid Door ⁄ Glass Door
Castors or Legs (height increase by 120mm with castors)
Specifications may change without prior notice
