 NLMS Laboratory Refrigerators



								  NLMS 700 ⁄ 1 Laboratory Refrigerator
								  NLMS 1000 ⁄ 2 Laboratory Refrigerator

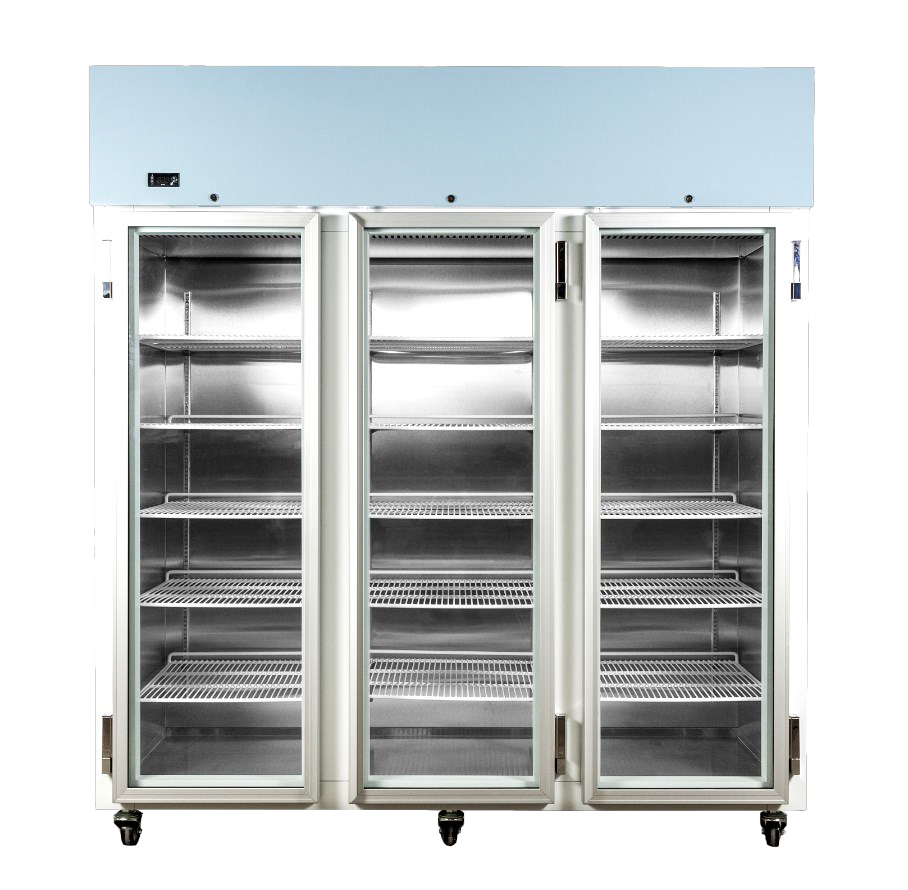

							  NLMS 1614 ⁄ 3 Laboratory Refrigerator

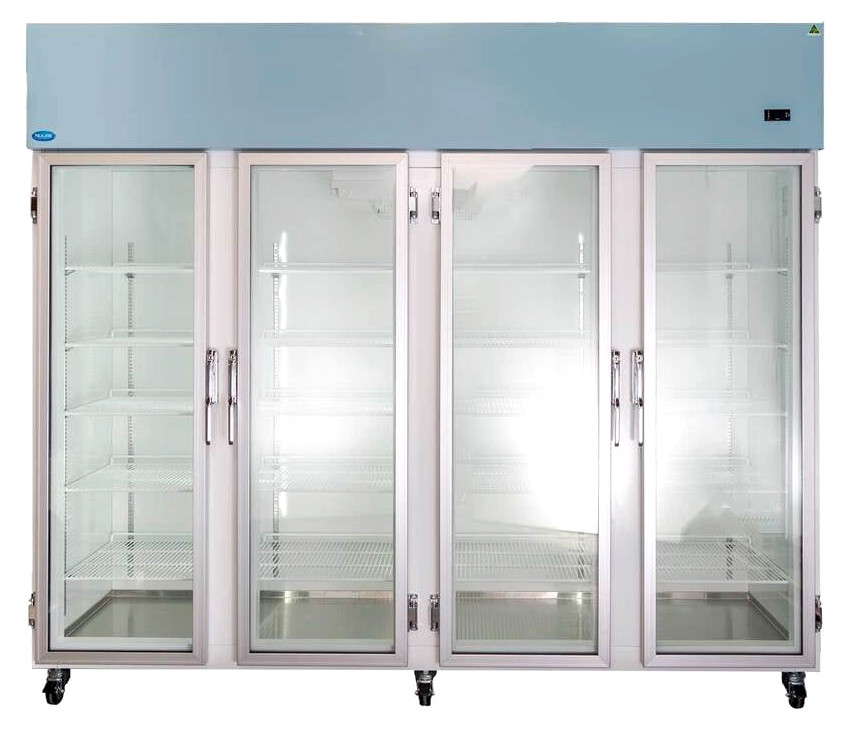

							  NLMS 2170 ⁄ 4 Laboratory Refrigerator Choose from our range of Australian made cabinets with built in quality and reliability.

 Available in either glass or solid door. Select from our range or have it made to suit your requirements.
							This cabinet is also available as “Spark Safe” and “Intrinsically Safe”.
 “Spark Safe” is for the refrigerator chamber.
 “Intrinsically Safe” is the motor and electrical elements on top of the refrigerator away from floor gases.



								Standard Features:Top mounted systemUpright Laboratory refrigeratorE-Glass & Heated cabinet facia to prevent condensation up to 80% R.H.Digital Display with Built in AlarmsCabinet temperature range 2°C to 8°CAmbient temperature range 10°C to 32°CAutomatic Water disposalDouble glazed doorsGlass or Solid DoorsHi ⁄ Lo Read outCastorsWhite colourbond interior and exterior finish with Stainless steel interior floorTGA Registration




									| Top Mounted System |
									| Model | NLMS 700 ⁄ 1 | NLMS 1000 ⁄ 2 |
									| Capacity | 700 L | 1000 L |
									| External Dimensions mm (including castors or legs) | 870w x 700d x 2100h | 1200w x 700d x 2100h |
									| Internal Dimensions mm | 770w x 550d x 1555h | 1100w x 550d x 1555h |
									| Weight | 95 Kg | 125 Kg |
									| Voltage | 240 V | 240 V |
									| Power Requirement | 10 amp GPO | 10 amp GPO |
									| Refrigerant | R134a | R134a |
									| Cooling System ⁄ Defrost | Fan Forced | Fan Forced |
									| Warranty (*refer to warranty sheet)
 | 24 Months * | 24 Months * |
									| Interior ⁄ Exterior Cabinet Finish | White Colourbond | White Colourbond |
									| Door | Solid ⁄ Glass E-Glass | Solid ⁄ Glass E-Glass |
									| Door Hinge | RH | LH ⁄ RH |
									| Door Handle | Lockable | Lockable |
									| Type of Controller | Digital | Digital |
									| Temperature Display | External | External |
									| Data Logger | Optional | Optional |
									| Door Ajar Alarms | Optional | Optional |
									| High and Low Readout | Visual ⁄ Audible | Visual ⁄ Audible |
									| Remote Alarm Contacts (BMS Connectivity for Alarms only)
 (BMS Connectivity for Temperatures)
 | Optional
 Optional
 | Optional
 Optional
 |
									| Port Entry | Optional | Optional |
									| Battery Back-Up For Controller | Optional | Optional |
									| Castors | Yes | Yes |
									| Shelves size | 750 x 530 | 1080 x 530 |
									| Adjustable Shelves | 5 | 5 |
									| Light | LED | LED |
									| ** Specifications may change without prior notice ** |


									| Top Mounted System |
									| Model | NLMS 1614 ⁄ 3 | NLMS 2170 ⁄ 4 |
									| Capacity | 1614 L | 2170 L |
									| External Dimensions mm (including castors or legs) | 1880w x 700d x 2100h | 2400w x 700d x 2100h |
									| Internal Dimensions mm | 1780w x 550d x 1520h | 2300w x 550d x 1520h |
									| Weight | 175 Kg | 195 Kg |
									| Voltage | 240 V | 240 V |
									| Power Requirement | 10 amp GPO | 10 amp GPO |
									| Refrigerant | R134a | R134a |
									| Cooling System ⁄ Defrost | Fan Forced | Fan Forced |
									| Warranty (*refer to warranty sheet)
 | 24 Months * | 24 Months * |
									| Interior ⁄ Exterior Cabinet Finish | White Colourbond | White Colourbond |
									| Door | Solid ⁄ Glass E-Glass | Solid ⁄ Glass E-Glass |
									| Door Hinge | LH ⁄ RH ⁄ RH | LH ⁄ RH ⁄ LH ⁄ RH |
									| Door Handle | Lockable | Lockable |
									| Type of Controller | Digital | Digital |
									| Temperature Display | External | External |
									| Data Logger | Optional | Optional |
									| Door Ajar Alarms | Optional | Optional |
									| High and Low Readout | Visual ⁄ Audible | Visual ⁄ Audible |
									| Remote Alarm Contacts (BMS Connectivity for Alarms only)
 (BMS Connectivity for Temperatures)
 | Optional
 Optional
 | Optional
 Optional
 |
									| Port Entry | Optional | Optional |
									| Battery Back-Up For Controller | Optional | Optional |
									| Castors | Yes | Yes |
									| Shelves size | 565 x 530 | 575 x 530 |
									| Adjustable Shelves | 15 | 20 |
									| Light | LED | LED |
									| ** Specifications may change without prior notice ** |


						Optional Equipment:Temp Alert & Data Logger, NUL-TA-600-T (using smart phone App)Temperature Data Logger, NUL-RC5Door ajar alarm, NUL-DAPort entry, NUL-PERemote alarm, NUL-VFCChart recorder, NUL-CRBattery backup for controller, NUL-BBStainless Steel InteriorAdditional shelves
 NLMBS Laboratory Refrigerators

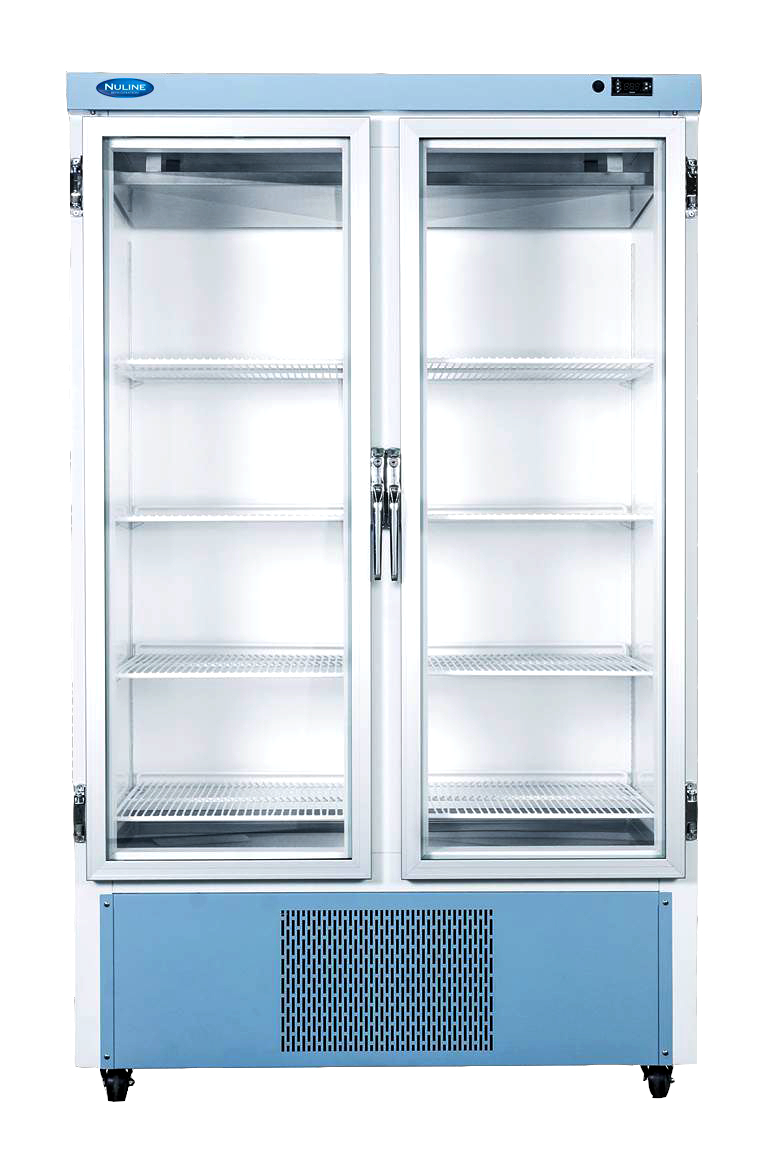

								  NLMBS 1000 ⁄ 2 Laboratory Refrigerator, Spark Safe

								Additional Features:Four (4) rows of PVC coated shelves behind each doorTotal 12 shelves in the 3 door modelCabinet temperature is – NLMBS 2°C to 8°C
								Features as for NLMSOptional Equipment as for NLMS
								Additional Features:Bottom Mounted Condensing UnitNo Lighting as spark safeLockable Door Handles


							| Bottom Mounted System – Spark Safe models |
							| Model | Ext. Dimensions (mm) | Int. Dimensions (mm) | Capacity | Door |
							| NLMBS ⁄ 2 | 1200W x 700D x 1885H | 1100W x 600D x 1350H | 820 | 2 Glass ⁄ Solid |
							| NLMBS ⁄ 3 | 1880W x 700D x 1885H | 1780W x 600D x 1350H | 1171 | 3 Glass ⁄ Solid |
							| height increase by 120mm with castors |
