Relax ⁄ Lippe Home Care Bed

Burmeier
Relax senior bed – The convertible dream bed for seniors.

The Relax Bed — a personal bed for the elderley


Relax Bed

Attractive wood decors for every style of home design


The combinable senior bed – the Relax wooden bed frame promotes an atmosphere of well-being


Relax is a cosy wooden bed frame that can be combined with the bed inserts from our Lippe range or an electrically adjustable slatted frame. Pilasters of the head and foot sections, as well as the grip rail in the foot section are made of solid beech wood.
Panels and bed sides in decorative finish (choice of 2 different finishes).


Relax Double Bed
Relax Double Bed

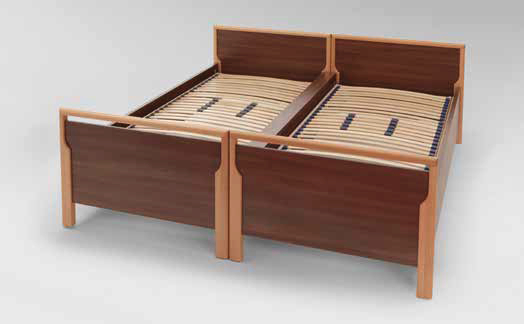

Two single beds can be pushed together to form a double bed.

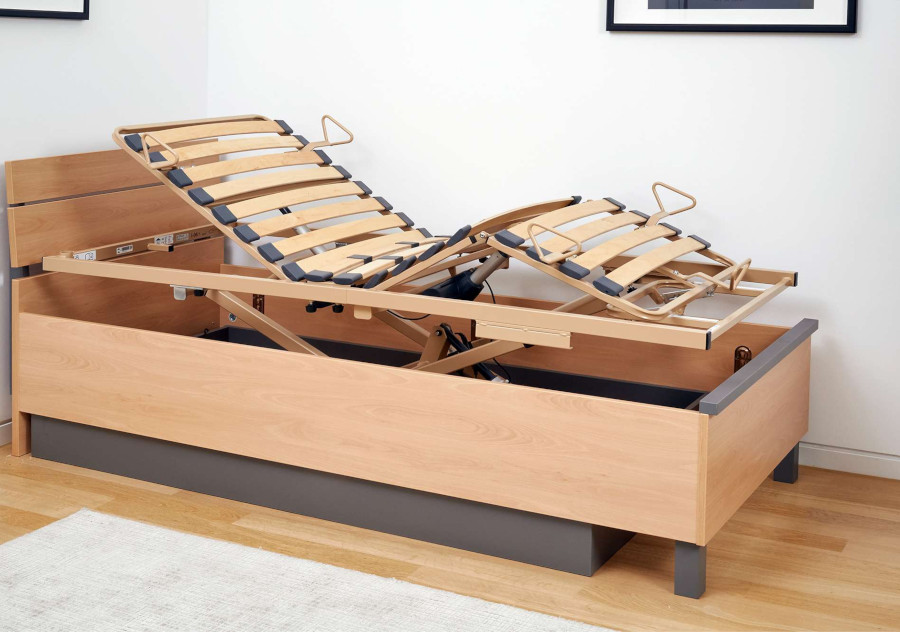

One or both of the single "Relax" beds can have the height–adjustable "Lippe" insert.


  • The advantages of the "Relax" bed for you

    • DOUBLE BED – Two Relax bed frame surrounds can be combined to create a double bed which enables partners to use different bed inserts to suit their own particular requirements. The gap between them can be closed with a wooden cover.
    • WELL-BEING – The decors available for the Relax blend well with the furniture made by Burmeier – enabling an entire bedroom to be furnished from a single source.
    • FLEXIBILITY – The Relax is a flexible companion in later life, and its mattress base can be adapted progressively to meet current needs.

    An advantage of wooden slats is they have the ability to curve downwards and to adjust to fit your body shape. Therefore they are more comfortable than a rigid metal bed frame; the flexibility of the natural wood slats can replace some of the spring action of an innerspring mattress and emsemble base, so emsemble base is not necessary. The bed will be thinner and have storage space under the bed.

    • Side height of 45 cm (without mattress), for easy entry and exit
    • A handle bar along the top of the footboard provides support when sitting on the bed or standing next to it
    • Optional wood cover to bridge the middle gap of a double bed

  • Motor-driven slatted frame for comfort

    Relax Bed with manual frame Relax Bed with powered frame Relax Bed with powered frame

    The "Relax" single bed with slatted frame, can have manually adjustable back and leg support.

    Or it can come with a motor–driven frame, back and leg support with power–assisted adjustment.

    Relax bed surrounds can be combined to create a double bed, whereby the middle gap can be covered with an optional wood cover.


    The Relax bed surround with its attractive wood combinations blends beautifully into any setting. The frames of the head and footboards are always made from solid beech. For the side panels and the head and footboard panels, there are attractive wood decors to choose from.



  • Solid wood panels and frame adjustment

    Beds ends in Beech and Bella Noce    Relax Bed Frame Adjustment

    Frame in solid beech wood, panels and bed sides in “Bella Noce” finish.



    Height of mounting bars for slatted frame can be adjusted in 4 stages (of 2 cm each). Lowest height is 26 cm. (Standard version — no extra charge).



  • Safe living at home 24 Volt Drive System as standard


    Dali Standard Care Bed SwitchMode

    The SwitchMode voltage transformer produces a protective low voltage of 24 volts directly at the socket.


    Dali Standard Care Bed SwitchMode Chart

    Burmeier’s 24 volt drive system provides an ideal safety standard for caring for people in care. All live 230 volt components are safely housed away from the bed. Immediately downstream of the mains plug is a housing containing the SwitchMode electronic voltage transformer. This means that residents enjoy a very high level of safety.

    LIVING SAFELY AT HOME

    Strong Advantages

    Dali Standard Care Bed 24V system
    • Protective low voltage from the transformer at the wall socket
    • No 230 volt carrying components on the care bed
    • No leakage current measurement after assembling or during the expected service life of the bed
    • A test certificate is available for downloading for every bed

    The bed has no current-carrying components except when the handset is in use. Energy consumption drops by up to 93%. Even more costs and effort are saved by the fact that leakage current measurements, certified by TÜV Rheinland, are no longer necessary.

    When care beds are being commercially used, the required leakage current measurements must be performed every 2 years. The use of the 24 volt system prolongs this interval to such an extent that measurements are not necessary at all within the expected service life of the bed. The applicable service life is given in the operating instructions. Leakage current measurements are not even required when putting the bed into service for the first time, as this has already been taken care of in the factory.

    There is also no need for an electrically trained person to be involved in assembling the bed — this saves the bed operator additional costs.






Lippe IV for the Relax bed surround


Relax Bed

Comfort and safety in your own bed


Handset

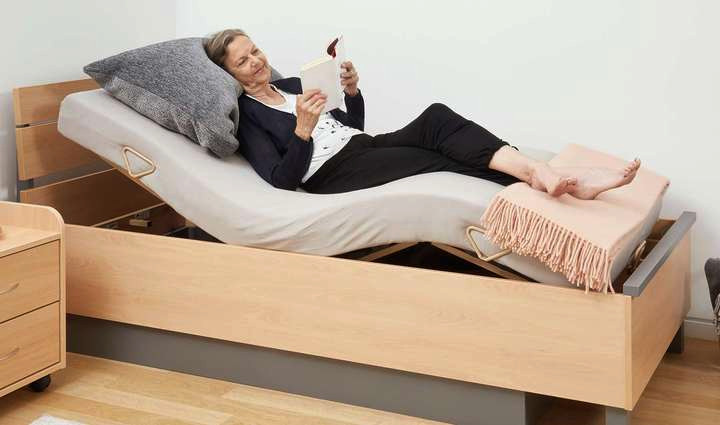

The Lippe VI bed insert is easy to insert into an existing bed frame and offer all the benefits of an electrically adjustable care bed.



Homelike Comfort – Thanks to their space-saving chassis, all Lippe models fit into virtually any existing bed and usually remain invisible, and thus do not detract from the familiar appearance of the bedroom.

  • Compelling advantages of the Lippe IV bed for you


    • The mattress base has four sections, motorised adjustment and supports a safe working load of 200 kg.
    • Four-section mattress base with sprung wooden slats for regenerative sleep and added comfort when reading or watching TV.
    • The large height adjustment range, from a low 29 cm up to 74 cm, makes getting out of bed easy and allows carers to work at an ergonomically ideal height.
    • The handset with selective locking function makes safe, intuitive operation possible.
    • The distance between opposing mattress clamp handles can be widened by 10 cm. The mattress clamp handles can be detached.
    • A fifth mattress clamp handle at the foot end gives the mattress additional support.
    • The lower leg support remains horizontal when the thigh rest is raised. It can be lowered with the help of a ratchet mechanism.
    • There are adaptor sleeves on both sides, for the patient lifting pole and a reading lamp.
    • Four feet with floor-level adjustment screws and fastening lugs ensure the bed insert is stable.

    icons icons icons icons


Relax Bed

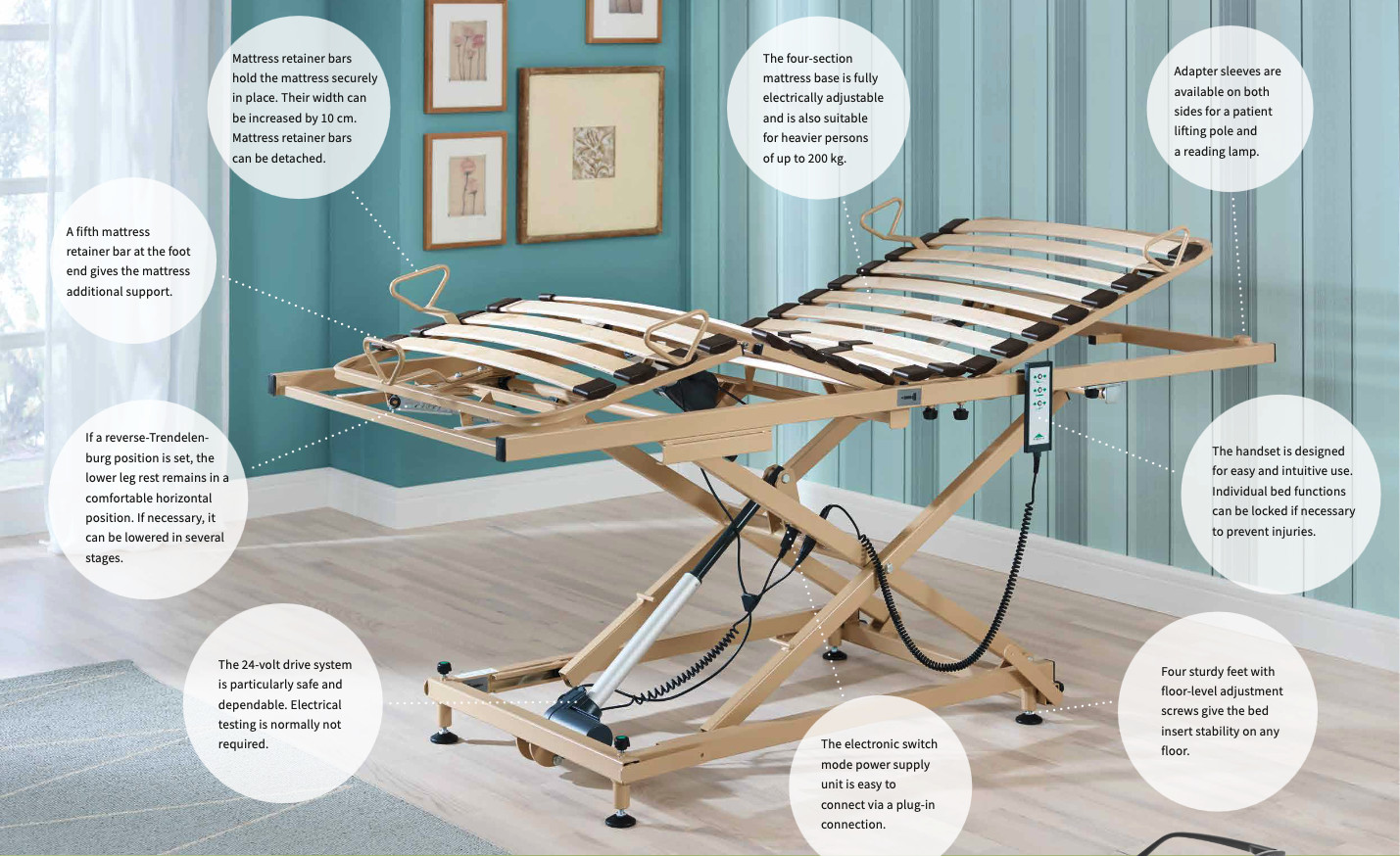

There are adaptor sleeves on both sides, for the patient lifting pole and a reading lamp.

A socket is
provided for easy connection of the SwitchMode electronic switched-mode power
supply.

A fifth mattress clamp handle at the foot end gives the mattress additional support.

Mattress base
has four sections, motorised adjustment and supports a safe working load of
200kg.

Distance between opposing mattress clamps can be widened by 10cm. The mattress clamps can be detached.

Safe 24-volt
drive system
doesn’t require leakage current testing beyond the expected service
life of the bed.

Lower leg support remains horizontal when the thigh rest is raised. Lowered with the help of a
ratchet.

Four feet with
level adjustment screws and fastening lugs ensure the bed
is stable.

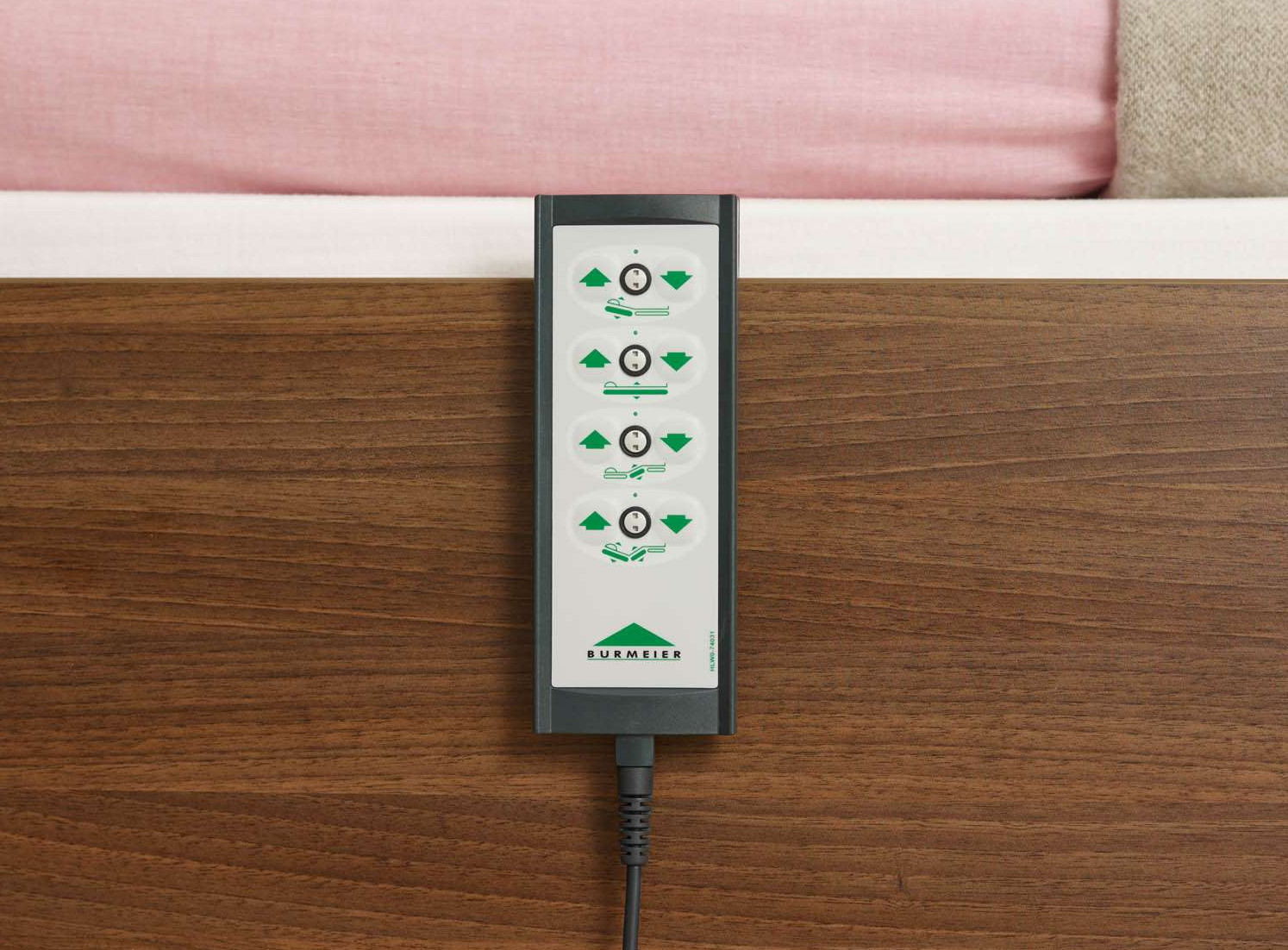

Handset — selective locking function
makes safe, intuitive operation possible.






Lippe 120 ⁄ 140 –
Space and comfort in any circumstances


Lippe 120 140 Bed

More room than any care bed


Some people find it difficult to switch to a conventional care bed because this often means they will have less space. If you have slept in a double bed for decades, you may feel rather confined in a single bed. The Lippe IV 120 ⁄ 140 solves this problem.

  • Compelling advantages of the "Lippe" 120 ⁄ 140 bed for you

    With a mattress base width of 120 or 140 cm, the person in need of care has plenty of space and can continue enjoying their usual quality of life without any restrictions. And this model also fits into many wider bed surrounds.


    • Large height adjustment range, from 29 to 74 cm, for fall prevention and ergonomic care
    • Metal slats in the mattress base can be easily and thoroughly cleaned and are designed to support a weight of up to 250 kg.
    • Floor-level adjustment screws ensure good stability
    • Economic and safe 24-volt drive system.

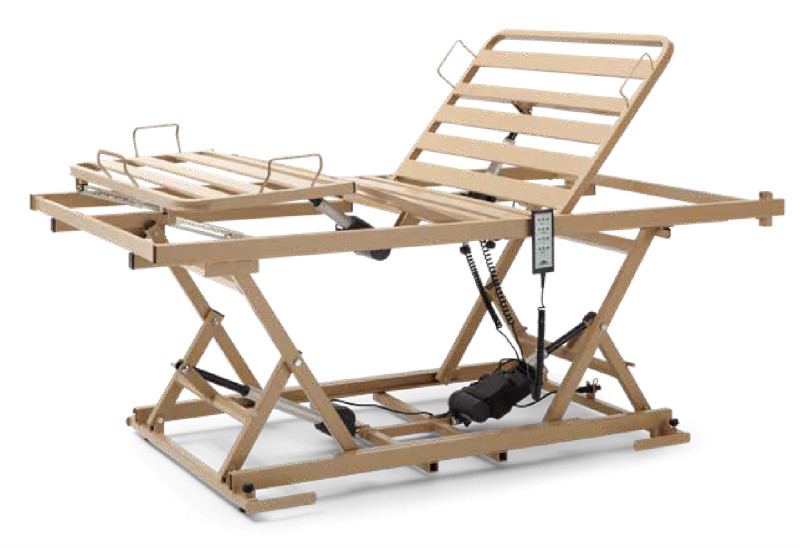

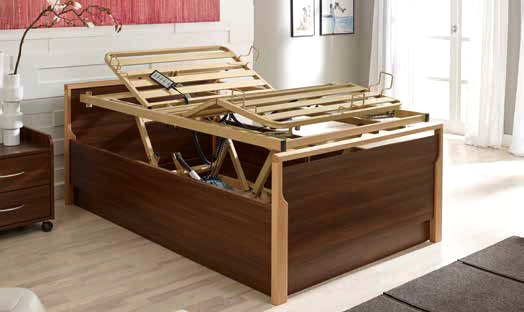

    Lippe 120 140 base    Lippe 120 140 adjust bearings

    Even the wide models, Lippe 120 and 140, can be combined with our Relax bed surround.

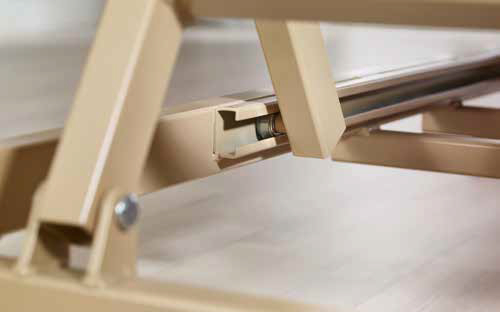

    The height adjustment mechanism rests on ball bearings and functions safely, gently and quietly.

    Lippe 120 140 feet    Lippe 120 140 adjust bearings

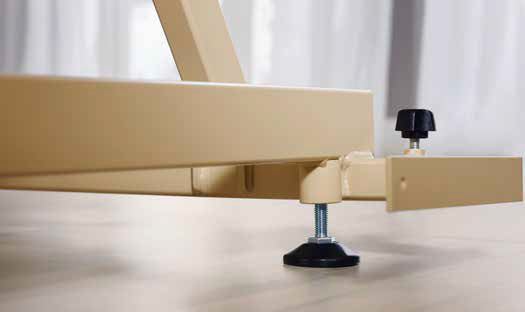

    Floor-level adjustment screws and lugs are provided as standard to ensure a stable footing.

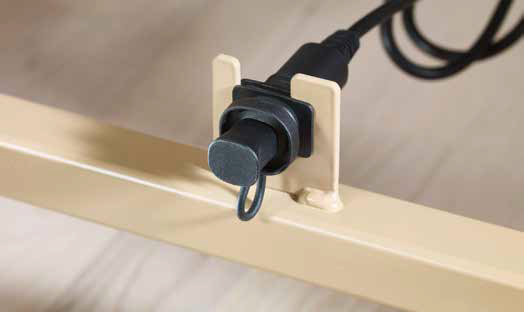

    A power socket is provided for easy connection of the switchedmode power supply to the bed insert.


    icons icons icons icons



  • Dimensions – Lippe IV and Lippe 120 ⁄ 140

    Lippe Bed dimensions

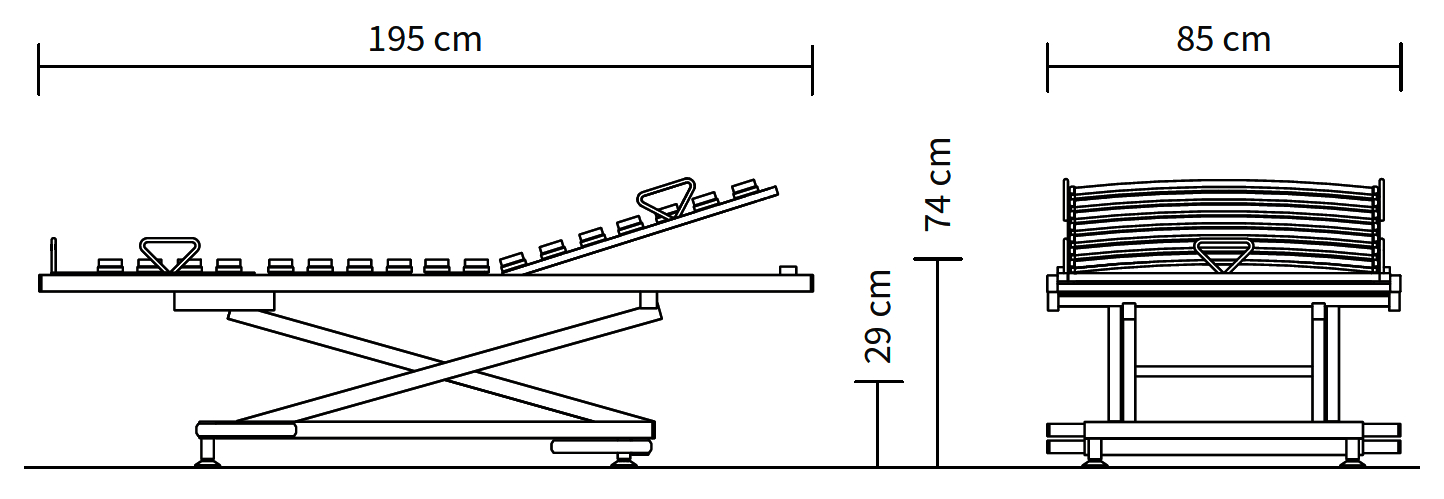

    Dimensions Lippe IV

    Lippe Bed dimensions

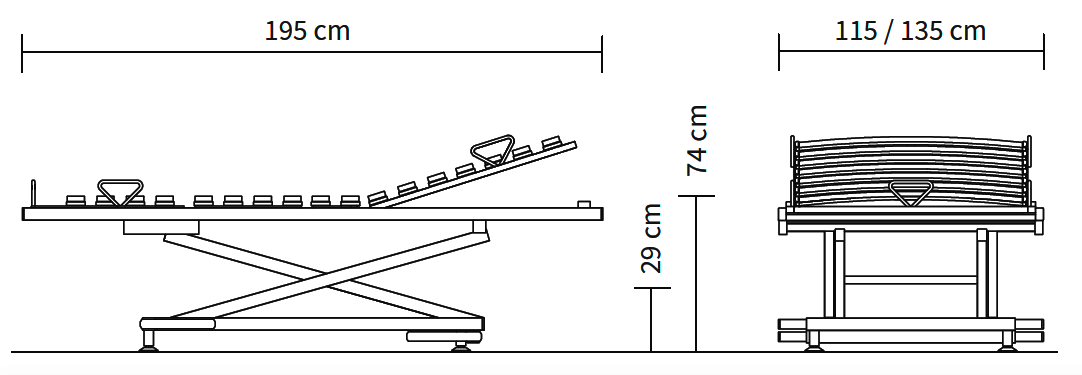

    Dimensions Lippe 120 ⁄ 140



  • Accessories – for more vitality and security in everyday life

    Lippe Bed lamp Lippe Bed lamp Lippe Bed pole

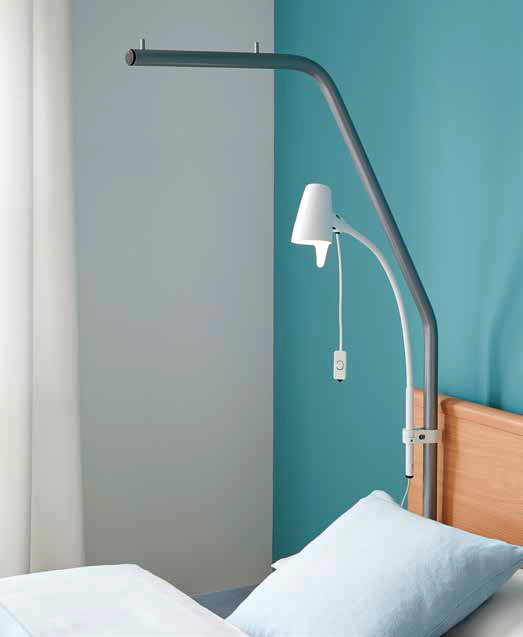

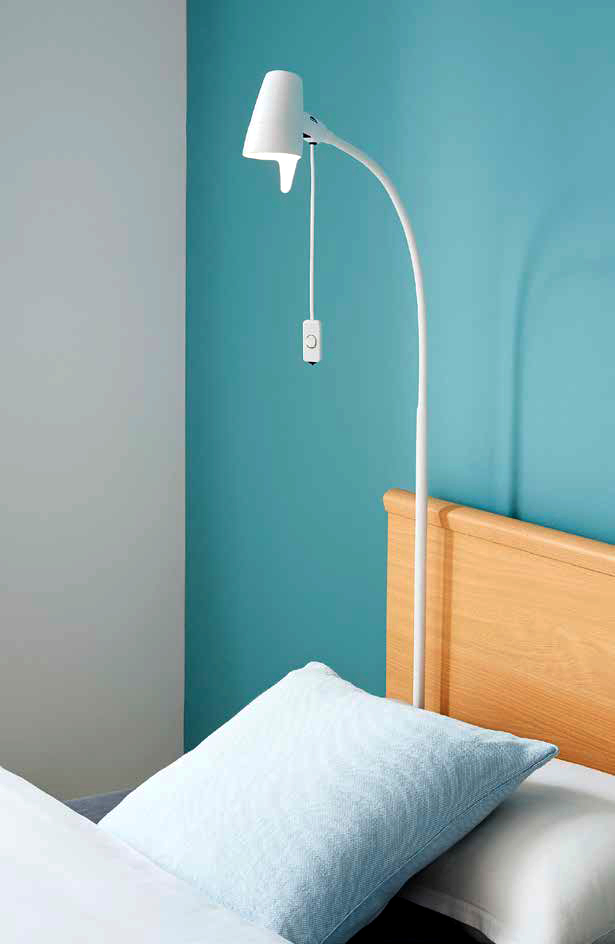

    The Sola reading lamp radiates a pleasant light and generates very little heat. It can be fitted to the patient lifting pole or into the connection sleeve.

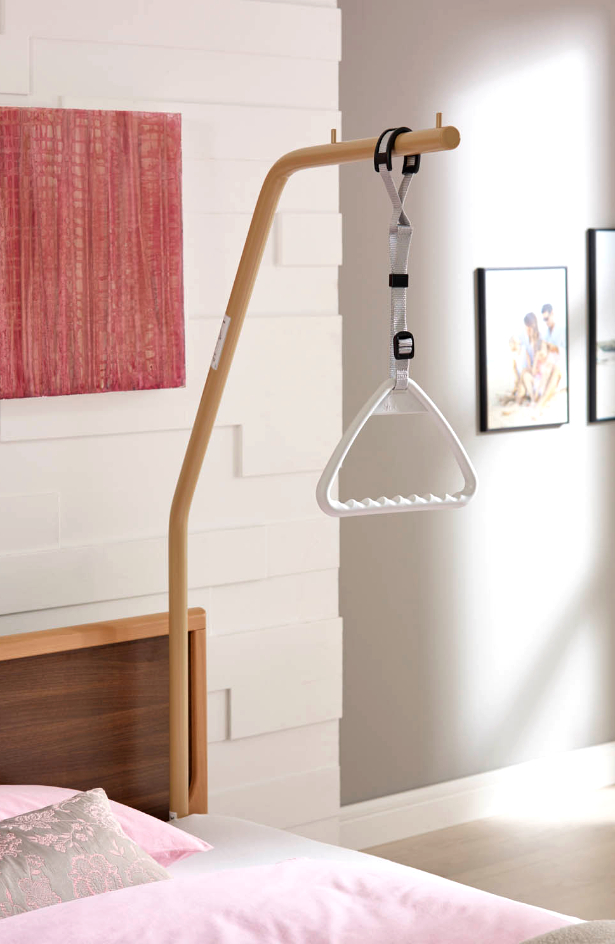

    The patient lifting pole helps the occupant of the bed to get comfortably positioned.

    Lippe Bed aid Lippe Bed feet Lippe Bed feet

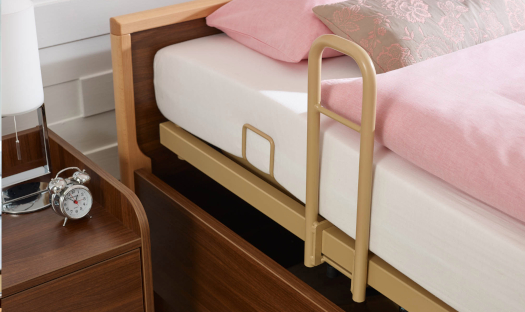

    The optional aid to standing up promotes residents’ mobility.

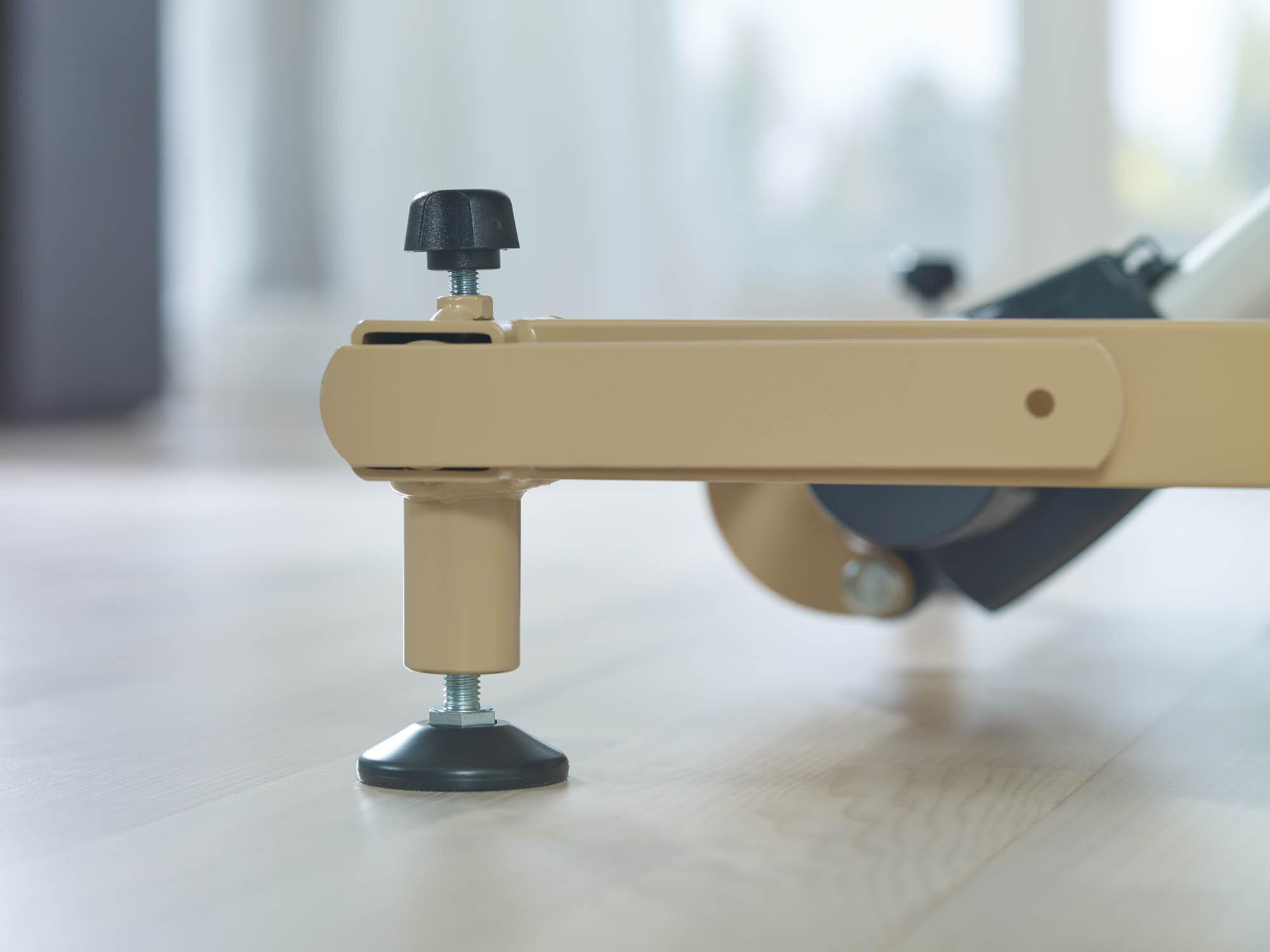

    Feet with floor-levelling screws ensure excellent stability.

    Optional adjustable feet make it possible to raise the bed insert by up to 7 cm.

    Lippe Bed aid Lippe Bed feet

    A 20cm bed extension is available for Lipp 120 ⁄ 140

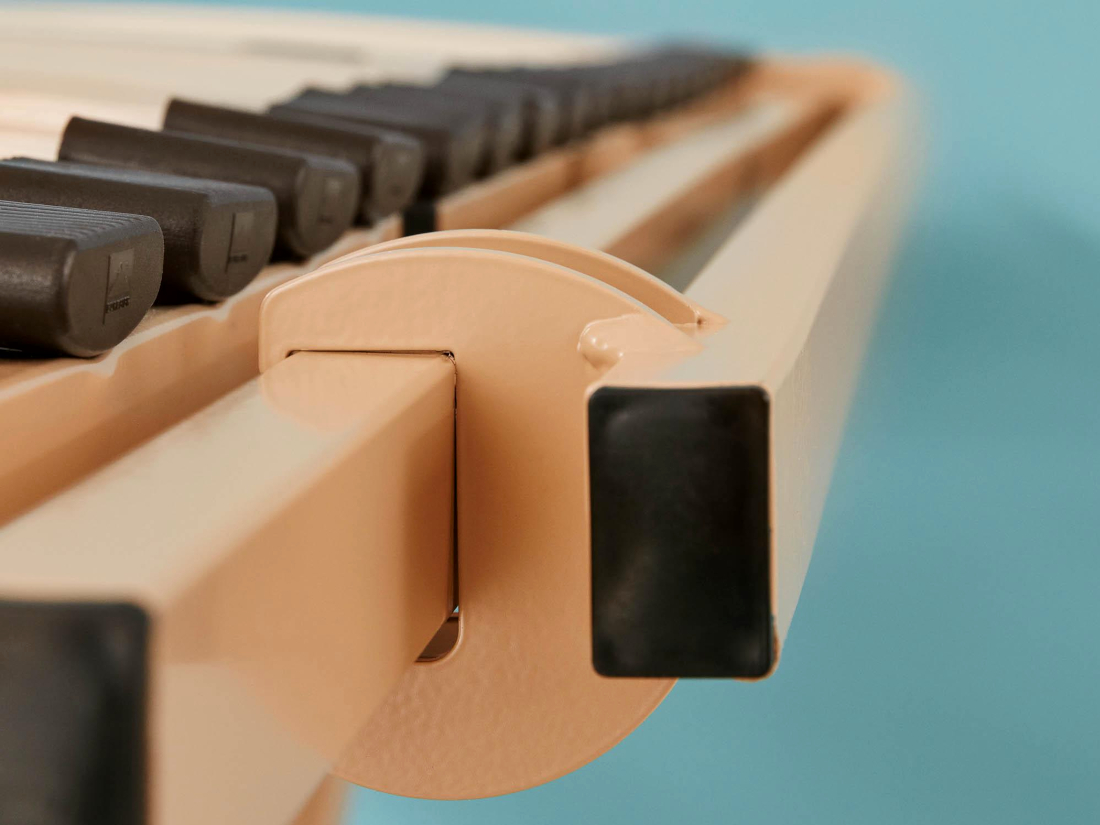

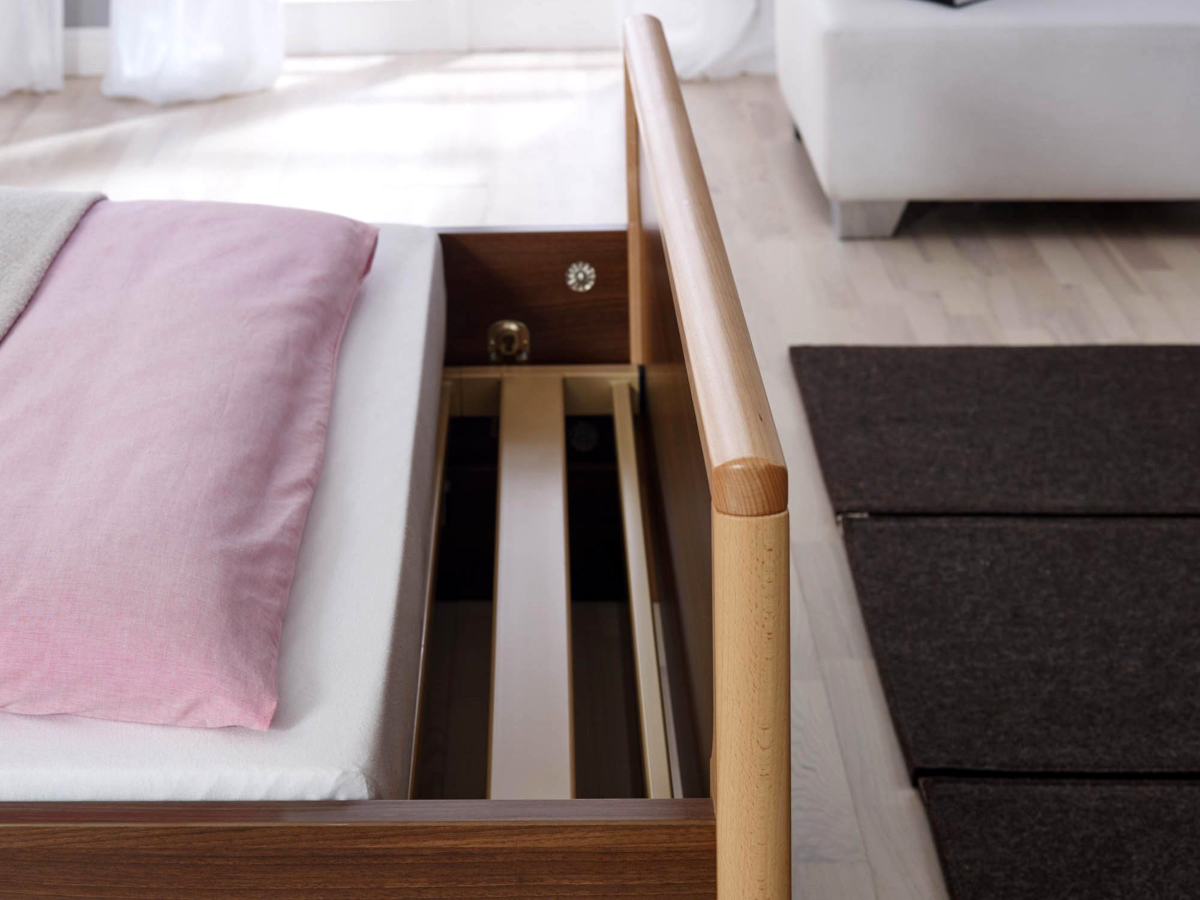

    The optional widening rails that add 5cm per side to the Lippe IV, the mattress base of the Lippe IV can be widened.






  • Relax Care Bed Codes

    EV94B3RXBB Relax Bed Frame 90 x 200cm (Beech Bella Noce)
    EV94B3RXBBG Relax Bed Frame 140 x 200cm (Beech Bella Noce)
    EV94B3RXBBM Relax Bed Frame 120 x 200cm (Beech Bella Noce)
    EV94B3RXBBW Relax Bed Frame 100 x 200cm (Beech Bella Noce)
    EV94B3RXBM Relax Bed Frame 90 x 200cm (Beech Maple)
    EV94B3RXBMG Relax Bed Frame 140 x 200cm (Beech Maple)
    EV94B3RXBMM Relax Bed Frame 120 x 200cm (Beech Maple)
    EV94B3RXBMW Relax Bed Frame 100 x 200cm (Beech Maple)
    Inserts
    EV94B3SEF Sinus Electric Adjust slatted Bed Frame Insert, 90cm
    EV94B3SMF Sirius Manual Adjust slatted Bed Frame Insert, 90cm
  • Lippe IV Care Bed Codes

    EV94B3LE Lippe IV Bed Frame insert 90 x 200cm
    EV94B3LEG Lippe IV Bed Frame insert 140 x 200cm
    EV94B3LEM Lippe IV Bed Frame insert 120 x 200cm
    EV94B3LEW Lippe IV Bed Frame insert 100 x 200cm
  • Lippe IV Equipment and options

    Model variant Lippe IV Lippe IV washable Lippe 120 ⁄ 140 Relax
    Mattress base widths 80 ⁄ 90 ⁄ 100cm 90cm 120 ⁄ 140cm 90 ⁄ 100 ⁄ 120 ⁄ 140cm
    Mattress base lengths 190 ⁄ 200cm 190 ⁄ 200cm 200 ⁄ 220cm 200 ⁄ 220cm
    Height adjustment 29 to 74 cm 29 to 74 cm 29 to 74 cm
    Safe working load 200kg 200kg 250kg
    2 connection sleeves at head end tick tick tick o3)
    5th mattress clamp handle at foot end tick tick tick o3)
    CDC coating tick
    Feet with floor-level adjustment screws and fixing lugs tick tick tick
    Selectively lockable handset tick tick tick o3)
    Transmitter holder for handset o o o1)
    Extension cable for handset (240cm) o o o1)
    Rastomat for lower leg rest tick tick tick o1)
    Sprung wooden slat mattress base tick o1)
    Metal slat mattress base tick tick o2)
    Motorised frame o
    Linak 24-volt drive system tick tick tick o3)
    Sola reading lamp o o o o3)
    Patient lifting pole with triangular grab handle o o o o3)
    Standing aid o o o o3)
    Adjustable safety side o o1)
    Lippe safety side o o1)
    Bed extension 20cm o o4)
    Widening rail 5cm o o1)
    Taller mattress clamp handles (approx. 19cm) o o o o3)
    Transportation and storage aid o tick
    tick = Standard   o = Optional   — = Not available
    1) Combined with Lippe IV
    2) With Lippe-Wash and Lippe 120 ⁄ 140
    3) With all Lippe bed inserts
    4) Dimensions 120 x 220 cm and 140 x 220 cm for extended Lippe 120 ⁄ 140 available
