Drug & Vaccine Fridges

Combining the advantages of modern frost free refrigeration and automatic temperature control.

Nuline Logo

email Email for more information.

HR200 Drug & ⁄ or Vaccine Refrigerator


HR200 Drug Refrigerator

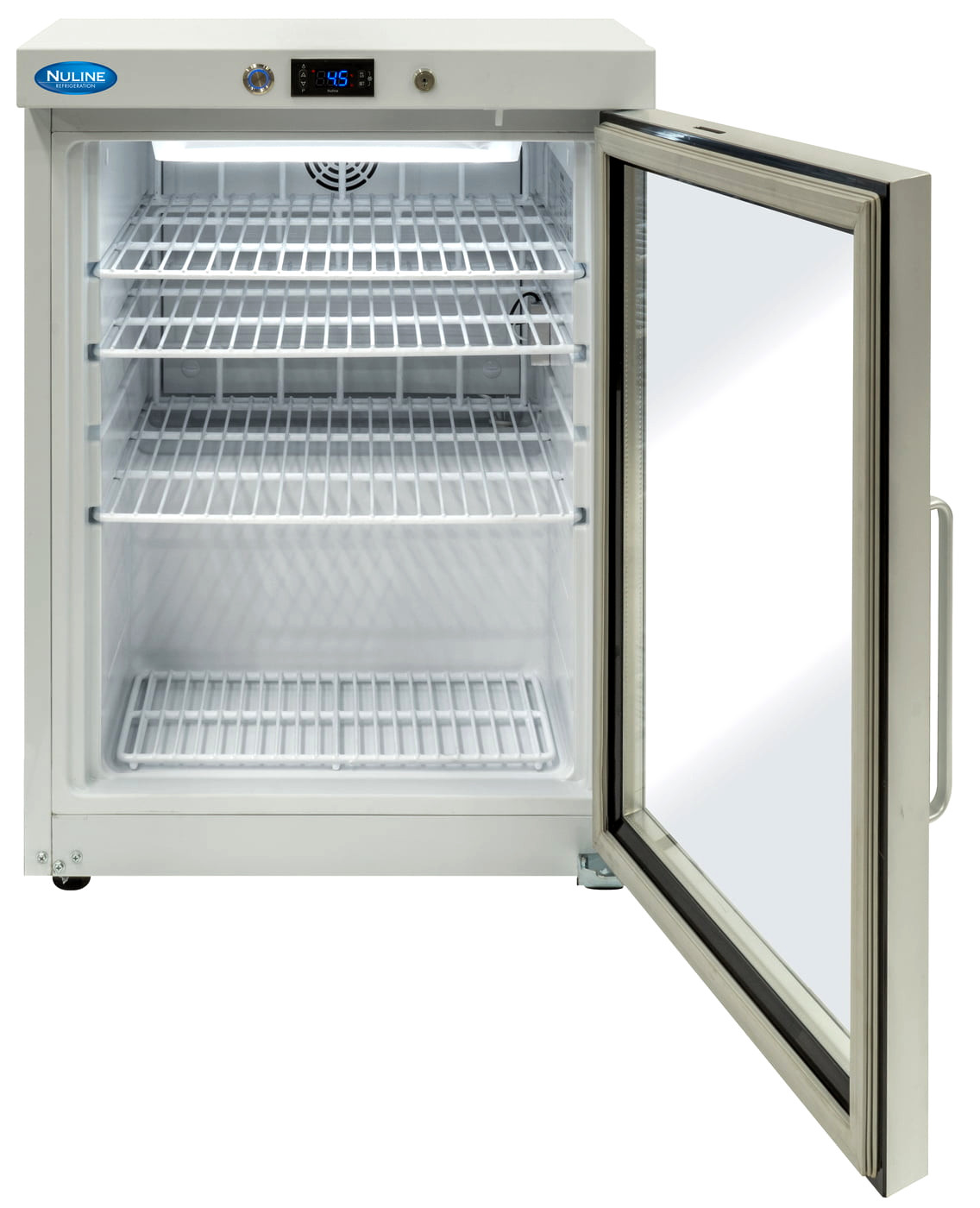

HR200G Glass Door Model


The HR200 combines the advantages of modern frost free refrigeration and automatic temperature control.

  • QCPP (Quality Care Pharmacy Program) Approved
  • 135 Litre Capacity Refrigerator
  • Temperature Range: 2°C to 8°C
  • Ambient Temperature Range: 10°C to 32°C
  • Bottom mounted system
  • Built in Alarm
  • Remote alarm contacts (Alarms only)
  • Low noise — only 45 dBA
  • Cleaning once per year (depending on location)
  • Larger product stopper at rear of shelf — 75mm high
  • Digital Controller⁄Temperature Indicator – High and Low readout
  • Data Logger Included
  • Fan Forced ⁄ Automatic Defrost
  • Door Lock
  • RH Door Hinge
  • As a standard fitting when facing the door, the door hinge is Right Hand and the door handle is on the Left Hand. It is an option to have the door reversed.
  • Interior lighting
  • 3 Adjustable shelves plus Base shelf
  • Auto defrost & water disposal
  • Levelling Legs
  • TGA Registration

Specifications
Storage Capacity 135 litre
Exterior Dimensions (WxDxH)
(w⁄d⁄h including castors or legs)
595 x 650 x 830mm
Interior Dimensions (WxDxH) 455 x 445 x 665mm
Gross Weight (Weight Packed) 48kg
Net Weight 45kg
Voltage 240 V
Power Requirement 10 amp GPO
Energy Consumption 237 kWh⁄y
Watts 81W
Refrigerant R600a
Warranty
Refer to warranty sheet
24 Months*
Shelves size (3) 455 x 405 & (1) 438 x 202
Number of Shelves 4
Digital Display tick
Exterior Cabinet Finish White Enamelled Steel
Interior Liner Material ABS
High ⁄ Low Temperature Alarm tick
Fan Forced Refrigeration System tick
Door Lock tick
Solid Door ⁄ Glass Door tick
** Specifications may change without prior notice **

Product Codes
HR200 With Solid Door
HR200G Glass Door with Voltage Free Connection to allow connection to an external alarm
HR200V Solid Door with Voltage Free Connection to allow connection to an external alarm

Click for Brochure pdf

 Call us 07 3355 8000



top Return to top of page


HR400 Drug & ⁄ or Vaccine Refrigerator


HR400 Drug Refrigerator

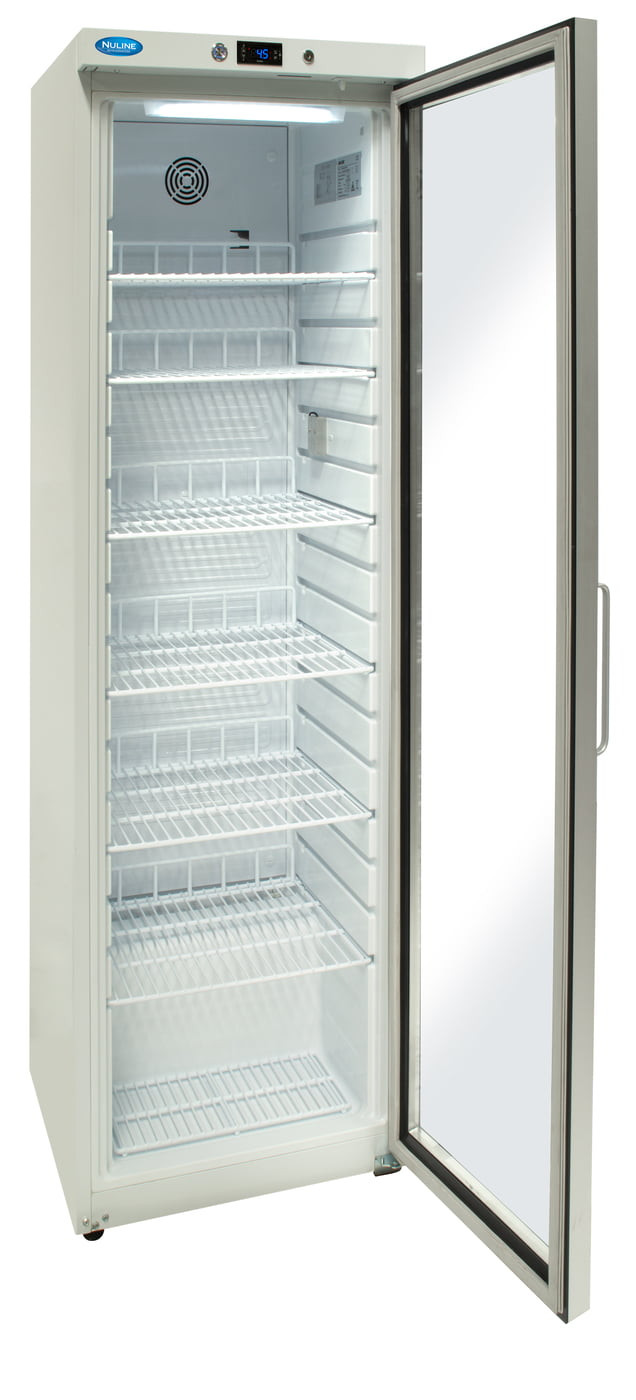

HR400G Glass Door Model


The HR400 combines the advantages of modern frost free refrigeration and automatic temperature control.

  • QCPP (Quality Care Pharmacy Program) Approved
  • 350 Litre Capacity Refrigerator
  • Temperature Range: 2°C to 8°C
  • Ambient Temperature Range: 10°C to 32°C
  • Bottom mounted system
  • Built in Alarm
  • Remote alarm contacts (Alarms only)
  • Low noise — only 45 dBA
  • Cleaning once per year (depending on location)
  • Larger product stopper at rear of shelf — 75mm high
  • Digital Temperature Indicator – High and Low readout
  • Data Logger Included
  • Fan Forced ⁄ Automatic Defrost
  • Door Lock
  • As a standard fitting when facing the door, the door hinge is Right Hand and the door handle is on the Left Hand. It is an option to have the door reversed.
  • Interior lighting
  • 9 Adjustable shelves
  • Auto defrost & water disposal
  • Levelling Legs
  • TGA Registration

Specifications
Storage Capacity 350 litre
Exterior Dimensions (WxDxH)
(w⁄d⁄h including castors or legs)
595 x 650 x 1850mm
Interior Dimensions (WxDxH) 455 x 445 x 1685mm
Gross Weight 85kg
Net Weight 77kg
Voltage 240 V
Power Requirement 10 amp GPO
Energy Consumption 330 kWh/y
Watts 178W
Refrigerant R600a
Warranty
Refer to warranty sheet
24 Months*
Shelves size (9) 455 x 405 & (1) 438 x 202
Adjustable Shelves 9
Digital Display tick
Exterior Cabinet Finish White Enamelled Steel
Interior Liner Material ABS
High ⁄ Low Temperature Alarm tick
Fan Forced Refrigeration System tick
Door Lock tick
Solid Door ⁄ Glass Door tick
** Specifications may change without prior notice **

Product Codes
HR400 With Solid Door
HR400G With Glass Door
HR400V Solid Door with Voltage Free Connection to allow connection to an external alarm
HR400GV Glass Door with Voltage Free Connection to allow connection to an external alarm



 Call us 07 3355 8000




Click for Brochure pdf



top Return to top of page


HR600 Drug & ⁄ or Vaccine Refrigerator


HR600 Drug Refrigerator

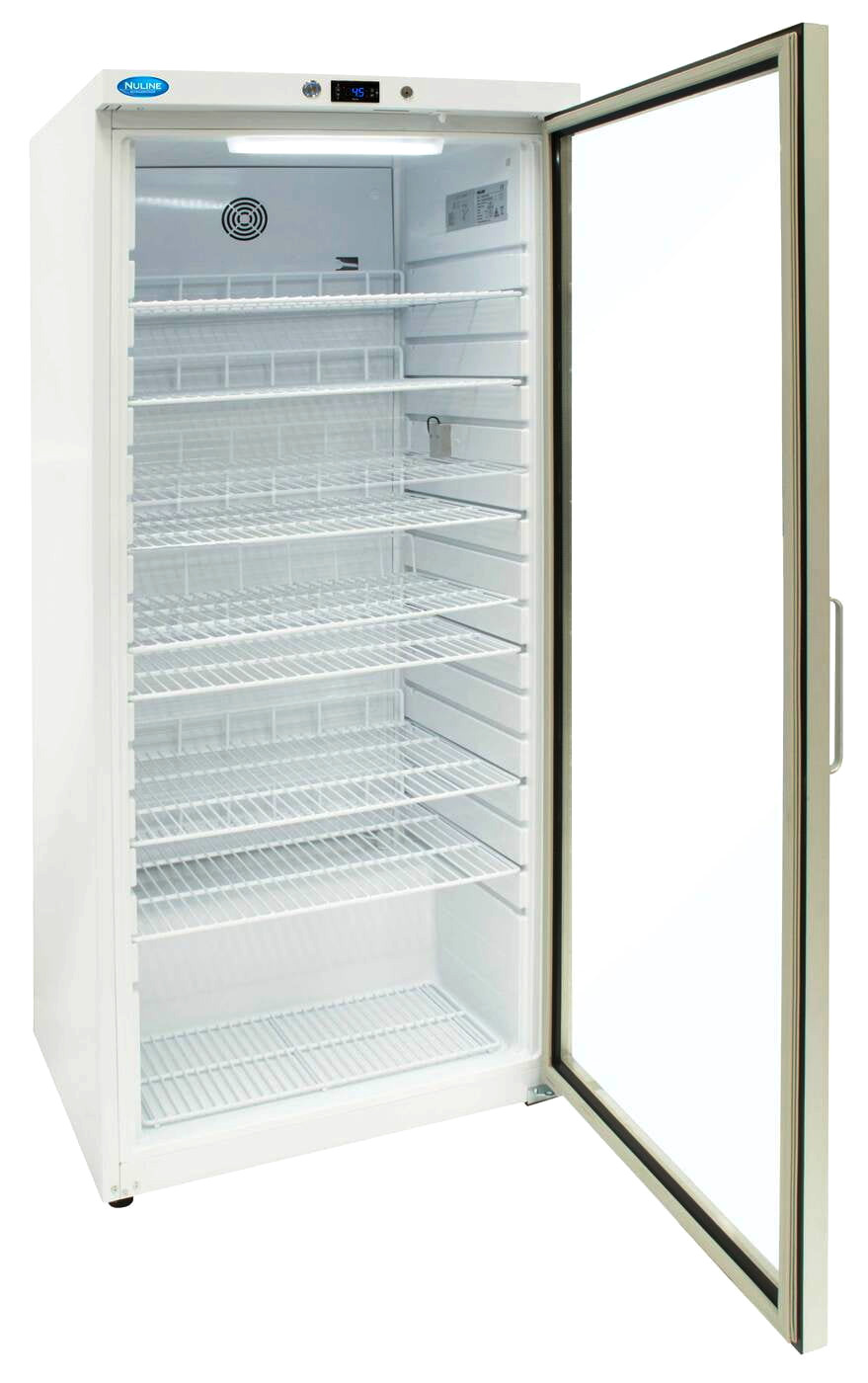

HR600GV Glass Door Model


The HR600 combines the advantages of modern frost free refrigeration and automatic temperature control.

  • QCPP (Quality Care Pharmacy Program) Approved
  • 570 Litre Capacity Refrigerator
  • Temperature Range: 2°C to 8°C
  • Ambient Temperature Range: 10°C to 32°C
  • Bottom mounted system
  • Built in Alarm
  • Remote alarm contacts (Alarms only)
  • Low noise — only 45 dBA
  • Cleaning once per year (depending on location)
  • Larger product stopper at rear of shelf — 75mm high
  • Digital Temperature Indicator – High and Low readout
  • Data Logger Included
  • Fan Forced ⁄ Automatic Defrost
  • Door Lock
  • As a standard fitting when facing the door, the door hinge is Right Hand and the door handle is on the Left Hand. It is an option to have the door reversed.
  • Interior lighting
  • 8 Adjustable shelves
  • Auto defrost & water disposal
  • Levelling Legs
  • TGA Registration

Specifications
Storage Capacity 570 litre
Exterior Dimensions (WxDxH)
(w⁄d⁄h including castors or legs)
775 x 750 x 1850mm
Interior Dimensions (WxDxH) 635 x 545 x 1685mm
Gross Weight 102kg
Net Weight 95kg
Voltage 240 V
Power Requirement 10 amp GPO
Energy Consumption 330 kWh/y
Watts 160W
Refrigerant R600a
Warranty
Refer to warranty sheet
24 Months*
Shelves size (9) 635 x 505 & (1) 618 x 302
Adjustable Shelves 9
Digital Display tick
Exterior Cabinet Finish White Enamelled Steel
Inner Liner Material ABS
High ⁄ Low Temperature Alarm tick
Fan Forced Refrigeration System tick
Door Lock tick
Solid Door ⁄ Glass Door tick
** Specifications may change without prior notice **

Product Codes
HR600 With Solid Door
HR600G With Glass Door
HR600V Solid Door with Voltage Free Connection to allow connection to an external alarm
HR600GV Glass Door with Voltage Free Connection to allow connection to an external alarm


 Call us 07 3355 8000




Click for Brochure pdf




Optional Castors


Castors



 Call us 07 3355 8000




Click for Brochure pdf



top Return to top of page
