Falls Prevention Monitors

Cura1 for reliable but affordable monitoring.


Falls are one of the largest causes of harm in health care and are a national safety and quality priority. The Australian Commission on Safety and Quality in Health Care assists health services to reduce the number of falls, and the resulting patient harm, through a number of national initiatives.


mouseover for larger image

2700 Monitor

2700 Six Channel Cordless Falls Monitor (Secure Reset)

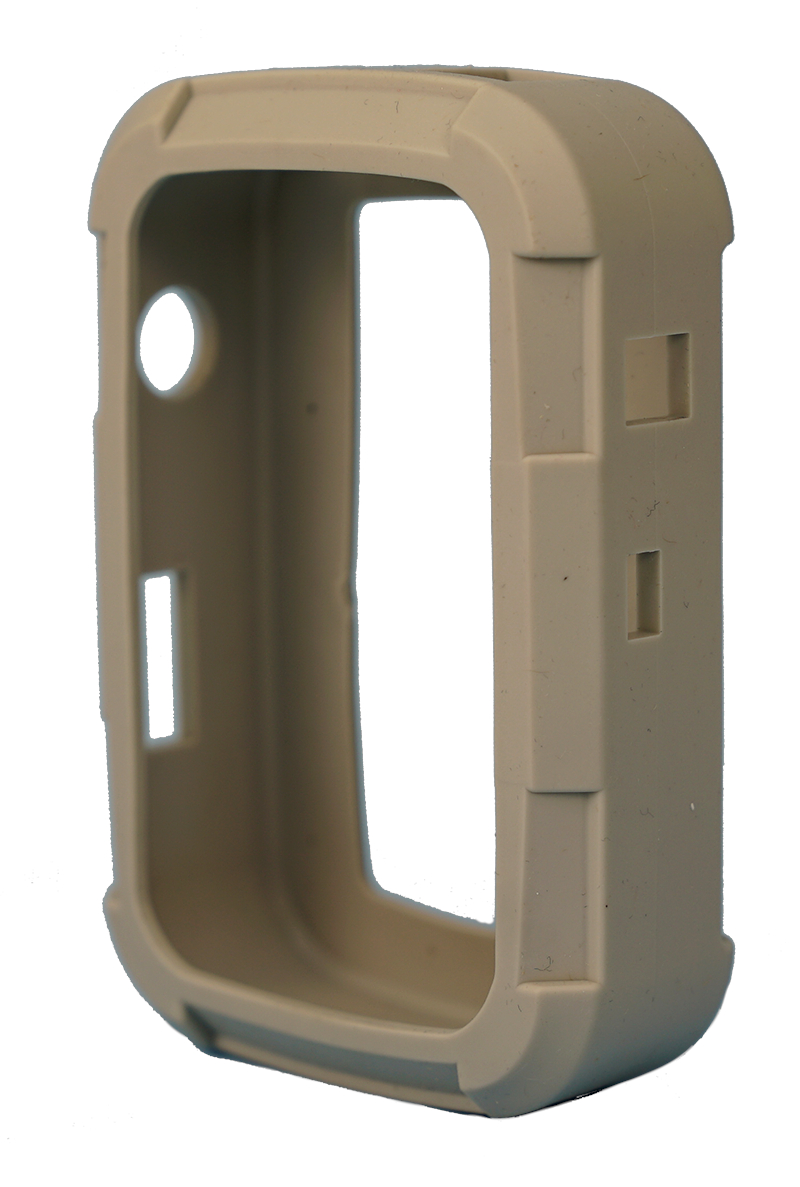

ABS plastic enclosure

Comes with durable ABS plastic enclosure

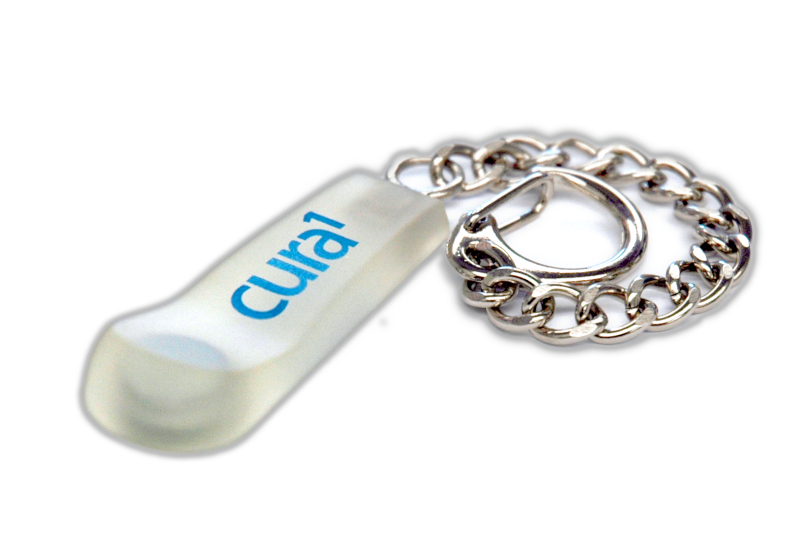

2642 Caregiver Reset Key
  • Allows caregivers to reset various cura1 equipment alarms
  • Allows authorised staff to program various cura1 equipment
  • Key chain can be attached to belt or clothing
  • Lightweight
  • Easy to use
  • Low cost
  • Dimensions 170mmL X 18mmW X 10mmH
  • Metal key chain & rubber fob construction
  • Weight 14 grams

2700 Six Channel Cordless Falls Monitor (Secure Reset)

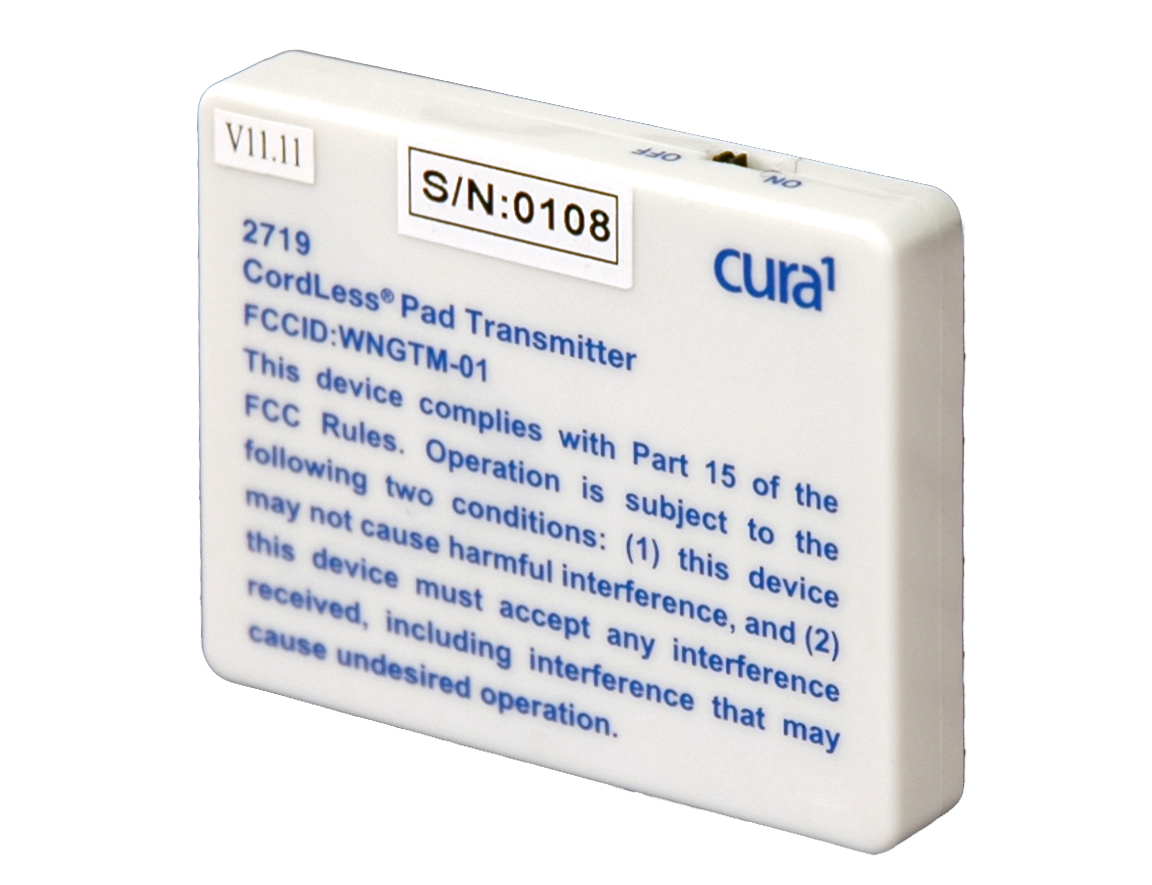

2719 Cordless Pad Transmitter
2719 Cordless Pad Transmitter

  • Simple operation and maintenance
  • For use with cura1 Cordless Pads and Monitors
  • 50m Range
  • No more cords between monitor and pads
  • Fits inside cordless pads
  • 433MHz operating frequency
  • 1 year battery life
  • Incorporates status ⁄ in-use LED indication
  • Incorporates on ⁄ off switch

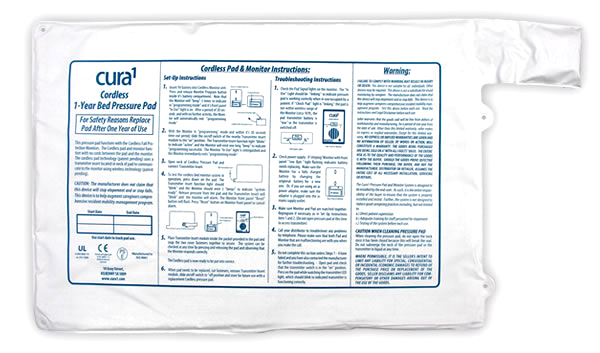

2629 Cordless Bed Pad
2629 Cordless Bed Pad 1 year (760 x 510)

  • Simple operation and maintenance
  • Guaranteed 1 year life expectancy
  • Use with 2719 Cordless Pad Transmitter
  • Easy to clean non-allergenic soft PVC
  • Vent holes in the neck reduce the risk of moisture ingress
  • Affordable price
  • Virtually no false alarms over the lifetime of the pad
  • Dimensions 760 x 510mm
  • Recommended weight range for reliable operation: 30kg to 200kg

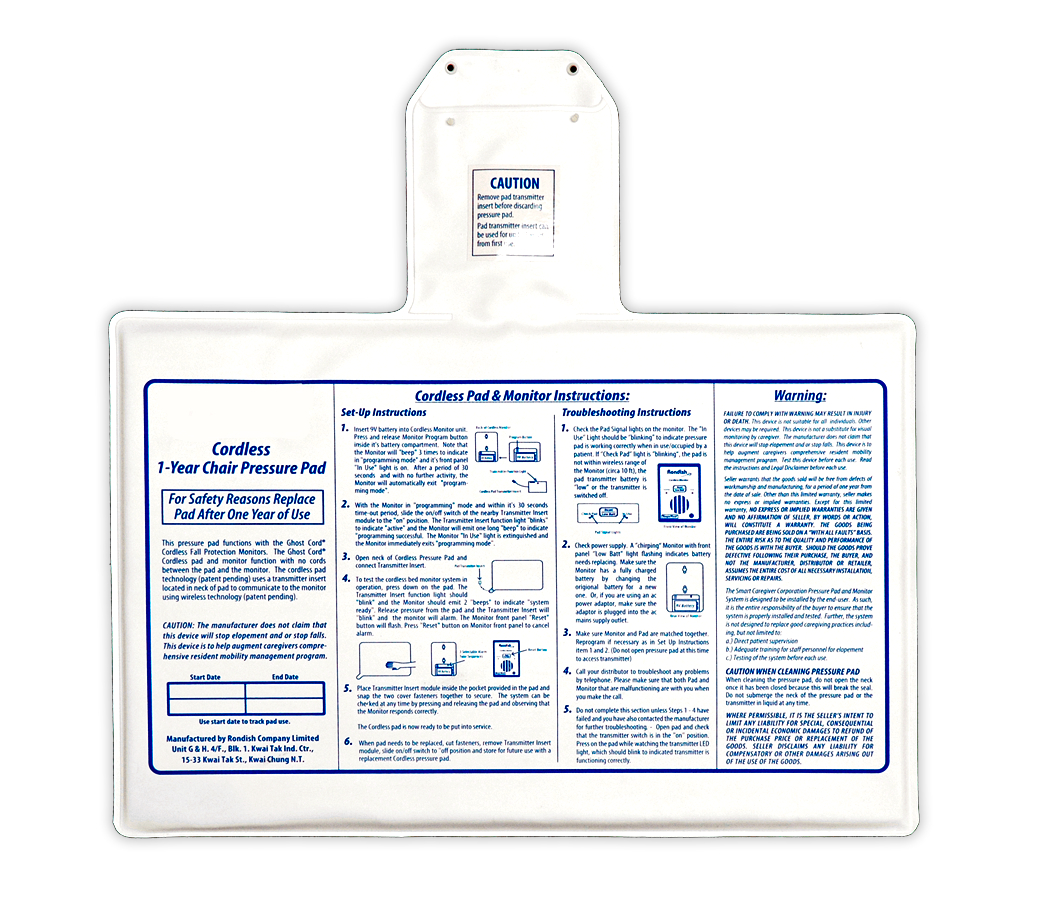

2630 Cordless Chair Pad
2630 Cordless Chair Pad 1 Year (380 x 255)
Product code 2661 includes 2630 pad and 2719 transmitter

  • Simple operation and maintenance
  • Guaranteed 1 year life expectancy
  • Use with 2719 Cordless Pad Transmitter
  • Easy to clean non-allergenic soft PVC
  • Vent holes in the neck reduce the risk of moisture ingress
  • Affordable price
  • Virtually no false alarms over the lifetime of the pad
  • Dimensions 380 x 255mm
  • Recommended weight range for reliable operation: 30kg to 200kg
  • Modern ergonomic design
  • Monitor up to 7 devices simultaneously — a single Premium pad ⁄ mat and up to 6 wireless devices.
  • Comes with durable ABS plastic enclosure and Caregiver Reset Key.
  • Alarm memory and auto re-arm
  • Amber LED visual alarm indicator
  • Caregiver secure reset option
  • Caregiver Key reset option
  • Battery operated or optional external plug pack
  • Up to 6 months battery life (nominal)
  • Easy to access battery compartment
  • Can be connected to a nurse call system
  • 3 selectable alarm tones
  • Easy thumbwheel adjustable alarm volume
  • “Pause” feature allows a caregiver to attend to the patient without setting the alarm off
  • Alerts for lost nurse call connection, lost AC power supply & low battery

cura1 Cordless “Dual Channel” Fall Alert Systems couldn’t be more convenient for caregivers and patients, with no cables getting in the way and virtually no chance of damaging the monitor or the pad.


  • Non resettable “Pad Signal Lost” warning
  • Caregiver secure reset option
  • All safety alerts sound even if alarm volume set to silent, including low battery, AC lost, pad signal lost & nurse call lost
  • Cable strain relief & breakaway cord technology prevents damage & helps reduce risk of entanglement when used with Premium Pads & Mats.

  • DC operation using either a 3 x AA batteries or 6V plug pack
  • Dimensions 120 x 77 x 40 mm
  • Weight 150g without batteries
  • Up to 30m range when used with cordless bed pads and chair pads
  • Fully user programmable
  • Operating temperature 0 - 40°C, relative humidity < 85%
  • Adjustable sounder 105 ± 3db @ 10cm maximium volume
  • 3 selectable alarm tones
  • Operating frequency 433Mhz fully supervised
  • Volt free normally open relay contact alarm output
  • RJ10 type socket for optional wired bed ⁄ chair pad & floor mat connection
  • Low battery detection and indication 3.5V ± 0.1Vdc trigger point
  • Missing AC ⁄ DC power supply detection and indication

Accessories (listed on right)

Pads and mats incorporate ultra sensitive durable sensors resulting in virtually no false alarms over the life of the pad ⁄ mat.

All pads are anti-allergenic, soft PVC for optimum comfort. They can be wiped clean using standard health inustry procedures.




Falls are one of the largest causes of harm in health care and are a national safety and quality priority. The Australian Commission on Safety and Quality in Health Care assists health services to reduce the number of falls, and the resulting patient harm, through a number of national initiatives.


mouseover for larger image

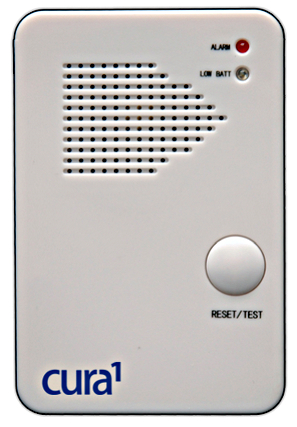

CUR–4017 Monitor

CUR–4017 Economy Monitor

Falls Monitoring Products – Economy Range

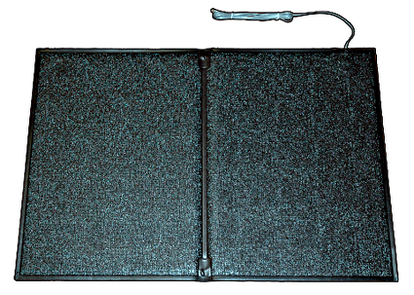

Single Fold Floor Mat
Single Fold Floor Mat

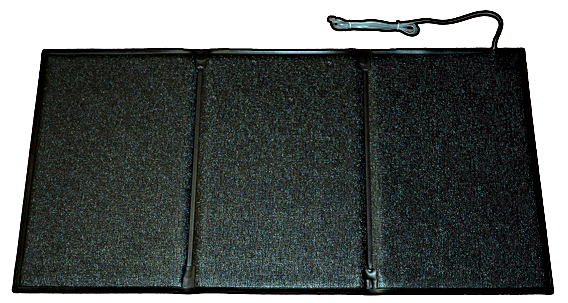

Dual Fold Floor Mat
Dual Fold Floor Mat



  • Simple operation and maintenance
  • Affordable price
  • Easy to clean
  • For use with Economy Falls Monitor
  • Virtually no false alarms over the lifetime of the mat
  • Made from heavy duty non–slip material
  • Low profile edges reduce tripping hazzard
  • Can be easily folded for storage or transportation
  • CUR–4103 Single – Open dimensions 900 x 600mm; Folded dimensions 450 x 600mm
  • CUR–4104 Dual – Open dimensions 1200 x 600mm; Folded dimensions 400 x 600mm
  • 1 Year life expectancy
  • Recommended weight range for reliable operation: 30kg to 200kg
  • 2m lead with RJ10 connector

  • A reliable but affordable monitor
  • Floor mats low profile edges reduce tripping hazzard
  • Alarm ⁄ low battery LED indicator
  • Guaranteed for reliable operation
  • Reset ⁄ test button
  • Designed for easy storage or transportation
  • Loud and clear alarm through quality speaker
  • Soft foldable bed pads
  • Single and dual fold floor mats
  • Foldable crash mats with optional sensor

cura1 introduces a brand new range of falls monitoring products that are affordable and simple to use, without compromising on quality or reliability. The new Economy Falls Monitor comes with many of the features that you might only expect with a more expensive product and the mats and pads have all been designed for easy storage and transportation.


  • Simple operation and maintenance
  • Works with all Economy Bed ⁄ Chair Pads & Floor Mats
  • Auto re–arm after alarm activation Red LED visual alarm indicator
  • 3 x AAA battery operated or optional 6V external plug pack
  • 3 selectable alarm tones with alarm mute switch
  • Can be connected to a nurse call system
  • Adjustable alarm volume
  • Front panel reset ⁄ self test button
  • “Low Battery” audible alarm & blue LED visual warning
  • Selectable delay options 0 sec ⁄ 1 sec ⁄ 2 sec
  • Comes complete with mounting strap
  • Dimensions 70 x 105 x 40mm durable ABS plastic enclosure
  • Weight 115g without batteries
  • RJ10 type socket for wired bed ⁄ chair pad & floor mat connection

mouseover for larger image

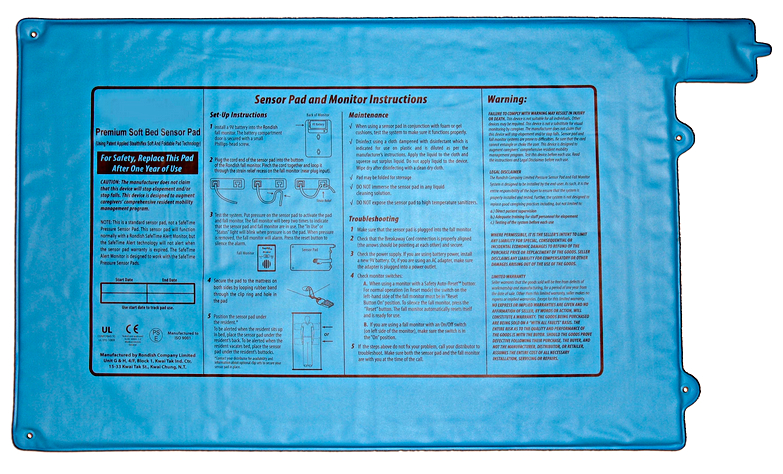

2665 Soft Bed Pad

  • Soft to touch, comfortable and quiet to use
  • Easy to clean
  • Foldable – easy & cheap to send by post
  • For use with Economy Falls Monitor
  • Virtually no false alarms over the lifetime of the pad
  • Vent holes in the neck reduce risk of moisture ingress
  • Made from non–allergenic soft PVC
  • Dimensions 760 x 500mm
  • 180 days life expectancy
  • Recommended weight range 30 to 200kg
  • RJ10 connector
