Combination Washer Disinfector

The only one designed to meet Australian requirements.

Malmet Logo

All Malmet products are manufactured in the facility at Leeton NSW, which is ISO 9001:2015 and ISO 13485:2016 Certified.

Malmet Bedpan, Urinal Bottle & Utensil/Bowl Washers comply with AS 4187:2014, Reprocessing of reusable medical devices in Health Service Organisations, and the relevant parts of ISO 15883 for Washer Disinfectors. The equipment has been microbiologically tested as per recommendations outlined in ISO 15883 by an independent NATA Certified Laboratory to ensure the wash efficacy is satisfactory for the intended load.


Malmet Combination Washer Disinfector
Malmet Combination Washer Disinfector

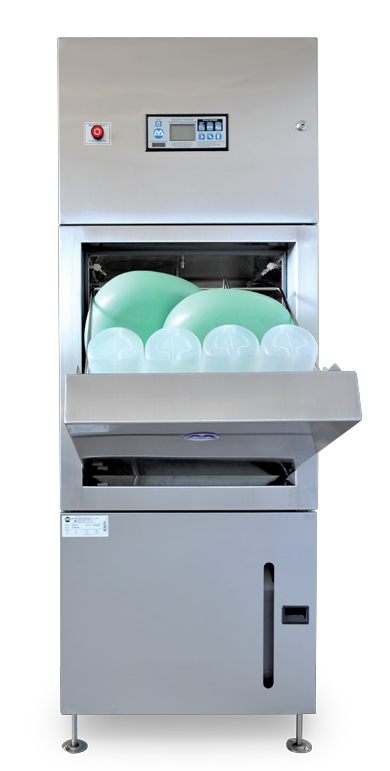

WDS with 2 bedpans and 4 urinal bottles


Malmet Combination Washer Disinfector

Malmet Combination Bedpan and Utensil Washer Disinfector


The only combination utensil & bedpan washer disinfector made in Australia




Key Points of Interest

  • Large capacity – 4 bottles and 2 bedpans, or any combination of utensils (tooth mugs, sputum bowls, kidney bowls, basins, etc)
  • Energy efficient – 21 Amp, single phase
  • Sensors – to minimise risk of incorrect program being selected
  • The door safety is factory set; an obstruction will cause the door to re-open when the obstruction is detected
  • Simple, hands free operation – 3 standard cycles (bottles only, bedpans and bottles, utensils), to minimise infection risk
  • Steam disinfecting – no hot water required
  • USB interface for uploading usage history, temperature & cycle validation & digital fault display



Standards testing and registration

  • Microbiologically tested by independent NATA certified laboratory
  • Compliance: ISO 13485 & AS/NZS ISO 9001
  • In the unlikely event you require a spare part Malmet is made locally so they are readily available and quick to source.
  • ARTG Registration Number 232450 Class IIb — Electrical Safety Certificate: CS 10462N — Watermark Certificate: WMKA21156
  • ARTG Certificate

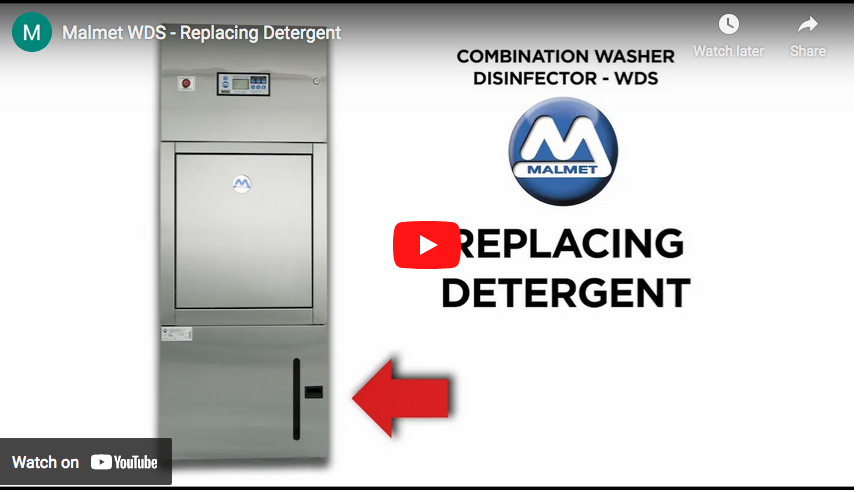

 detergent for Malmet Combination Washer Disinfector

A detergent system delivers 30ml of concentrated detergent in the initial wash.

Detergent Datasheet pdf




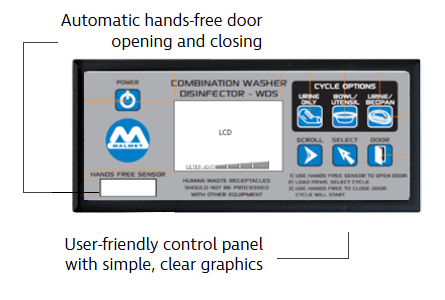

Features for Control Infection

  • A total hands–free procedure for each disinfecting cycle — utilizing sensor beam breaks. No need to touch the machine or control pad.
  • The internal chamber is cleaned and disinfected during each cycle.
  • Steam and detegent disinfection of equipment is above the Australian Standards in temperature generation and length of cycle.
  • Hands Free Operation – Zero Contamination – No infection risks to patients or staff.
  • Odourless disinfection – No bacterial masking or fragrance sprays required as no odours or smells remain.



No disposable or consumable inventory

  • Bed pans and urinal bottles are disinfected ready–for–reuse.
  • No disposable container holders to wash or disinfect.
  • No additional waste imposed on the local government community’s sewerage system.
  • No worrying about possible imposition of surcharges for excess waste into the sewerage system.
  • Not excluded for use by any local authority or council.
  • Only detergent and natural body waste is flushed into the sewer.



WDS components

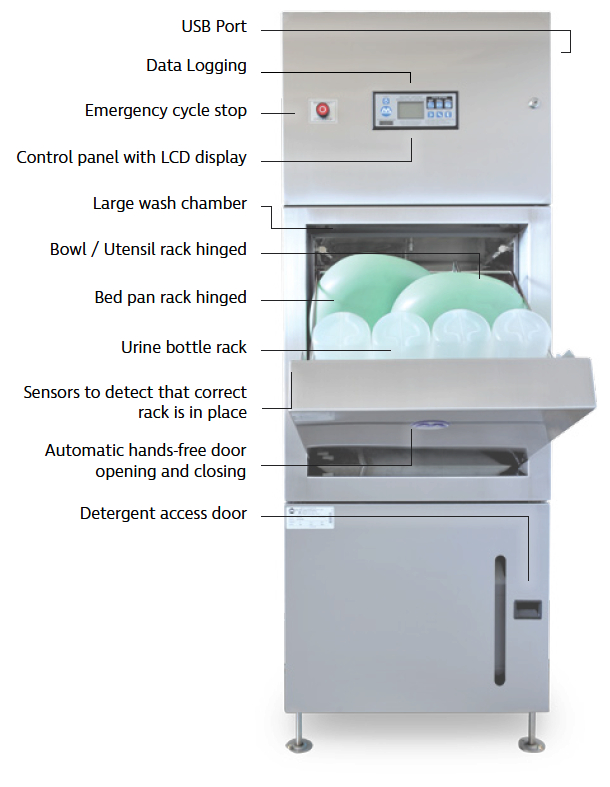

Suggested item positioning in the chamber

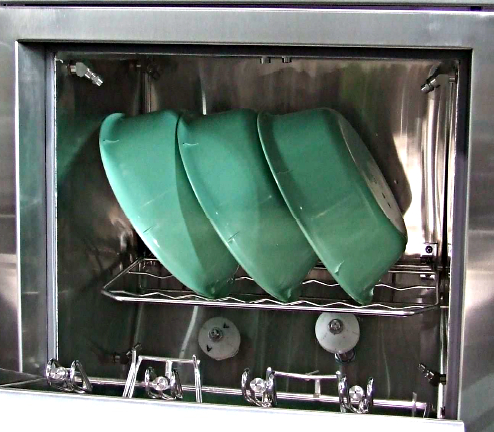

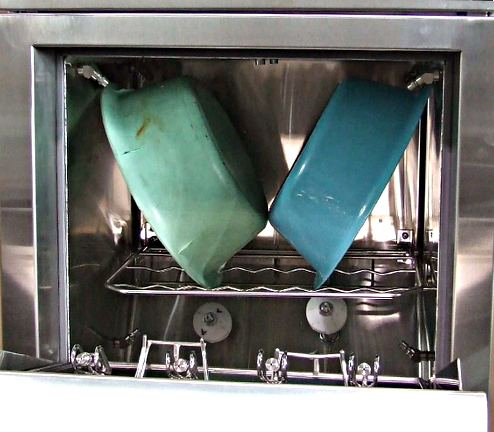

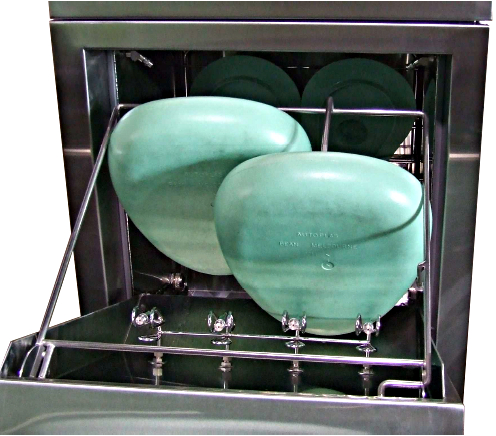

WDS with medium bowls WDS with large bowls With 2 Bedpans

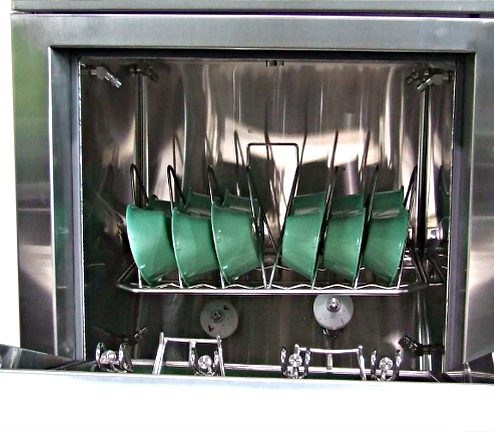

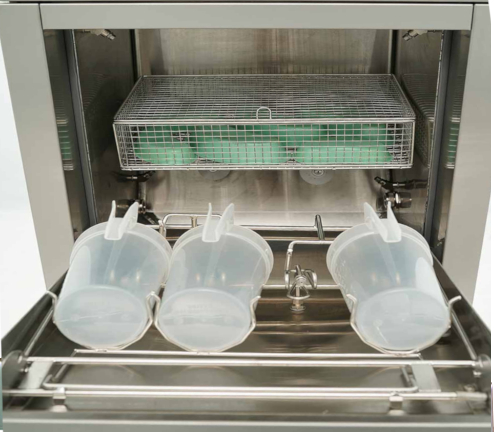

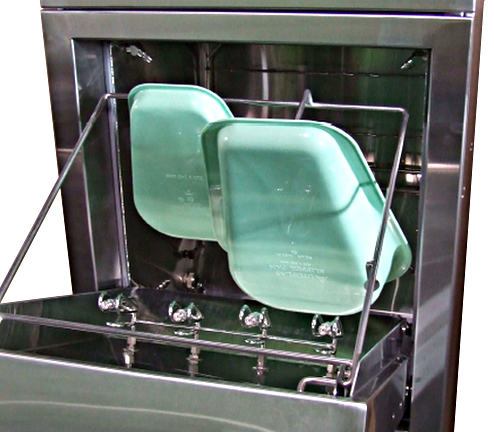

WDS with 2 Slipper Pans – 1 x standard & 1 x large WDS with utensil basket WDS with kidney dishes in rack

Some layout suggestions for items inside the Chamber





The WDS has gone through a thorough and exhaustive R & D program, including site trials at a number of facilities. Malmet has listened to the needs of both clinical and engineering staff and has designed the WDS to meet the requirements of all our clients, whether it be a large metropolitan hospital, a smaller regional hospital, or an aged care facility.


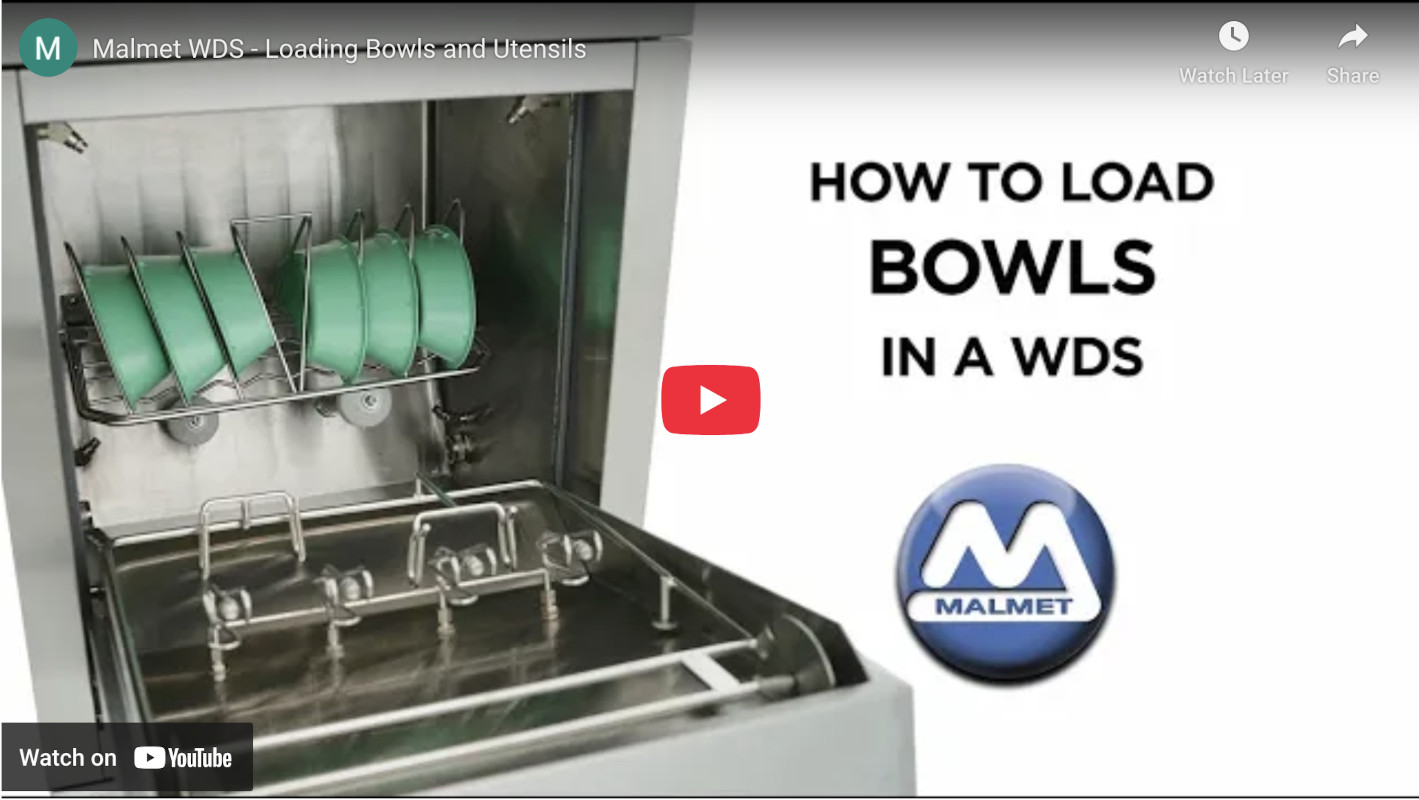

Videos — Combination Washer Disinfector




Models and Accessories


Models

Product Code Description Power Trap
WDS1P (92-1001) Combination Washer Disinfector 240V, 20A “P”
WDS1S (92-1000) Combination Washer Disinfector 240V, 20A “S”
WDS3P (92-1011) Combination Washer Disinfector 415V, 20A “P”
WDS3S (92-1010) Combination Washer Disinfector 415V, 20A “S”

Accessories
92-5235 Utensil Basket 465 x 265 x 115 for WDS
92-5033 Rack — Kidney Dish
92-5153 Rack — Jug Holder for 3 x 1L Jugs



Specifications for WDS


Electrical Rating
Model WDS
Single Phase
Volts 240V
Phase ⁄ Hz 1 ph ⁄ 50 Hz
Amps 20 Amps
Internal circuit breakers
Single Phase
Heater power supply pcb 1 pole 20A 240Vac
Control power supply pcb 1 pole 10A 240Vac
Heating Elements
Single Phase
Steam Generator 4500W 240V 3 x 6.25A Star
Water tank 4500W 240V 3 x 6.25A Star

Electrical Rating
Model WDS
Three Phase
Volts 415V
Phase ⁄ Hz 3 ph ⁄ 50 Hz
Amps 20 Amps
Internal circuit breakers
Three Phase
Heater power supply pcb 3 pole 20A 415Vac
Control power supply pcb 1 pole 10A 240Vac
Heating Elements
Three Phase
Steam Generator 4500W 240V 3 x 6.25A Star
Water tank 7200W 240V 3 x 10A Star
ContactorsHeating Elements
Three Phase unit
Steam heating element 3 pole 7.5kw
W ⁄ tank heating element 3 pole 7.5kw
ELECTRICAL Common components
Element over temperature cut–out Steam Generator Capillary bulb thermal cut–out
Manual reset 115°C 25A
Water tank Capillary bulb thermal cut–out
Manual reset 100°C 25A
Fuse: Transformer Cylinder type 5 x 20mm T 5A H 250Vac Time Delay
Processor module battery Coin Cell CR2032 Lithium 3 Volts

  Relative Humidity +30% to 70%
PCB HARDWARE
PCB (Printed Circuit Boards) Display LCD D134411
Heating switch module D132213
Control module D134412
Processor module D133447
Conductivity sensor D134418
Logger data download Via USB port
Software loading Via USB port
LOADING CAPACITY
Wash Chamber Capacity Bedpans ⁄ Urine Bottles 4 x Urinal Bottles
2 x STD Bed Pan & Lid
2 x Small slipper pans & Lid
2 x Large Slipper Pan & Lid
Urine Bottles only 4 x Urine Bottles
Bowls ⁄ Utensils 2 x Large Bowls
3 x Medium Bowls
Smaller Bowls and Kidney
Dishes in Accessory Basket
6 x Large Kidney Dishes
6 x Medium Kidney Dishes
WASH SYSTEM
Nozzles and Sprays Flush Nozzles 2 x Rotary Nylon
Tip Sprays 2 x WL1/2 120° 1/8 bsp ss
Top Sprays 4 x WL1/4 90° 1/8 bsp ss
Bottom Sprays 4 x WL1/2 60° 1/8 bsp ss
Urine Bottle Sprays 4 x WL1/4 90° 1/8 bsp ss
Cool Down Sprays 2 x LW1 120° 1/4 bsp ss
Wash Pump Horizontal Multistage 750W 240V 1ph 4.6A
116.7L ⁄ Mins
s ⁄ s impeller and housing

Detergent Malmet specific (5Lt) Detergent Concentrate Caustic Alkaline
(ARTGC Class 1)
Detergent Pump Self priming peristaltic
Chemical feed pump
72 rpm 240V 50Hz
PLUMBING
Soil line Connection
Complies to AS 2887 & AS ⁄ NZS 3500.2:2003
Type ‘S’ or ‘P’ Trap (6mm PE) 80°
Size 100mm ID
Backflow Prevention
AS 2845.2 – 1996
Air Gap (RAG) Water storage tank
Cold water inlet Supply Temp – Pressure (Flow) 15 – 25°C @ 100 – 350kpa
Solenoid Valve 1 in 2 out 240V – GB¾ male, WRAS Certified
Hot Water inlet supply Temp – Pressure (Flow) 55 – 60°C @ 100 – 350kpa
Solenoid Valve 1 in 2 out 240V – GB¾ male, WRAS Certified
Minimum water flow @ 100 Kpa   9.377 L ⁄ min
Hose – valve to Water Tank Stainless Steel Braided 10mm, WRAS Certified
Hoses – Mains Water Supply to Inlet Valve Stainless Steel Braided Assembly H ⁄ C Water G¾ Hex Nut Each End 1.5M x 10mm, Cert to AS ⁄ NZS 3499-2006
CONSTRUCTION MATERIALS
Materials Frame 25 x 25 x 1.6 tube SS
Wash chamber 316 SS grade 4
Door 316 SS grade 4
External panels 304 SS grade 4
Water tank 316 SS grade 2B
Steam generator 316 SS grade 2B
Fasteners 304 ⁄ 316 SS
Thermal insulation chamber and water tank TBA
ENVIROMENTAL
Environment conditions Transport and Storage Fragile, Keep away from rain Do not stack
Temperature -5°C to +50°C
Environment Operating
Conditions
Temperature +10°C to +25°C
Relative Humidity +30% to 75%
Shipping Details Height x Width x Depth (mm) 1770 x 800 x 750
Weight = Packaging + Det 163 Kg



Component Identification Views — Spare Parts codes   ⤵




Operating Cycles for cleaning and disinfection


Operating Cycles (cleaning and disinfection)
Cycle Urinal ⁄ Bedpan Urinal only Bowl ⁄ Utensil
1. Flush 8 to 12 secs
2. Cold water 2 min 2 min 2 min
3. Hot water wash with detergent 2 min 2 min 2 min
4. Hot water rinse 35 sec 35 sec 35 sec
5. Disinfection 1 min @ 90°C 1 min @ 90°C 1 min @ 90°C
6. Cool down 20 sec 20 sec 20 sec



Positioning of the free-standing WDS


Recommended positioning the WDS (Freestanding Model)
Model Placement Access Required Device Dimensions
Height (mm) Width (mm) Depth (mm)
WDS Freestanding Both Sides 1685 605 625
Please allow sufficient room for servicing purposes. Recommended space requirements 300mm on either side and 150mm at the rear of the device. (see installation manual)



Service connection requirements for WDS


Service Connections
Model Hot Water Cold Water Soil Line Electrical
WDS 1ph Solenoid valve GB¾ Male Solenoid valve GB¾ Male 100mm ‘S’ or ‘P’ Trap Hot water discharge 75-80°C 240V 1 phase 20 Amps 50 hertz
WDS 3ph Solenoid valve GB¾ Male Solenoid valve GB¾ Male 100mm ‘S’ or ‘P’ Trap Hot water discharge 75-80°C 415V 3 phase 20 Amps 50 hertz
No external vent pipe work is required as the device is designed to condensate all visible steam internally.



Power and Water Consumption for WDS


Power and Water Consumption
Model WDS 1ph Disinfecting Time ⁄ Temp Avg Cycles per ⁄ Hr Avg Cycle min ⁄ sec Avg kWh Cold Water Avg Lt Per cycle Hot Water Avg Lt per cycle
Cycle
Bedpan ⁄ Urinal Bottle 1 min @ 90°C 3.9 15.15 0.62 35.6 21.6
Urinal Bottle only 1 min @ 90°C 4.2 14.25 0.572 24.4 20.7
Bowl ⁄ Utensils
Model WDS 3ph Disinfecting Time ⁄ Temp Avg Cycles per ⁄ Hr Avg Cycle min ⁄ sec Avg kWh Cold Water Avg Lt Per cycle Hot Water Avg Lt per cycle
Cycle
Bedpan ⁄ Urinal Bottle 1 min @ 90°C 4.1 14.15 0.60 35.6 21.6
Urinal Bottle only 1 min @ 90°C 4.5 13.15 0.574 24.4 20.7
Bowl ⁄ Utensils
NOTE: Values may change due to operating and supply service conditions
