Malmet Fluid and Blanket Warming Cabinets Parts Table

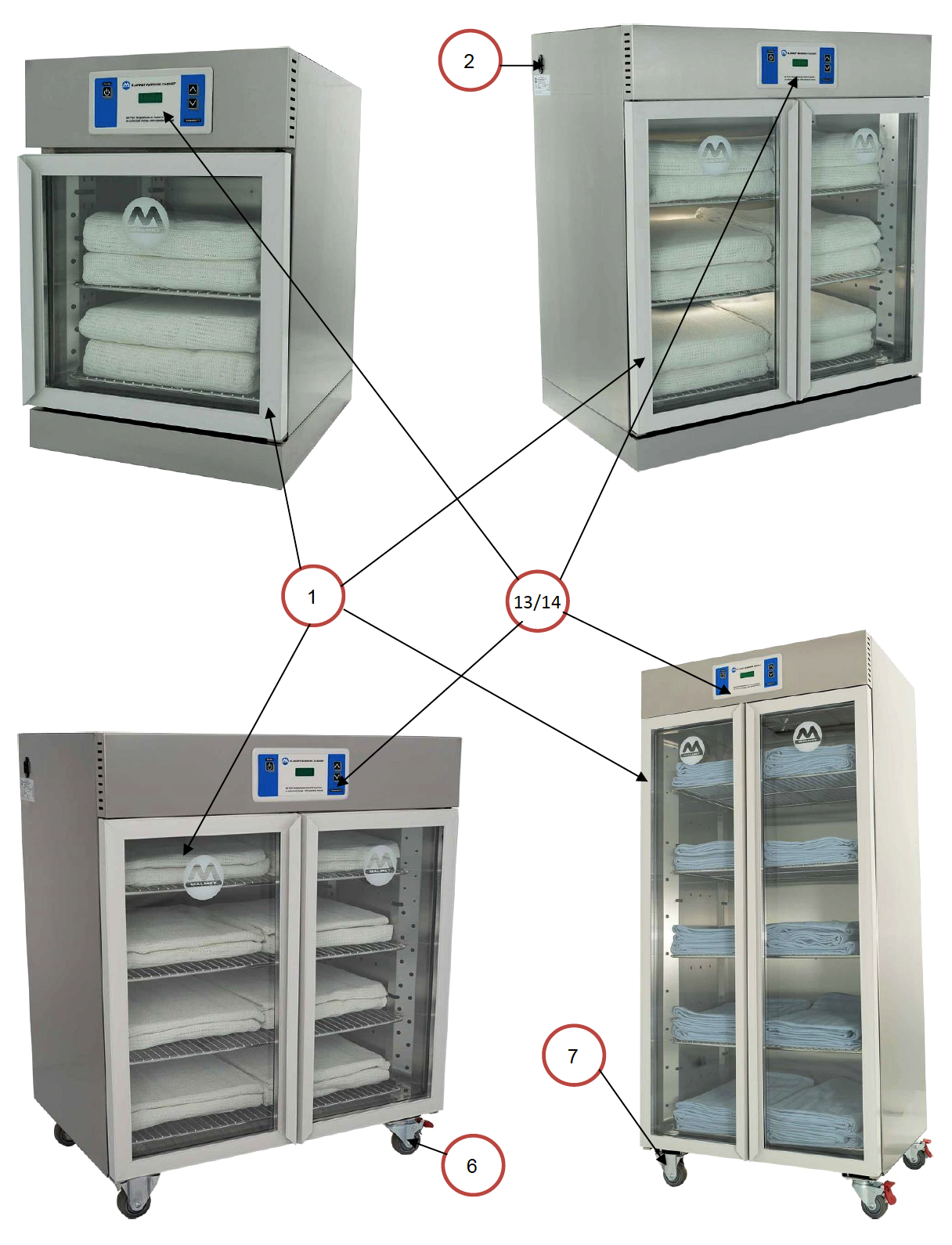

Layout — Front View
| Image |
Description |
P ⁄ N |
# |
|
|

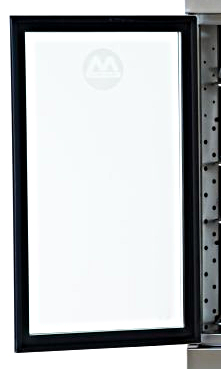

Glass Door 500 X 470 PC Oyster
Suitable for 105L Cabinet |
100-3015SP |
1 |
|
|
Glass Door 731 x 420 PC Oyster
Suitable for 260L Cabinet |
83-5006SP |
1 |
|
|
Push-in Door Seal Gasket
Suitable for 105L Cabinet |
100-3017SP |
|
|
|
Push-in Door Seal Gasket
Suitable for 260L Cabinet |
83-5008SP |
|
|
|
Door Seal Metal Strip
727mm Long |
8-M00-83-5005SP |
|
|
|
Door Lock Bolt Assembly |
100-5506SP |
|
|
|
Adjustable Feet 90mm Galv (Freestanding) |
83-5025SP |
|
|
|
Castors — Swivel |
83-5019SP EACH |
6 |
|
|
Control Panel with BW Overlay |
8-M00-83-5090SP |
13 |
|
|
Blanket Warmer Display Board Overlay CE |
83-5078SP |
14 |
| Image |
Description |
P ⁄ N |
# |
|
|

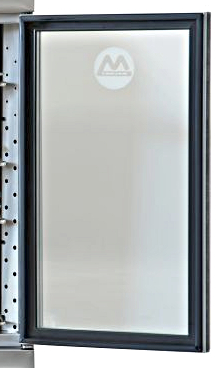

Glass Door 375 X 665 PC Oyster
Suitable for 210L Cabinet |
100-3019SP |
1 |
|
|
Glass Door 373 X 1335 PC Oyster
Suitable for 420L Cabinet |
87-5001SP |
1 |
|
|
Push-in Door Seal Gasket
Suitable for 210L Cabinet |
100-3018SP |
|
|
|
Push-in Door Seal Gasket
Suitable for 420L Cabinet |
87-5016SP |
|
|
|
Door Seal Brush Only
727mm Long |
8-M00-83-5006SP |
|
|
|
Inline Filter CE |
83-5311SP |
2 |
|
|
Cap Plastic Protective for Foot Plate |
83-5030SP |
|
|
|
Castors — Fixed |
83-5018SP EACH |
7 |
|
|
Control Panel with FW Overlay |
8-M00-84-5090SP |
13 |
|
|
Fluid Warmer Display Board Overlay CE |
84-5078SP |
14 |

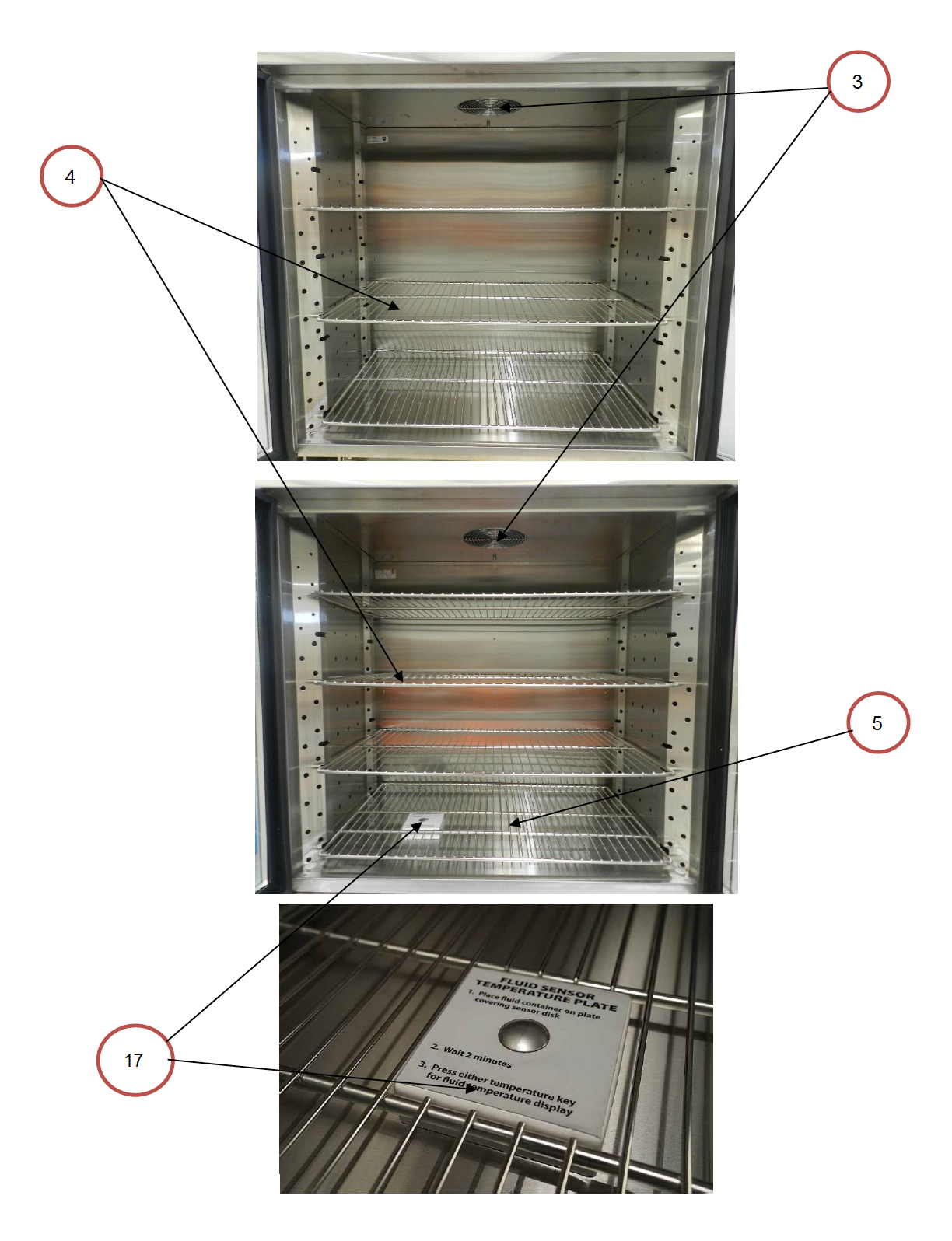

Layout — Inside Door View
| Image |
Description |
P ⁄ N |
# |
|
|
Finger Grill CE |
83-5300SP |
3 |
|
|
Bottom Wire Shelf 414 x 455
Suitable for 105L Fluid Warming Cabinet Only |
100-2236SP |
5 |
|
|
Bottom Wire Shelf 655 x 455
Suitable for 210L & 420L Fluid Warming Cabinet Only |
100-3001SP |
5 |
|
|
Bottom Wire Shelf 414 x 455
Suitable for 260L Fluid Warming Cabinet Only |
83-5074SP |
5 |
|
|
Plugs 6.35mm Plastic Smooth White |
83-5035SP |
|
|
|
Bush Open ⁄ Close 2871 Large Black |
8-4005SP |
|
| Image |
Description |
P ⁄ N |
# |
|
|
Wire Shelf 414 x 455
Suitable for 105L Cabinet |
100-2235SP |
4 |
|
|
Wire Shelf 655 x 455
Suitable for 210L & 420L Cabinets |
100-3000SP |
4 |
|
|
Wire Shelf 414 x 455
Suitable for 260L Cabinet |
83-5075SP |
4 |
|
|
Remote Temp Sensor Kit
Fluid Warming Cabinet Only |
8-K00-84-
5005SP |
17 |
|
|
Plugs 15.88mm Plastic Smooth White |
83-5040SP |
|
|
|
MTS SS M3 x 10mm Philips Head |
8-5180SP |
|

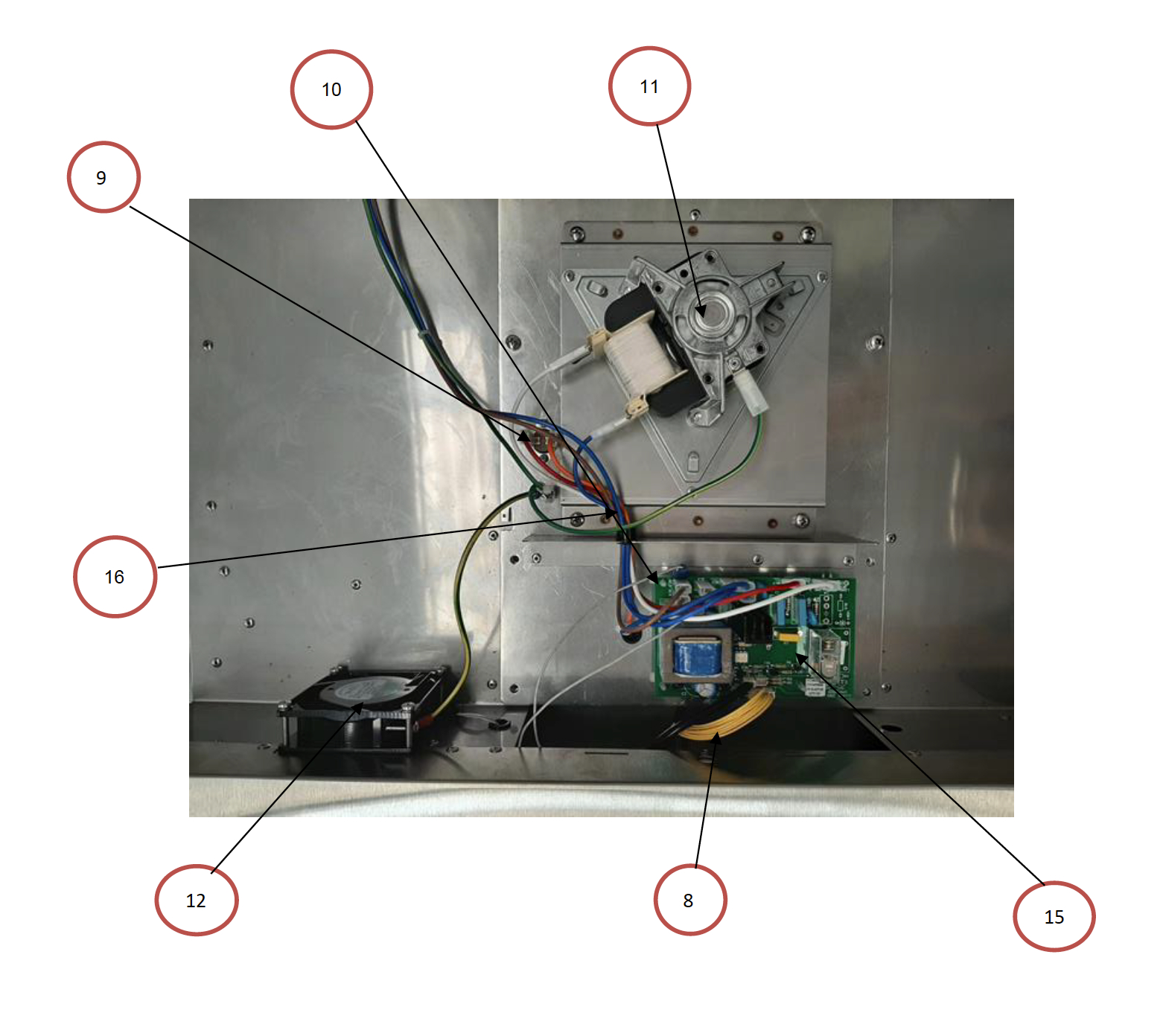

Electrical Tray
| Image |
Description |
P ⁄ N |
# |
|
|
Display Harness 9 Pin (CE – BWFW) |
83-5084SP |
8 |
|
|
Overtemp Switch (Campini 60°C) |
8-2040SP |
9 |
|
|
Hot Air Fan EBM Assembly |
8-K00-83-
506SP |
11 |
|
|
Relay Board (CE-Blanket ⁄ Fluid) |
83-5079SP |
15 |
|
|
Control Temperature Thermistor CE |
83-5305SP |
|
|
|
Element Heating 600 watt Round 240 volt |
83-5050SP |
|
|
|
Screw M5x12 Pan Phillips Head 316 SS (Securing Electrical Tray) |
92-3106SP |
|
|
|
Display Board Blanket Warmer CE |
83-5076SP |
1
(BW) |
|
|
Remote Temperature Sensor |
84-5096SP |
|
| Image |
Description |
P ⁄ N |
# |
|
|
Overtemp Switch (Campini 80°C) |
8-2050SP |
9 |
|
|
Circuit Board Pillar (Stand Off) |
81-2308SP |
10 |
|
|
Fan – 80 x 80x 25 240VAC Sunon |
83-5002SP |
12 |
|
|
Main Loom Harness CE |
83-5083SP |
16 |
|
|
Power Cord IEC 3 pin plug 10 Amp |
83-5315SP |
|
|
|
MTS SS M3 x 10mm Philips Head |
8-5180SP |
|
|
|
Remote Sensor Harness CE |
84-5095SP |
|
|
|
Display Board Fluid Warmer CE |
84-5076SP |
1
(FW) |
