Measuring Rod

mouseover for larger image

For accurate measurements.

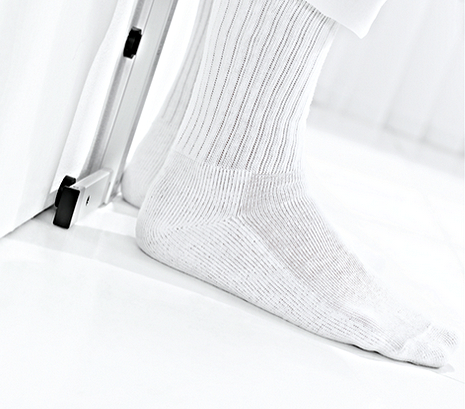

The foot positioner ensures
exact positioning and precise measurements

Seca 222 Mechanical Telescopic Measuring Rod

The measure of medical quality.

Telescopic measuring rod with a large measuring range, specially developed for wall mounting — Easy to read even for tall patients.

Click here for a Brochure

Click here for a Manual

Precise data acquisition is the basis of all work with patients. The height measuring rod therefore provides permanently reproducible results as it is made of hard–wearing hard aluminium or stable plastic. The abrasion–proof measurement scale of this rod ensures that the result is easy to read in 1mm increments even after frequent use. Adjusting the smooth–running measuring slides is extremely easy due to the large head positioner — This guarantees identical results again and again — cm for cm

for wall mounting

The seca 222 is specially designed for wall mounting. It is the classic seca height rod with a large measuring range of up to 230cm and an additional heel positioner. Selected by thousands of nurses worldwide due to its accuracy and ease of use.

telescopic function and attachable headpiece

The telescoping function ensures that readings are always at eye level, for accurate readings regardless of the angle from which one looks. The seca 222 comes with an attachable head–piece for accurate head adjustment. When not in use, the measuring slide can be folded down for safety.

Technical Data

• Measurement Range: 6 – 230cm
• Graduation: 1mm
• Dimensions ⁄ platform (WxHxD): 308 x 2.32 x 286mm
• Dimensions when folded (WxHxD): 308 x 1.32 x 286mm
• Weight: 1.1kg

Click here to enquire about the Seca 222 Mechanical Telescopic Measuring Rod.
