Bariatric Mortuary Trolleys

For the movement of both heavy coffins and body trays.

email Email for more information.

downloads

Mortuary Lifting Trolley

4H801DU
exceptional height range, All with Drive Unit

Mortuary Lifting Trolley

End Loading
with 4H801DU Trolley compact and efficient in large spaces
4H801DUT Trolley with cadaver tray

Mortuary Lifting Trolley and Racking

4H801DUT
Trolley with cadaver tray and with coffin

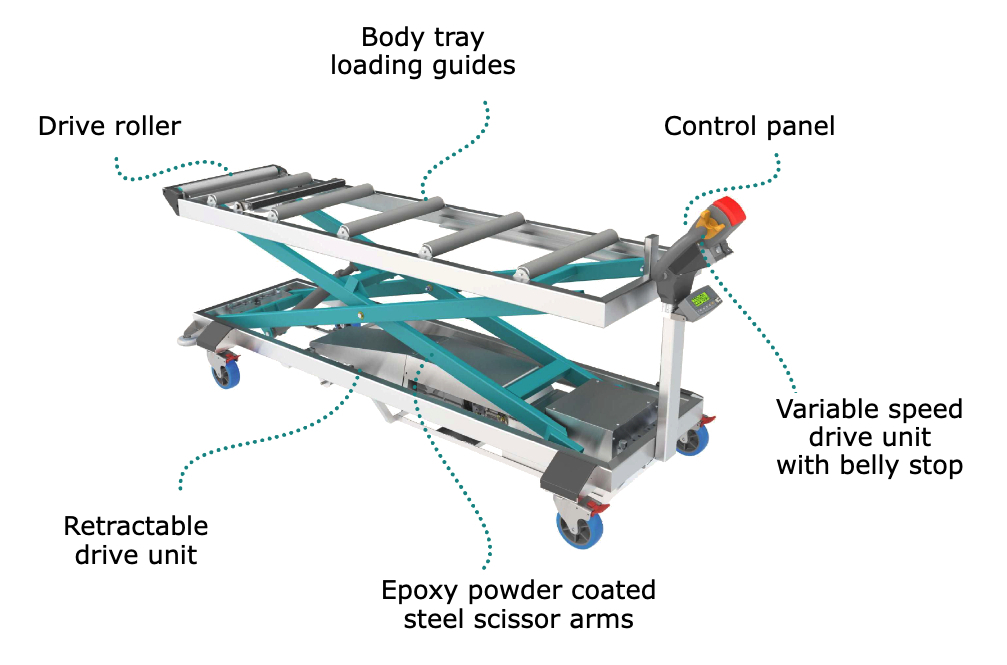

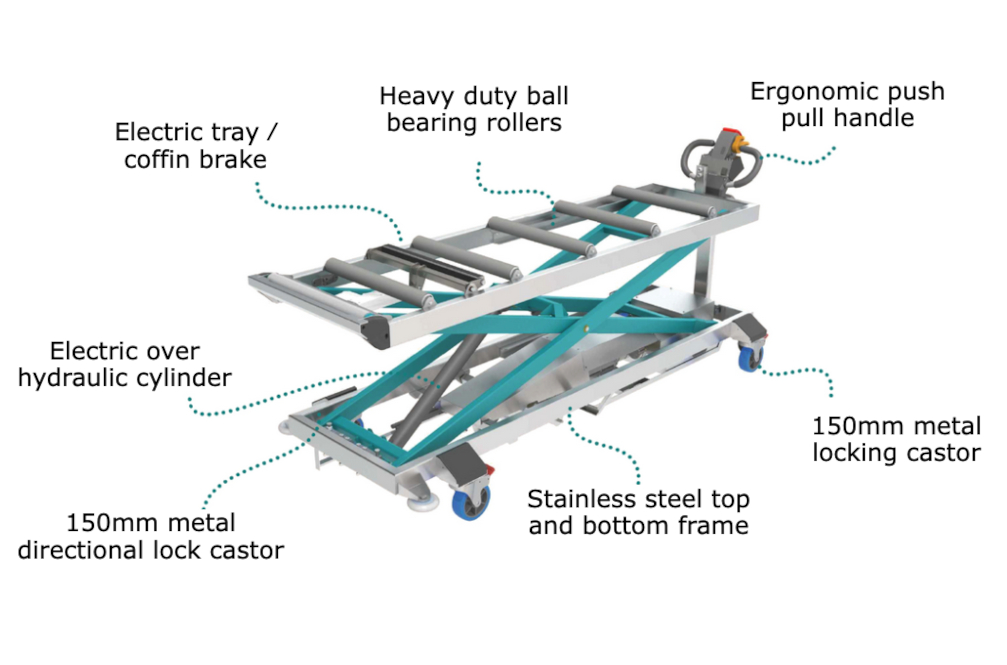

4H801DU Bariatric Mortuary Transfer Trolleys – Drive Unit


Designed for the movement of both heavy coffins and body trays to and from the mortuary unit.


  • Top Features:

  • 500kg SWL
  • Coffin & body tray compatible
  • Variable speed electric over hydraulic lifting system
  • Heavy duty ball bearing rollers
  • Stainless steel top and bottom frames
  • Variable speed drive unit
  • Electric Coffin ⁄ Tray Brake
  • Electric raise and lower drive wheel function
  • High capacity maintenance free battery
  • 150mm lockable castors
  • Front corner buffers
  • Safety horn
  • Belly stopper
  • Finger tip control panel
  • Trolley options (models)
  • Tray drive roller
  • Concealment top
  • Weigh scale
  • Deep cycle high capacity batteries
4H801DU End Load

4H801DUT
End Loading with drive roller
500kg SWL
Product Weight: 230kg

4H801DU End Load

4H801DU
End Loading
500kg SWL
Product Weight: 230kg


Bariatric Mortuary Trolley 4H801DU models All with a Drive Unit, 500kg SWL

Dimensions for the 4H801DU Mortuary Transfer Trolley

4H801DU Mortuary Trolley

Product codes for the 4H803 Mortuary Transfer Trolleys

Product Codes:
4H801DU 500kg Trolley, Drive Unit, End loading
4H801DUT 500kg Trolley, Drive Unit, Drive Roller, End loading
4H801DUW 500kg Trolley,Drive Unit, Weigh Scale, End loading
4H801DUTW 500kg Trolley, Drive Unit, Drive Roller, Weigh Scale, End loading

Product Codes:
4H801DUC 500kg Trolley, Drive Unit, End loading — Concealment
4H801DUCW 500kg Trolley, Drive Unit, Weigh Scale, End loading — Concealment
4H801DUTC 500kg Trolley, Drive Unit, Drive Roller, End loading — Concealment
4H801DUTCW 500kg Trolley, Drive Unit, Drive Roller, Weigh Scale, End loading — Concealment

4H801DUC Mortuary Trolley, 500kg

4H801DUC Trolley with concealment cover
End loading

4H801DUTC Mortuary Trolley, 500kg

4H801DUTC Trolley with concealment cover
End loading

4H801DUC Bariatric Mortuary Trolley, 500kg

Weigh scale on:
4H801DUW, 4H801DUTW Trolleys
and
4H801DUCW, 4H801DUTCW Trolleys


Brochure pdf
Manual pdf
