Self Propelling Shower Commodes

Ergonomic comfort of height adjustment


email Email for more information.

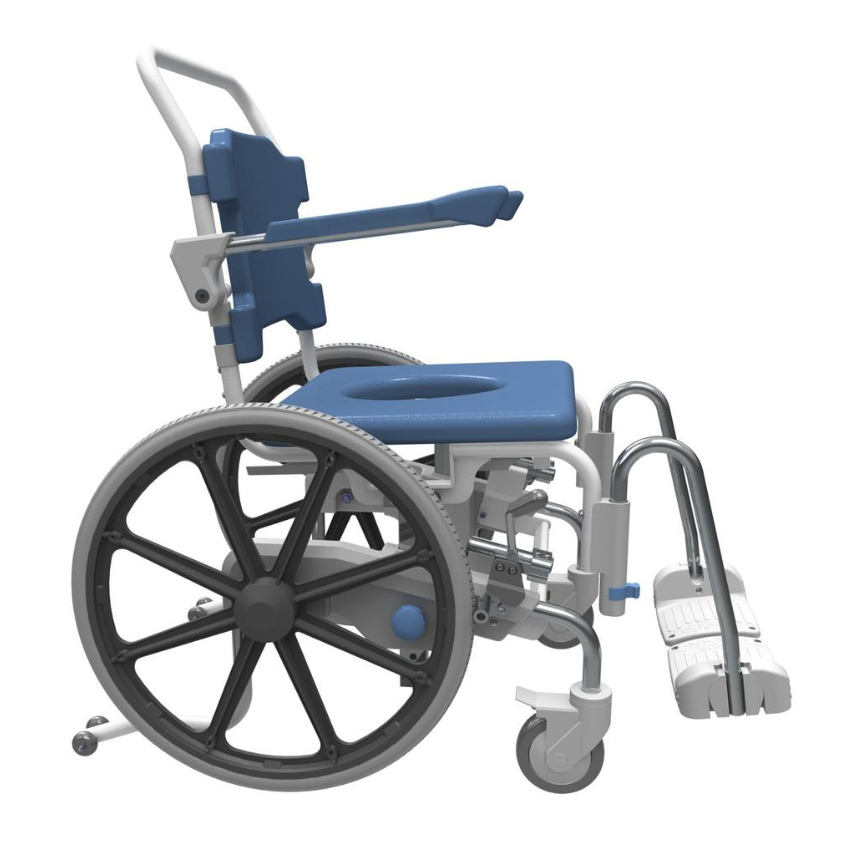

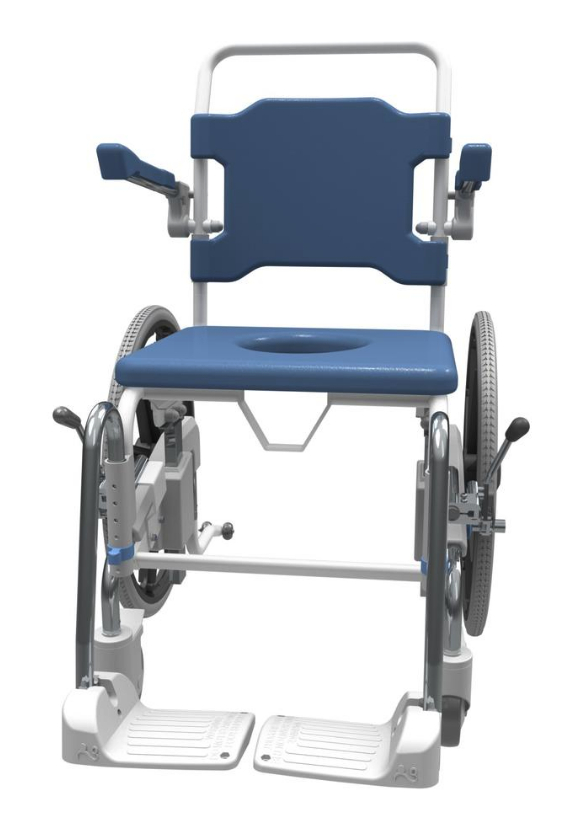

4H420 Self Propelling Shower Commode

4H420 Self Propelling Shower Commode
4H420 Exploded View

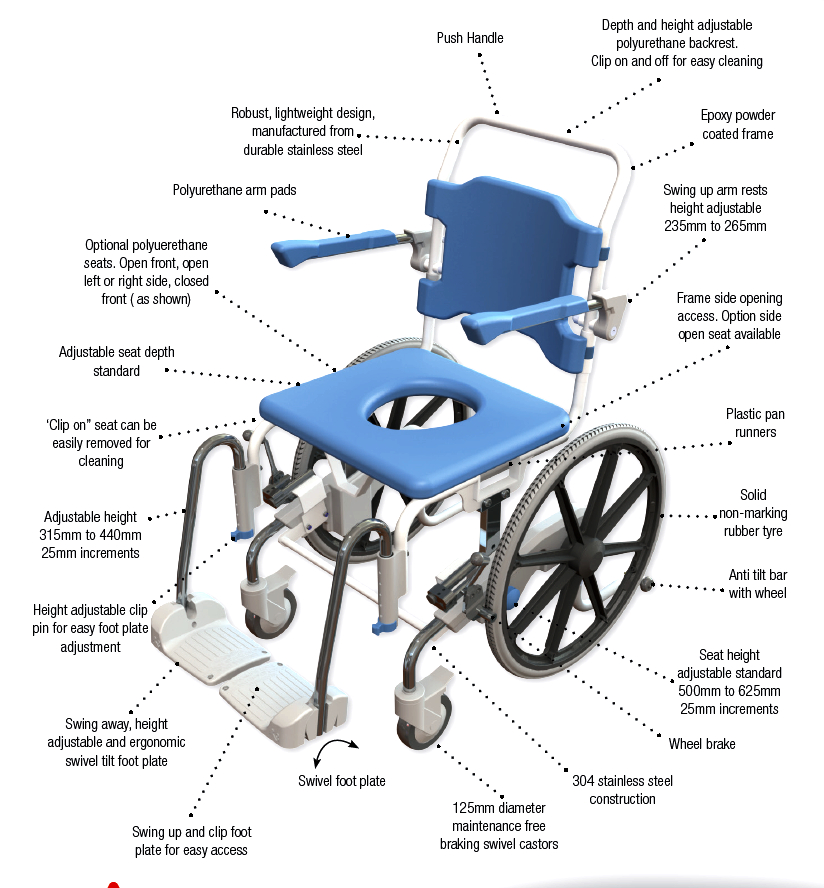

4H420 Features
  • Features:
  • Robust, lightweight design, manufactured from durable 304 stainless steel – white powder coated finish.
  • Polyurethane back which is height and depth adjustable – easy to remove for cleaning.
  • Polyurethane arm pads – comfortable and not cold to touch.
  • Swing up arm rests height adjustable 235mm to 265mm
  • Seat height adjustable standard 500mm to 625mm 25mm increments.
  • Adjustable height legrests 315mm to 440mm 25mm increments.
  • Functional and comfortable footplates
  • Front and side opening frame work in place to suit seats – no modification required.
  • Adjustable height swing away footplates with swing up and swivel tilt foot plates.
  • 56cm (22”) Rear Wheels
  • 125mm diameter maintenance free braking total lock castors.
  • Pan runners for pan and bowl carriers.
  • Full range of polyurethane seats – closed, side and front open available.
  • ‘Clip on’ seat can be easily removed for cleaning.
  • Maximum User Weight 183kg
  • Complies with the requirements of AS ⁄ NZS 3973:2009 for user weight 183kg

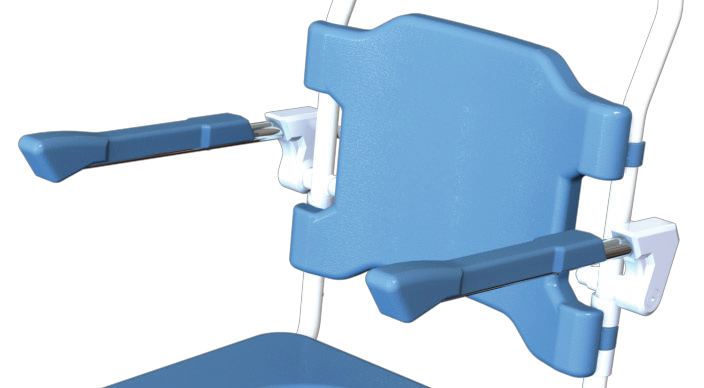

4H414 Moulded Arms and Backrest

Moulded Arms and Backrest

4H420 Self Propelling Shower Commode
  • Specifications:
  • Width: 545mm
  • Depth: 1030mm
  • Height: 960mm to 1085mm
  • Seat height: 520mm to 645mm
  • Between Arms: 450mm
  • Arm adjustment: 260mm to 290mm
  • Seat depth: 450mm
  • Weight: 15kg
  • Dimensions (mm): 730 x 690 x 960

PLEASE NOTE:  All our shower commodes are sold without seats.


Seats may be purchased separately but are not included with the commodes.
For purposes of illustration, all commodes on this page are shown fitted with seats.
