Sturdy, high-quality design makes the cot a safe place to sleep and play.

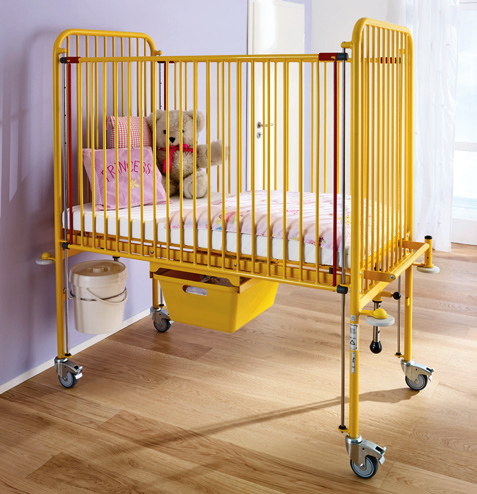

Stiegelmeyer Junior Children’s Cot
The cheerful colours enhance the children’s acceptance of the cot and also promote visual perception. The cot is suitable for small children of up to 100cm in height and is designed for a safe working load of 50kg. The cot will provide many years of particularly stable and reliable service.
Safe and dependable
The Junior paediatric cot is distinguished by its exceptionally safe and dependable functions. Its practical features greatly facilitate the daily care routines performed by nursing staff.
Quality
Its sturdy, high-quality design makes the cot a safe place to sleep and at the same time a perfect place to play during the daytime.
The cheerful colours enhance the children’s acceptance of the cot and also promote visual perception.
With a design that meets all the relevant standards, the cot will provide many years of particularly stable and reliable service.
Ergonomic nursing

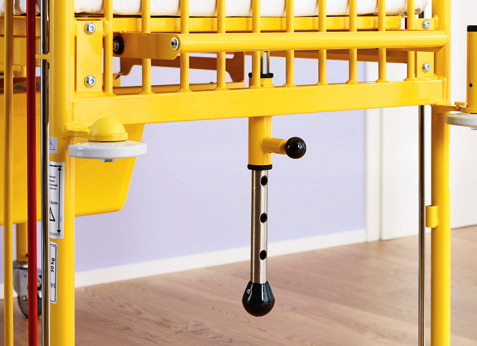

The height of the mattress base can be adjusted from 75 to 91cm. This guarantees that an ergonomic height can be found to suit both hospital staff and family members.
An easy release mechanism allows the cot to be adjusted to several intermediate heights.
The mattress base height can be adjusted easily at any time to suit the ergonomics of staff changes, and visits from different family members.

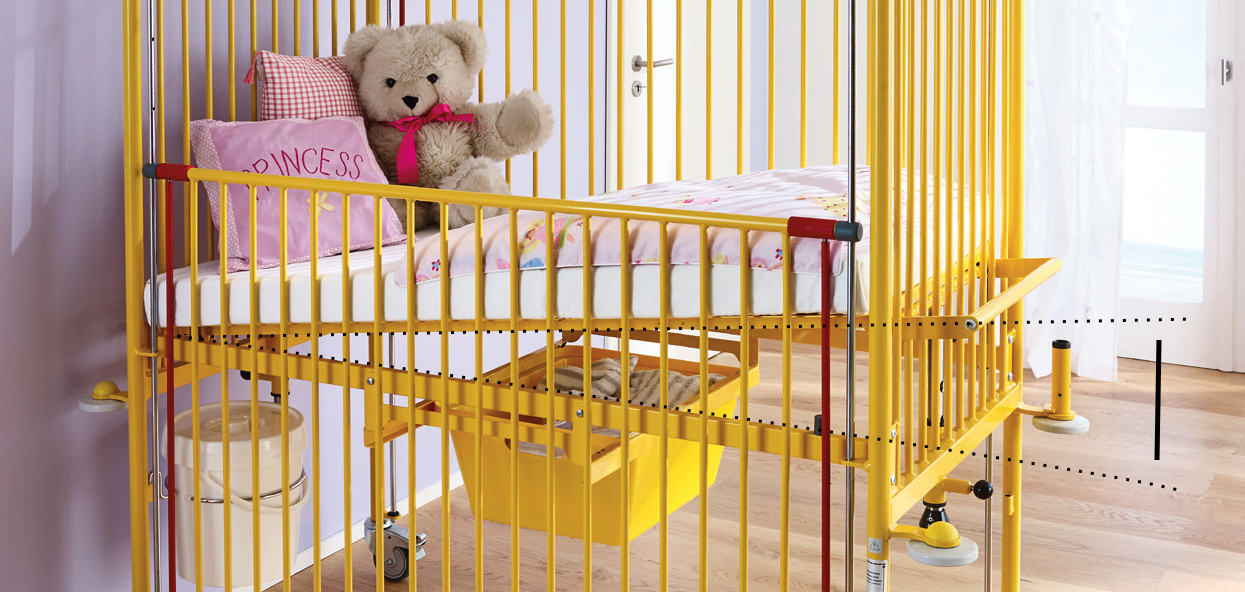

Besides this height adjustment facility, the cot’s mattress base can, also be tilted by hand to a 7° Trendelenburg and reverse-Trendelenburg position.
This makes it the ideal cot for administering medical and nursing care to young patients.
Safety and protection

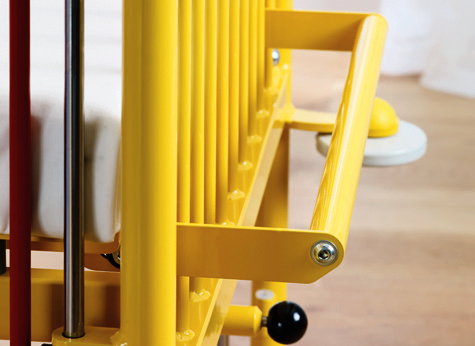

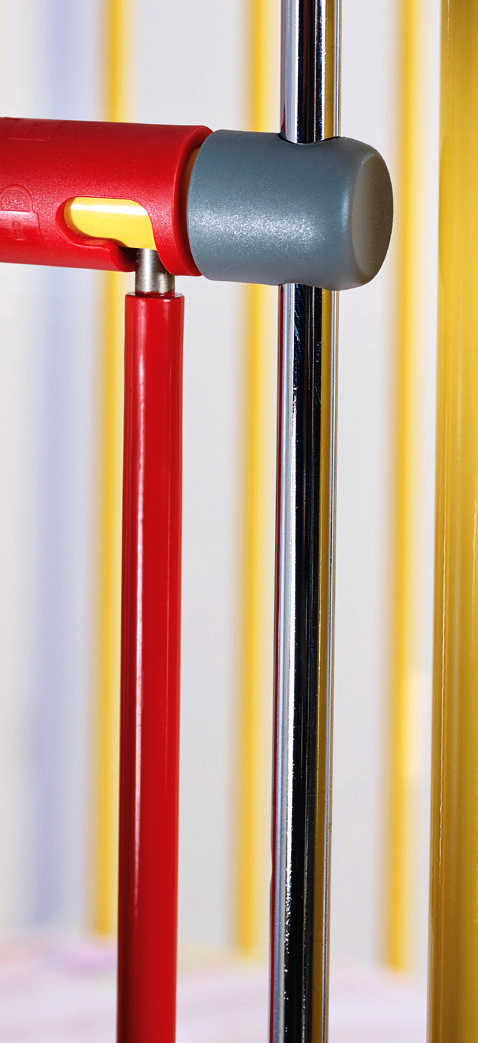

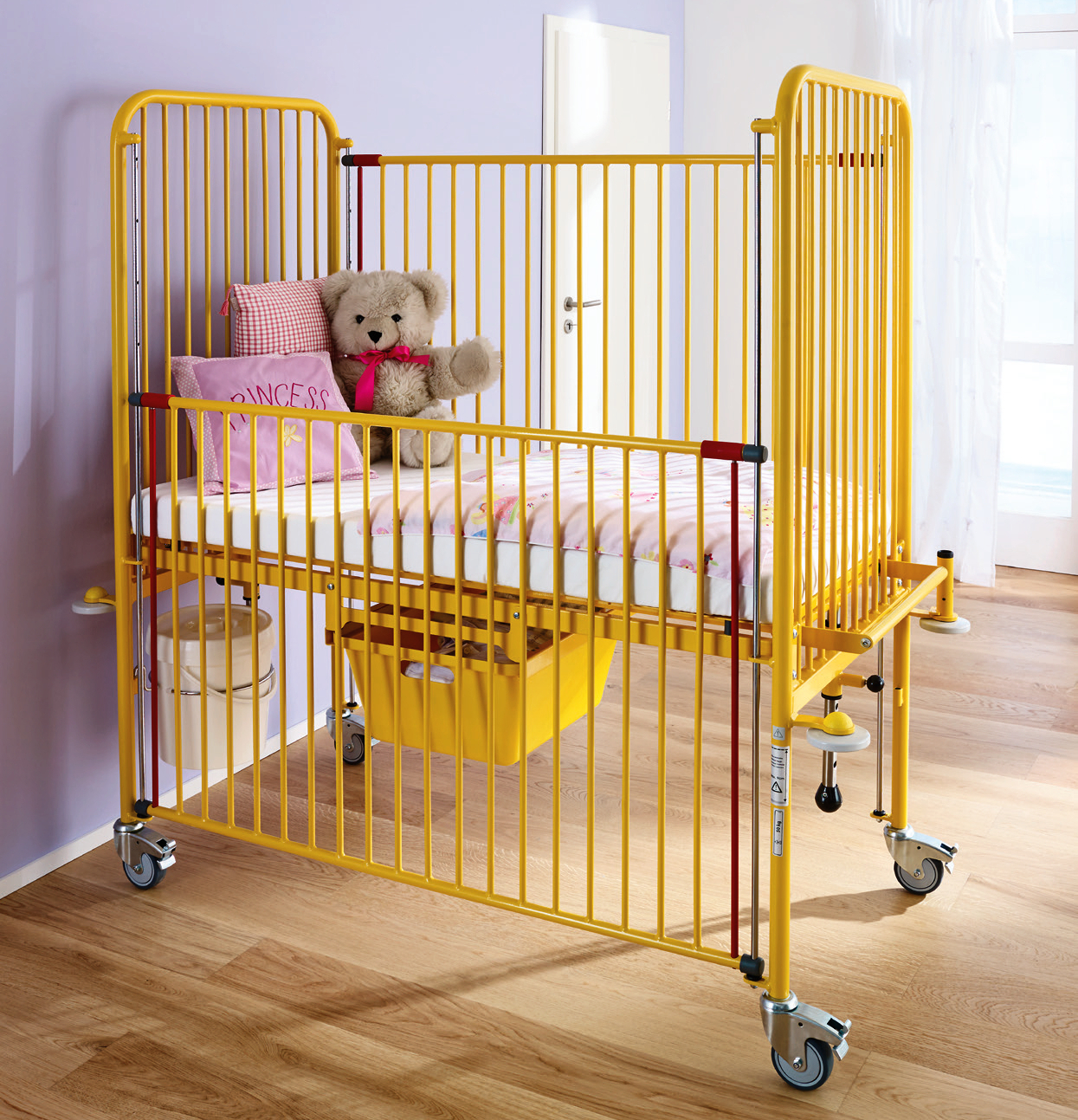

The easy to use safety sides of the Junior cot provide quick access to the child. At a height of 81cm, they are also sufficiently high to protect children who can already stand up by themselves. It is also possible to adjust the safety sides to several intermediate positions in order to meet all nursing requirements. The safety sides’ release mechanism is designed to be operated from the outside only. This prevents children from lowering the safety sides themselves and potentially falling out of bed.
ARTG No: 309507
Accessories: practical, clean, flexible
The bed can be complemented with useful accessories. These optional extras are attached in a way that makes them quick and easy to reach.
They include a pull-out laundry basket, a nappy bin and two sleeves for holding infusion stands.

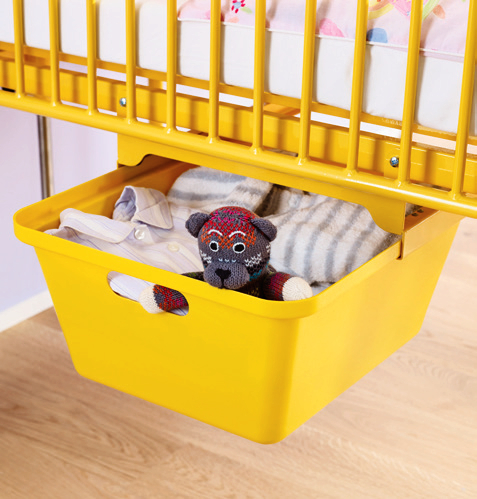

The laundry basket makes it easier for staff and family members to perform tasks such as changing the child’s clothes or making the bed since the basket can be used to hold or store clean or used laundry.

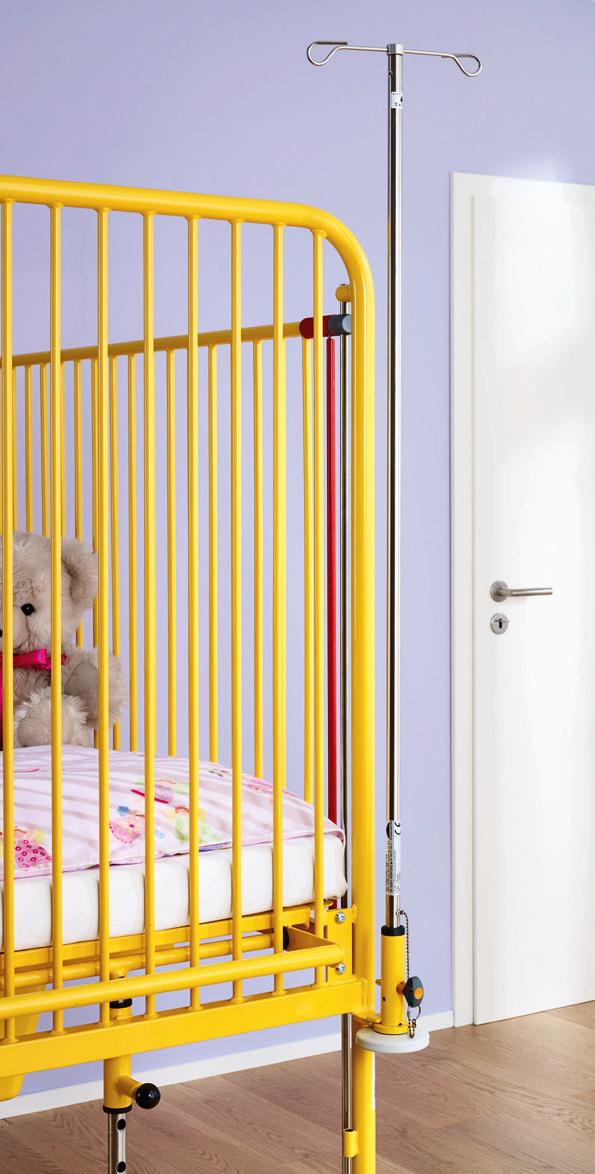

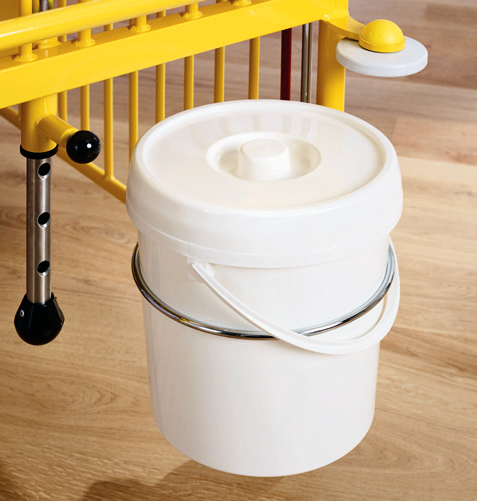

The nappy bin enables used nappies to be disposed of quickly and hygienically. The sleeves for holding infusion stands also ensure that young patients can be provided with medication.

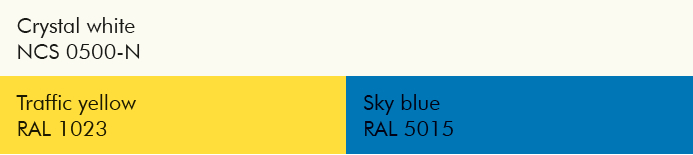

Base Colours
head and footboards, long sides, handles, infusion sleeves.

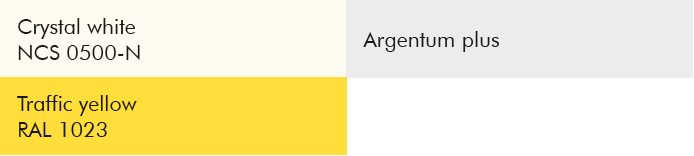

Accent Colours
safety sides, mattress frame, lever for height adjustment, guide rail for laundry basket, backrests.
Table of Technical Data
Technical Data | |
---|---|
Junior | |
Dimensions and weights | |
External dimensions | 80 x 167cm |
Mattress base (mattress dimensions) | 69 x 135cm |
Mattress base height | 75 — 91cm |
Height of bed | 170.1cm |
Safe working load | 50kg |
Floor clearance of chassis | 66cm (safety sides at highest level) |
16cm (safety sides at lowest level) | |
Total weight (bed + accessories) | 77 + 5 = 82kg |
Protection height of safety sides | up to approx. 81cm |
Adjustment ranges | |
Tilting into the Trendelenburg position | 7° |
Tilting into the reverse-Trendelenburg position | 7° |
Mattress base height | 75 — 91cm |
Height and Trendelenburg position adjustable with a locking mechanism | |
Materials | |
Chassis and mattress frame | Welded steel structure with durable polyester powder coating |
Accessory equipment and optional features | |
Removable linen basket under the mattress base (Optional) | |
Swivelling nappy bin (Optional) | |
Holder sleeve for IV Pole (Optional) | |
Product codes | |
Junior Children’s Cot | EV94K1JR |
Mattress (not included) | EV94K8JM |
Removable linen basket | EV94K8JBL |
Swivelling nappy bin | EV94K8JBD |
Holder sleeve for IV Pole | EV94K8JIC |
IV Pole | EV94K8CIS |
Junior Frame Colour Blue | EV94K8JCB |
Junior Frame Colour Yellow | EV94K8JCY |
Junior Colour Accent Yellow | EV94K8JCAY |
