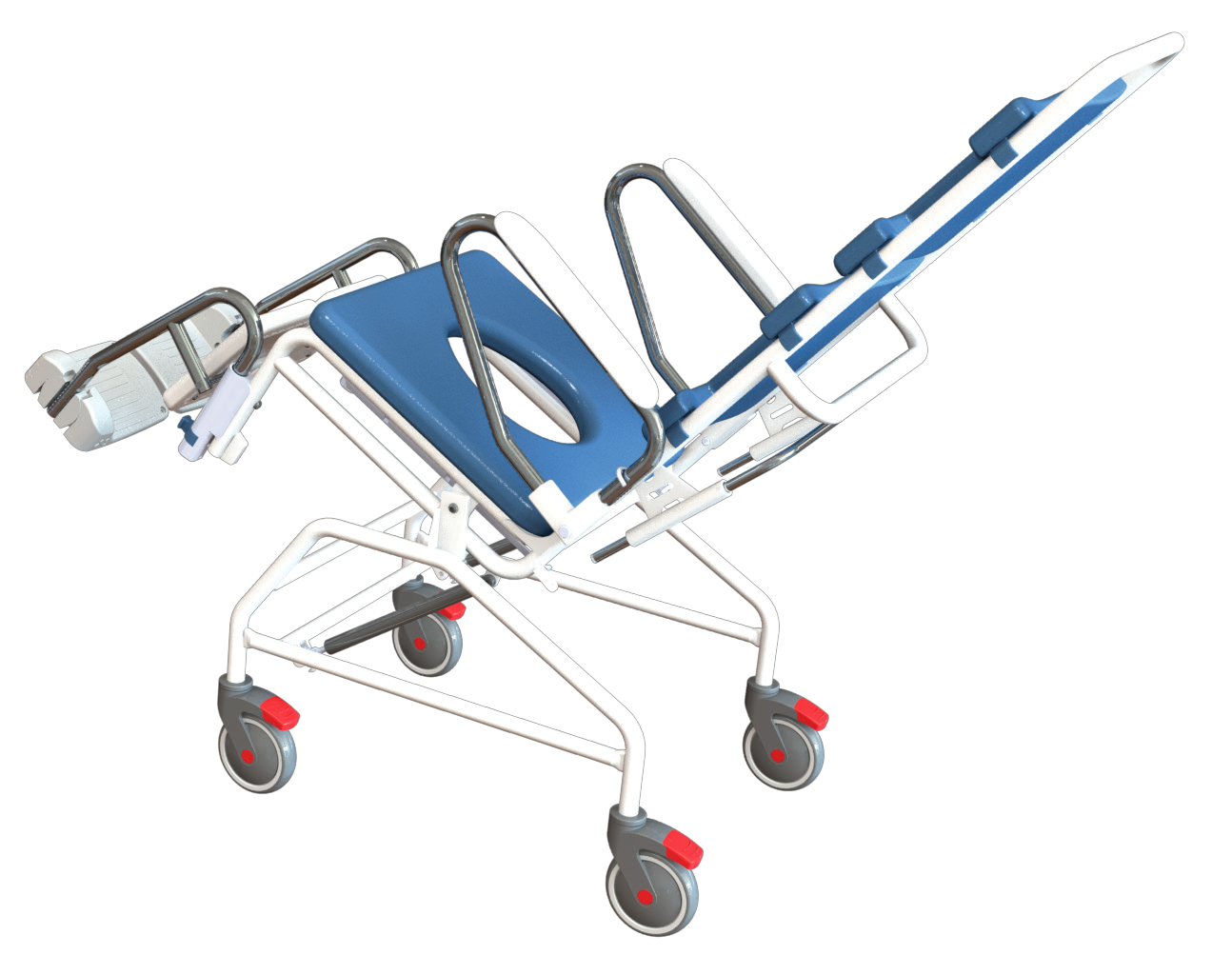

Tilting Mobile Shower Commode

The comfort and security of tilt in space

email Email for more information.

4H415GEH-55 Tilting Mobile Shower Commode

Features:
Robust, lightweight design, manufactured from durable 304 stainless steel – white powder coated finish.
Seat width 550mm (Standard seat width of 475mm also available — 4H415GEH)
Removable and height adjustable polyurethane backrest.
Ergonomic release handle designed to be operated from back and side.
Swing away arm rests height adjustable 265mm to 295mm
Polyurethane arm pads
Functional and comfortable footplates
Front and side opening frame work in place to suit seats – no modification required.
Padded calf supports
Gas assisted tilt 10° — 35°
Swing away, height adjustable and ergonomically designed swivel footrests
Diameter 125 anti-static total lock maintenance free castors.
Pan runners for pan and bowl carriers.
Range of 550mm polyurethane seats – closed, side and front open available.
‘Clip on’ seat can be easily removed for cleaning.
Maximum User Weight 205kg

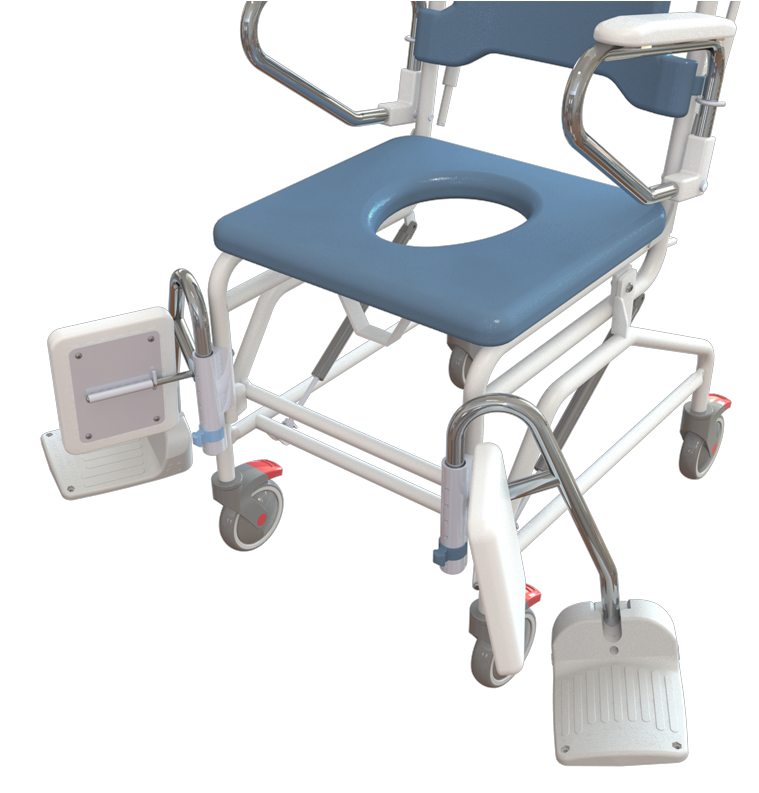

Swing Away Leg Rests with Padded Calf Supports

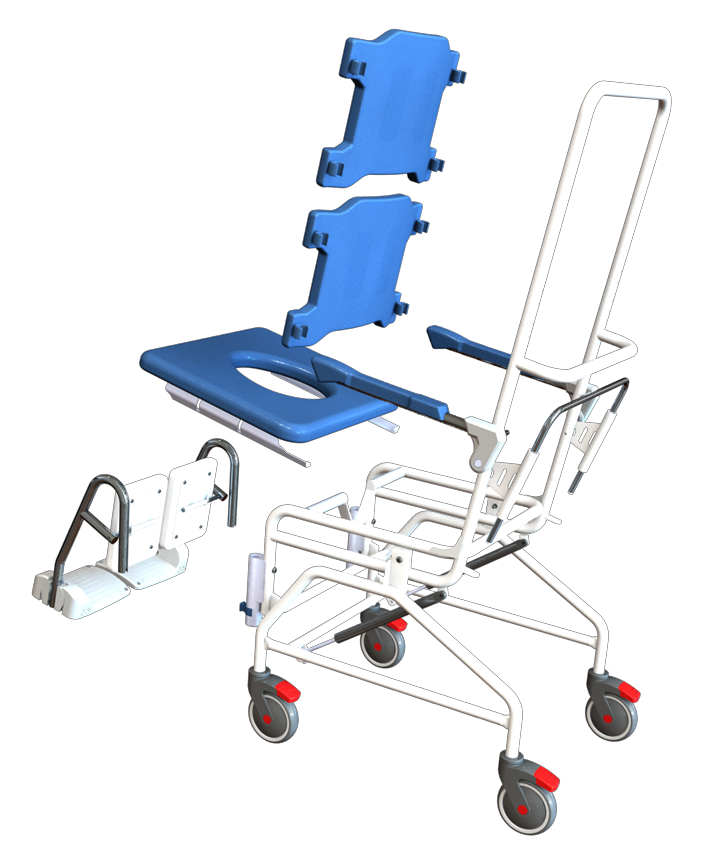

4H415GEH exploded view

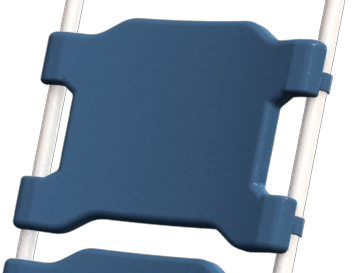

Adjustable Backrest

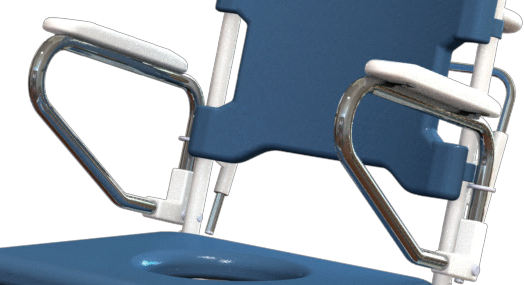

Padded Swing Up Arm Rests

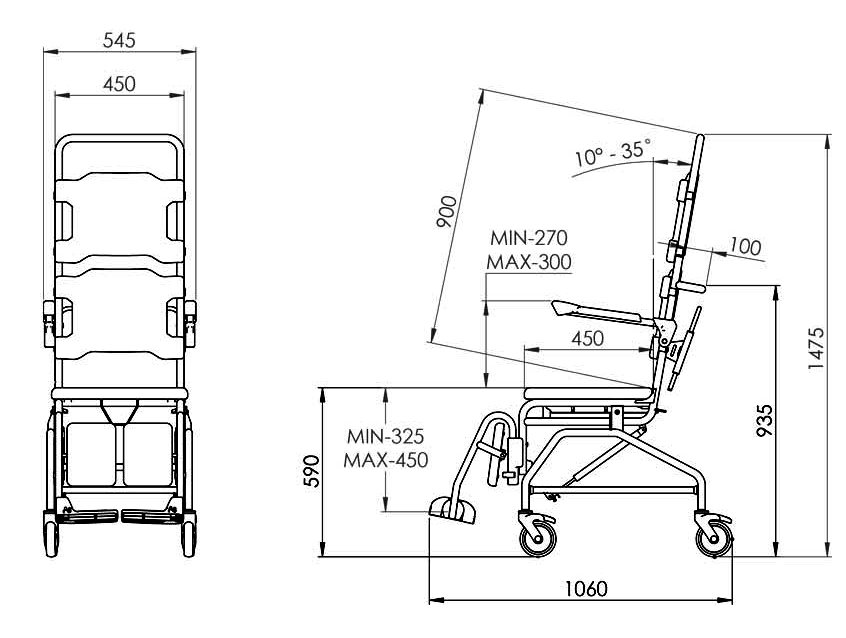

Specifications:
Width O⁄A: 648mm
Seat width: 550mm
O⁄A depth including swing away footrests: 1060mm
O⁄A height: 1475mm
Tilt: 10° — 35°
Armrest to Seat Frame height: 315mm
Push Handle to Floor height: 930mm
Weight: 17kg
Dimensions (mm): 570W x 1060D x 1475H

PLEASE NOTE: All our shower commodes are sold without seats.

Seats may be purchased separately but are not included with the commodes.
For purposes of illustration, all commodes on this page are shown fitted with seats.
