4H Mobile Shower Trolleys

Bed Baths for bathing dependent people.



mouseover for larger image

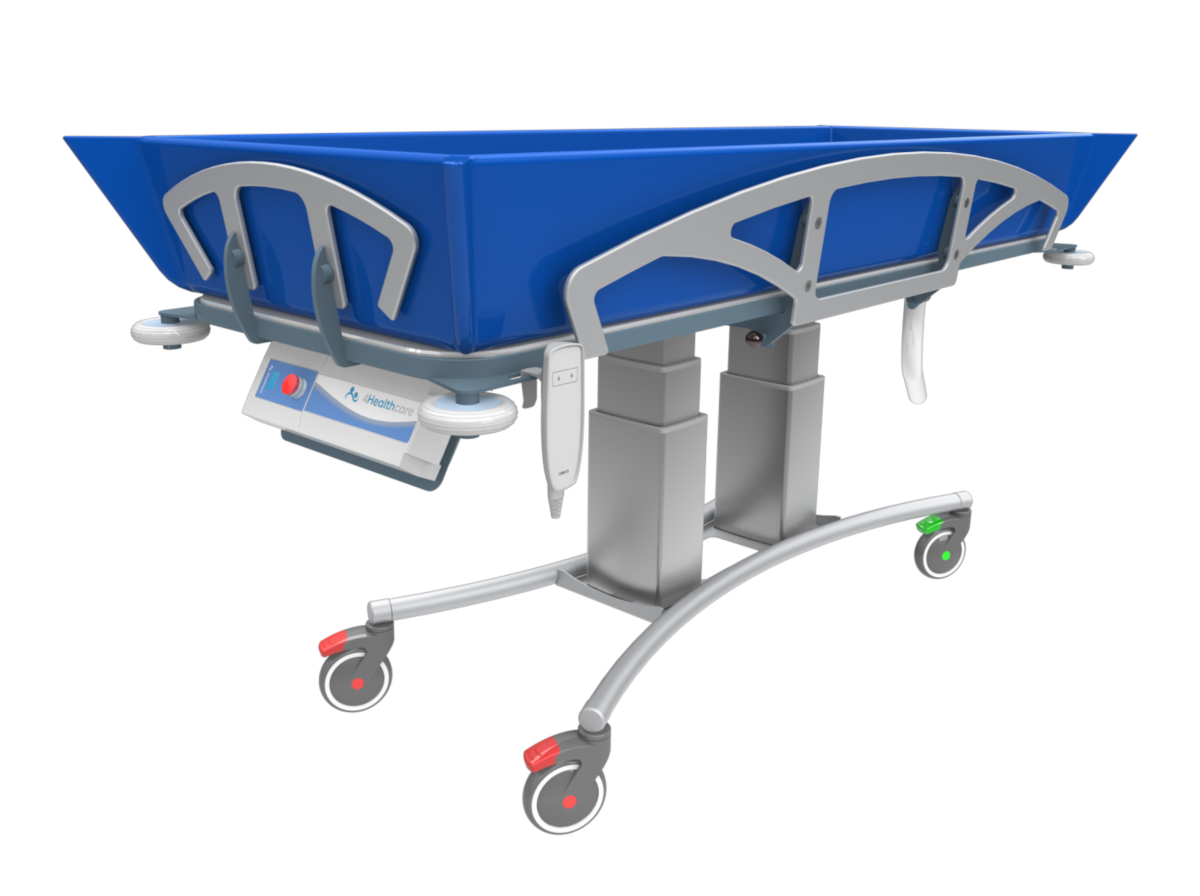

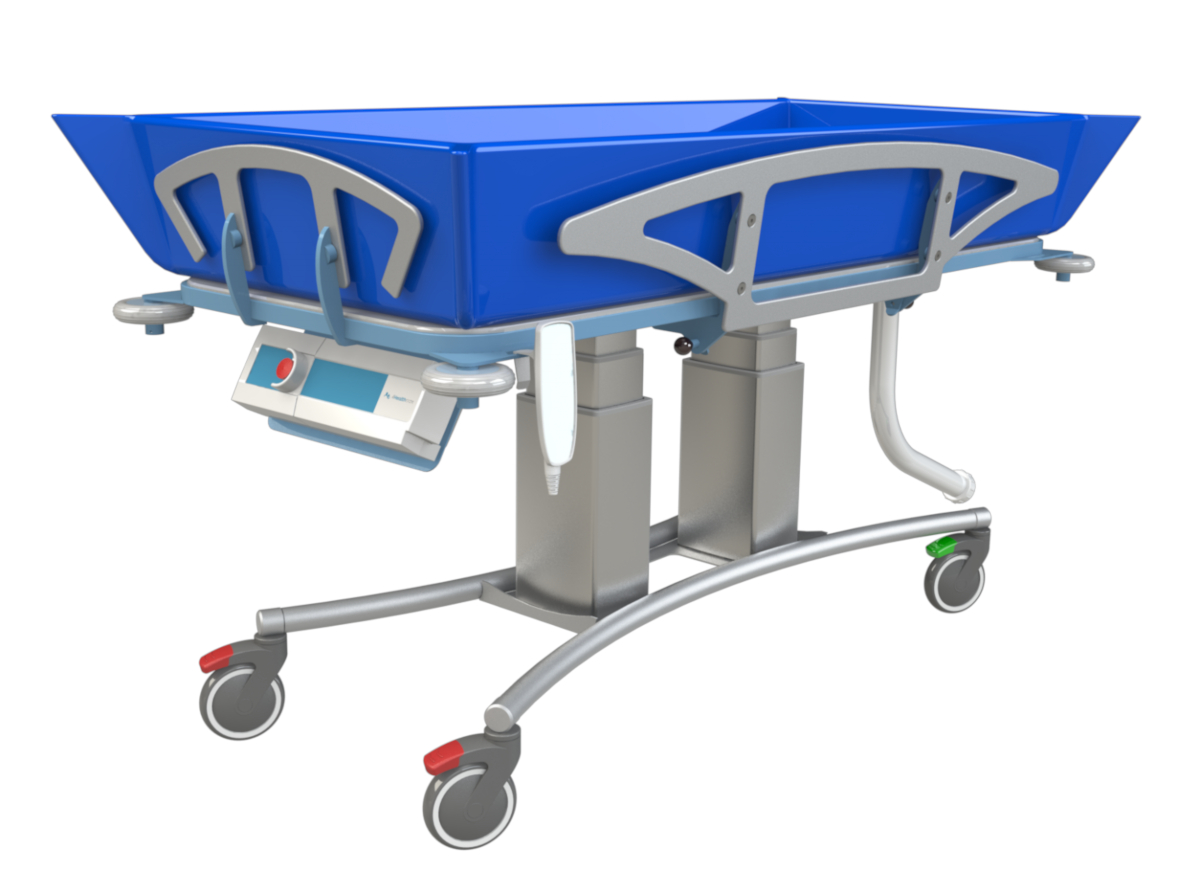

4H400E Mobile Shower Trolley

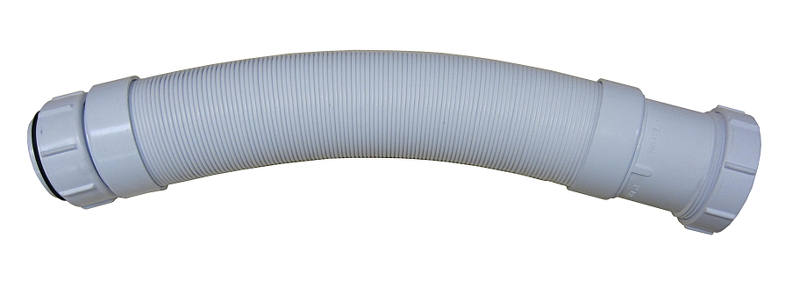

4H400E Drain Hose
Large screw–in 50mm diameter flexible waste hose

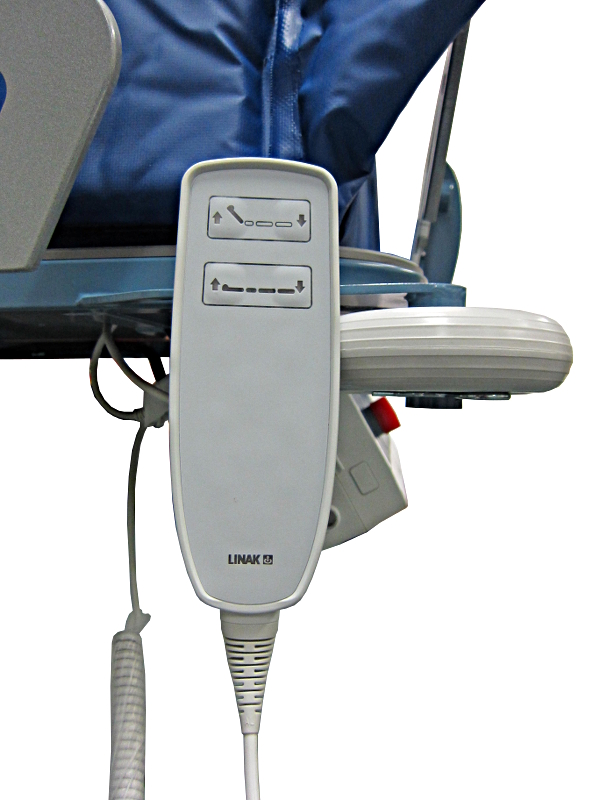

4H400E Hand Control
Hand Control


4H400E Mobile Shower Trolleys

4H400E Hand Control

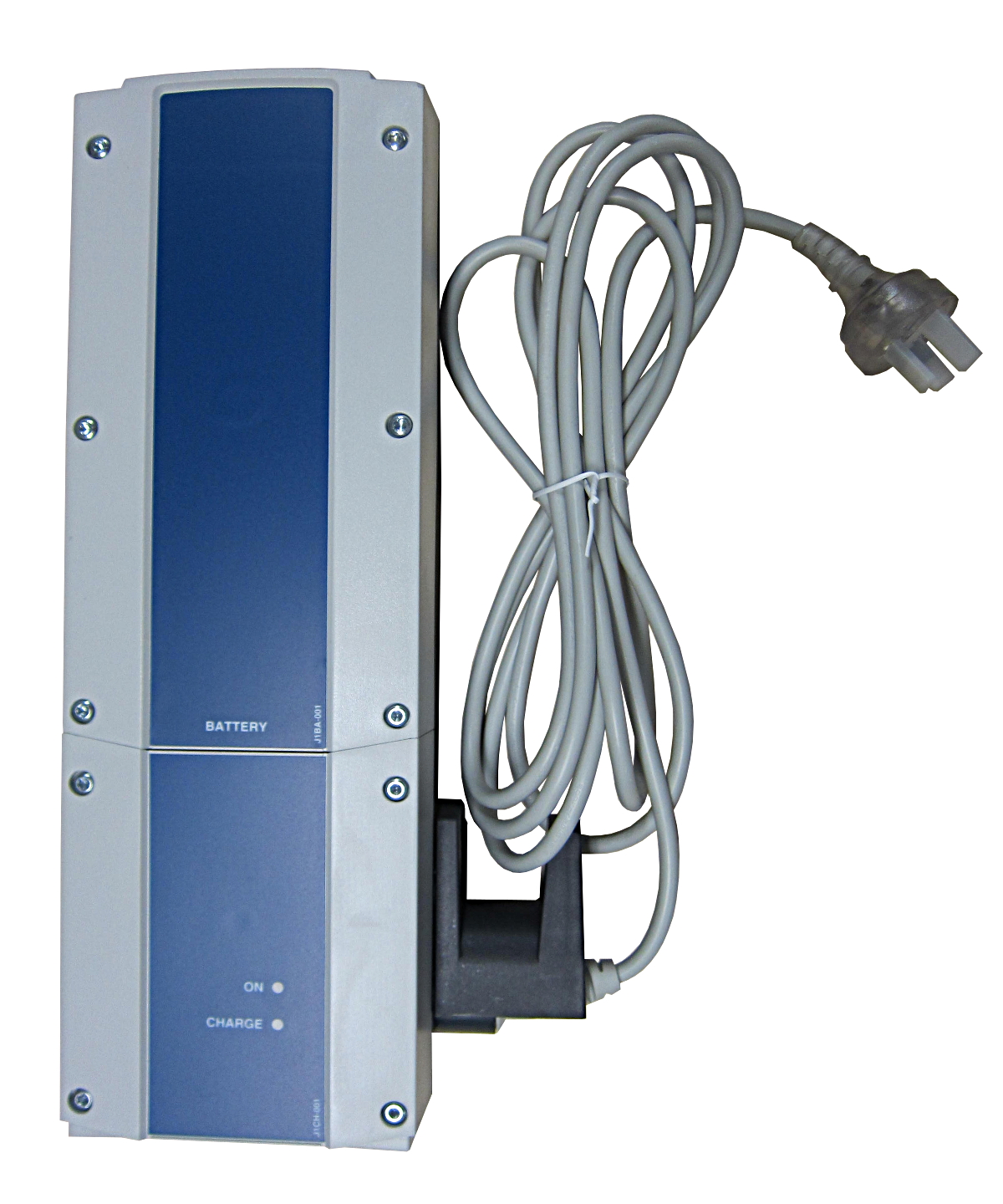

Battery and Charger

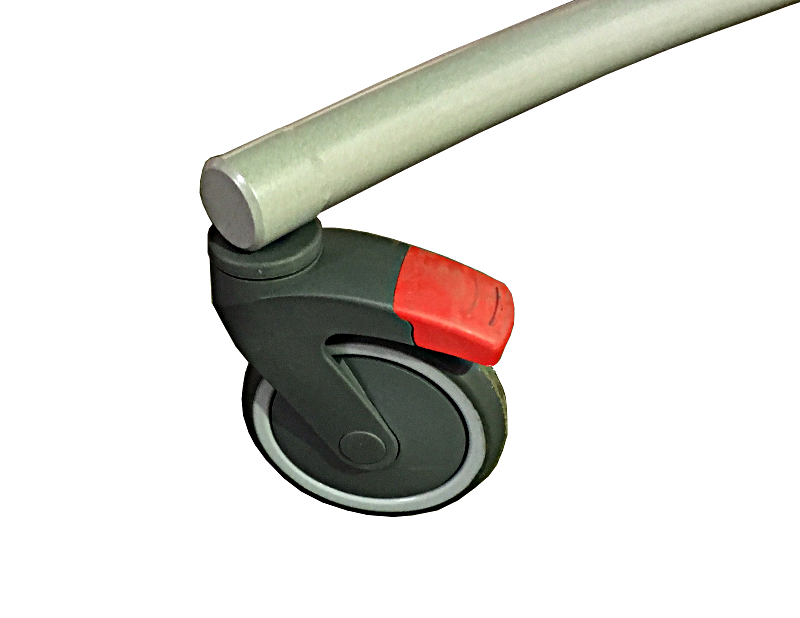

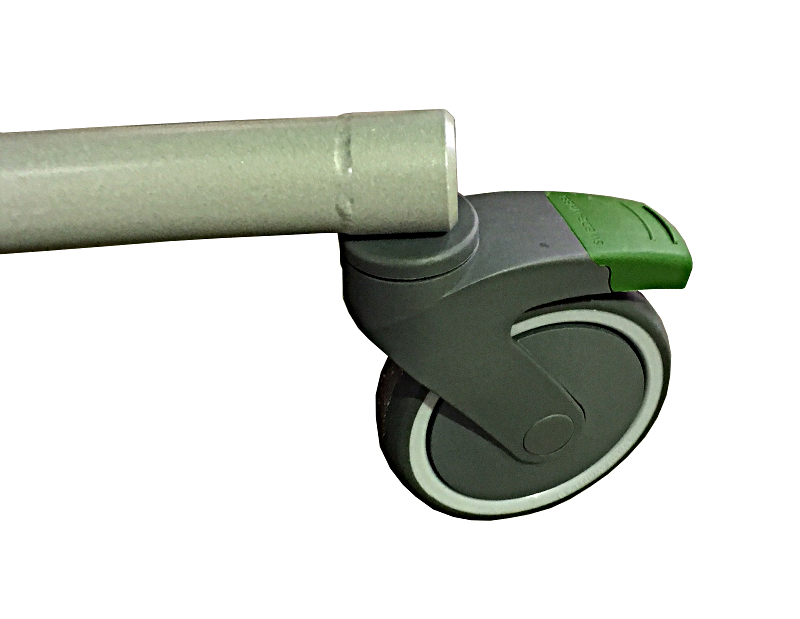

4H400E Locking Castor 4H400E Direction Castor

Total Lock & Direction Lock Castors

  • Padded Vinyl Mattress with waterproof pillow
  • Liner can be secured in the corners to facilitate in bath
  • Push Handle, Both Ends
  • Corner buffer discs
  • Electric tilt–drain 8° degrees
  • 5083 Alloy, Stainless steel & P.V.C. Polymer Top
  • Lightweight swing under side rails for side transfer
  • Large screw–in flexible waste hose; 50mm inside diameter, 62mm outside diameter, expanded length 1250mm.
  • Electric high–low operation 600–1000mm
  • Electric Trendelenburg ⁄ tilt
  • Remote Handset with hook
  • Plug–in rechargeable battery pack
  • Linak (IPX5 X IPX6) Approved to EN 60601
  • Curved base construction to allow access for carers
  • Epoxy powder coated frame
  • 3 x Total Lock, 1 x Direction Lock, 125mm diameter maintenance free castors
  • ARTG number 229005
4H400 Shower Trolley 4H400 Shower Trolley 4H400 Shower Trolley 4H400 Shower Trolley
SPECIFICATIONS
Capacity 150kg
Length – overall
4H400E
4H400ES
4H400EL–4H400EWL

1890mm
1550mm
2050mm
Width – overall
4H400E
4H400EWL

730mm
930mm
High Low Range (to top of mattress) 600 to 1000mm
Time to raise trolley from low height to maximum height 25 sec
Under Base Clearance 160mm
Maximum Tub Depth 200mm
Tub Length (Internal)
4H400E
4H400ES
4H400EL–4H400EWL

1850mm
1500mm
2000mm
Tub Width (Internal)
4H400E
4H400EWL

700mm
900mm
Tilt ⁄ Drain 8° degrees
Trolley Weight 74kg
Castors 3 x Total Lock, 1 x Direction Lock, 125mm diameter castors
Wall Protection Corner buffer discs


MODELS
4H400E Standard Trolley
4H400EL Long Trolley (Overall Length 2050mm)
4H400ES Lavare Trolley (Overall: 1550mmL x 730mmW)
4H400EW Wide Trolley (Overall Width 930mm)
4H400EWL Wide Trolley (Overall 2050mmL x 930mmW)


Option
Increase SWL from 150kg to 180kg

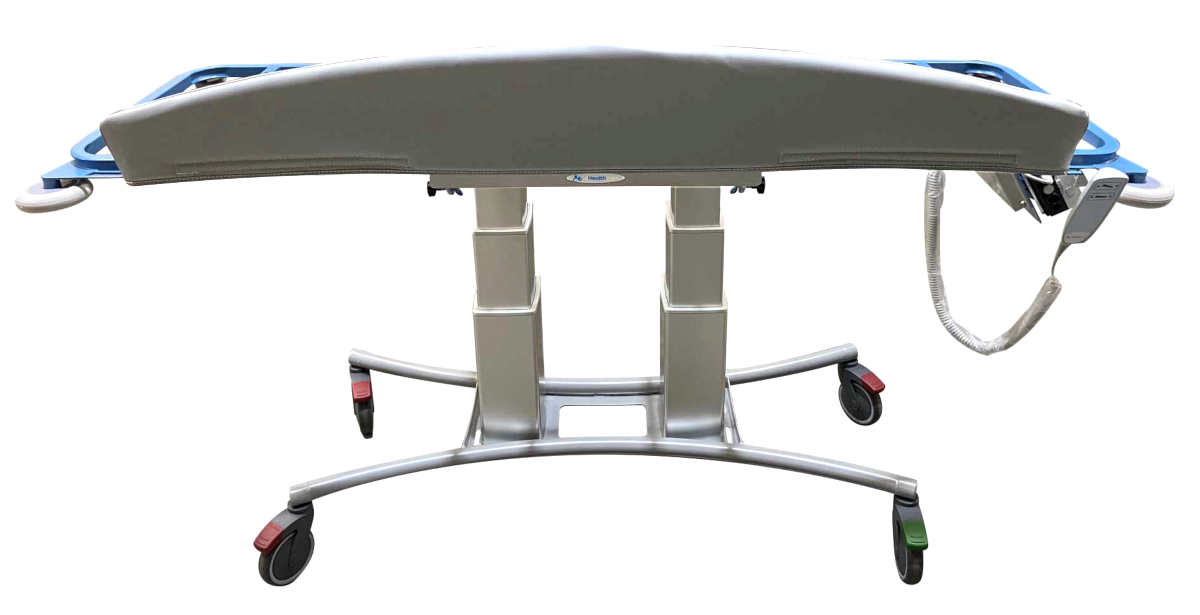

4H400PSCF Padded Side Rail Cover (EACH) — Full Cover
Side Rail Cover

Padded Side Rail Cover


SPARE PARTS
4H400SL Shower Trolley Liner (Mattress)
4H400P Shower Trolley Pillow
4H400H Shower Trolley Hose Kit

Click here for 4H400E Brochure pdf

Click here for 4H400ES Brochure pdf

Click here for 4H400EL Brochure pdf

Click here for 4H400EWL Brochure pdf

Click here for the Maintenance Manual pdf


Shower Trolley
4H400E
Shower Trolley short
4H400ES

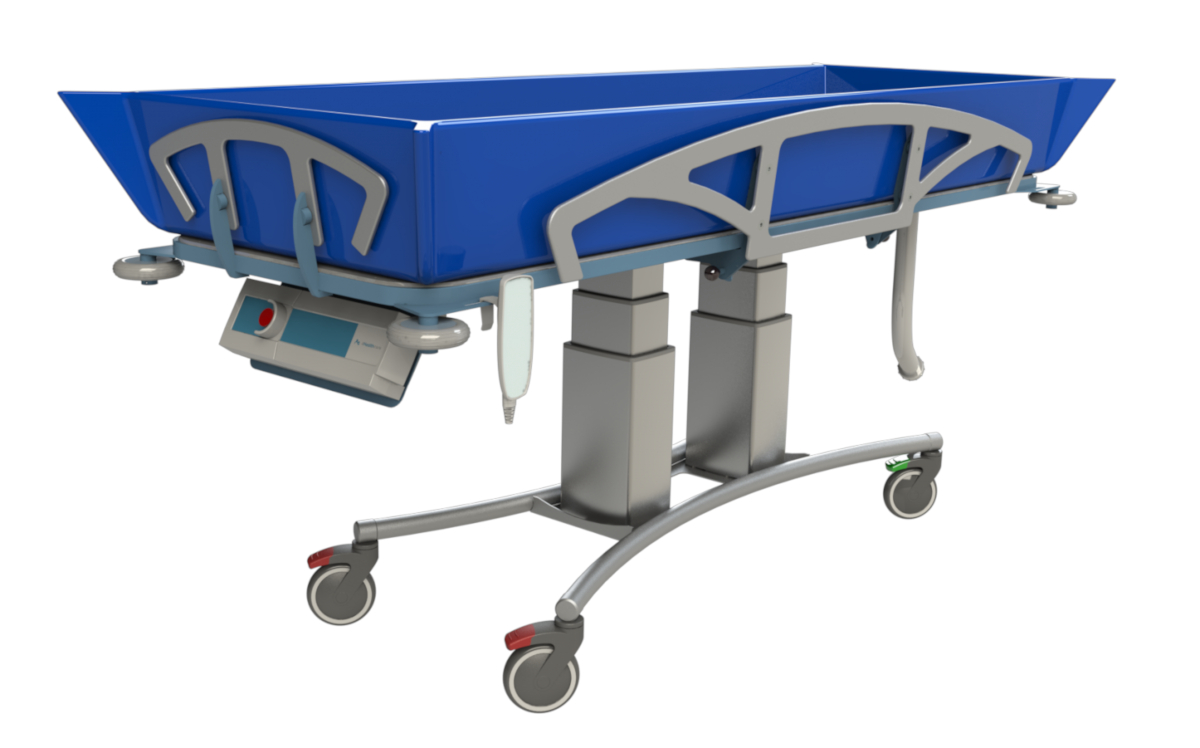

Shower Trolley long
4H400EL

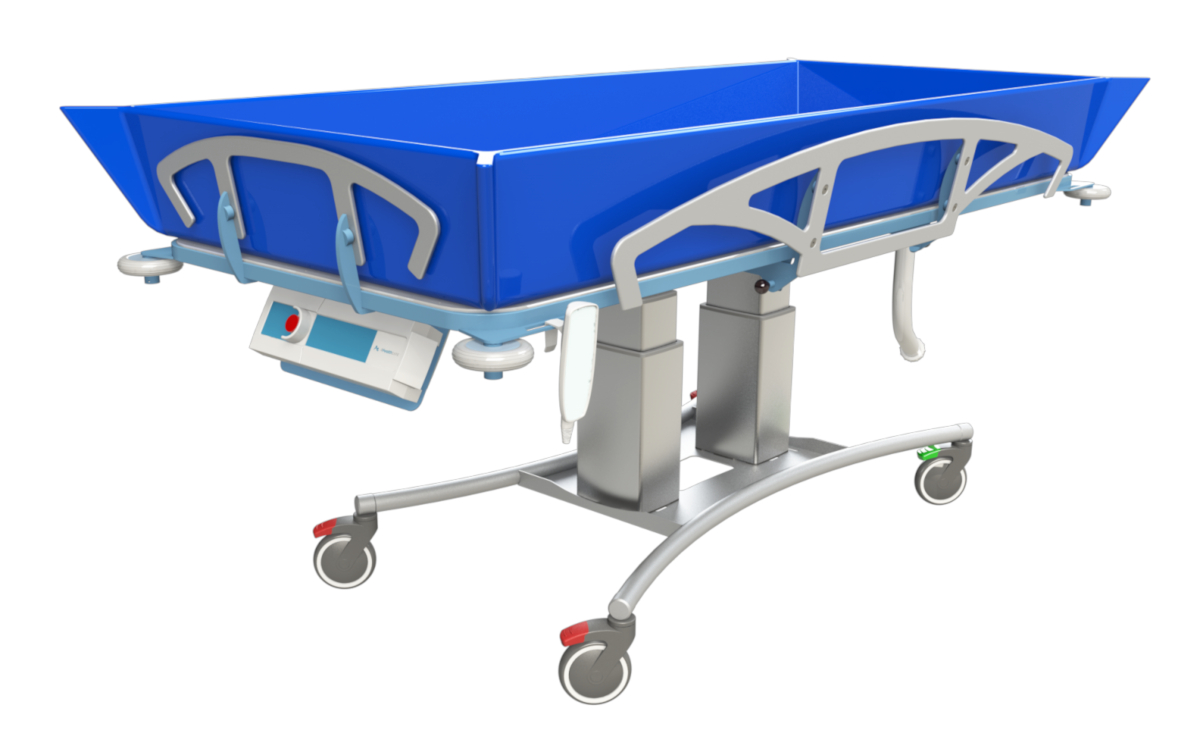

Shower Trolley wide long
4H400EWL
