Stiegelmeyer Seta pro Hospital Bed

Stiegelmeyer Seta pro Hospital Beds

Seta beds for all needs

Junior model

Stiegelmeyer Seta pro Hospital Bed

Key Points of Interest

Classic hospital bed for today’s demands

The Seta is synonymous with quality, durability, ease of operation and a high level of patient comfort. Individually configurable using an intelligent modular system.
Continuous safety sides with edge protection ensure a long service life with low follow-on costs.
Stiegelmeyer quality and excellent value for money.

Seta pro excels with an upgraded chassis

Featuring a linear design and flat surfaces. It is designed to be cleaned and disinfected both by hand as well as optionally in a washing system.

Patient safety has always been the focus of the Seta series

Rail guides are integrated into the headboard, making them particularly low-maintenance and durable. The bed is also available without integrated full length safety sides, if requested.

Seta pro – Standard – The variable hospital bed

A robust bed designed for tasks in many areas in the hospital. With an adjustable height range of up to 91cm, it even allows tall care staff to work at an ergonomic height. The integrated full-length safety sides provide the best possible protection for patients who are susceptible to falls.
More information on the Standard model

Seta pro – lino variant – The narrow bed

Manoeuvring a bed can become a challenge; With an external width of less than 100cm, the Seta pro lino is an ideal choice. A narrower bed that also keeps the patient comfortable can solve many problems.
More information on the Narrow model

Seta pro – brevo variant – The low-height bed

Being so close to the floor means that patients who are susceptible to falls only have a very minor risk of injury. The Seta pro can be lowered to a 28cm low height. The low-height bed offers the best possible protection with or without the use of safety sides.
More information on the Low Height model

Seta pro – brevo lino variant – The narrow low-height bed

It can be quickly moved to any location and meets the different protection needs of patients.
More information on the Low Height Narrow model

Stiegelmeyer Seta pro Hospital Bed closeup

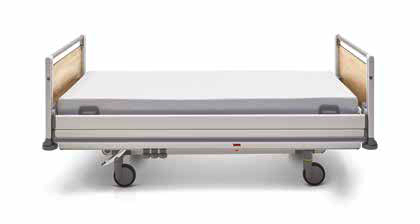

Stiegelmeyer Seta pro Hospital Bed

Seta pro
Standard
The basic model

Height adjustment:
32 – 91 cm (depending on castors)

The bed for a high level of safety:
– Mattress base 90 x 200cm
– Work at an ideal, ergonomic back-friendly height
– Excellent hygiene properties

More Information on the Standard model

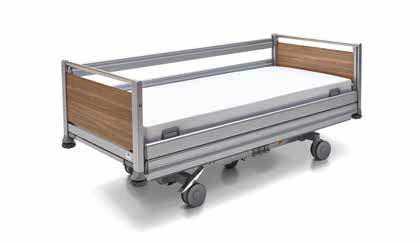

Stiegelmeyer Seta lino Hospital Bed

Seta pro
lino variants
The narrow beds

Height adjustment:
32 – 91cm (depending on castors)

Ideal for restricted spaces:
– Mattress base 80x200cm or 87x200cm
– External dimensions only 92.8x219.3cm or 99.8x219.3cm, effortlessly moves through door frames
– Easy to manoeuvre in cramped areas or multiple-bed rooms

More Information on the narrow model

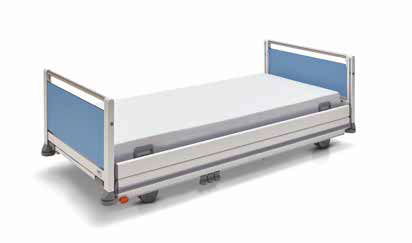

Stiegelmeyer Seta pro brevo Hospital Bed

Seta pro
brevo variant
The low-height bed

Height adjustment:
28 – 84cm

Helps to prevent falls:
– Mattress base 90 x 200cm
– Low position close to the ground reduces the risk of fall injuries for the patients

More Information on the low-height model

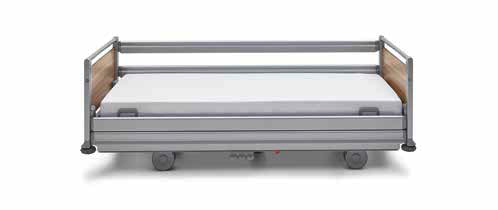

Stiegelmeyer Seta pro brevo lino Hospital Bed

Seta pro
brevo lino variant
The narrow, low-height bed

Height adjustment:
28 – 84 cm

Helps prevent falls & Fits restricted spaces:
– Mattress base 87 x 200cm
– Combines the narrow overall dimensions and extensive adjustment range of the lino and brevo variants

More Information on the narrow, low-height model

Only the Seta pro beds offer the advantages of integrated full-length safety sides.

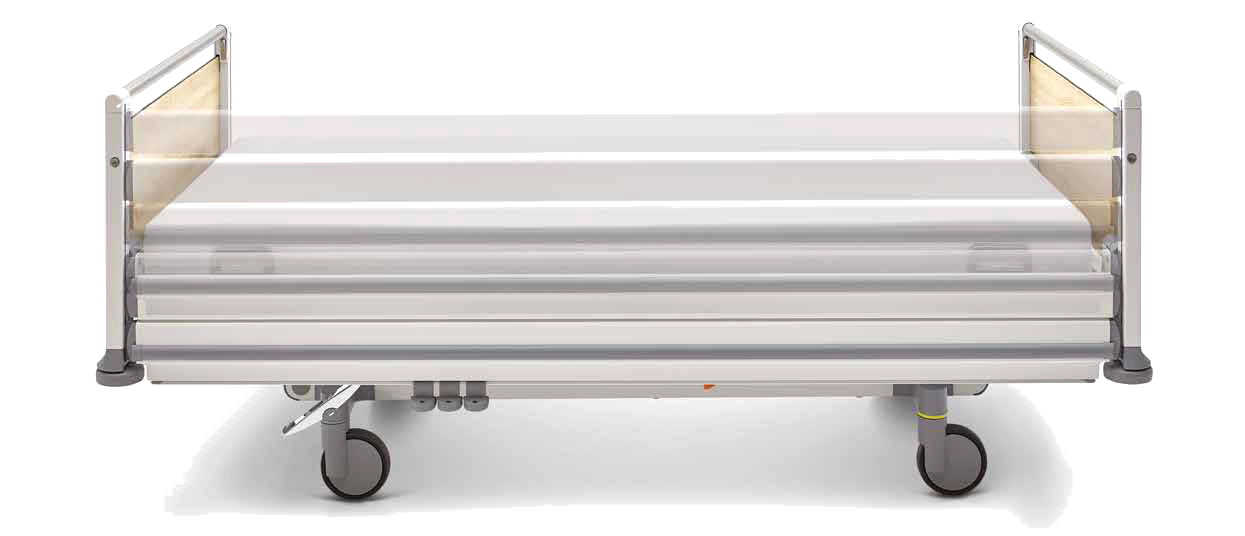

Safety sides — Protection and stability in all situations

The full-length safety sides of the Seta pro models are designed to offer maximum protection to patients who are susceptible to falling. Their unique stability and durability is also impressive: This bed is the only one in which the rail guides are integrated directly into the head and footboards. They move smoothly, quietly and, unlike other safety side systems, do not require any additional space at the sides of the bed when they are adjusted or lowered.

When using the bed extension, the bars can be extended as standard
The large protection height of 41 cm allows the use of anti-decubitus mattresses
The smooth surfaces on the bars are easy to clean

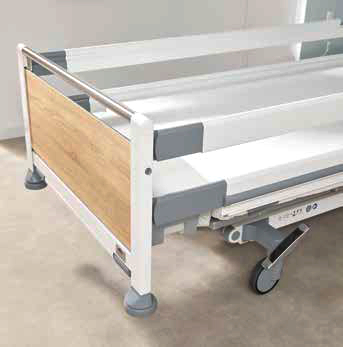

When using the bed extension, the bars can be pulled out to extend them. ⟱

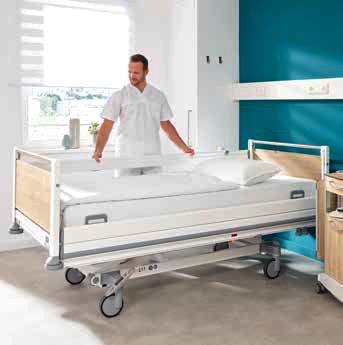

Care staff can easily release the safety side at the touch of a button. ⟱

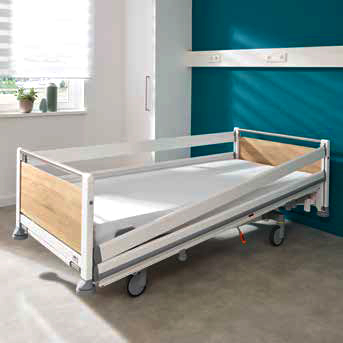

Patients enjoy better spatial orientation as the bars can be set diagonally. ⟱

Intuitive control — Tailor-made for all user groups

The Seta pro can be operated intuitively and safely by nurses and patients. Both the standard handset with simple pictograms and the modern LCD handset with only 3 keys and a large display prove themselves even in tense situations.

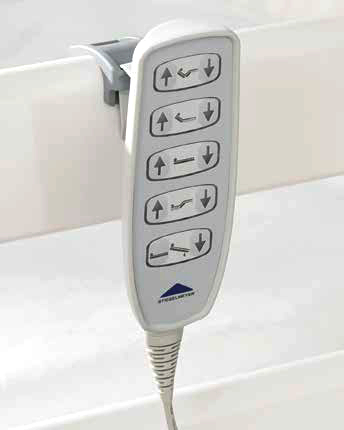

The standard handset uses intuitive pictograms to control the bed at the touch of a button. It is also optionally available with lighting. ⟱

Stiegelmeyer Seta pro standard hand switch

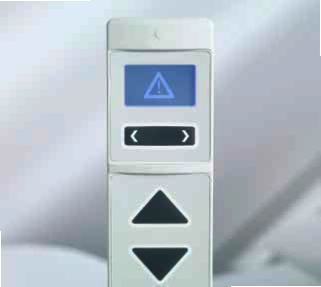

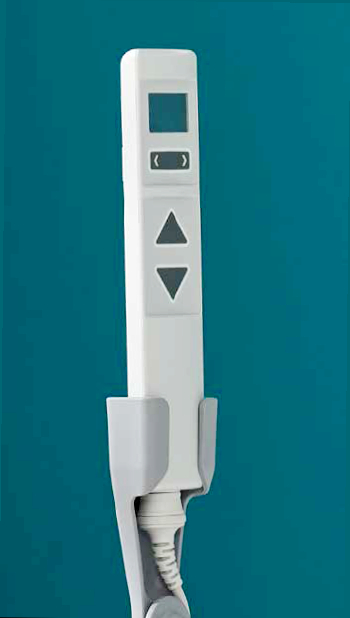

The optional LCD hand switch offers customised control levels for patients, care staff and technicians. ⟱

Additional operating and management functions are available in the locking box or the optional control box in the linen holder.

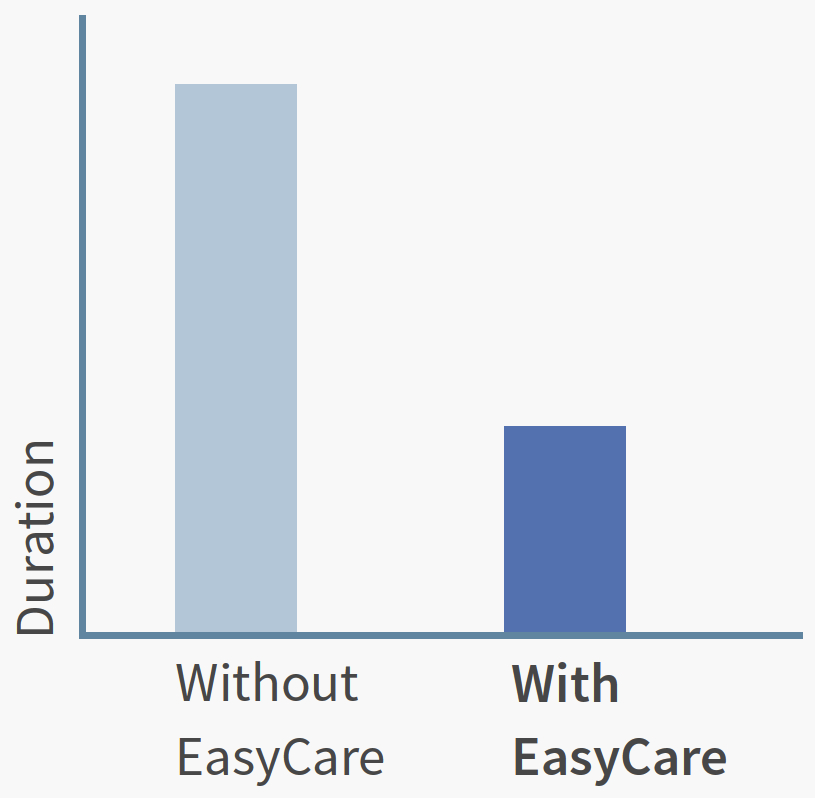

ESSENTIALLY BETTER
EasyCare lightens
the workload
of nursing staff

The LCD handset contains three control levels for patients, nurses and technicians.
Care staff can block and conceal certain adjustment functions for the patient.
With the EasyCare function, these functions can be used at the nurses’ level without changing the blocking status for the patient. This saves care staff a lot of time and increases the level of safety.

Enabling the functions

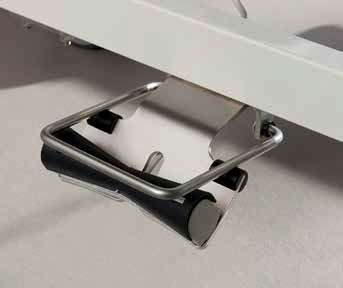

Using the optional foot pedal, care staff can adjust the bed height even if they do not have a free hand. ⟱

Stiegelmeyer Seta pro optional foot pedal

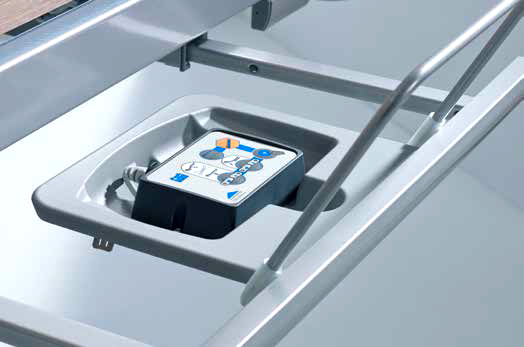

The locking box can be used to lock or unlock individual adjustment options. ⟱

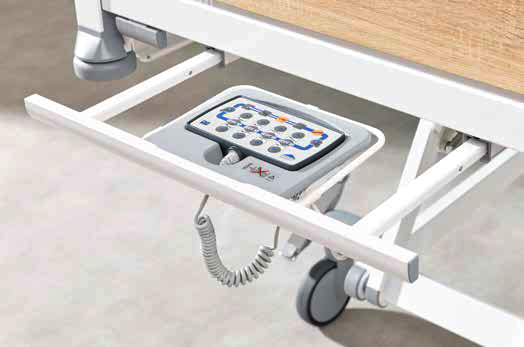

The optional control box combines all the bed’s control options on a generous surface area. ⟱

Headboards and decors — Stylish yet practical design

Evario hospital bed head and foootboard decors

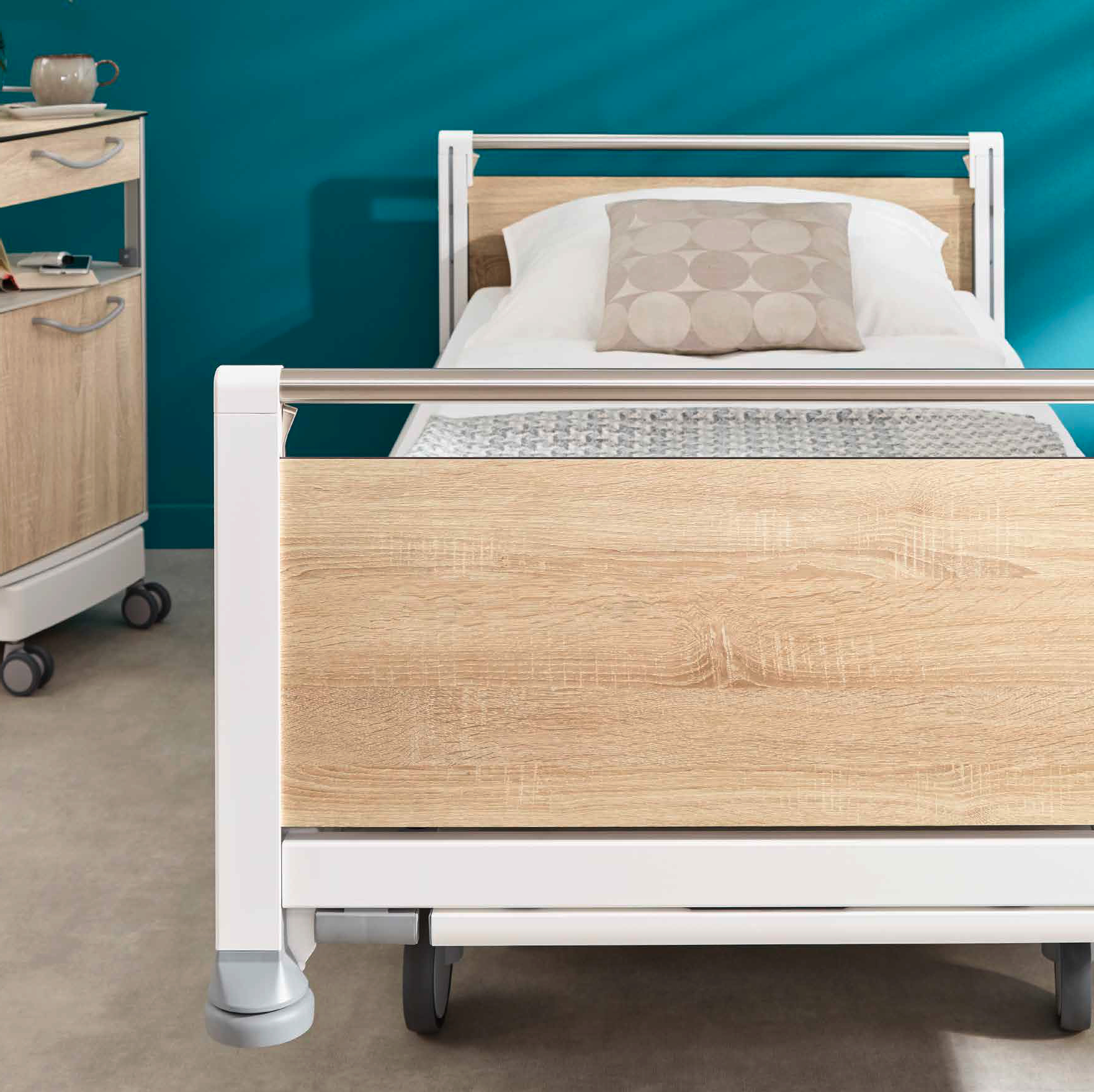

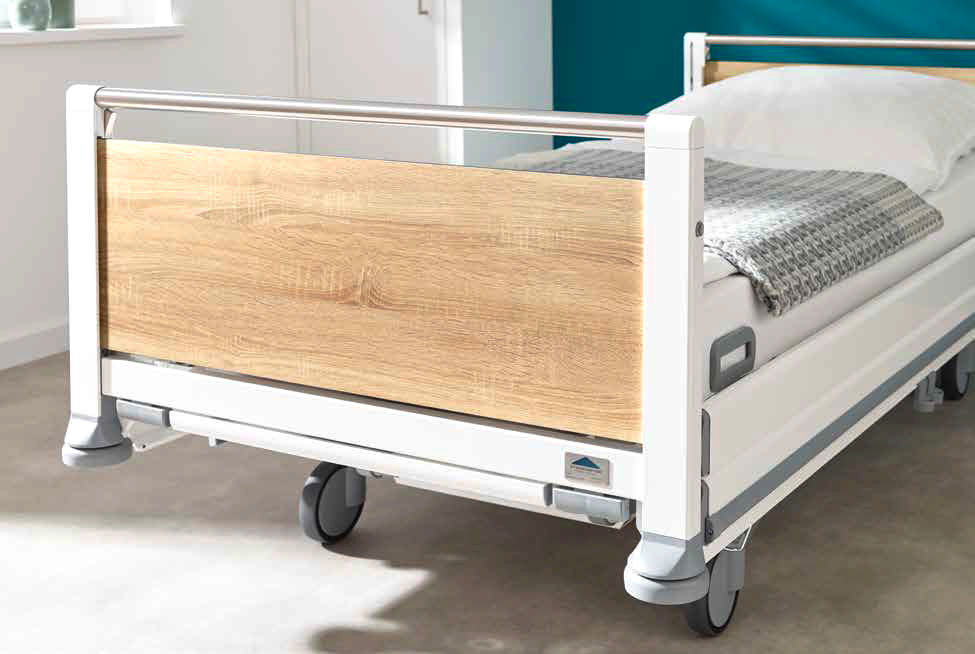

Seta pro hospital bed base head and footboard ⤊ The visually appealing “Base” head and footboards blend easily into any environment.

Headboards and decors
Stylish yet practical design

All Seta pro beds are fitted with our “Base” headboard model as standard.
The elegant headboard with practical handle bar comes in a wide range of different colours and decors to add a personal touch to the bed.

Head and footboard panels can be easily removed for quick access to the patient
Head and footboard panels are suitable as resuscitation support

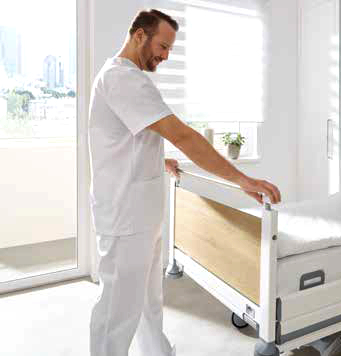

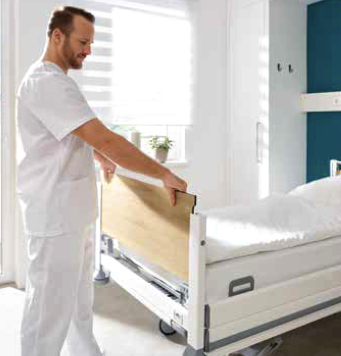

To remove the head and footboard panel, first remove the handle bar, which is fixed with a quick-release lock. ⟱

The head and footboard panel can then be pulled out and used as a resuscitation support in an emergency. ⟱

Head and footboards, decors and colours

Head and footboard design — base, not removable		✔
Argentum paint colour		o
	Azure decor (0744-60)	✔
	Baltic Sea decor (0475-60)	✔
	Eternal Cherry decor (4325-60)	✔
	Global Beech decor (4306-60)	✔
	Gold decor (0446-60)	✔
	Noce Lyon decor (4232-60)	✔
	Noce Pralinè decor (4452-60)	✔
	Ottawa Maple decor (4209-60)	✔
	Silver Grey decor (0160-60)	✔
	Snow White decor (9417-60)	✔
	Storm decor (10542-60)	✔
	Valley Oak decor (4166-60)	✔
Base colour Crystal white NCS S0500N		✔

Reliable Hygiene — Ideal for manual or automatic reprocessing

Reliable Hygiene
Ideal for manual or automatic reprocessing

10 x more washable than the standard requirements

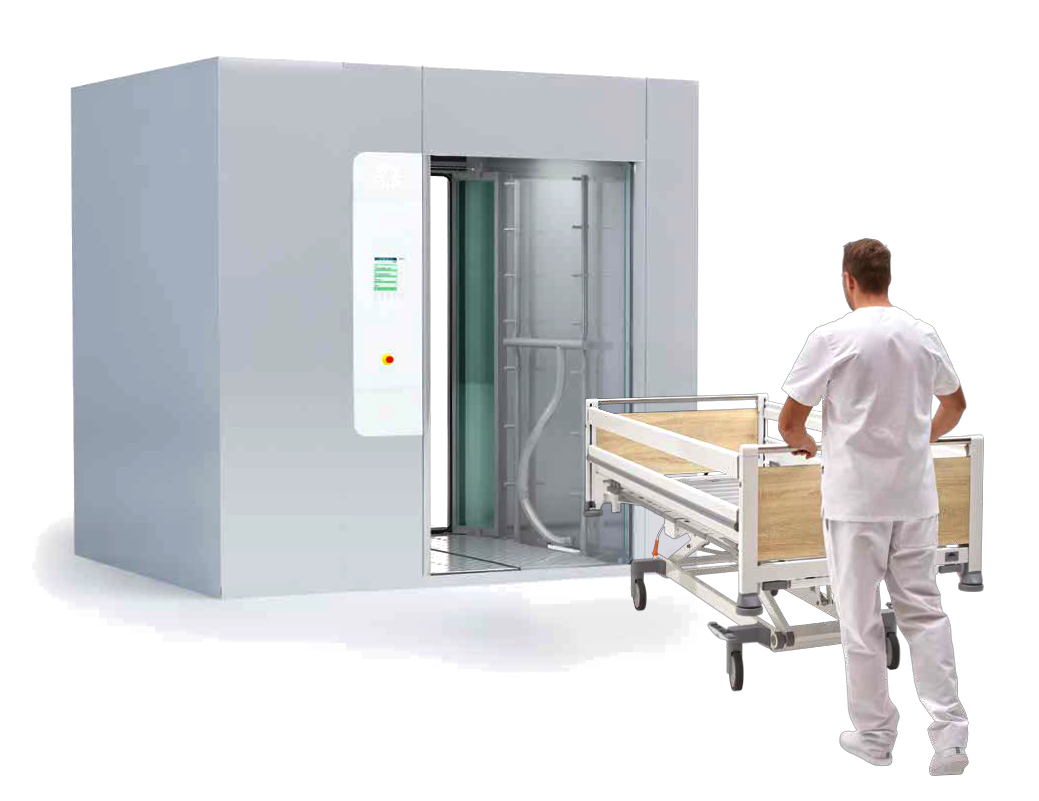

The excellent hygiene properties of the Seta series have been further improved in the Seta pro. Large, even surfaces and covered cable routing make manual cleaning and disinfection considerably easier. The optional machine-washable model variants have even more advantages:

Safe hygiene for effective protection against multi-resistant pathogens
High IPX6W standard protects electrical components from moisture
Relieves the workload of staff by eliminating manual bed reprocessing
If desired, the Stiegelmeyer Service will work with you to devise the best possible reprocessing solution for your company

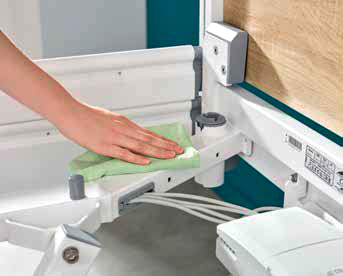

All structural parts are easily accessible for thorough cleaning. ⟱

The Seta pro’s covered cable routing ensures smooth surfaces. ⟱

Mattress bases and bed extension — Sleeping comfort and optimal hygiene

Many details on the Seta pro can be customised — including the three mattress bases available. The PP hygiene mattress base is made of sections that can be removed separately and is designed to draw water away. The all-plastic mattress base consists of four flat HPL elements, which can be secured against removal, if requested. Both models have cut-outs to ensure healthy air circulation. A third alternative is the sturdy wire mesh mattress base, which is ideal for automated reprocessing. A 22.5 cm bed extension is standard on the Seta pro as are the extending safety sides bars. An extension of the lower leg rest and a matching mattress piece are also available as optional accessories.

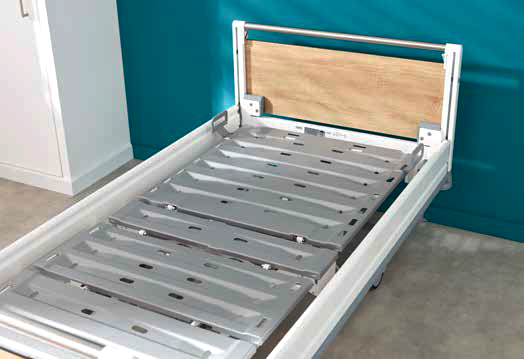

Hygiene mattress base ⟱

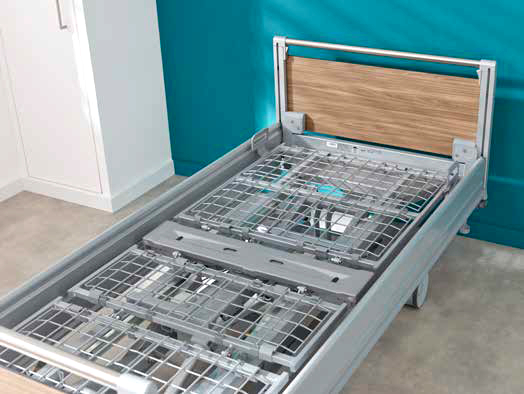

Wire mesh mattress base ⟱

Stiegelmeyer Seta pro wire mattress base

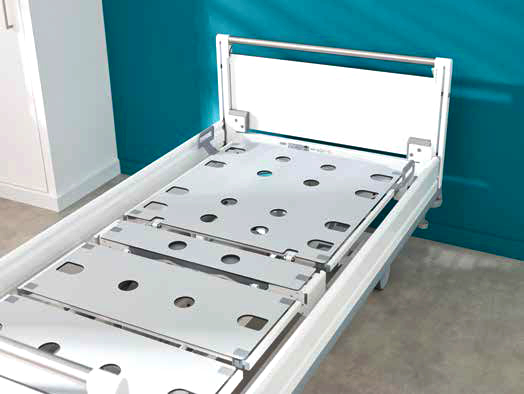

HPL mattress base ⟱

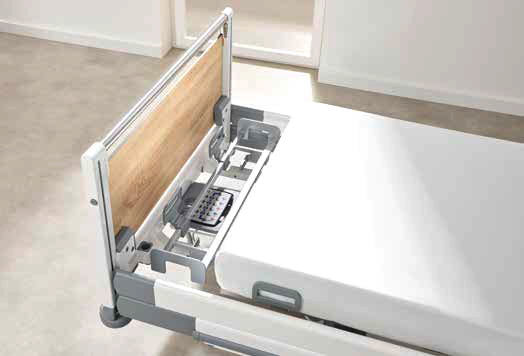

The integrated bed extension on the Seta pro can be extended in no time and gives tall patients the space they need. The extension of the lower leg rest and the mattress piece are available as accessories. ⟱

Stiegelmeyer Seta pro mattress base extension

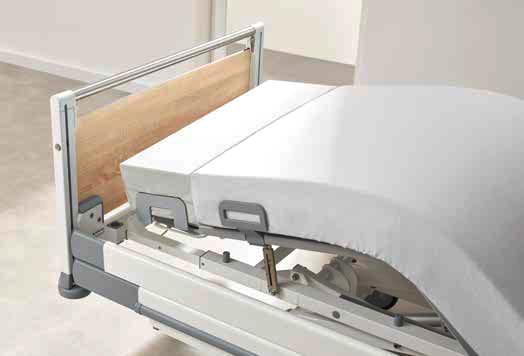

The optional extension for the lower leg rest moves together with the leg rest when adjustments are made, so that tall patients can also adopt a raised leg position. ⟱

Stiegelmeyer Seta pro optional lower leg extension

5^th Wheel — Manoeuvrability and maintenance-friendliness

The Seta pro features many innovative ideas that have been developed to make everyday work and all maintenance and inspection tasks easier. Practical details relieve the strain on staff and save time and money.

Optional 5th castor provides additional stability during patient transport, regardless of whether the nurse pushes the bed from the head or foot end

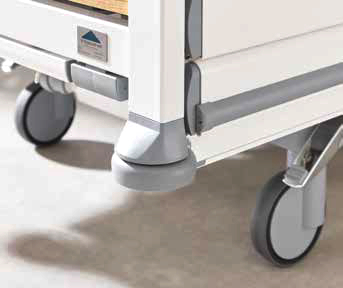

Wall deflection rollers and buffer cones are standard features and protect the bed against damage from collisions or when adjusting the height
Optional LCD handset with EasyCare function allows care staff full access to the bed at all times and includes many support functions at a special technician level

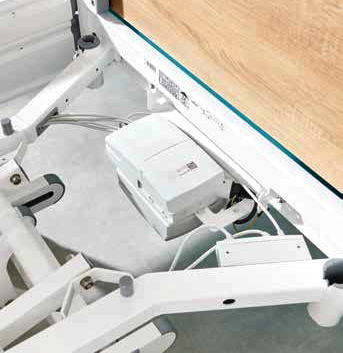

Control and battery are easy to reach under the backrest
Two internal sleeves at the head end for patient lifting poles or infusion stands
Two sleeves at the foot end for infusion stands for all-round patient care

ESSENTIALLY BETTER

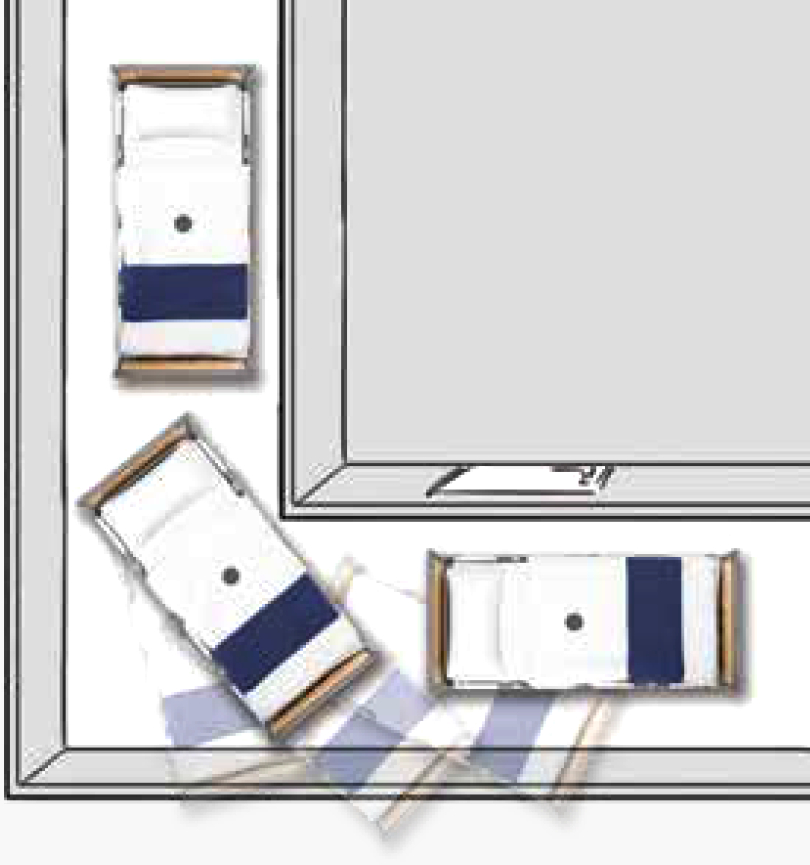

Advantages of the fifth castor

Stiegelmeyer Seta pro cornering with 5th whaal

If a bed with a patient lying in it rapidly turns a corner, high centrifugal forces can come into play. The fifth castor as a directional castor ensures that the Seta pro bed remains on track even more precisely and prevents it from slipping sideways.

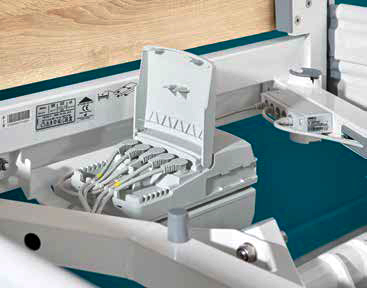

Easily accessible electronic components. ⟱
