Dali Nursing Care Bed

Burmeier
Burmeier’s care bed for the digital future.

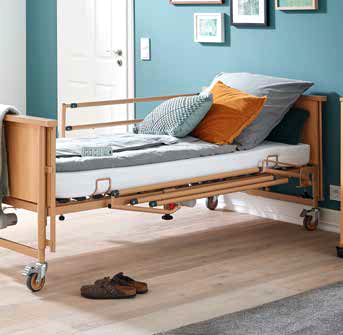

Burmeier Dali Bed

Fast, digital, comfortable — the Dali brings a new quality of life to nursing care.



Burmeier Dali Nursing Home Care Bed
— Economical, comfortable, safe and now digital:


  • The particular advantage of the Dali care bed

    • Adjustable Back Support and Upper Leg Rest with the aid of electric motors.
    • Reverse-Trendelenburg and sitting position.
    • Sit-up — cardiac chair position.
    • Safety sides are mounted in seconds with Easy Click.
    • Easier and faster assembly using the Easy Click system.
    • Mattress surface height adjustment is from approximately 400mm to 800mm, giving an adjustment range of 400mm.
    • Cost-saving 24-volt drive system, live 240 Volt components are outside the bed.
    • Selectively lockable wireless (Bluetooth) handset.
    • Digital networking through the app for the bed.



  • Quality construction of the Dali care bed

    • The 4-section mattress base (900 x 2000mm) has hygienic metal support bars, frame colour “topaz”.
    • The castors can be individually locked.
    • Wooden surround in beech finish with working timber areas melamine covered.
    • All motors can be removed without tools.
    • Push-fit connectors for ease of assembly and tough EPR cabling throughout.
    • Transport, storage aid included.
    • 2 years warranty.
    • Safe working load: 185kg.

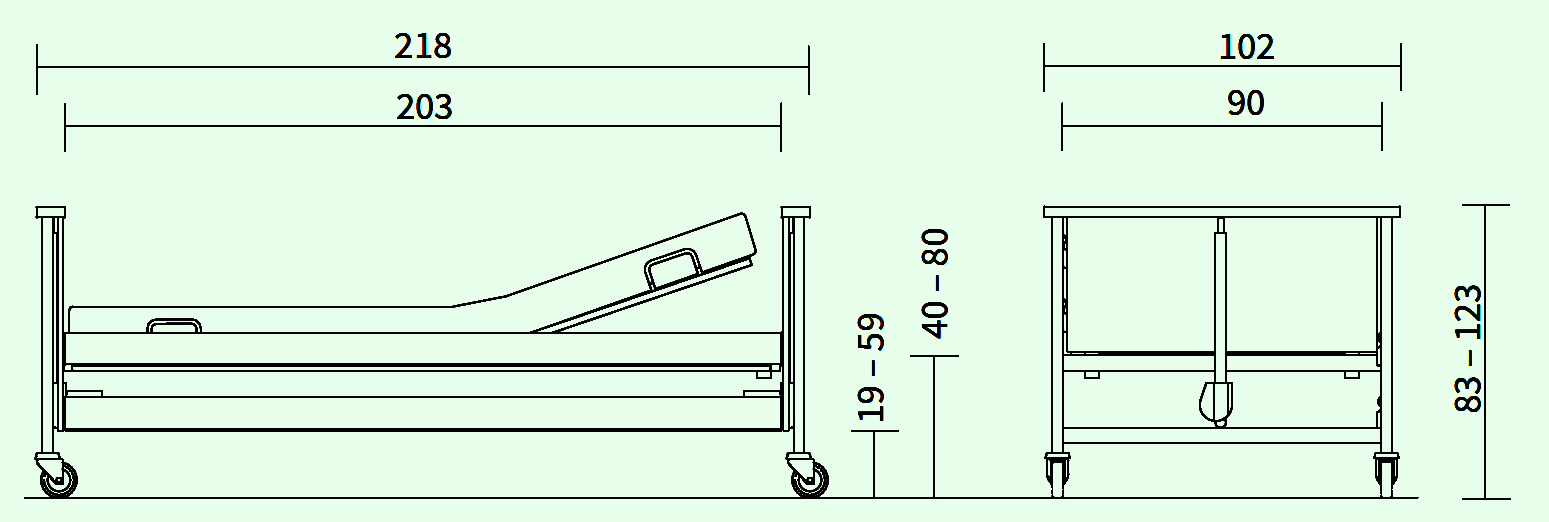

    Dimensions

    Exterior dimensions ⁄ Height adjustment range:




  • Burmeier’s quality philosophy

    The timeless, innovative design underlies Burmeier’s quality philosophy; this bed looks very attractive and offers uncompromisingly high quality and durability. These care beds impress with their high level of comfort, ease of operation, customised protection for the occupants and outstanding hygiene properties. These top-selling care beds in Germany relieve the strain on people in a nursing home as well as in a home care situation.




  • Strong Advantages of the Dali care bed

    Stacked for Transport
    or storage:

    Dali Standard Care Bed Stacked

    Great for saving space.

    The 4-section mattress base can be operated conveniently by a wireless handset that is networked with the bed via Bluetooth.

    Thanks to the reverse-Trendelenburg feature included as standard, the bed can be adjusted to a healthy sitting position for eating or watching TV.

    If the carer wants to block certain positions for the resident, this can be done using the handset or, even more conveniently, using the free Dali-Lock app on a smartphone.

    The full-length safety side easily slips into place onto the pre-assembled brackets with the Easy Click system. That makes setting up the bed significantly easier.




  • Advantages of tilt function to chair position

    Dali care comes standard with a tilt function which allows the bed to be transformed into a chair position.

    The seated ⁄ chair position provides a comfortable alternative for clients, and is also clinically beneficial. This option and the variety of positions available in between the lying position and seated position, assists in the prevention of pressure areas, promotes improved lung health and improved joint ⁄ muscle health (i.e. assists with back pain, hip pain, knee pain, etc by allowing the client to be fully supported in a variety of positions).

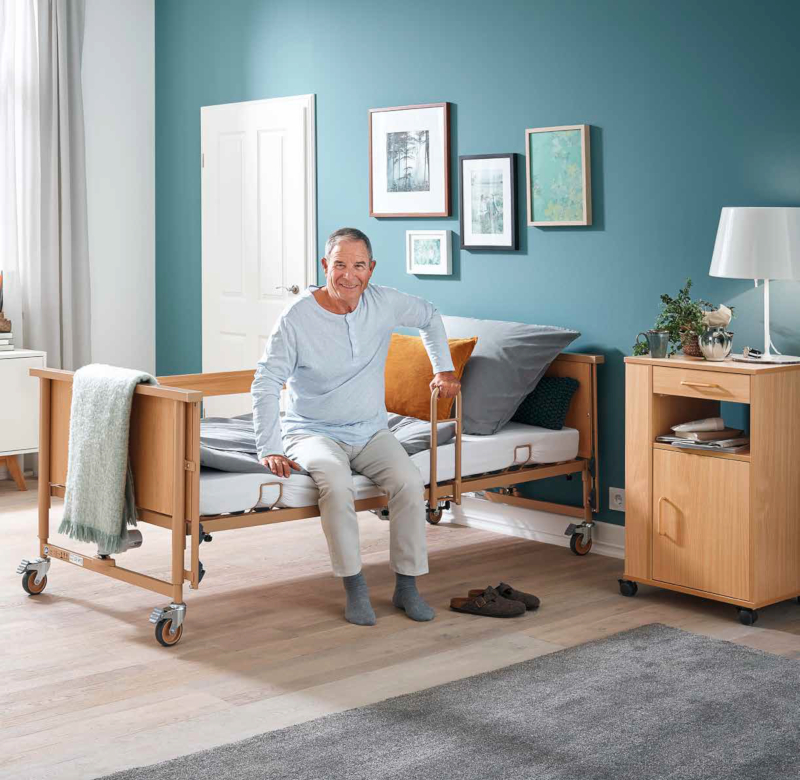

    The seated ⁄ chair position also allows a client to move from a lying position to a seated position without needing to be transferred at all, which saves manual handling for both the client and staff (reducing their risk of injury).

    It allows the client to sit up and interact with their environment, whilst obtaining the clinical benefits of sitting.







Dali Standard Care Bed Dali Standard Care Bed Dali Standard Care Bed

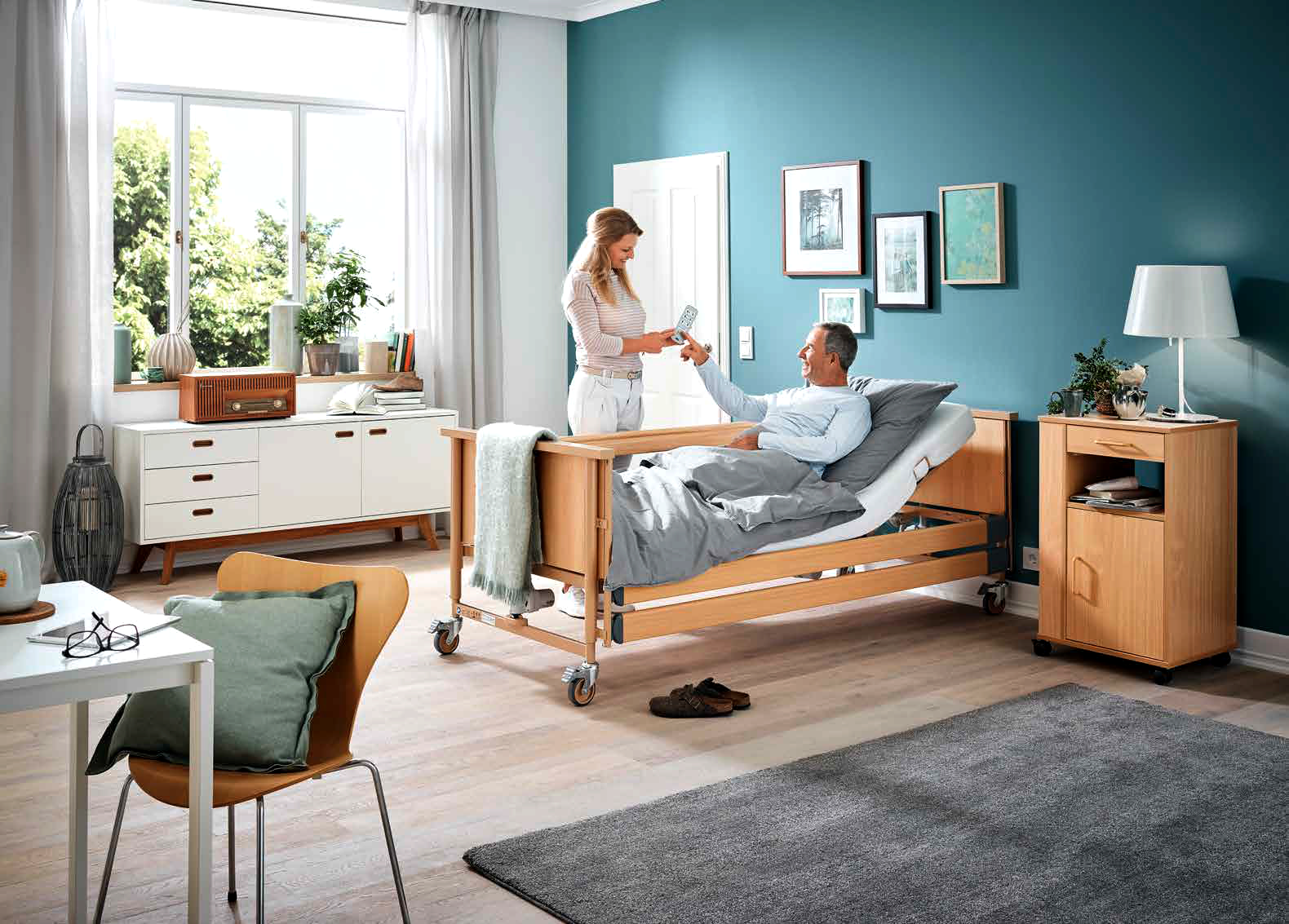

The wireless handset allows residents and carers to operate the bed effortlessly.

The comfortable sitting position makes it easier to breathe and lowers the risk of pulmonary aspiration during meals.

The Dali uses innovative technology and is a robust, low-maintenance bed made of high-quality materials — longevity. (optional covers)




icons icons icons icons icons icons

ARTG registration number: 208844




  • Safe 24 Volt Drive System as standard


    Dali Standard Care Bed SwitchMode

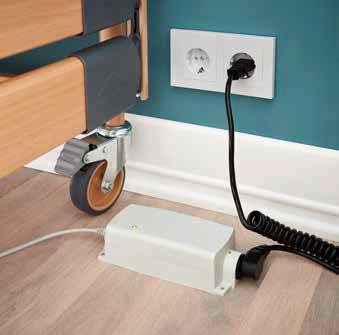

    The SwitchMode voltage transformer produces a protective low voltage of 24 volts directly at the socket.


    Dali Standard Care Bed SwitchMode Chart

    Burmeier’s 24 volt drive system provides an ideal safety standard for caring for people in care. All live 240 volt components are safely housed away from the bed. Immediately downstream of the mains plug is a housing containing the SwitchMode electronic voltage transformer. This means that residents enjoy a very high level of safety.

    LIVING SAFELY AT HOME

    Strong Advantages

    Dali Standard Care Bed 24V system
    • Protective low voltage from the transformer at the wall socket
    • No 240 volt carrying components on the care bed
    • No leakage current measurement after assembling or during the expected service life of the bed
    • A test certificate is available for downloading for every bed

    The bed has no current-carrying components except when the handset is in use. Energy consumption drops by up to 93%. Even more costs and effort are saved by the fact that leakage current measurements, certified by TÜV Rheinland, are no longer necessary.

    When care beds are being commercially used, the required leakage current measurements must be performed every 2 years. The use of the 24 volt system prolongs this interval to such an extent that measurements are not necessary at all within the expected service life of the bed. The applicable service life is given in the operating instructions. Leakage current measurements are not even required when putting the bed into service for the first time, as this has already been taken care of in the factory.

    There is also no need for an electrically trained person to be involved in assembling the bed — this saves the bed operator additional costs.




  • The Easy Click system, no tools required

    The full-length safety sides on the Dali are easy to operate and offer a excellent protection. Even the assembly has become much easier. With the Easy Click system, the 4 bars can be attached or removed in just seconds. At the same time they are so securely and sturdily attached that even agitated care patients are protected at all times and cannot unintentionally remove them.

    Dali Standard Care Bed Easy Click System

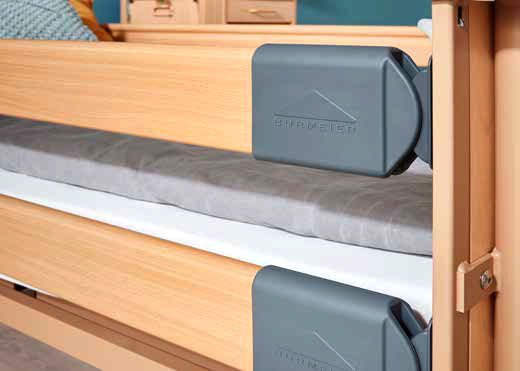

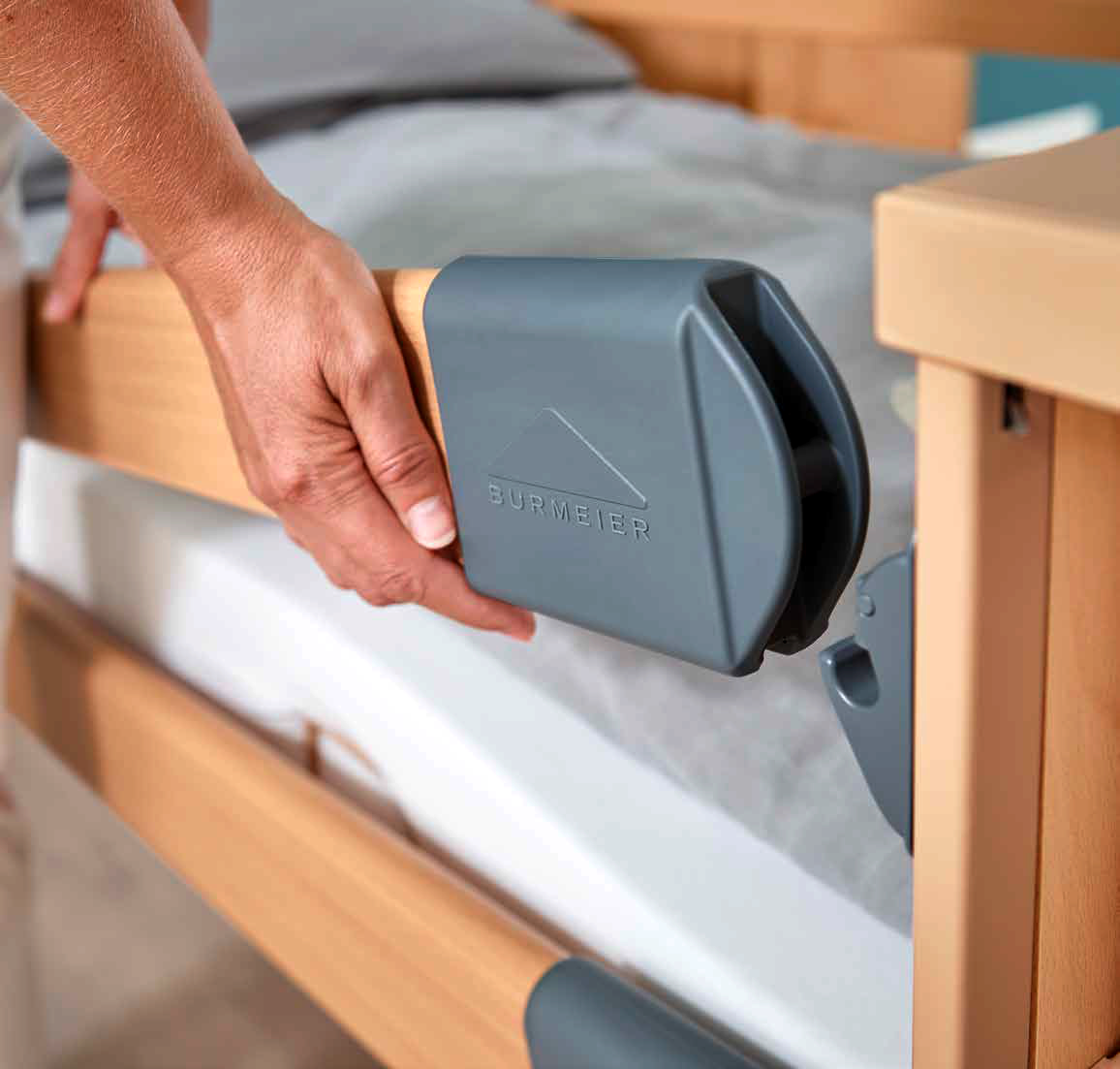

    The safety side bars can be attached or removed in seconds using the Easy Click system.

    The holding brackets are already pre-assembled on the foot and head parts of all Dali beds. The safety side bars simply need to be “clicked” securely into place. If they are to be removed again, there is a small release slider in the bracket. The sliders are attached in such a way that it is impossible for residents to remove the safety sides unintentionally. The ends of the bars are protected by elegant anthracite-coloured plastic caps.

    The Easy Click system makes assembling beds significantly easier for medical equipment suppliers, family carers and care facility workers, and it saves a lot of time. The carers can remove the safety side similarly when the resident no longer needs them. There is also a practical bag for transporting and storing the bars which is available as an accessory.

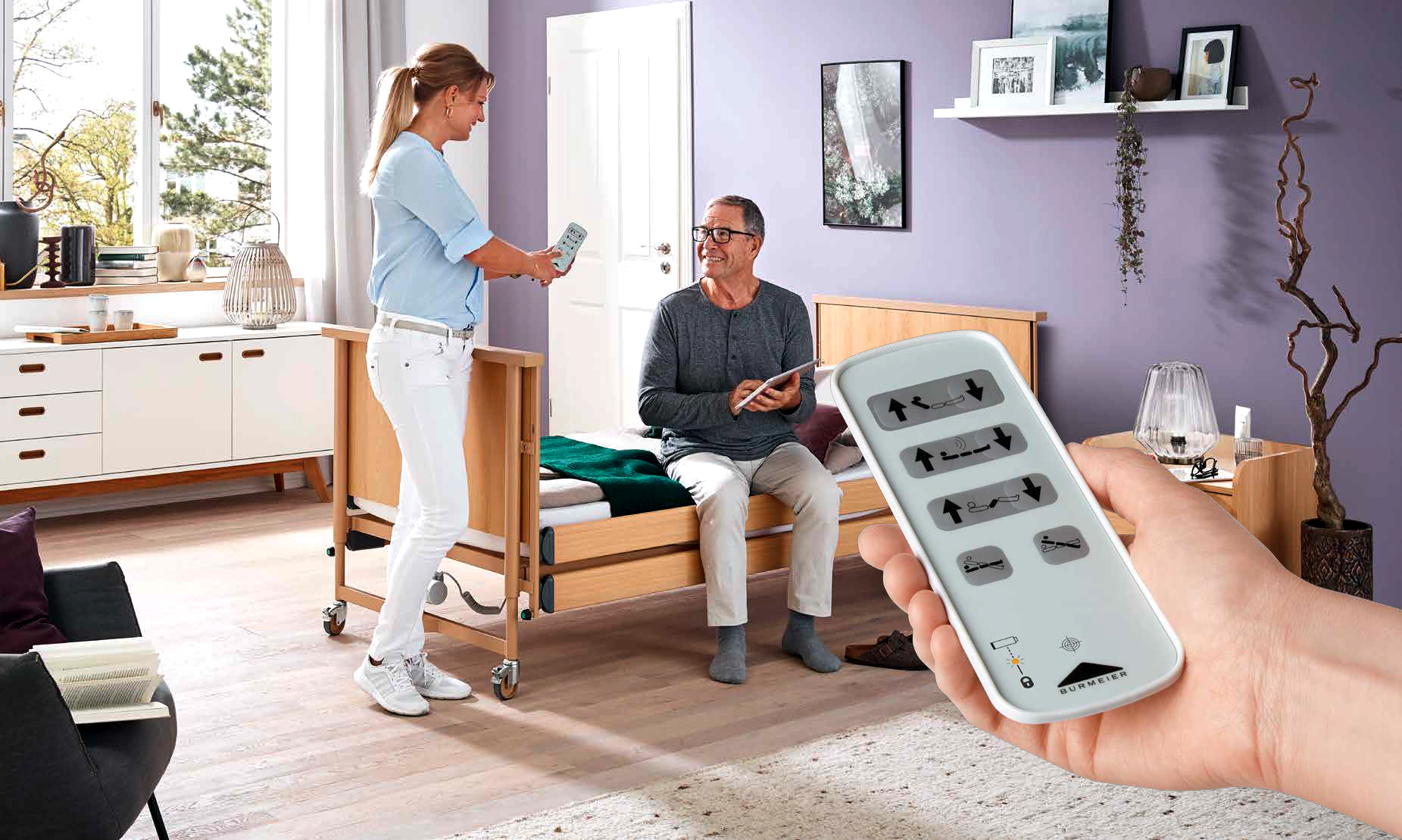

  • The wireless handset for extra comfort

    LIVING SAFELY AT HOME

    Wireless operation

    • Easy operation both in and outside of the bed, with no cable to restrict the range
    • Very easy to understand pictograms in contrasting colour makes operation easier
    • Handset can be positioned freely on the safety sides
    • Battery lasts 2 years when used daily for 140 seconds

    An electrically adjustable bed with handset offers top comfort. But the usual control panel attached by a cable to the bed had its disadvantages. The cable was a potential trip hazard, gathered dust and was sometimes damaged in collisions. So we designed a new wireless handset for the 24 volt Dali series models that is connected to the bed via Bluetooth.

    Dali Standard Care Bed Handset

    The safety side bars can be attached or removed in seconds using the Easy Click system.


    Both residents and carers gain very high operating comfort and always have the control panel at hand, where they need it. The handset still has a spot on the safety sides so that it is always within reach.

    It has a very long usage cycle using commercially available batteries and indicates when it’s time for a battery change with a light signal in ample time. A cover on the rear of the unit allows the battery to be replaced without using any tools.

    As usual, the carer can use the handset to selectively lock or unlock adjustment options individually for the resident. To do this, the enclosed magnet has to be placed on the control panel and then the button for the function to be locked has to be pressed. Of course, it is more convenient to use the Dali-Lock app for this.


    Battery warning light

    As soon as the battery needs replacing, a light signal goes on.

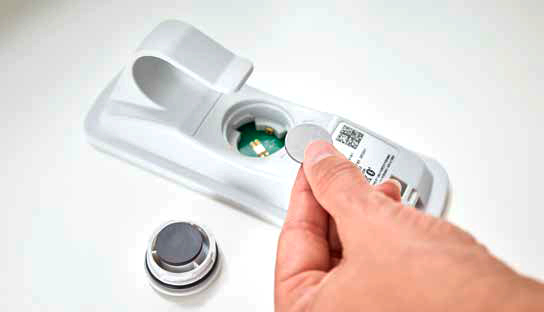

    Handset battery replacement

    Commercial batteries can be replaced in just a few seconds.

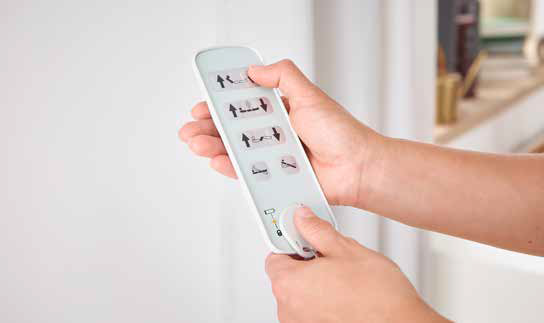

    Handset lock out magnet

    The adjustment positions of the bed can be selectively locked and unlocked using a magnet.

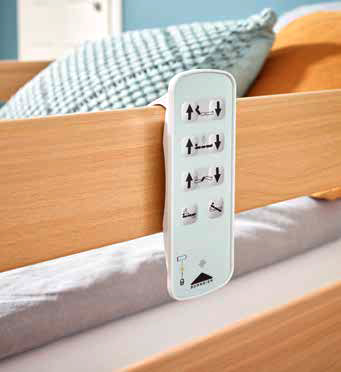

    Handset hooked on safety rail

    The handset can be hung from the safety side and is within easy reach at all times.




  • The Dali-Lock app can lock or unlock all functions

    LIVING SAFELY AT HOME

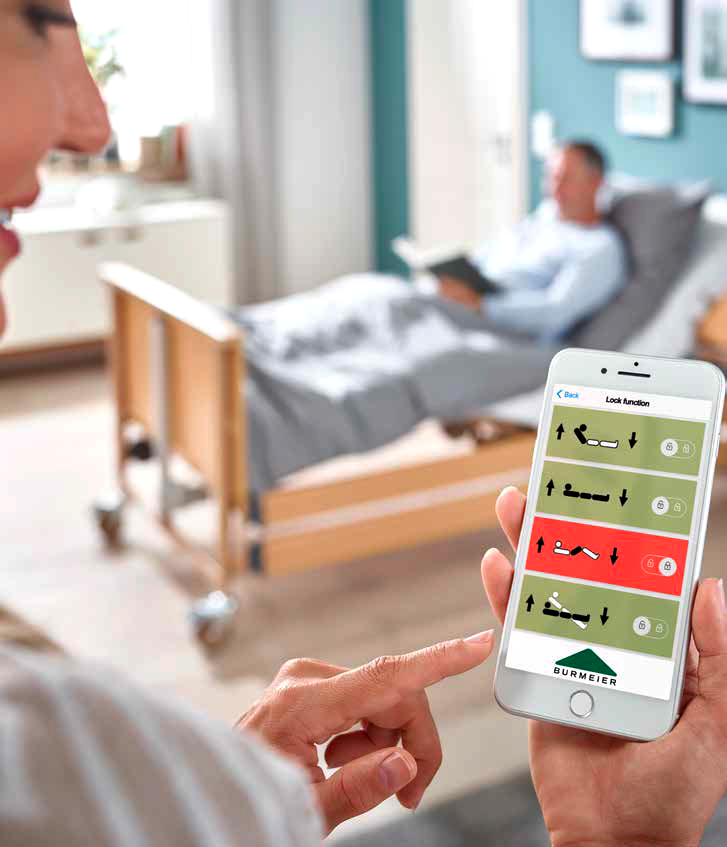

    The Dali-Lock app

    • Download the Dali-Lock app for free on your Android or Apple smartphone.
    • Start the bed search. The app finds your Dali bed.
    • Connect your smartphone with the bed by scanning the code on the back of the handset.
    • Now you can selectively lock or unlock all positions of the rests as well as the height adjustment individually.

    Our Dali beds are convenient and flexible with the many adjustment positions of the mattress they offer. But sometimes certain positions are not recommended because of the resident’s health issues. For example: if the carer wants to lock the function for the reverse-Trendelenburg position or for lowering the backrest, our Dali-Lock app can help. This app operates with Android or Apple smartphones and can be downloaded from the usual app stores for free. It operates all Dali models with 24 volt drive system.

    Dali Standard Care Bed Dali Lock App

    Digitally designed safety

    The Dali Lock app finds the care bed automatically and connects to it when you scan the code on the back of the handset. Now you can selectively lock or unlock all functions individually using the simple pictograms.

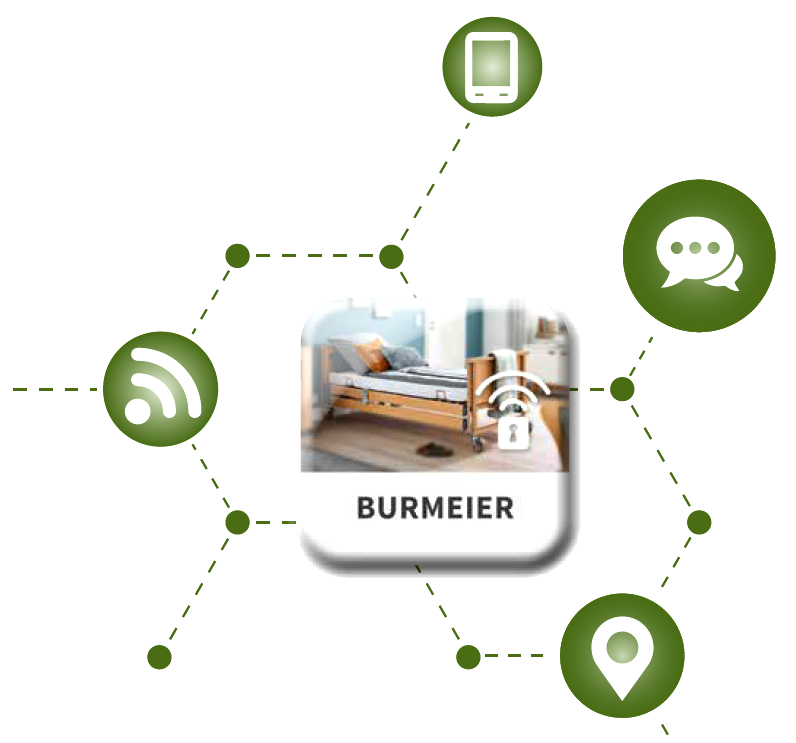

    The Dali-Lock app is part of a comprehensive digital networking system from Burmeier. Visit our website at www.burmeier.com to find out news about other apps and learn about the modern bed configurator.

    Phone App

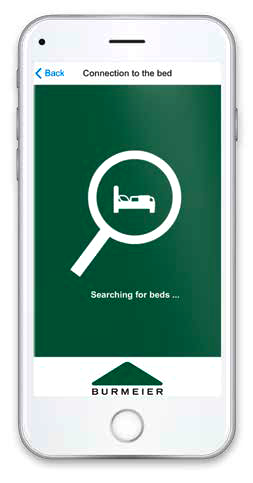

    Your Dali bed finds the app and connects.

    Comprehensive digital networking

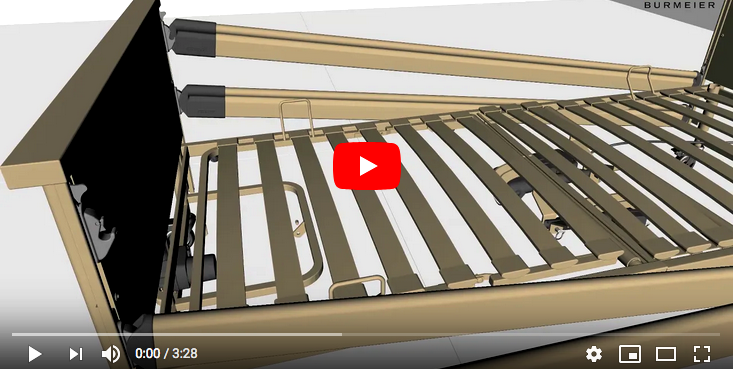

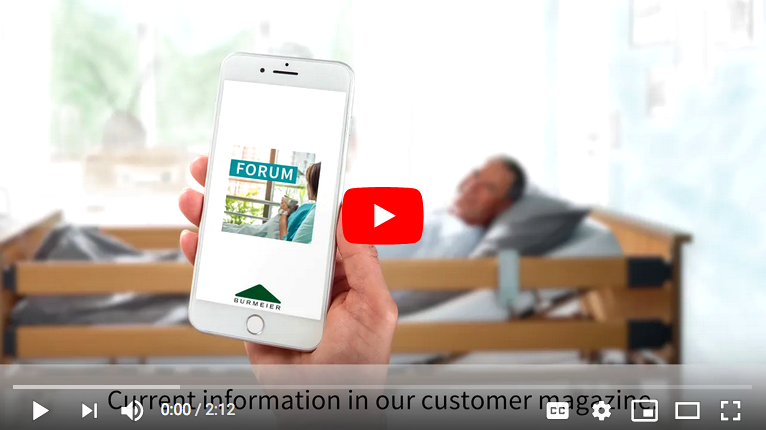

  • The digital Dali care bed video


top Return to top of page

Dali Standard Care Bed Easy Click Safety Sides Dali Standard Care Bed Motor Attachment Dali Standard Care Bed Castor

The safety side bars can be attached or removed without tools using the Easy Click system.

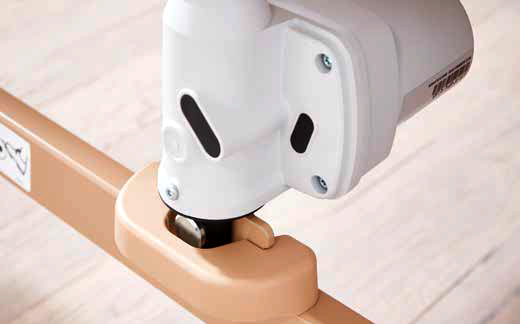

All motors can be removed without tools. The removable motor protection protects against damage.

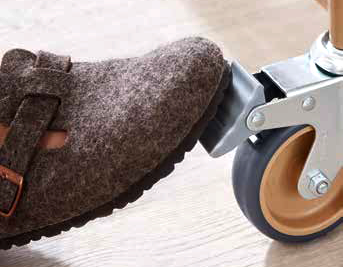

The brakes can be conveniently operated even in slippers.




  • Dali WASH Care Bed for optimal hygiene


    Dali wash care bed

    The 4-section mattress base has hygienic metal support bars.

    Safe hygiene and the fight against multi-resistant germs is becoming more and more important in care. Machine washable beds offer strong advantages here. They ensure ideal cleaning and disinfection with validated processes. At the same time, they save the operator time and money, since the time-consuming and arduous manual reprocessing by the staff is no longer necessary. The bed can go back into circulation faster and unnecessary downtime is avoided.

    Dali wash care bed

    Particularly high level of hygiene

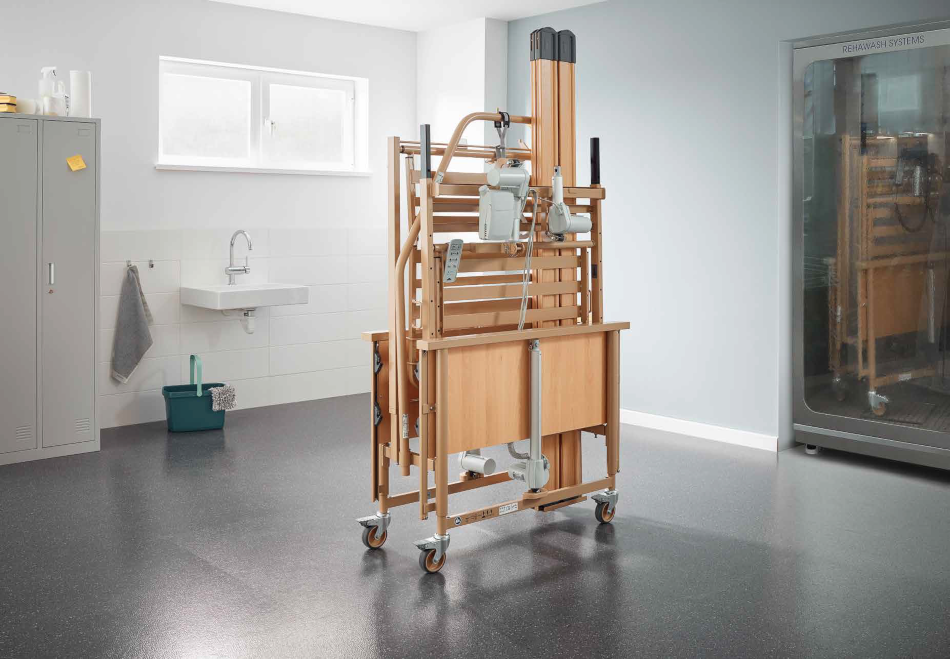

    The Dali wash was designed for cleaning in automatic washing systems. The bed can be reprocessed without disassembling the drive system because of its IPX6 protection. With its CDP coating, this bed is ideally protected inside and out against corrosion. CDP stands for “cathodic dip painting”, an electrochemical painting process for maximum durability. Special drill holes allow residual water to drain off fully after the washing procedure.



    Dali wash care bed

    Strong Advantages

    • Safe working load 185 kg
    • Full-length safety sides with Easy Click system
    • Wireless handset
    • Reverse-Trendelenburg included
    Dali wash care bed Dali wash care bed Dali wash care bed Dali wash care bed

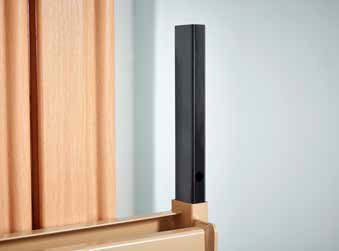

    The CDP coating protects the bed inside and out from corrosion.

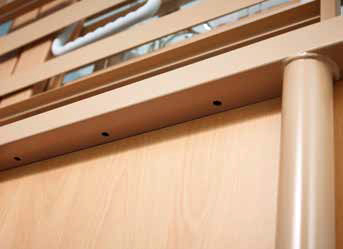

    Drill holes in the metal surface allow any residual fluids to drain away.

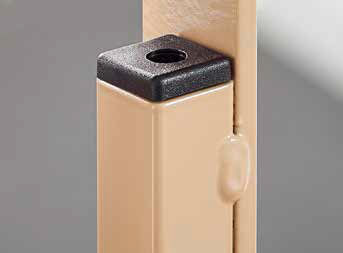

    Plastic square plugs with drill holes allow residual moisture to escape.

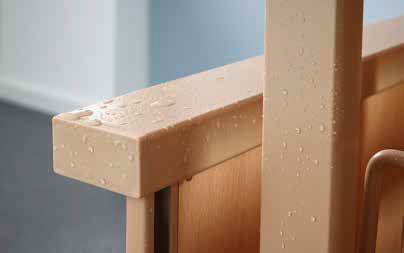

    Sealed surfaces are ideal for safe and thorough cleaning.




  • Dali low-entry, the low-entry bed

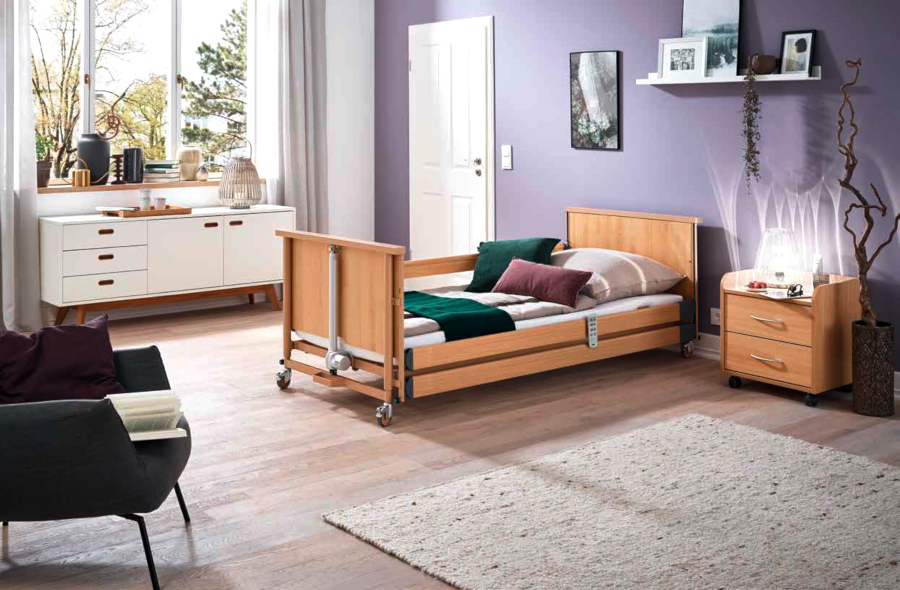

    Dali low-entry care bed

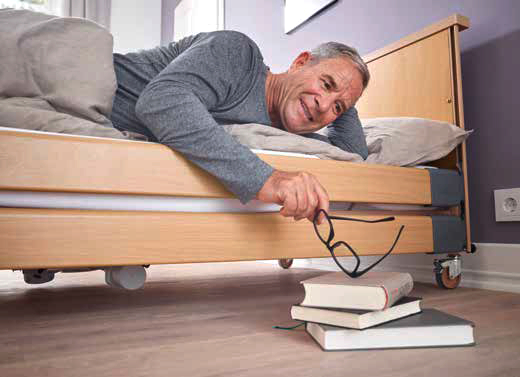

    Entry height of only 23 cm to prevent falls

    Safety sides provide protection against falls — but if they are used permanently, this liberty depriving measure can reduce the care patient’s quality of life.

    Dali low-entry care bed

    The low height of the bed reduces the risk of injuries from falls.

    Low-height beds, such as the Dali low-entry, are an excellent alternative. With its height adjustment range of 23 to 63 cm, it is very close to the floor when at its lowest position. From this low height, the risk of injury is much lower in the event of a fall. This makes it easier to decide not to use safety sides. This is Burmeier’s way of following the Werdenfelser approach of maintaining the resident’s mobility. In addition, the Dali low-entry benefits from the advantages of the Dali family, such as the reverse-Trendelenburg feature included as standard, the wireless handset and additional selective locking using the app.



    icons icons

    Strong Advantages

    • Safe working load 175 kg
    • Progressive height adjustment for ergonomic and comfortable entry and exit
    • 24 volt system — no leakage current measurements during the expected service life



  • Dali low-econ, the cost-conscious low-height bed

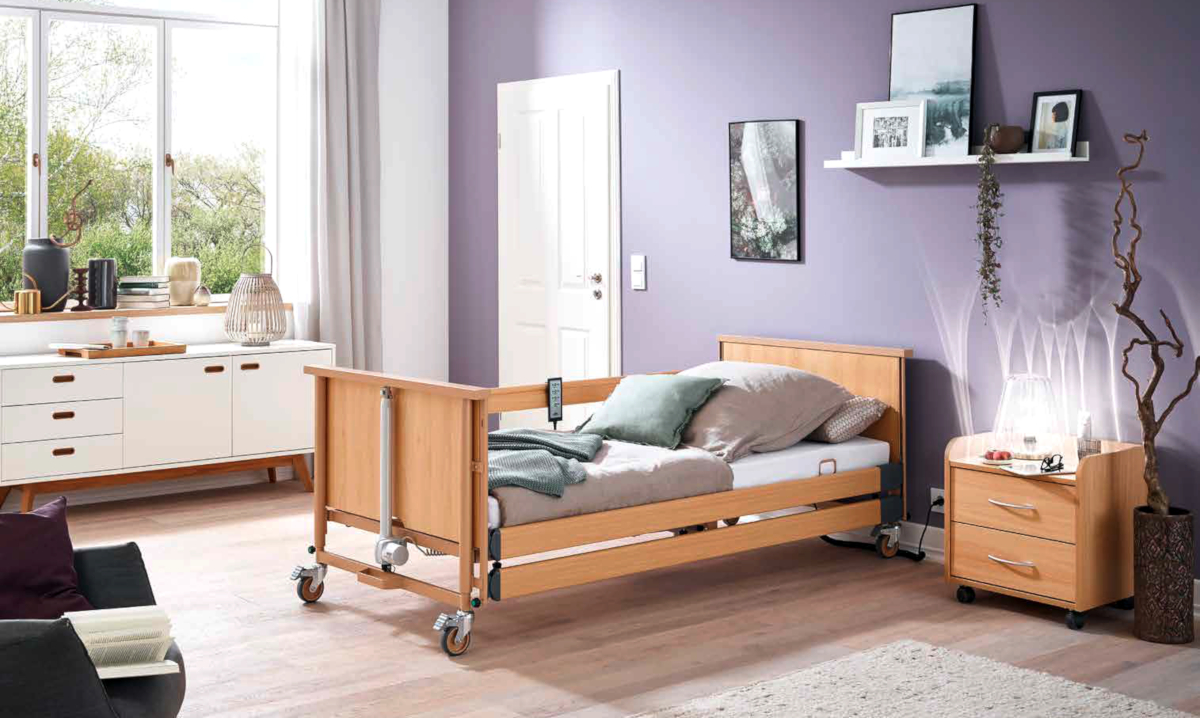

    Dali low-econ care bed

    Fall prevention and work at ergonomic height

    Our Dali low-econ care bed combines many strengths with a very good price-performance ratio. With a height adjustment range of 32 to 72 cm, its low bottom position protects residents from fall injuries. At the same time, taller people can work at the bed in a position that spares their backs.

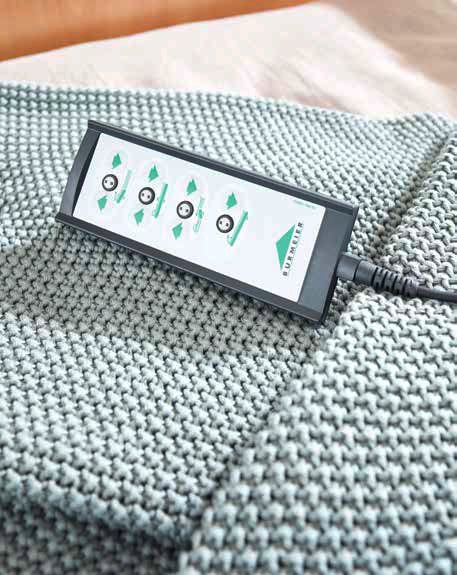

    Dali low-econ care bed handset

    The selectively lockable handset is connected to the bed with a cable.

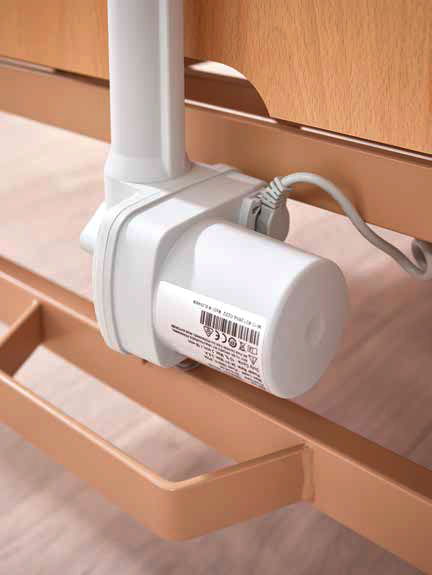

    Dali low-econ care bed drive

    The long-lasting 230 volt drive controls the bed quietly and safely.

    Dali low-econ care bed drive

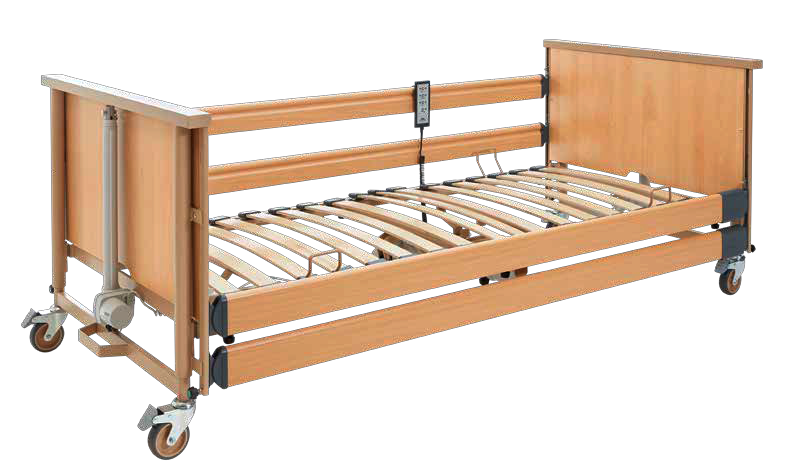

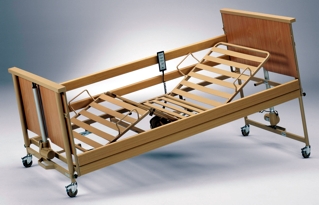

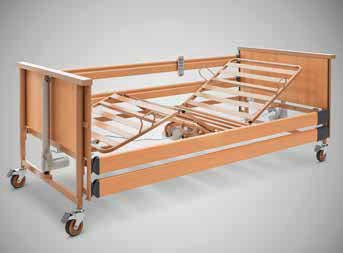

    The 4-section mattress base with flexible wooden slats means high comfort.

    This bed is controlled by a safe and reliable low-energy 230 volt drive. The handset in the econ model is connected to the bed via cable. All adjustment functions can be conveniently and selectively locked or unlocked via the handset. The Dali-Lock app cannot be used with the econ beds.
    Even a health-promoting sitting position is available as standard.


    icons icons

    Strong Advantages

    • Safe working load 185 kg
    • Reverse-Trendelenburg and sitting position
    • Brake pedal with comfortable feeling

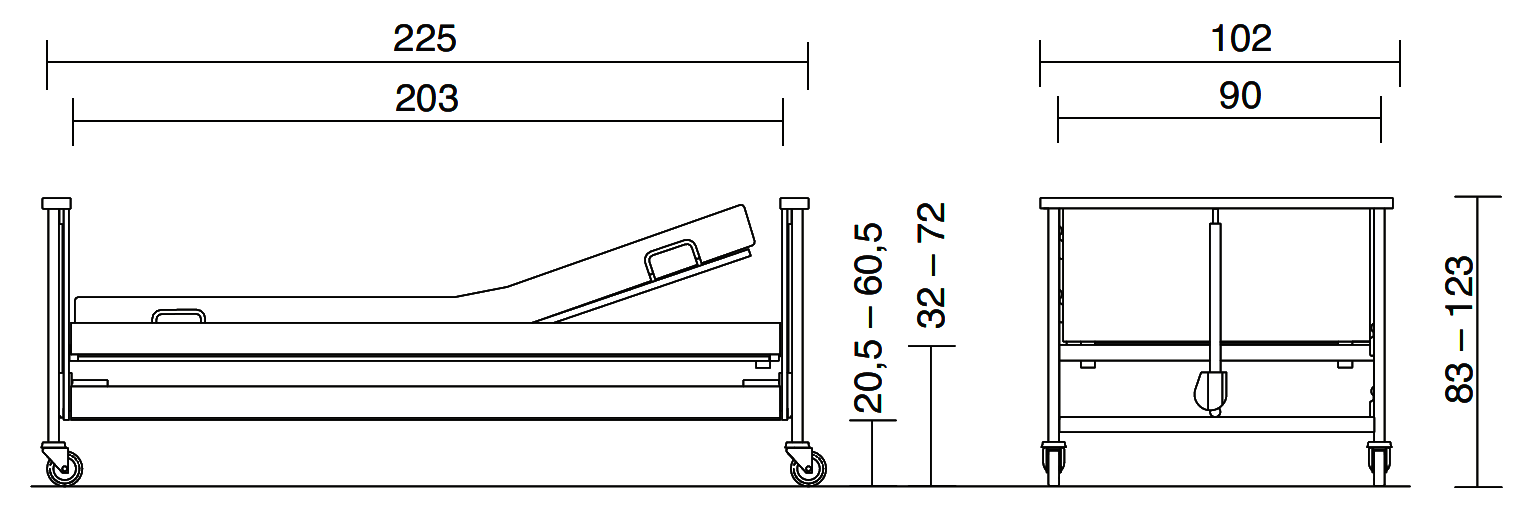

    Dali low-econ care bed dimensions

    Exterior dimensions ⁄ Height adjustment range:




  • Dali Care Bed Codes (900mm)

    EV94B1DI Dali Standard Care Bed Metal Mattress Base (Beech)
    EV94B1DLE Dali Low–Entry Care Bed Metal Mattress Base (Beech)
    EV94B1DC Dali Economic Care Bed Metal Mattress Base (Beech)
    EV94B1DCLE Dali Economic Low–Entry Care Bed Metal Mattress Base (Beech)
    EV94B1DW Dali Wash Care Bed Metal Mattress Base (Beech)
    Options
    EV94B8CFDI Dali Bed, Timber Cover for Footboard
    EV94B8CHDI Dali Bed, Timber Cover for Headboard
    EV94B8CFDLE Dali Low-Entry Bed, Timber Cover for Footboard
    EV94B8CHDLE Dali Low-Entry Bed, Timber Cover for Headboard
    EV94B8CFEC Dali Economic Bed, Timber Cover for Footboard
    EV94B8CHEC Dali Economic Bed, Timber Cover for Headboard
    Mattress codes
    EV9721 Mid Pressure Care Mattress 2000 x 900 x 150
    EV9722 Frail Pressure Care Mattress 2000 x 900 x 150
    EV9723 Maxi Pressure Care Mattress 2000 x 900 x 180

  • Equipment, Options and Technical data

  • Spare parts for beds prior to 2020

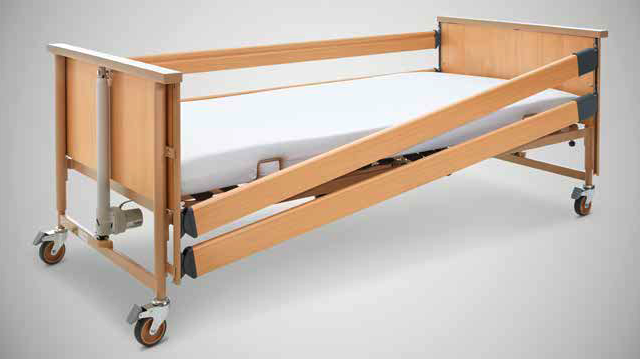

Full Length Rails up Full Length Rails one end down Bed Rail Holder

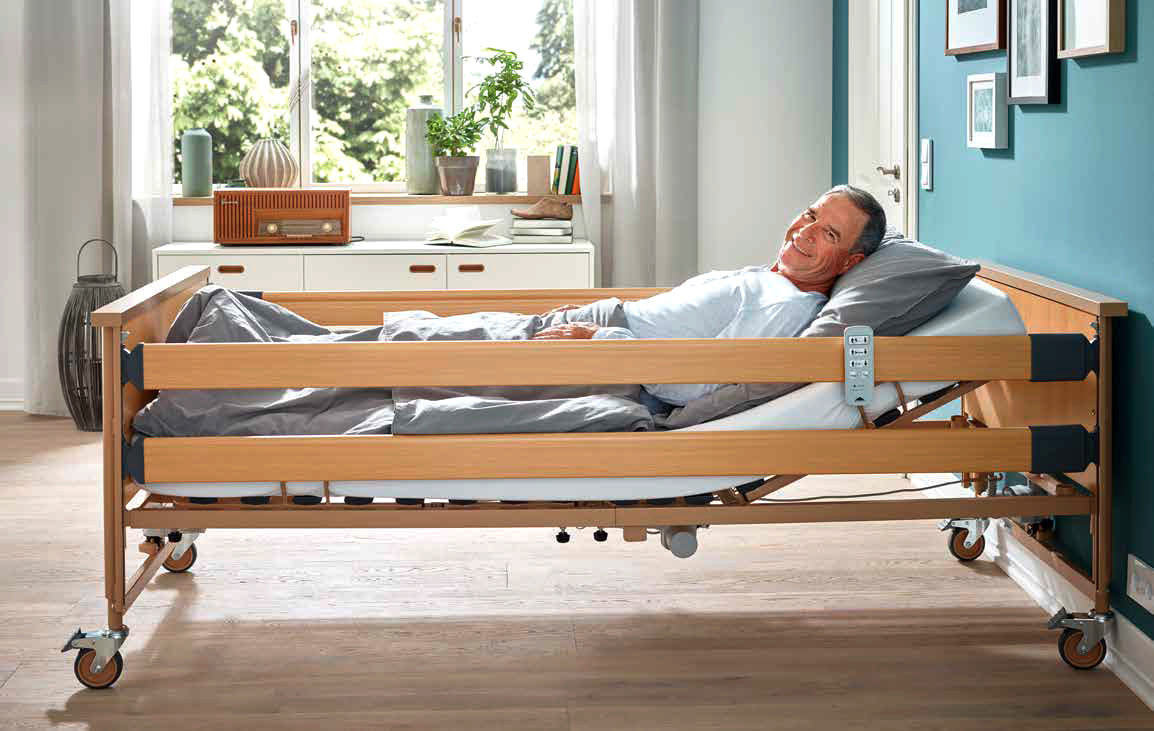

The full-length safety side provides optimum protection.

When in the diagonal position, the bars offer the person in need of care good spatial orientation.

The holder mechanism for the safety sides is already pre-installed. This saves a lot of time during assembly. Without the safety side, the holders remain unnoticeable at the lowest position on the bed.

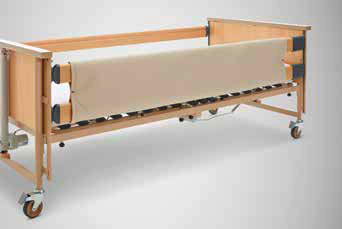

  • Optional softcovers for the Dali care bed

    One feels immediately much more comfortable in a beautiful bed that blends with the interior design of the room. Our Softcovers transform the Dali series into elegant designer beds. Softcovers are stylish fabric covers that fit easily over the head and foot boards and can even be attached to the safety side. Choose from 7 attractive colours: petrol, dark blue, vanilla, lavender, bordeaux, orange and brown.

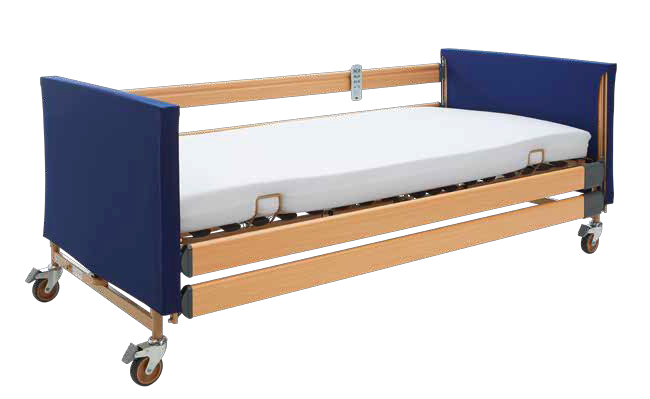

    Dali Standard Care Bed Softcovers

    Softcovers are made from high-quality materials and can easily be cleaned in the washing machine at home. They are environmentally friendly in compliance with Öko-Tex Standard 100.


  • Features review


    Fall protection height of side rails: approx. 430mm

    Mattress and pressure ulcer systems of a maximum thickness of 190mm can be placed on the care bed without adaptable side rail extensions.




    Lowered Foot Section

    LOWERED–FOOTEND position

    Lowering Footend Shows bed in chair position.




    Back Support

    Back Support

    The powered Back Support has a range from 0° – 70°




    Safe Working Load

    Safe working load of 185kg.
    (weight includes mattress & accessories)




    Under Bed Clearance

    Under bed clearance for all commercially available lifters.




    Clearance



    Bed Height Adjustment

    MATTRESS BASE ADJUSTMENT from approx. 400–800mm. An adjustment range of 400mm.




    Lower Leg Rest

    Knee Break & Lower Leg Rest

    Electric Knee Break with manually adjustable lower leg rest.




    Locking Castors

    Locking Castors


    Individually locking, robust TENTE castors.

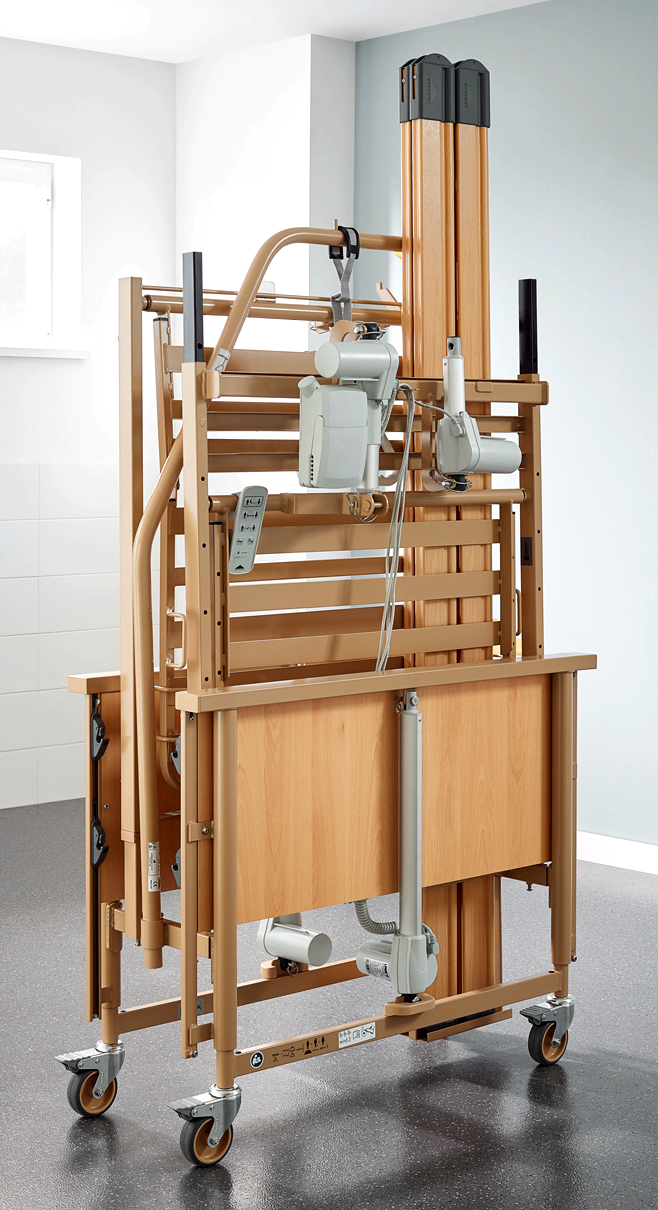

    Stacked

    Stacks for Transport or Storage


    Great for saving space.




  • Options and Accessories


    Timber ends

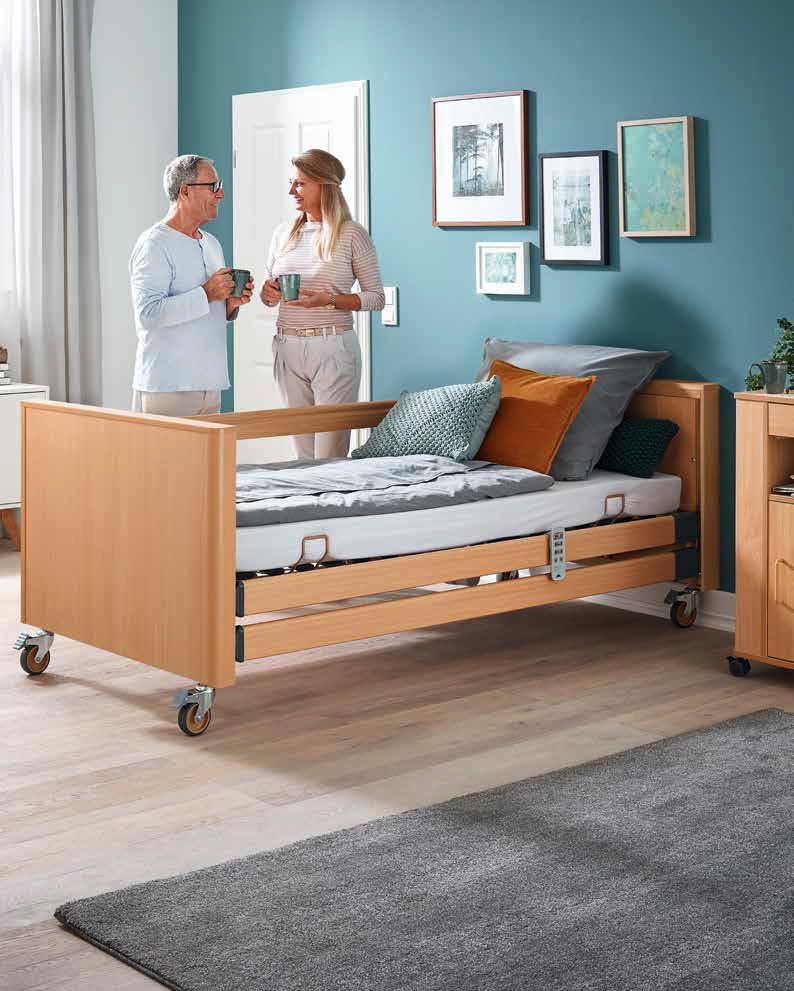

    Timber Covers for Headboard and Footboard Ends (Optional)

    The Dali bed head and footboards can be covered with wooden encasements. These high-quality design elements hide the mechanics of the bed and provide an even more homelike, private look.

    Comfortable elegance


    Extension Full Length Rails one end down Bed Rail Holder

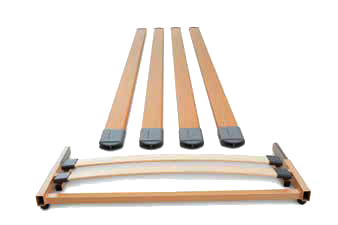

    ⤊   The bed extension offers tall people the space they need to feel comfortable. It can also be installed retroactively. Safety side bars are also available in 220 cm lengths that fit with the bed extension.

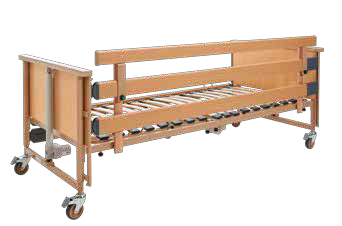

    ⤊   The clamp-on safety side bar increases the protection height on the side by 18 cm.

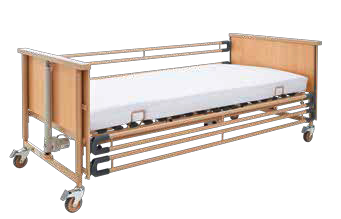

    ⤊   The metal safety side is particularly sturdy and easy to clean.
    flower


    Extension Full Length Rails one end down Bed Rail Holder

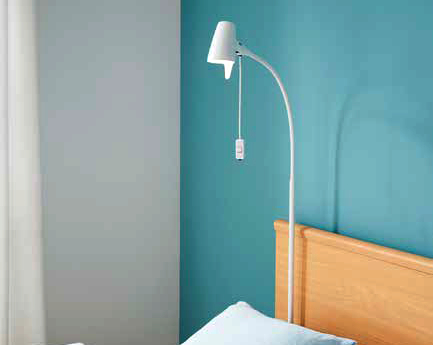

    ⤊   A reading lamp provides a pleasant light.

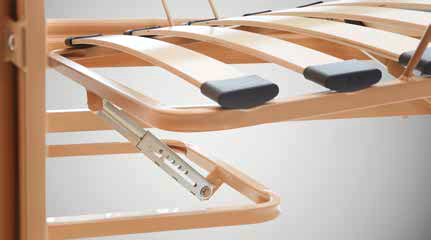

    ⤊   The optional Rastomat allows the lower leg rest to be manually adjusted.

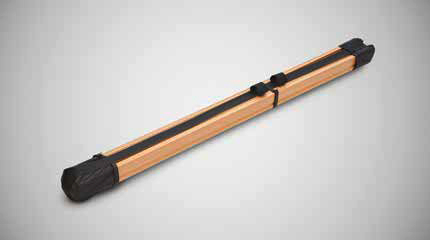

    ⤊   The bars of the safety sides can be transported and stored even more easily with the carrying bag.

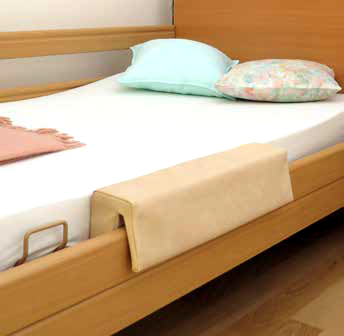

    Storage Tray Wall protection roller Cushion

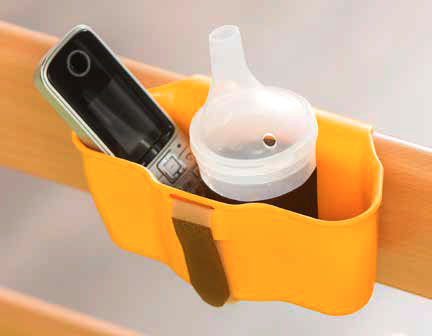

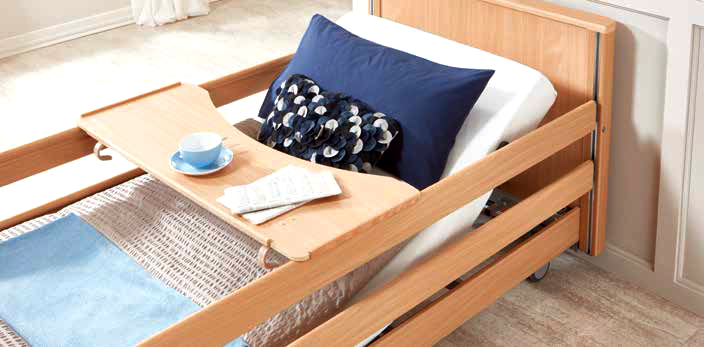

    ⤊   A storage tray for glasses, mobile phones or the wireless handset can be easily mounted in various positions.

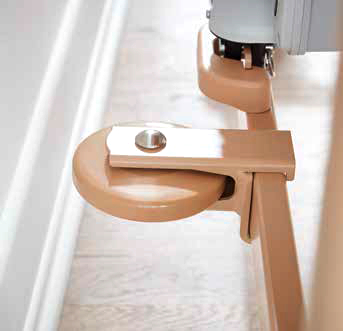

    ⤊   Wall deflector rollers protect the bed and the walls from damage.

    ⤊   An extension cushion can be put on the full-length safety side to make sitting on the side of the bed easier.


    Mobiliser Tray

    ⤊   The serving tray is simply placed on the raised bar of the safety side.


     ⇚ The mobilisation support helps residents to leave the bed easily and independently.


    Power Pack adaptable safety side Leather cover

    ⤊   With the floor level power pack, the 24 volt system can be used with various international mains cables.

    ⤊   The adaptable safety side for the Dali offers a lot of protection while still leaving ample space for getting into and out of bed.

    ⤊   Soft, foam leather covers protect residents from contact with the safety sides and when they leave the bed.




  • Video showing how to assemble the Dali care bed

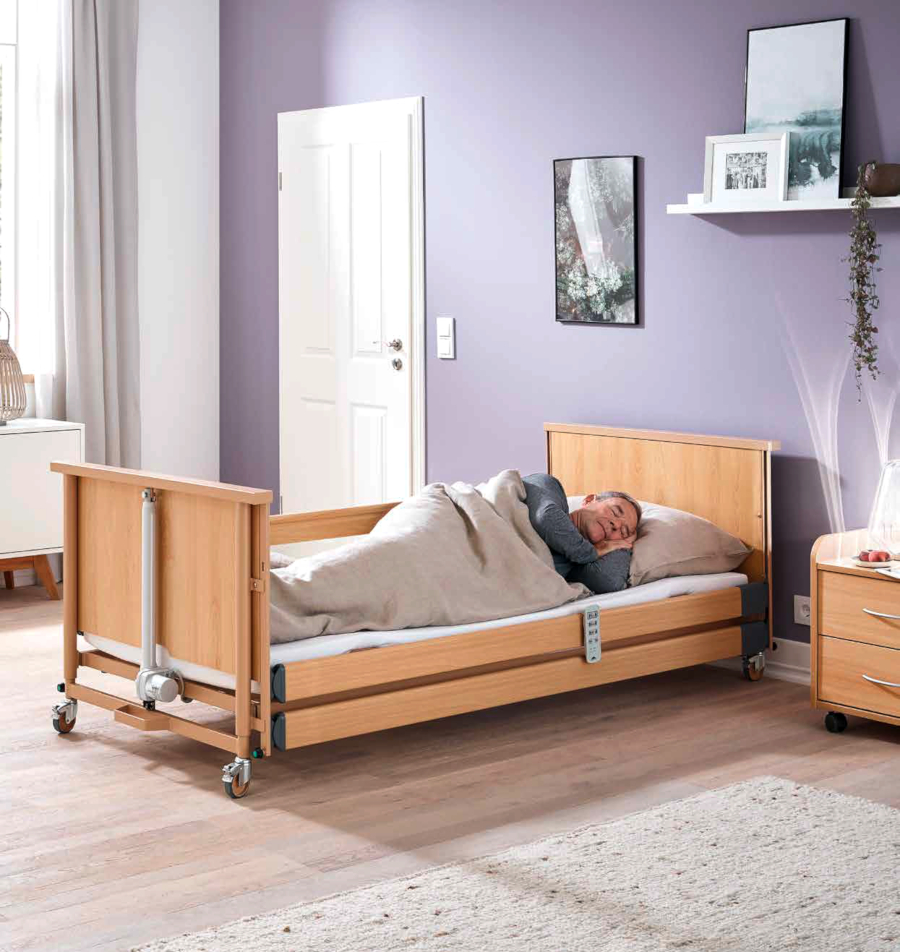

Dali low-econ care bed

The Dali range – for refreshing sleep and a new quality of life


top Return to top of page
