Guldmann Ceiling Brackets

Ceiling Bracket

Standard bracket for straight and curved rail and for rail joints.

Use

The ceiling bracket is used for both single track and room–covering systems. The distance between the upper edge of the rail and the ceiling must be 25 mm.

Installation

Depending on the underlying surface, the ceiling bracket should be secured to the ceiling with one or two fittings. The bracket can be used on concrete and wooden ceiling.

Note:
The bracket cannot be used with a single track system if this is combined with a room–covering rail system.

Return to top of page

Joint & Assembly Bracket

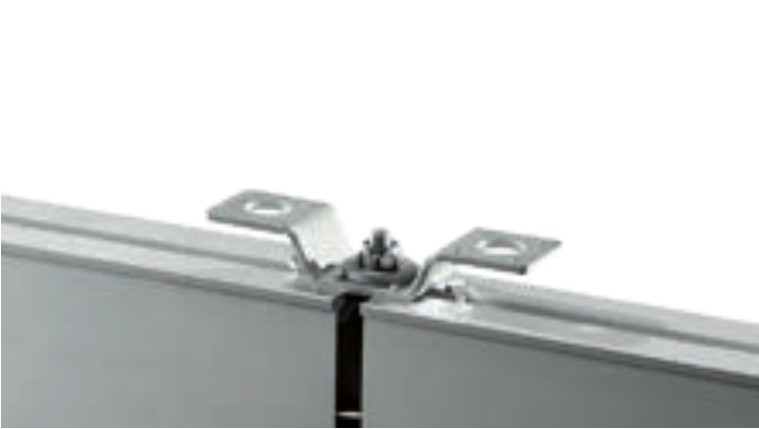

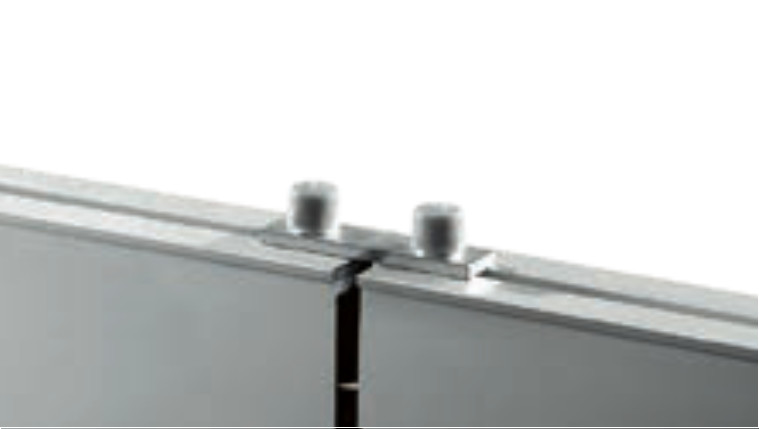

Rail joint bracket and assembly bracket.

Return to top of page

Lowered Ceiling Brackets

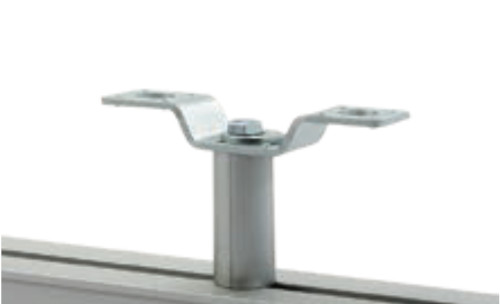

Ceiling bracket adjustable 5mm for Combi-lock.

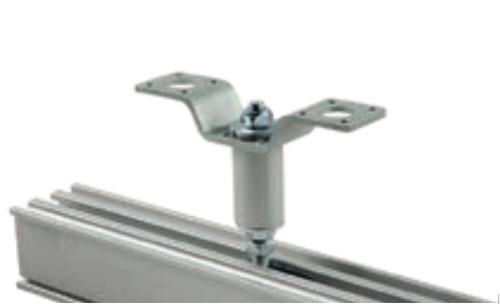

Lowered ceiling bracket standard for straight and curve rail.

Use

The ceiling bracket is used for both single track and room–covering systems.

Installation

ceiling bracket lowered standard should be secured to the ceiling with two fittings.

Return to top of page

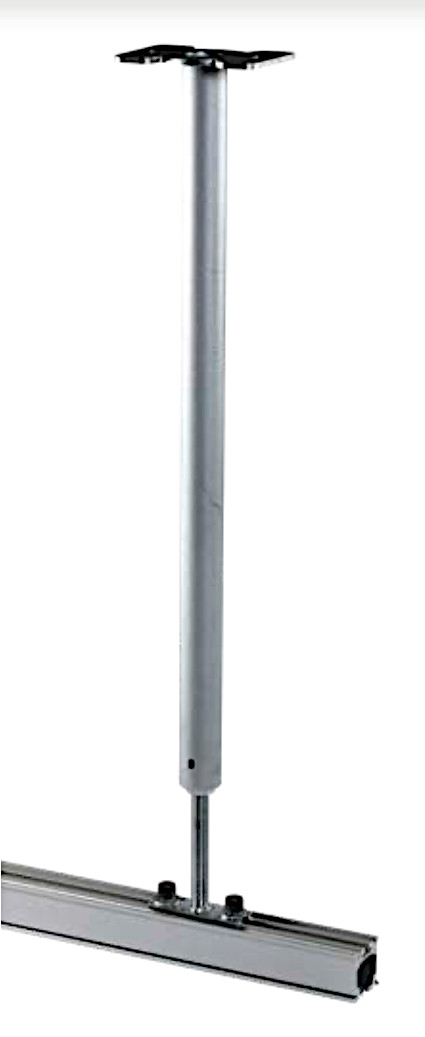

Extended Ceiling Bracket, free length for straight rail and curve

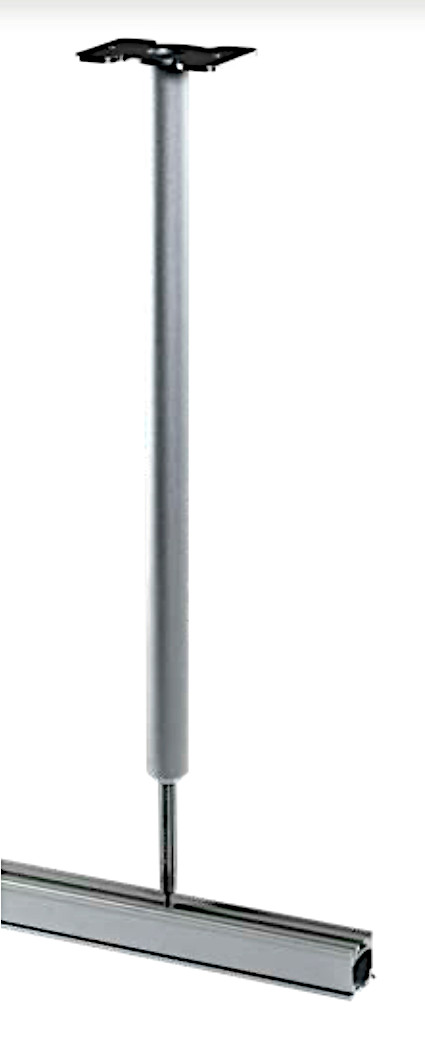

Ceiling bracket, straight lowered for straight and curved rail.

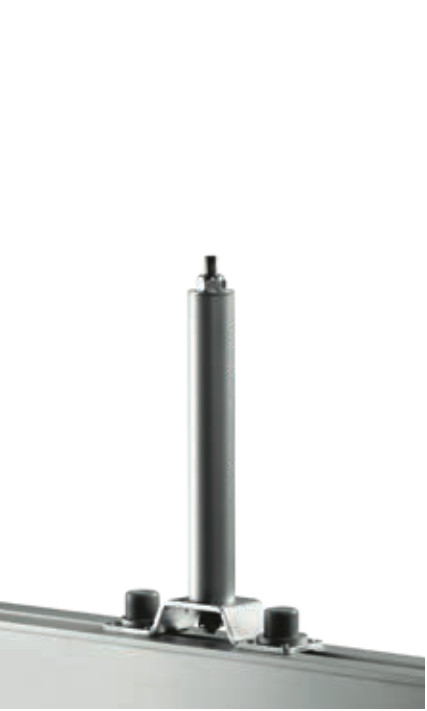

Ceiling bracket, straight lowered for Combi-lock.

Use
The extended ceiling bracket, free length (with aluminium profile) is used in connection with suspended ceiling constructions. The bracket is primarily used in rooms with high ceilings in order to be able to install the rail system beneath the suspended ceiling at an ordinary installation and users’ height.

Installation
The extended ceiling bracket, free length, is joined by cutting the aluminium tube to the required length.

Note:
There is no limitation with regard to the length of the suspended ceiling bracket, free length. But in connection with longer lengths the bracket should be anchored to the wall with a stabiliser bracket to stabilise the rail system and ensure that the construction is solid even with a long suspension.

Return to top of page

Extended Ceiling Bracket, free length – for sloping ceiling

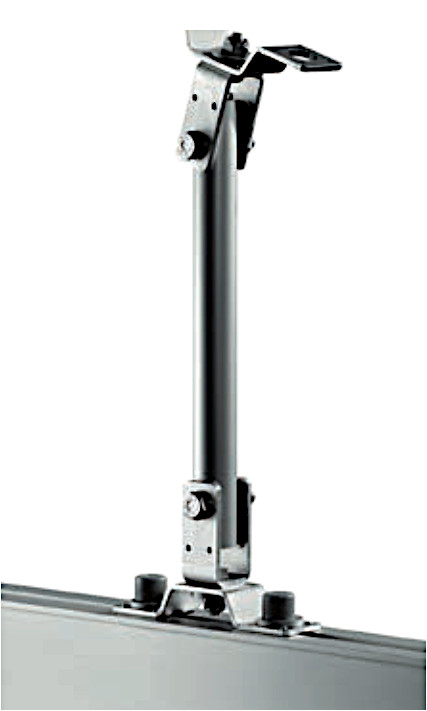

Ceiling bracket slope lowered

Stabilizing bracket

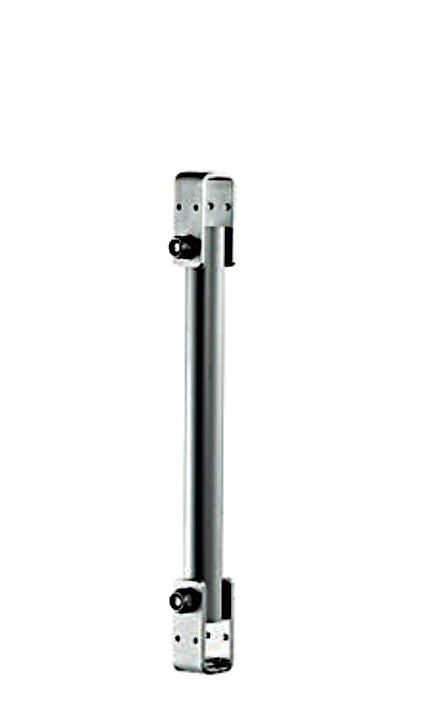

Ceiling bracket, lowered rod for straight rail and curve

Use
An adjustable angle extended ceiling bracket, free length (with aluminium profile) is used in rooms with sloping ceilings.

Used in connection with suspended ceiling constructions. The bracket is primarily used in rooms with high ceilings in order to be able to install the rail system beneath the (suspended ceiling) at an ordinary installation and users’ height.

Installation
An adjustable angle extended ceiling bracket, free length, is connected by cutting the aluminium tube to the required length. The aluminium tube is first mounted on the U profile of the bracket. The bracket is then installed on the ceiling in the same way as with the other suspended ceiling brackets – but the angle can be adjusted on this type.

Note:
Must not be used in systems with a maximum load over 205 kg.
