Wall Bracket
Use
The wall brackets are used to install all types of rail between vertical surfaces.
The bracket can be used, for example, in connection with installing room covering rail systems in rooms where
the ceiling is inaccessible or slanting and where it is not possible to install reinforcements with the stabiliser bracket.
The wall bracket can be installed on all types of wall – both brick and concrete,
lightweight concrete, wood and plasterboard.
However, the wall bracket must be combined with a plasterboard bracket on plasterboard walls whithout wall reinforcement.
Installation
The wall bracket must be secured to the wall with two fixings.
Note:
The wall bracket can be used either for side-mounted rails or for end-mounted rails.
Return to top of page
Wall Bracket for side-mounted rails
Use
The GH wall brackets for side mounted rails are used in connection with installation of a room covering system,
where long parallel rails are to be fixed along a wall.
Installation
The GH wall bracket must be secured to the wall with two fixings.
Note:
The GH wall bracket can be used either for side-mounted rails or for end-mounted rails.
Return to top of page
Wall Bracket Side

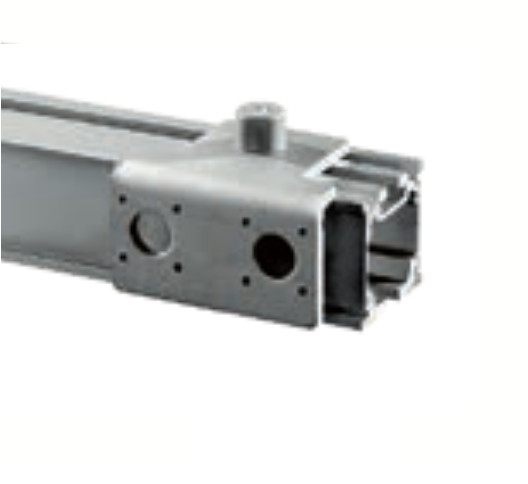

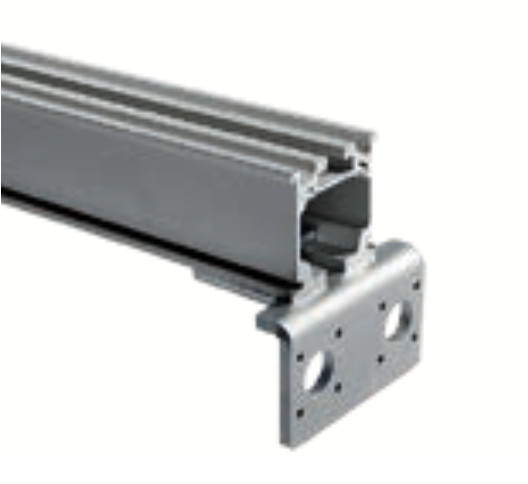

End mounting on rail or side mounting on rail.
Return to top of page
Plasterboard Bracket
Use
The GH plasterboard bracket is used as an adapter for the GH wall bracket in connection with installations on plasterboard walls or other types of light wall.
A GH plasterboard bracket provides the necessary high stability and strength to install rail systems on plasterboard walls.
However, it is a requirement that these are double plasterboard walls at least 24 mm thick.
Installation surface (mm): 303W x 303H.
Installation
The GH plasterboard bracket can be secured direct to the plasterboard wall with 6 pcs HILTI HTB–S M6x60.
The GH wall bracket must then be secured to the two threaded rods on the GH plasterboard bracket with 10 mm lock nuts.
Exception:
Must not be used in systems with a maximum load over 250 kg.
