IV Poles ⁄ Intravenous Stands

Stainless Steel IV Poles with stable 5 castor base and heavy base poles to take pumps.

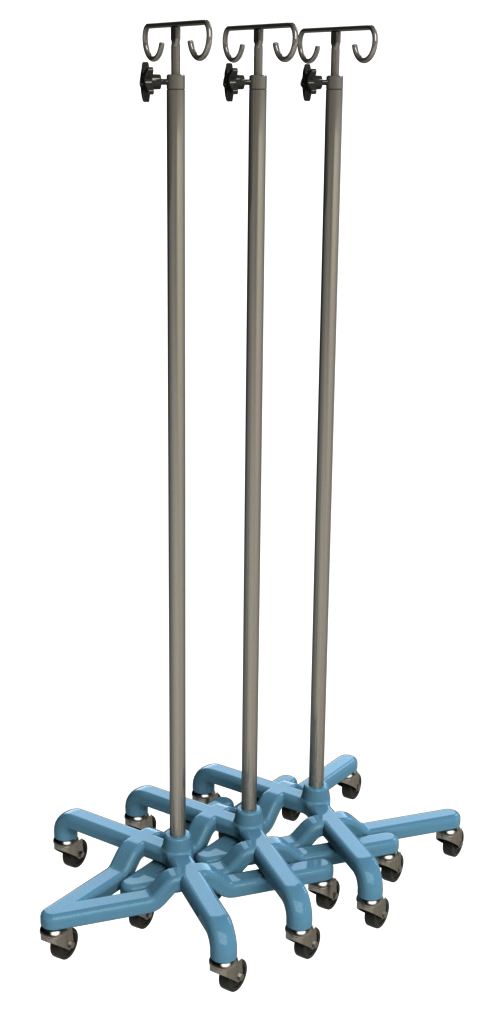

4H164 IV Pole

4H164 Nesting Mobile IV Poles


Features & Dimensions

  • Nestable soft polyurethane easy clean base
  • 2 or 4 Point option “pig tail” IV Bag Attachment
  • Height — Low 1400mm to High 2250mm.
  • Stainless Steel 25mm diameter upright can accept 1 x Syringe Pump.
  • Internal pneumatic dampener to retard adjustment speed.
  • Optional Adjustable Height Push Ring.
  • Heavy Stable 5 castor 520mm diameter Base.
  • 50mm diameter Grey Rubber Swivel Castors
  • ARTG Number: 281735

Click here for a brochure pdf



Click here for a ARTG Registration Certificate pdf

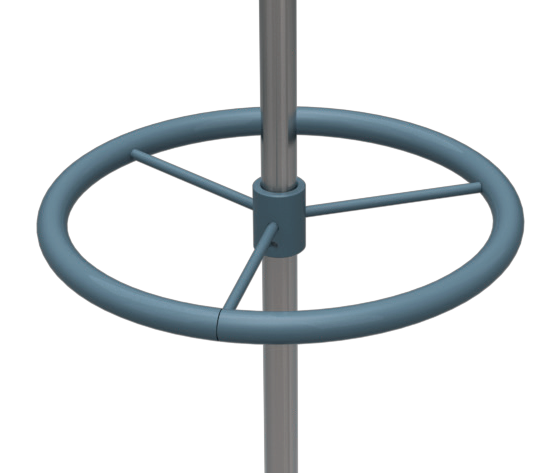

4H160PH Push Ring

Optional Push Ring


Models
4H164 50mm Grey Rubber Castors
4H164–100 100mm Grey Rubber Castors
4H164P 50mm Grey Rubber Castors with Push Ring

email Click here to enquire about the 4H164 Nesting Mobile IV Poles.


top Return to top of page


4H161 IV Pole

4H161 Mobile Syringe ⁄ Infusion Pump Stands


Features & Dimensions

  • 4 Point “pig tail” IV Bag Attachment
  • Height — Low 1550mm to High 2000mm.
  • Stainless Steel 25mm diameter upright can accept upto 4 x Syringe ⁄ Volumetric ⁄ Infusion Pumps.
  • Internal pneumatic dampener to retard adjustment speed.
  • Push Handle
  • 4 Pin Power Board AS3760 (earthed)
  • Heavy Duty Orange Power Cable (earthed)
  • Heavy Stable 6 Star, 600mm diameter Stainless Steel Base.
  • 100mm diameter Grey Rubber Swivel Castors with Wheel Bearings
  • ARTG Number: 281735

Models
4H161 With Power Board, Lead & Push Handle
4H161E Without Power Board, Lead & Push Handle

Click here for a brochure pdf



Click here for a ARTG Registration Certificate pdf



email Click here to enquire about the 4H161 Mobile Syringe ⁄ Infusion Pump Stands.


top Return to top of page

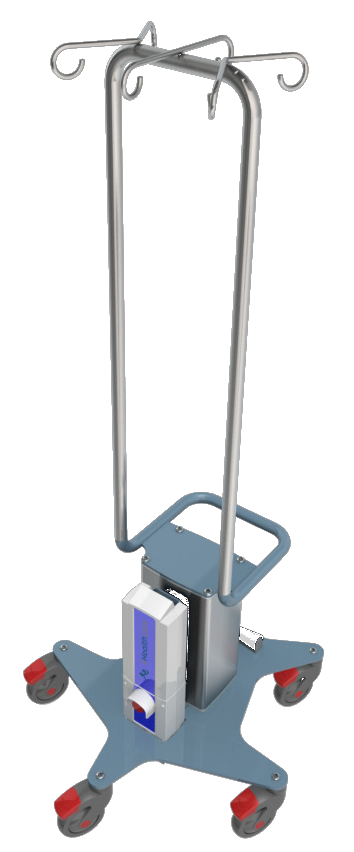

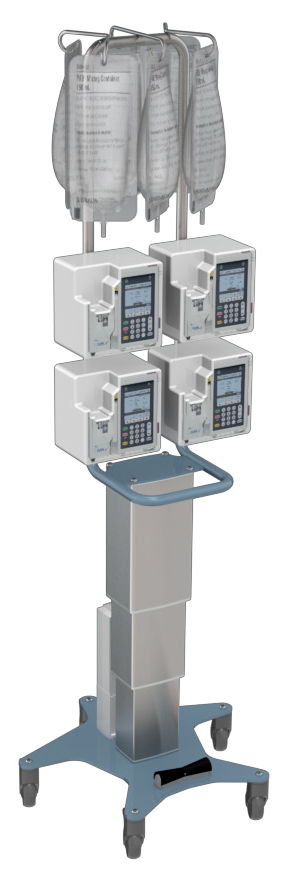

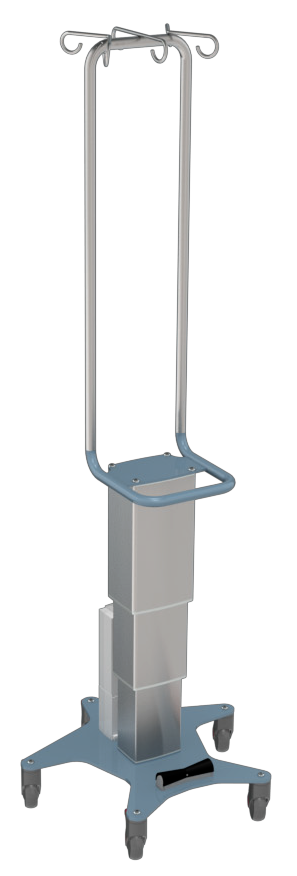

4H165 Electric IV Pole

4H165 Electric Hi Lo Mobile Syringe ⁄ Infusion Pump Stand


4H165 Electric IV Pole 4H165 Electric IV Pole
  • 6 Point “pig tail” IV Bag Attachment
  • Base dimensions: 600mm diameter
  • Height — Low 1550mm to High 1950mm.
  • Stainless Steel 25mm diameter upright can accept Syringe ⁄ Volumetric ⁄ Infusion Pumps.
  • Electric High ⁄ Low foot switch operation.
  • Push Handle
  • Removable battery pack
  • Maintenance free 100mm diameter braking castors
  • Warranty: 2 years on electrics ⁄ 5 years on the frame.
  • ARTG Number: 281735

Models
4H165 Electric Hi Lo Mobile Syringe ⁄ Infusion Pump Stand

Click here for a brochure pdf



Click here for a ARTG Registration Certificate pdf



email Click here to enquire about the 4H165 Electric Hi Lo Mobile Syringe ⁄ Infusion Pump Stand.


top Return to top of page


KH313C100

KH313C100 – Mobile Syringe Pump Stand


Features

  • Accepts most volumetric infusion pumps, syringe pumps & PCA pumps.
  • The mount pole is offset from the base to ensure the
    syringe pump mounts over the center of gravity
  • Heavy stable 6 star stainless steel base
  • Adjustable 4 point Pig Tail
  • Supplied with power board and cable
  • ARTG number 209819
  • Dimensions – Base – 610mm
  • Height – Low 1525mm – High 1985mm
  • Castors – 100mm Grey rubber swivel
  • Finish – All stainless steel

Click here for a brochure pdf



email Click here to enquire about the KH313C100 Mobile IV Poles.


top Return to top of page
