Blanket Warming Cabinets

Reduce the risk of hypothermic reaction.

Malmet Logo

Blanket Warming Cabinet




Cabinet sizes and options at a glance


  • Small unit for bench top – 105 litre capacity; small compact (up to 4 blankets)
  • Single unit Wall mounted – 210 litre capacity, reduced footprint (up to 15 blankets)
  • Single unit Wall mounted – 260 litre capacity, 24 variations available (up to 18 blankets)
  • Single unit with skirt for putting on the floor or a bench
  • Single unit on a raised stand
  • Single unit on castors
  • Tall unit freestanding or on castors – 420 litre capacity; a cost effective solution (up to 30 blankets)
  • Two of the same unit in combination, one on top of the other
  • Single unit in combination with another Warming Cabinet or Storage Cabinet
  • Any cabinet on castors
  • All single or combination units can be recessed into the wall

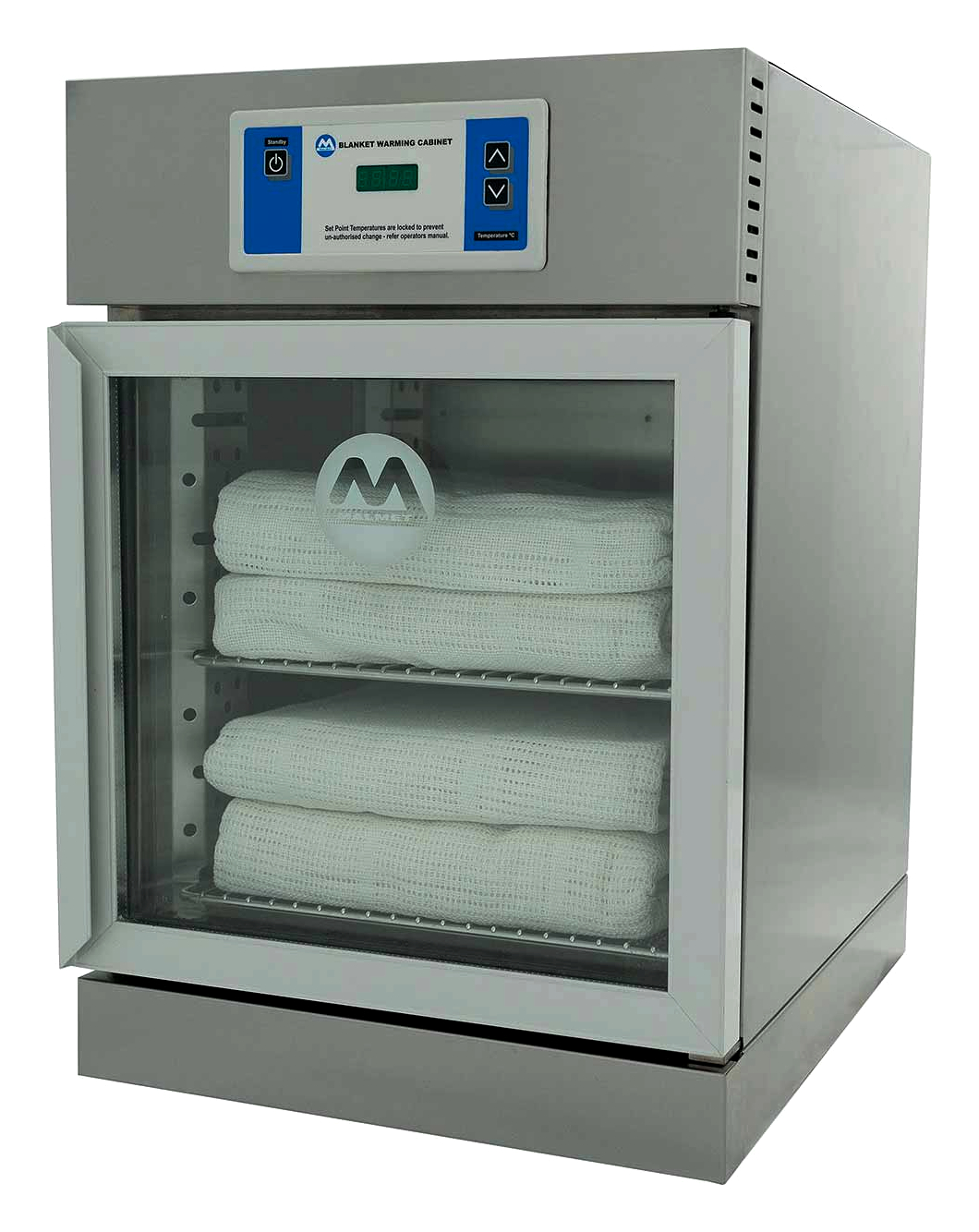

Small Blanket Warming Cabinet

Small Blanket Warming Cabinet — BW204 (B105BT)
Bench Top

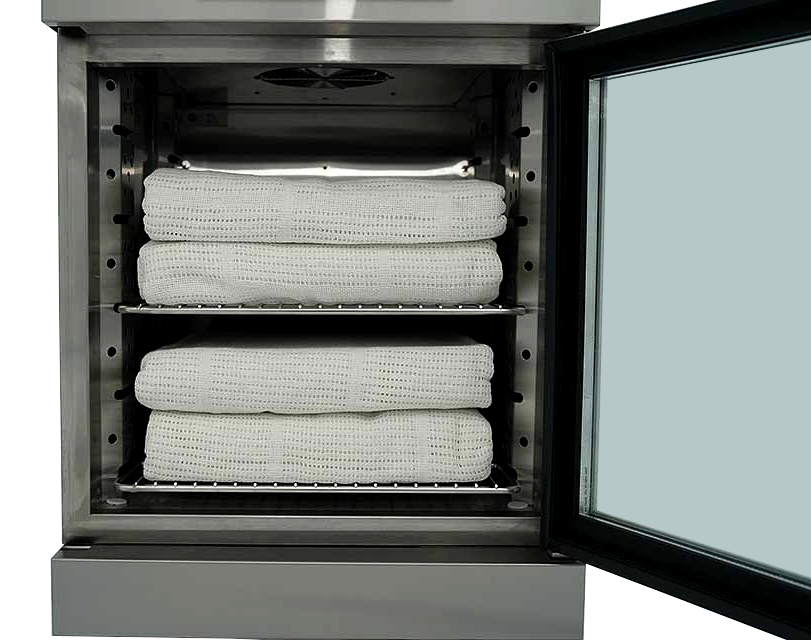

Small Blanket Warming Cabinet

Small Blanket Warming Cabinet — BW204 (B105BT)
Open




Some places where the versatile 105 Litre model cabinet could be used

  • Facilities with limited space
  • Day surgeries – GP Clinics
  • Aged Care
  • Laboratories
  • Facilities with low demand
  • Flexible solution

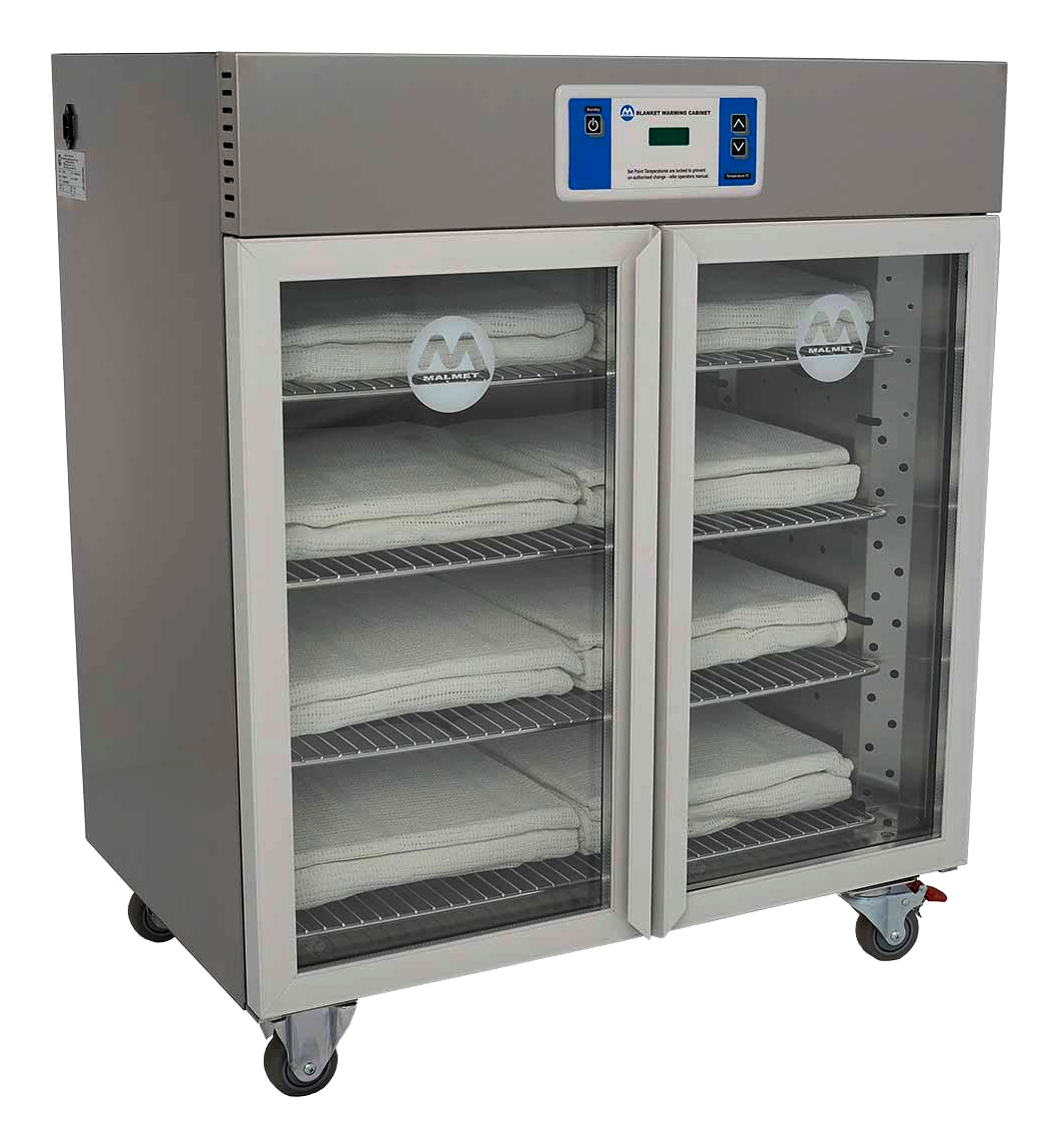

Blanket Warming Cabinet

Single unit, Wall mounted or castors — 210 litre capacity
BW306 (B210C)

Blanket Warming Cabinet

Single unit, Floor-Bench Skirt — 210 litre capacity
BW304 (B210FS)




Available 210 Litre models — Product Codes


Blanket Warming Cabinet Code
B210WB Single Cabinet (210 litre) – Wall ⁄ Bench Mounted BW300 (100-1042)
B210S Single Cabinet (210 litre) – Free–Standing with Stand BW302 (100-1043)
B210FS Single Cabinet (210 litre) – Free–Standing with Floor–Bench Skirt BW304 (100-1040)
B210C Single Cabinet (210 litre) – Free–Standing with castors BW306 (100-1041)
Cabinet Combinations
BB210FS Blanket & Blanket Warming Cabinets (2 x 210L), Free–Standing with floor skirt CW301 (100-1240)
FB210FS Fluid & Blanket Warming Cabinets (2 x 210L), Free–Standing with floor skirt CW305 (100-1242)
BS210FS Blanket & Storage Warming Cabinet (2 x 210L), Free–Standing with floor skirt CW307 (100-1243)
Cabinet Combinations on castors
BB210C Blanket & Blanket Warming Cabinets (2 x 210L), Free–Standing with castors CW313 (100-1250)
FB210C Fluid & Blanket Warming Cabinets (2 x 210L), Free–Standing with castors CW315 (100-1252)
BS210C Blanket & Storage Warming Cabinets (2 x 210L), Free–Standing with castors CW316 (100-1253)

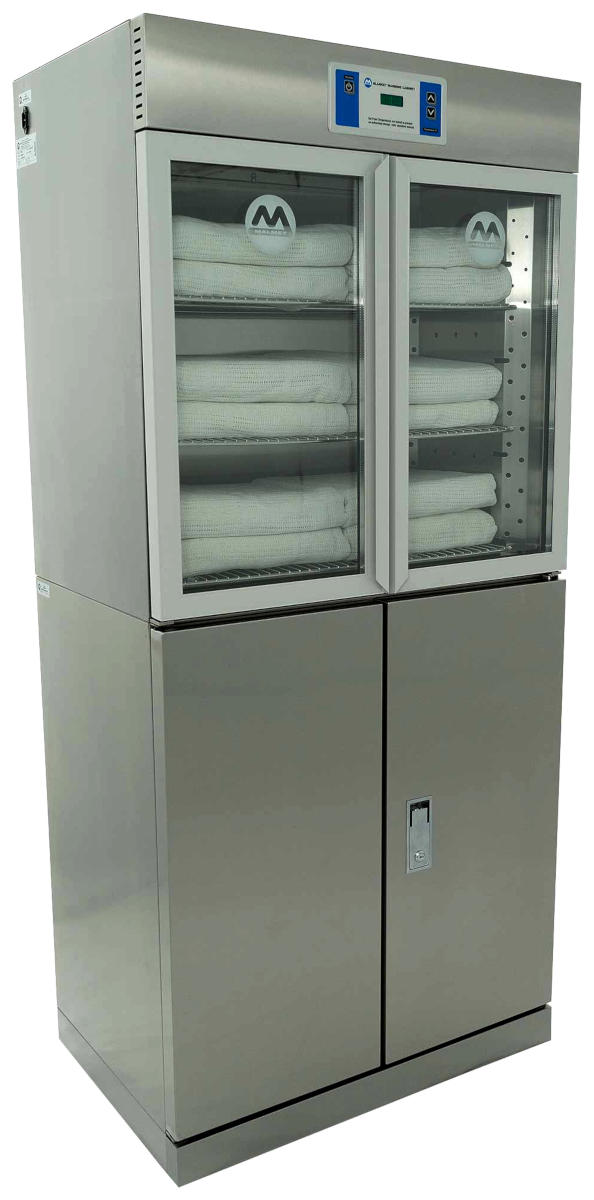

Storage Cabinet

Blanket Warming Cabinet — 260 litre capacity on storage cabinet
CW107 (BS260FS)

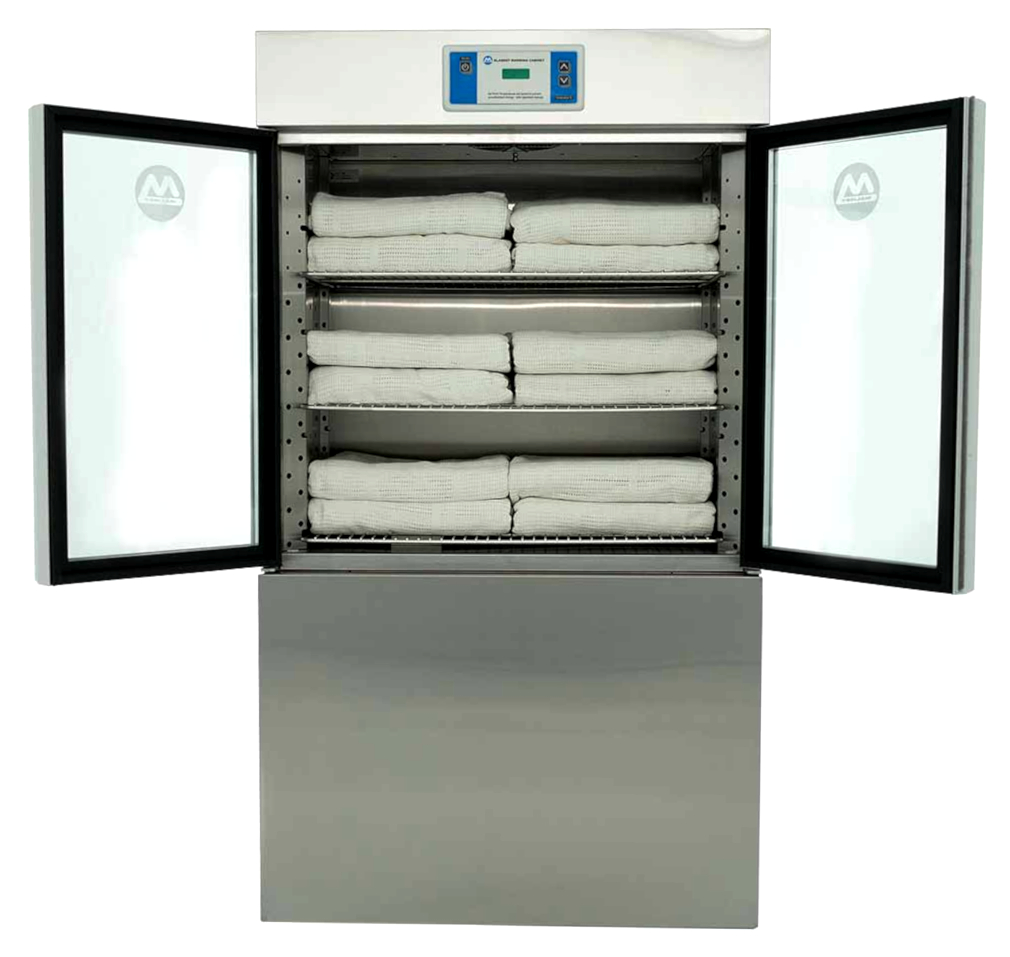

Cabinet on stand

Blanket Warming Cabinet — 260 litre capacity on 615mm high stand
BW102 (B260S)




Available 260 Litre models — Product Codes


Blanket Warming Cabinet Code
B260WB Single Cabinet (260 litre) – Wall ⁄ Bench Mounted BW100
B260S Single Cabinet (260 litre) – Free–Standing with Stand BW102
B260FS Single Cabinet (260 litre) – Free–Standing with Floor–Bench Skirt BW104
B260C Single Cabinet (260 litre) – Free–Standing with castors BW106
Cabinet Combinations
BB260FS Blanket & Blanket Warming Cabinets (2 x 260L), Free–Standing with floor skirt CW103
FB260FS Fluid & Blanket Warming Cabinets (2 x 260L), Free–Standing with floor skirt CW101
BS260FS Fluid & Storage Warming Cabinet (2 x 260L), Free–Standing with floor skirt CW107
Cabinet Combinations on castors
BB260C Blanket & Blanket Warming Cabinets (2 x 260L), Free–Standing with castors CW113
FB260C Fluid & Blanket Warming Cabinets (2 x 260L), Free–Standing with castors CW115
BS260C Blanket & Storage Warming Cabinets (2 x 260L), Free–Standing with castors CW116

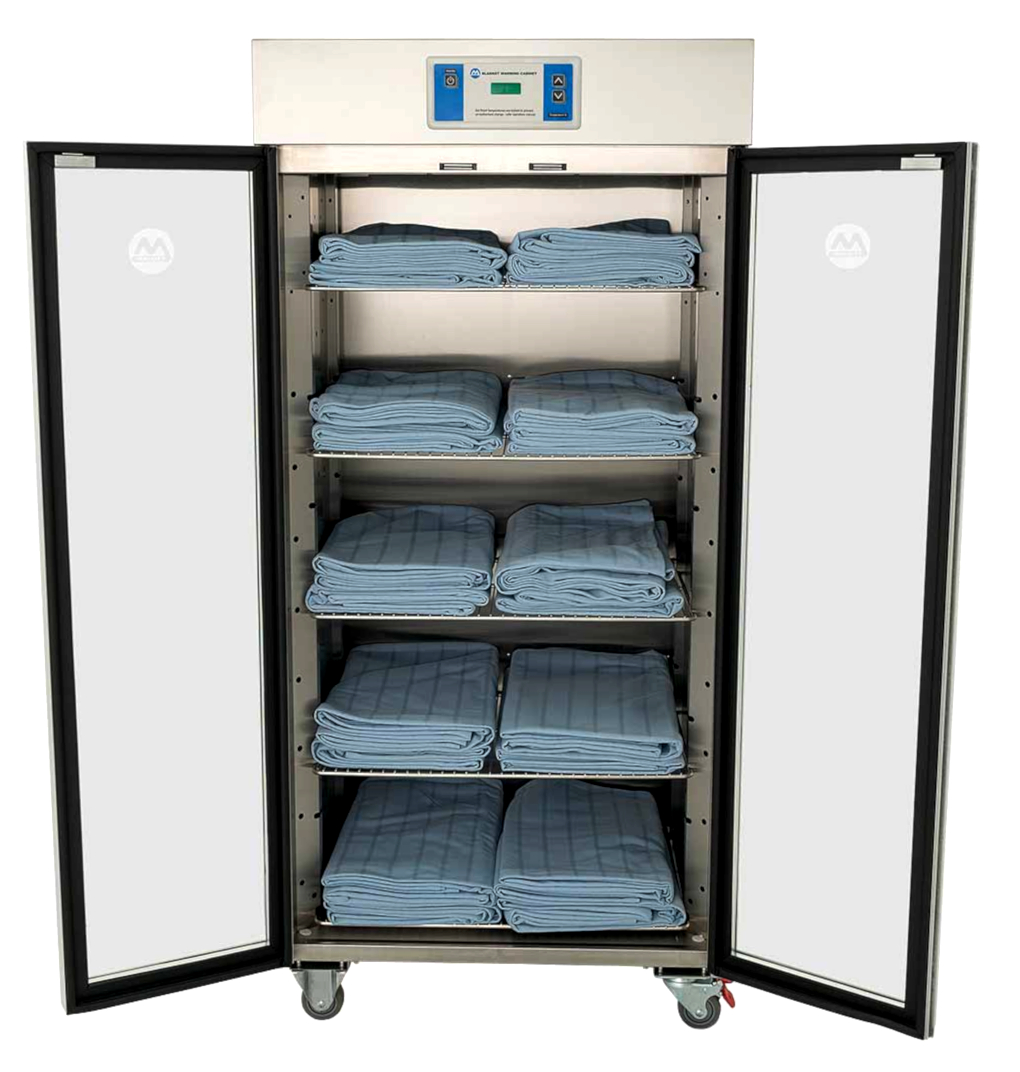

Tall Blanket Warming Cabinet

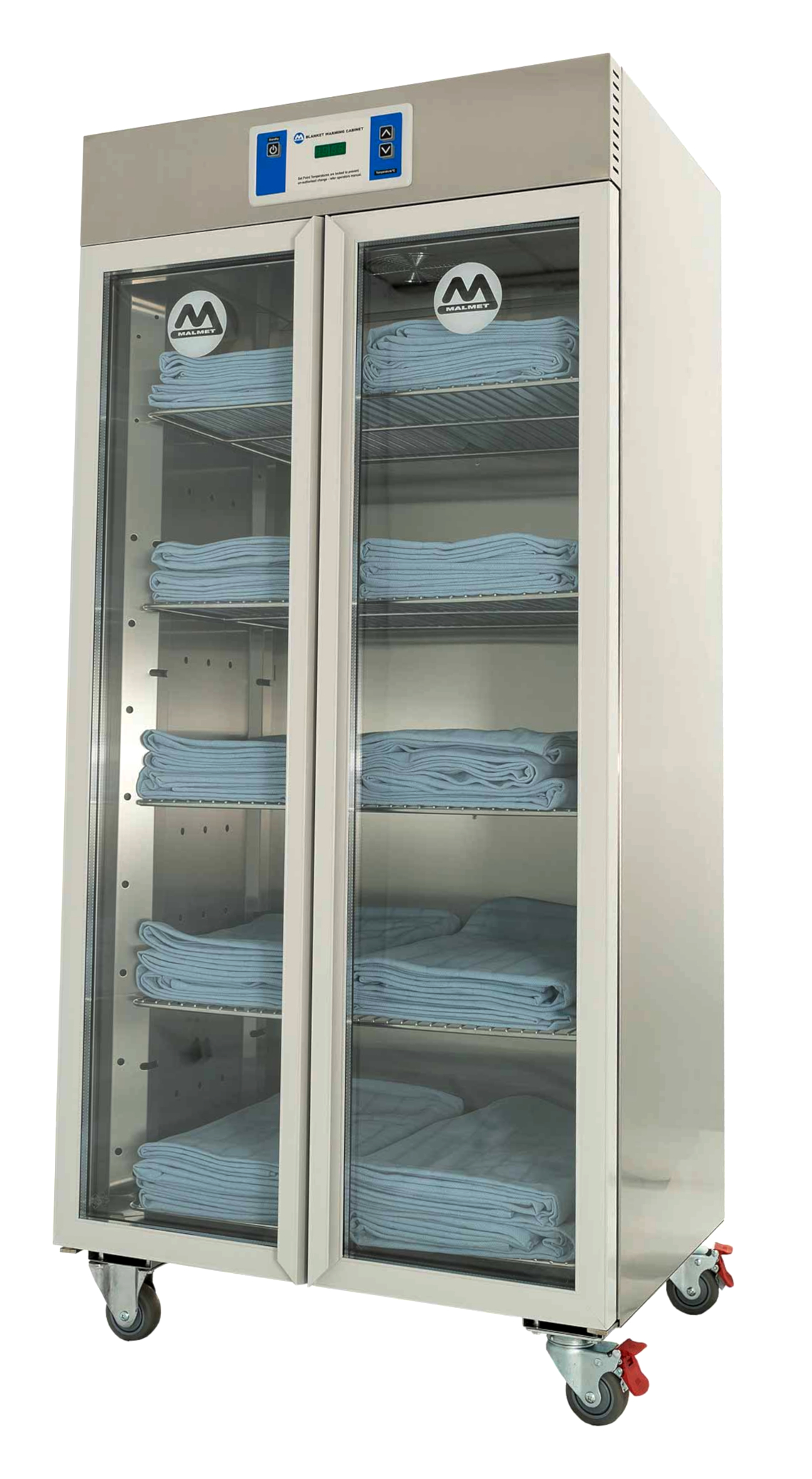

Tall Blanket Warming Cabinet — 420 litre capacity on castors
TW1001 (B420C)

Tall Blanket Warming Cabinet

Tall Blanket Warming Cabinet — 420 litre capacity on castors
TW1001 (B420C)




Available 420 Litre models — Product Codes


Blanket Warming Cabinet Code
B420FS Tall Cabinet (420 litre) – Free–Standing with Floor Skirt TW1000
B420C Tall Cabinet (420 litre) – Free–Standing with castors TW1001



Using gently heated blankets


Reduce the risk of hypothermic reaction and post–operative discomfort and stress in Patients. Blankets that are gently heated restore body temperature post surgery and assist thermo-regulation.

Malmet Blanket Warming Cabinets are recommended for Recovery, Maternity, General Ward, Specialist and Intensive Care Units.

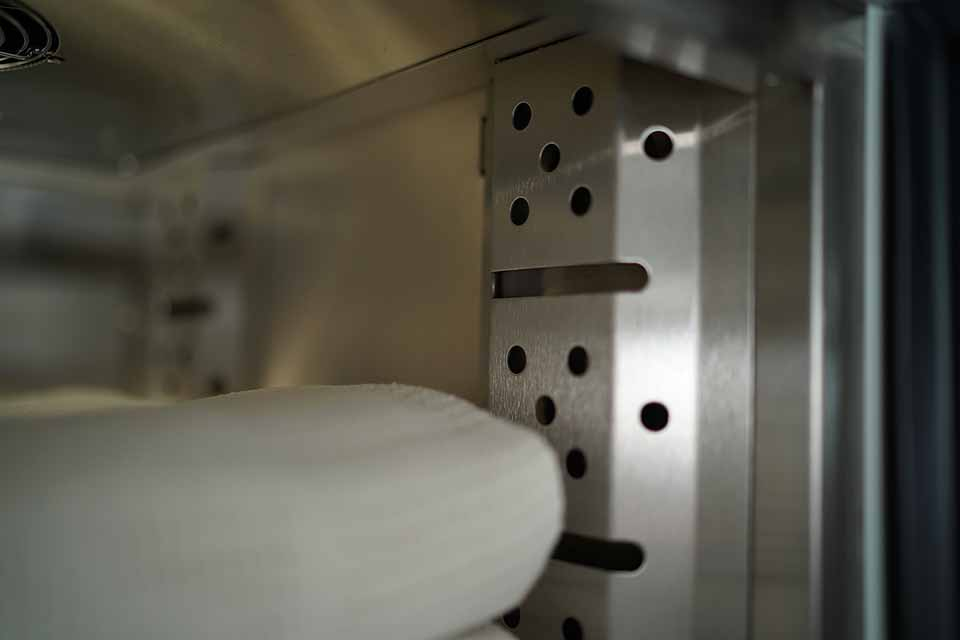

Blanket Warming Cabinet shelf Blanket Warming Cabinet inside

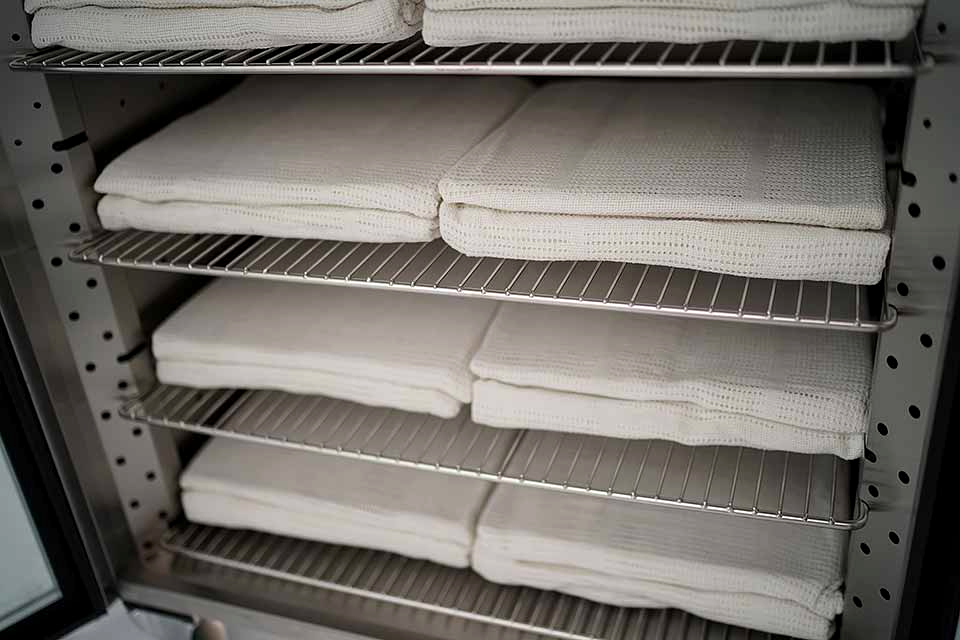

Inside Blanket Warming Cabinet




Key features of Malmet Blanket Warming Cabinets

  • Stainless steel construction with insulation cavity. Cool to touch exterior surface.
  • Double glazed doors for inventory monitoring. A 16mm gap between panes provides insulation and safe external temperature.
  • Capacity 260 litres (210 litres, Tall Unit 420 litres, Small Unit 105 litres)
  • Over heat protection and temperature lock out.
  • Fan assisted convection heating.
  • Single cabinets can be converted to combination units. Mix and match to suit any requirements.
  • Versatility – cabinets can be supplied with 4 non-marking castors (2 fixed, 2 swivel and lockable)
  • Multi-purpose installation: Wall mounted, freestanding (on castors) or bench and recessed into the wall.
  • ARTG Registration 289497





Specifications of Malmet Blanket Warming Cabinets


Feature Single Blanket Warming Cabinet
Centre Opening Doors yes
(except Small Unit)
Double Glazed yes
Door Closure Magnetic
Outside Dimensions (mm) Single Unit, 210 litre: 905h x 760w x 595d
Single Unit, 260 litre: 905h x 850w x 595d
Tall Unit, 420 litre: 1585h (inc. skirt) x 760w x 595d
Small Unit, 105 litre: 735h x 500w x 595d
Inside Dimensions (mm) Single Unit, 210 litre: 690h x 660w x 500d
Single Unit, 260 litre: 690h x 750w x 500d
Tall Unit, 420 litre: 1300h x 630w
Small Unit, 105 litre: 485h x 404w x 475d
Add for Skirt Height (mm) 80
Add for Castors Height (mm) 125
Add for Stand Height For Single Unit, 210 & 260 litre: 610mm
Capacity Single Unit, 210 litre: up to 16 blankets (8 per shelf)
Single Unit, 260 litre: up to 18 blankets (6 per shelf)
Tall Unit, 420 litre: up to 30 blankets (6 per shelf)
Small Unit, 105 litre: up to 6 blankets (3 per shelf)
Bench ⁄ Wall Mounted ⁄ Free–Standing ⁄ Wall Recessed yes
Electrical Rating 240 volts 2.8 amps 50hz
Connection Supplied 3 pin 10 amp plug
600 Watt Element yes
Power Consumption Less than 7.8kW 24hr
Radial Hot Air Fan yes
Micro-Processor Control yes
LED Temperature Control yes
Set Point Temperature 60°C
Over Temperature Protection 5°C above setting
Max. Temperature Setting 60°C
Temperature Lock Out yes
Adjustable Shelving Single Unit, 210 litre: 2 wire shelves – bottom fixed
Single Unit, 260 litre: 3 wire shelves – bottom fixed
Tall Unit, 420 litre: 5 wire shelves – bottom fixed
Small Unit, 105 litre: 2 wire shelves – bottom fixed
Stainless Steel Construction yes



Available models — Product Codes


Blanket Warming Cabinet Code
B210WB Single Cabinet (210 litre) – Wall ⁄ Bench Mounted BW300
B210S Single Cabinet (210 litre) – Free–Standing with Stand BW302
B210FS Single Cabinet (210 litre) – Free–Standing with Floor–Bench Skirt BW304
B210C Single Cabinet (210 litre) – Free–Standing with castors BW306
B260WB Single Cabinet (260 litre) – Wall ⁄ Bench Mounted BW100
B260S Single Cabinet (260 litre) – Free–Standing with Stand BW102
B260FS Single Cabinet (260 litre) – Free–Standing with Floor–Bench Skirt BW104
B260C Single Cabinet (260 litre) – Free–Standing with castors BW106
B420FS Tall Cabinet (420 litre) – Free–Standing with Floor Skirt TW1000
B420C Tall Cabinet (420 litre) – Free–Standing with castors TW1001
B105BT Small Cabinet (105 litre) – Bench Top BW204
Cabinet Combinations
BB210FS Blanket & Blanket Warming Cabinets (2 x 210L), Free–Standing with floor skirt CW301
FB210FS Fluid & Blanket Warming Cabinets (2 x 210L), Free–Standing with floor skirt CW305
BS210FS Blanket & Storage Warming Cabinet (2 x 210L), Free–Standing with floor skirt CW307
BB260FS Blanket & Blanket Warming Cabinets (2 x 260L), Free–Standing with floor skirt CW101
FB260FS Fluid & Blanket Warming Cabinets (2 x 260L), Free–Standing with floor skirt CW105
BS260FS Blanket & Storage Warming Cabinet (2 x 260L), Free–Standing with floor skirt CW107
BB105FS Blanket & Blanket Small Warming Cabinets (2 x 105L), Free–Standing CW201
FB105FS Fluid & Blanket Small Warming Cabinets (2 x 105L), Free–Standing CW205
Cabinet Combinations on castors
BB210C Blanket & Blanket Warming Cabinets (2 x 210L), Free–Standing with castors CW313
FB210C Fluid & Blanket Warming Cabinets (2 x 210L), Free–Standing with castors CW315
BS210C Blanket & Storage Warming Cabinets (2 x 210L), Free–Standing with castors CW316
BB260C Blanket & Blanket Warming Cabinets (2 x 260L), Free–Standing with castors CW113
FB260C Fluid & Blanket Warming Cabinets (2 x 260L), Free–Standing with castors CW115
BS260C Blanket & Storage Warming Cabinets (2 x 260L), Free–Standing with castors CW116



Options


Stand for under single Cabinet 100-5100
Floor ⁄ Bench Skirt with adjustable feet 100-5105
Rear Joining Bracket 100-5110
Combination Conversion Kit (260L) 100-5111
BWFW Castors for Cabinets – Factory fitted 100-5115
BWFW Castors for Cabinets on Stands – Factory fitted 100-5116
BWFW Castors for Cabinets - Unfitted 100-5117
BWFW Castors for Cabinets on Stands - Unfitted 100-5118
Option for Wall Recessing Cabinet
Fascia for Single Cabinet with floor ⁄ bench skirt. 100-5201
Fascia for Single Cabinet with stand. 100-5202
Fascia for Combination Cabinet with floor ⁄ bench skirt. 100-5203
Fascia for Tall Cabinet with floor ⁄ bench skirt. 100-4029



Fluid Warming Cabinet in use

Fluid Warming and Blanket Warming Cabinets combined


Only Malmet cabinets offer you the flexibility of modular units that you can mix and match as your requirements change.
