Spare Parts

Malmet ESD Washer Disinfector Spare Parts Table

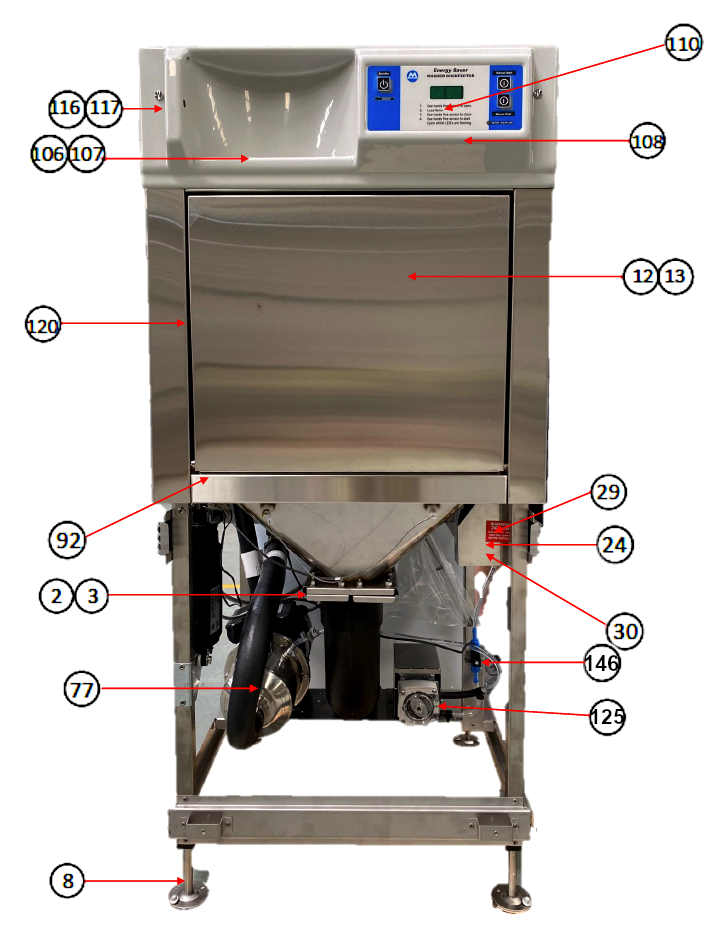

Front side view of components

Front Side View


Item	Image	Description	P ⁄ N
2		Gasket S & P Trap	91-2031SP
3		Clamping Flange S & P	91-2032SP
8		Adjustable Foot & Insert (not sold separately)	82-8096SP
12		Door (Complete with Cradle, Splash Guard, Countersunk Screws)	91-4010SP
13		Door Assembly (without Cradle, Splash Guard, Countersunk Screws)	91-4011SP
24		Heating Element 4.5kW (Behind Element Cover)	91-3040SP
29		Cover — Element, Electrical Assembly	91-4004SP
30		Element 1-¼ BSP 2200W, 10 AMP	91-3300SP

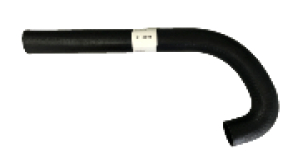

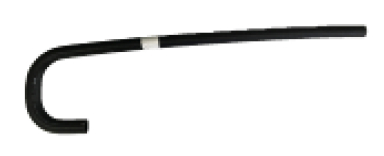

77		Hose — Cold Water Tank to Pump	91-3005SP

Item	Image	Description	P ⁄ N
92		Micro Switch VP-531C-3H	82-2361SP
106		Control Panel, Complete Assembly	91-4075SP
107		Front Panel with Overlay	91-4076SP
108		Overlay “ES-Sanitizer”	82-2237SP
110		Display PCB	91-3102SP
120		Front Fascia Panel Assembly	91-4030SP

Item	Image	Description	P ⁄ N
125		Pump Coltec Detergent	81-9049SP

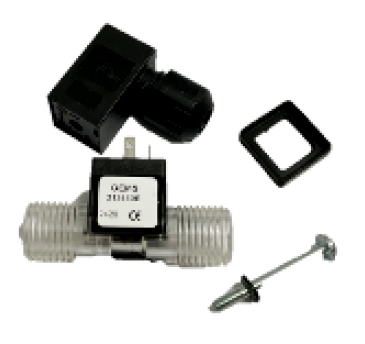

146		Detergent Flow Sensor — FT-210	92-3011SP
156		Blockage Sensor Assembly	92-4149SP
157		Harness Blockage Sensor Duplex	91-3133SP

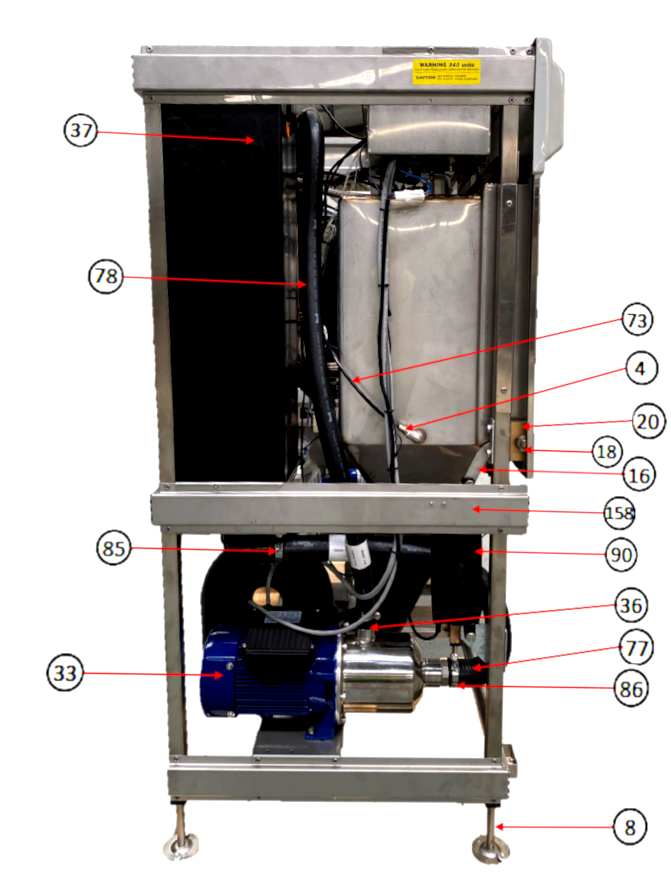

Left side view of components

Left Side View


Item	Image	Description	P ⁄ N
4		Spray Press Lock Fitting	91-3034SP
8		Adjustable Foot & Insert (not sold separately)	82-8096SP
16		Door Axle Assembly (‘ES’ and ‘ES-D’ series)	91-4015SP
18		½” Shaft Collar	91-4821SP

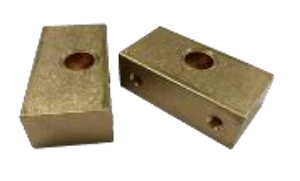

20		Door Hinge (Pkt 2)	91-4016SP

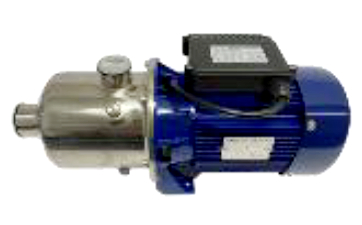

33		ES-D Pump assembly DW4-40 (Complete with hose fittings)	91-4081SP
33		ES-D Pump DW4-40	91-3014SP
36		Hosetail 25mm Hose x 1” BSP	91-3024SP

Item	Image	Description	P ⁄ N

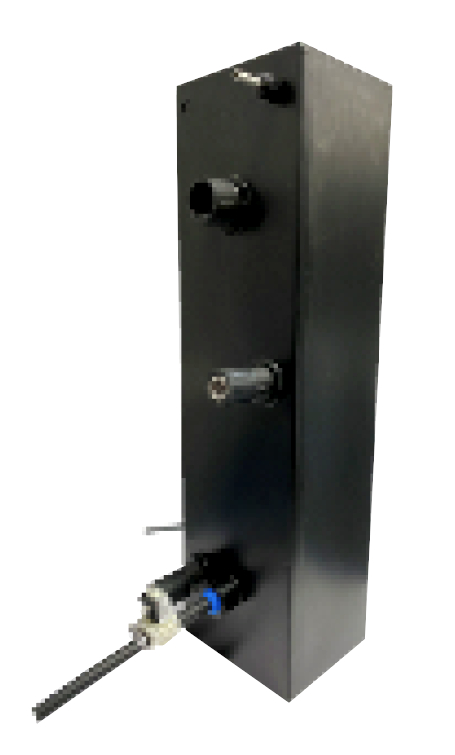

37		Cold Water Tank Assembly (For ‘ES’ & ‘ES-D’ Series)	91-4161SP

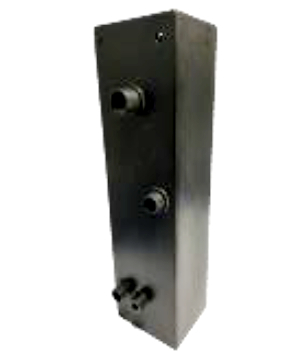

37		Cold Water Tank (Tank only)	91-2036SP

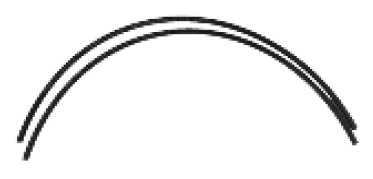

73		Spray Line to Bottle	91-2080SP

Item	Image	Description	P ⁄ N
77		Hose — Cold Water Tank to Pump	91-3005SP
78		Hose — Cold Water Tank to Pump	91-3006SP

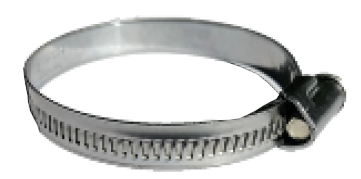

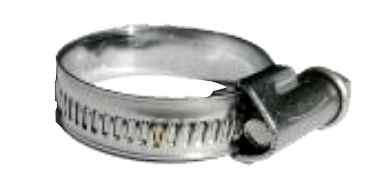

85		Hose Clamp SS 25-40mm (Pkt 5)	8-5835SP

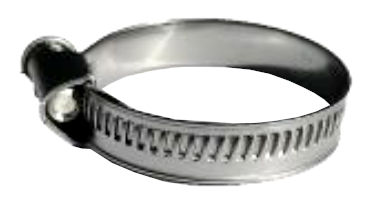

86		Hose Clamp SS 35-50mm (Pkt 5)	8-5837SP
90		Linak Actuator (with plug)	91-4086SP

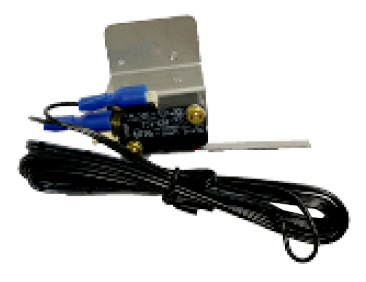

158		Door Micro Switch & Bracket (ES Series)	91-5120SP

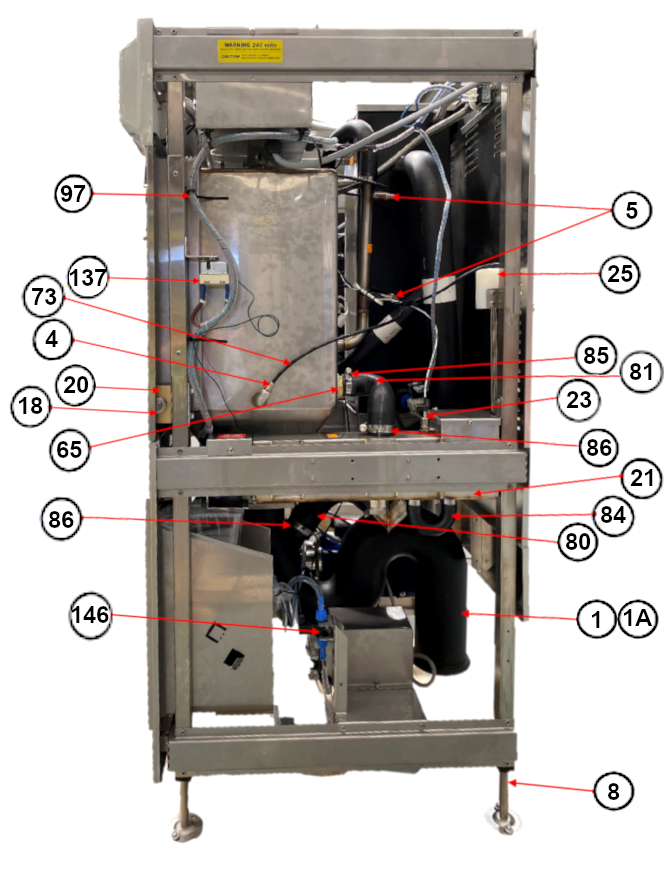

Right side view of components

Right side View


Item	Image	Description	P ⁄ N

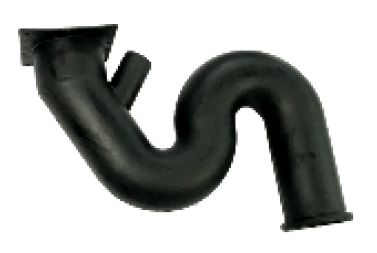

1		Trap ‘S’ Rota Moulded “ES”	91-2028SP

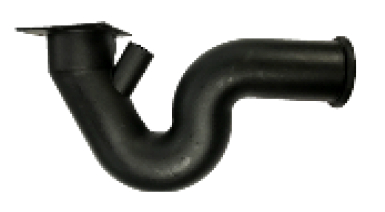

1A		Trap ‘P’ Rota Moulded “ES”	91-2029SP
4		Spray Press Lock Fitting	91-3034SP

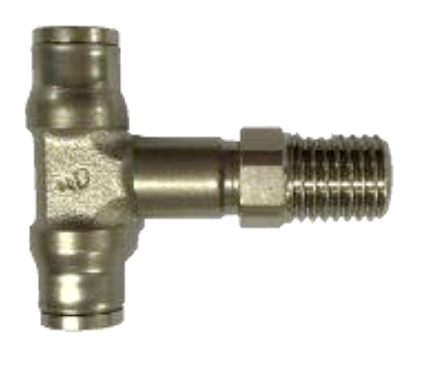

5		Spray ‘T’ Press Lock Fitting	91-3035SP
8		Adjustable Foot & Insert (not sold separately)	82-8096SP
18		½” Shaft Collar	91-4821SP
20		Door Hinge (Pkt 2)	91-4016SP

Item	Image	Description	P ⁄ N

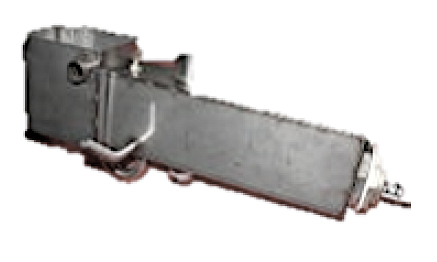

21		Steam Generator Assembly (for 20A ES-D models) (complete with element and temp probe)	91-4155SP
21		Steam Generator weld assembly only (for 20A ES-D models)	91-4156SP

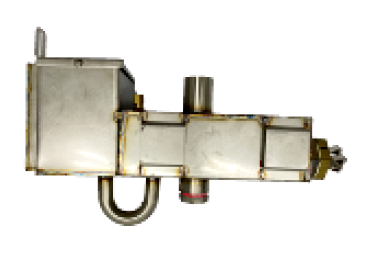

21		10A Steam Generator Assembly (Complete with element and temp probe)	91-4141SP

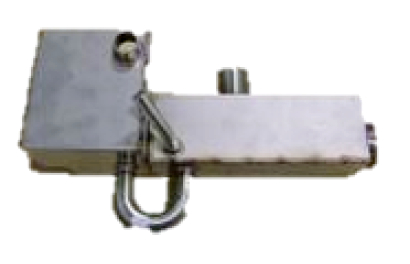

21		10A Steam Generator welded sub assembly only	91-4142SP

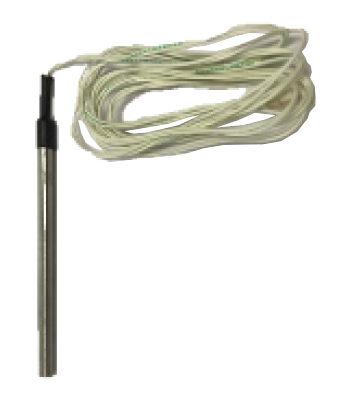

23		Temperature Probe with Nut & ¼” Olive	81-2405SP

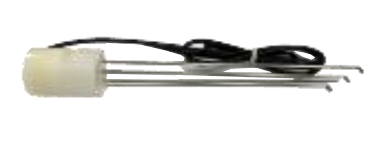

25		Hot Water Level Probe — 3 Way	91-3114SP

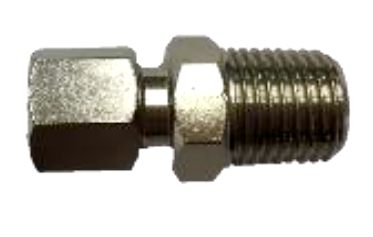

26		Brass Fitting Thermocouple	8-4191SP

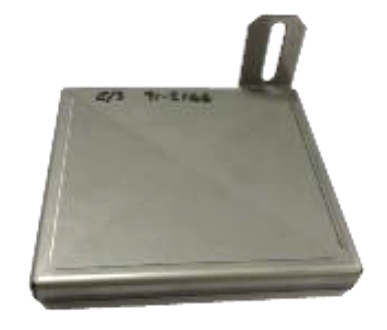

28		Lid Assembly — Steam Tank	91-4008SP
65		Washer Teflon 40OD X 30.5ID X 1.6T (Pkt 2)	91-3047SP

Item	Image	Description	P ⁄ N
73		Spray Line to Bottle	91-2080SP

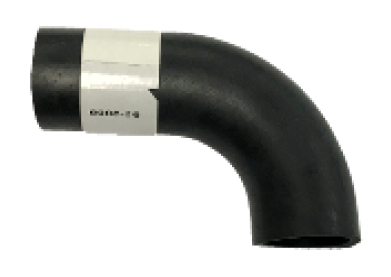

80		Hose — Overflow to Trap	91-3009SP

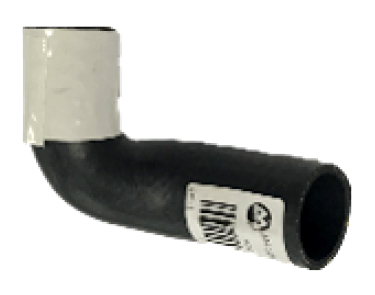

81		Hose — Steam Generator to Chamber	91-3002SP

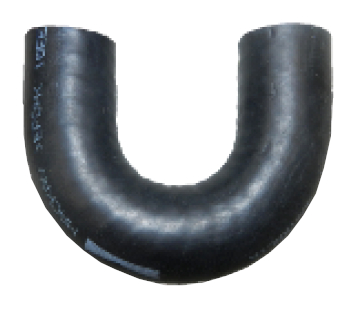

84		Hose — Hose Bend 180° Rubber	91-3170SP
85		Hose Clamp SS 25-40mm (Pkt 5)	8-5835SP
86		Hose Clamp SS 35-50mm (Pkt 5)	8-5837SP

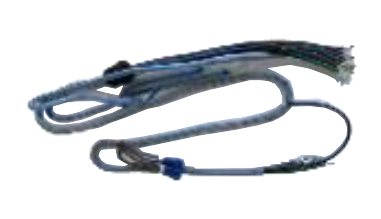

97		Harness Main	91-3108SP

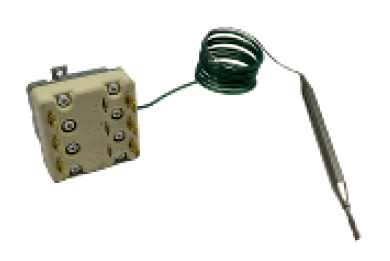

137		Element Overtemp Switch 115°C	91-3059SP
146		Detergent Flow Sensor — FT-210	92-3011SP

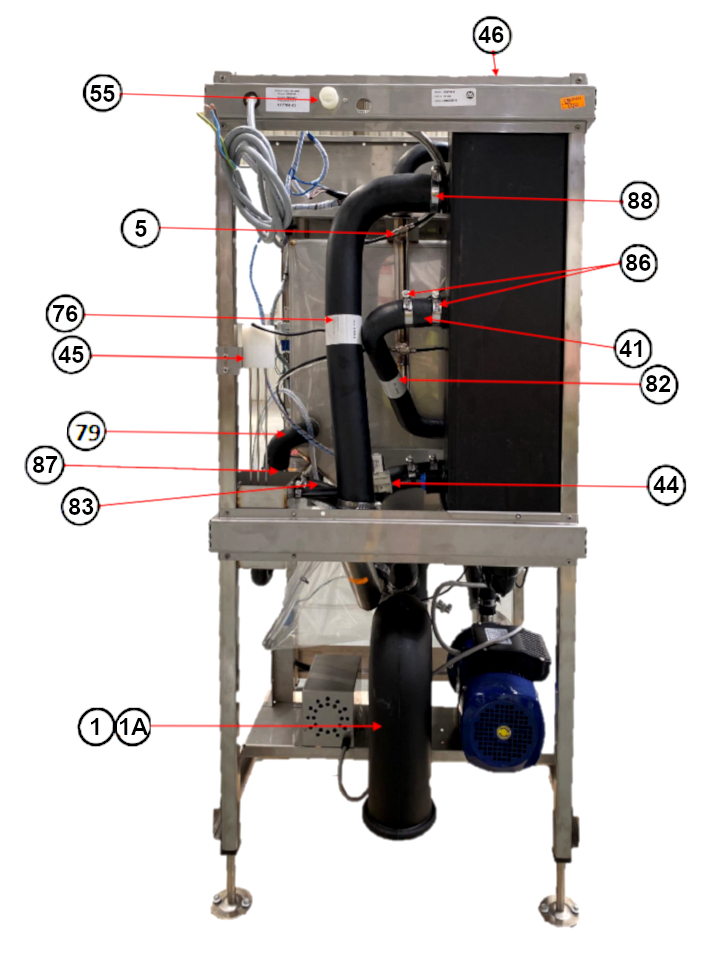

Back view of components

Back View


Item	Image	Description	P ⁄ N
1		Trap ‘S’ Rota Moulded “ES”	91-2028SP
1A		Trap ‘P’ Rota Moulded “ES”	91-2029SP
5		Spray ‘T’ Press Lock Fitting	91-3035SP
25		Hot Water Level Probe 3 way	91-3114SP

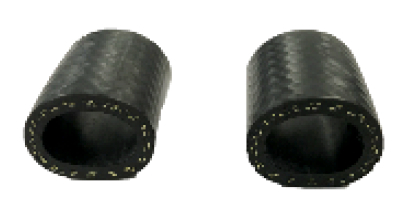

41		Hose Spacer — Condensing Coil (Pkt 2)	91-2087SP

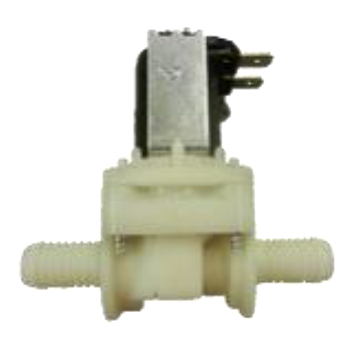

44		Water Solenoid Valve ⅜ (For ES915 & ES935 models only)	91-3068SP

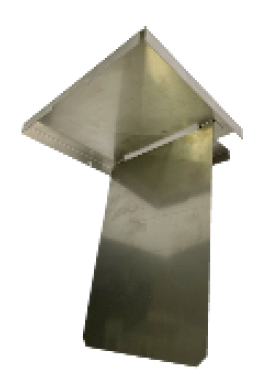

46		Cold Water Tank Lid Assembly	91-4091SP

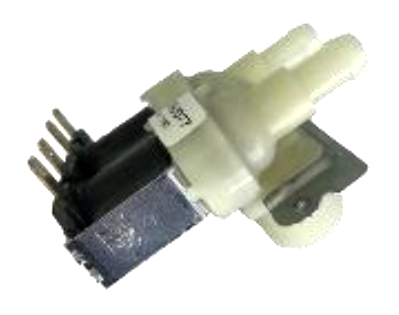

55		Water Inlet Solenoid 339 Dual	91-3067SP

Item	Image	Description	P ⁄ N
72		Hose — Cold Water to Steam Generator	91-2079SP

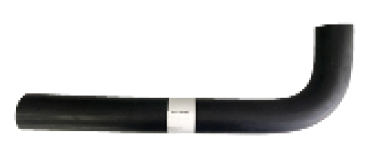

76		Hose — Cold Water Tank Overflow	91-3004SP

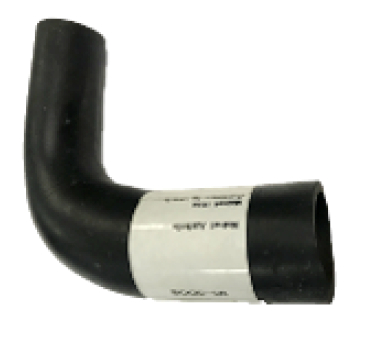

79		Hose — Steam Coil to Overflow	91-3008SP

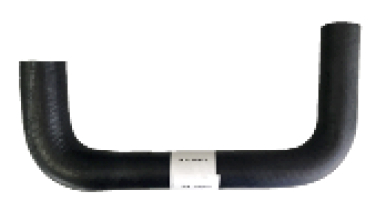

82		Hose — Chamber to Steam Coil	91-3003SP

Item	Image	Description	P ⁄ N

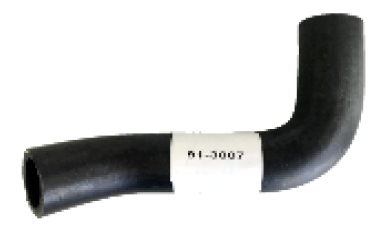

83		Hose — Steam Generator to Overflow	91-3007SP
86		Hose Clamp SS 35-50mm (Pkt 5)	8-5837SP

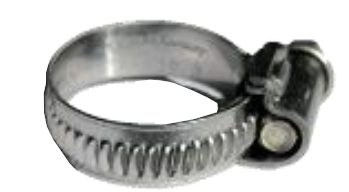

87		Hose Clamp SS 16-25mm (Pkt 5)	8-5841SP
88		Hose Clamp SS 50-70mm (Pkt 5)	8-5840SP

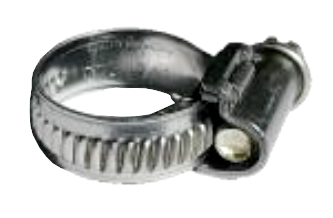

89		Hose Clamp SS 12-20mm (Pkt 5)	8-5848SP

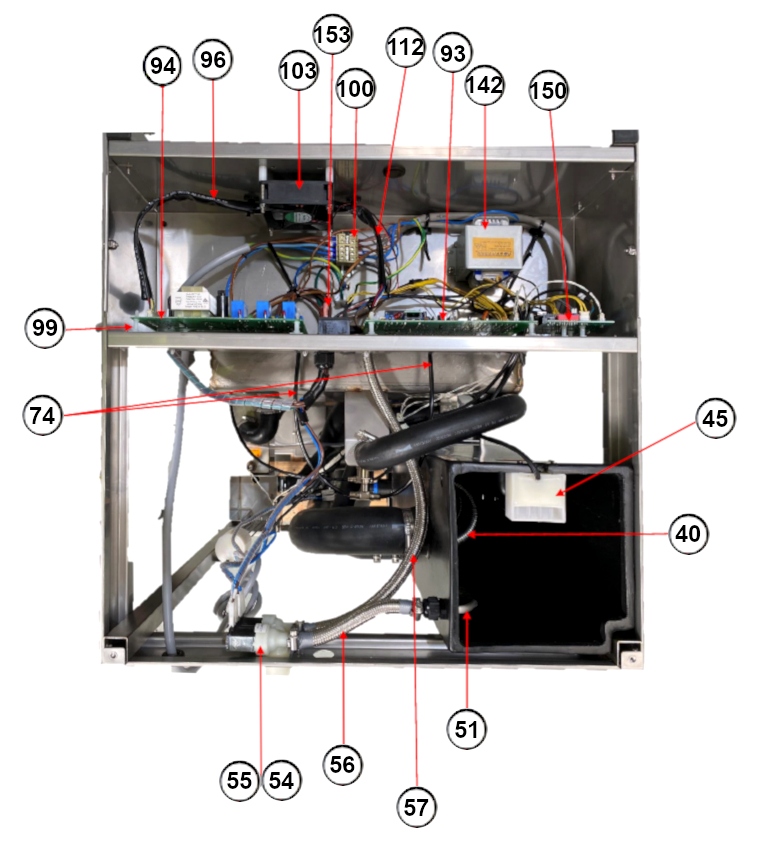

Layout top view of components

Layout Top View


Item	Image	Description	P ⁄ N

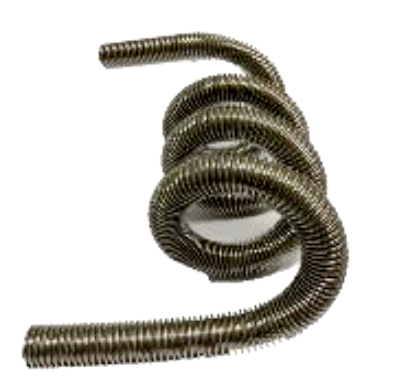

40		Steam Condenser Coil	91-2072SP

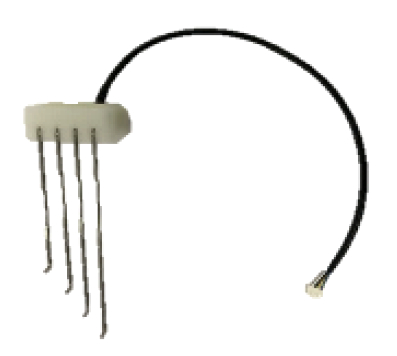

45		Cold Water Level Probe 4 way	91-3115SP

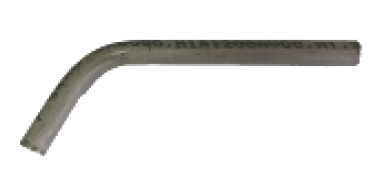

51		Water Inlet Tube (Cold Water Tank)	91-2071SP

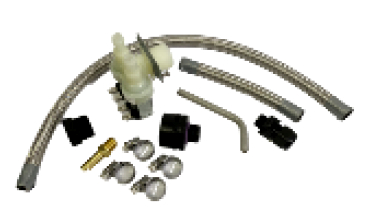

54		Mains Water Inlet Assembly (After February 2006 Unit S ⁄ N: 010600192)	91-4096SP
55		Water Inlet Solenoid 339 Dual	91-3067SP

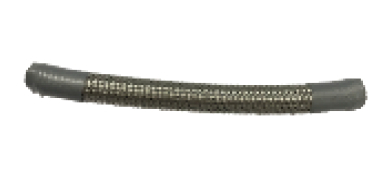

56		Hose Tank Inlet	91-2116SP

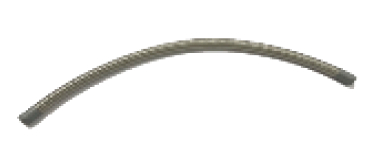

57		Hose Chamber Cool-down	91-2117SP

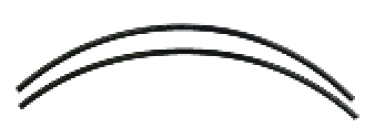

74		Spray Line to Top Wash Nozzle	91-2081SP

Item	Image	Description	P ⁄ N
93a		PCB + OTP (20 AMP ‘ES’ Series)	91-3160SP
93b		PCB + OTP (20 AMP ‘ES-D’ Series)	91-3161SP

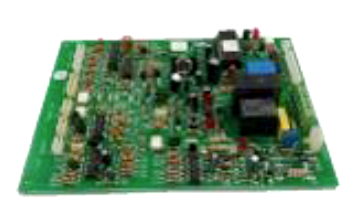

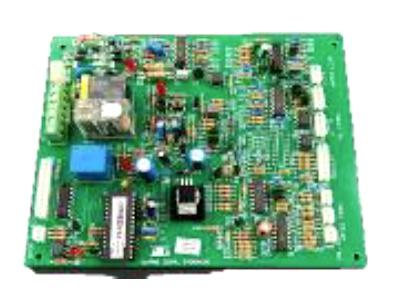

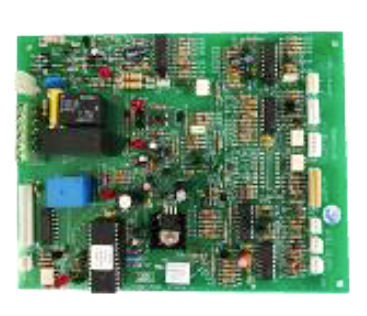

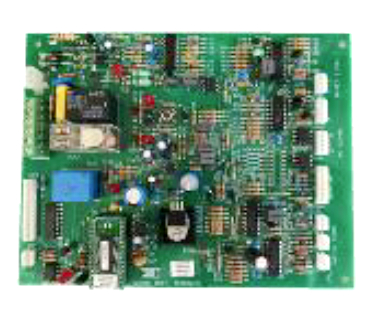

93c		STD PC Board with STD OTP Chip 10A Models	91-3162SP
93d		PCB + OTP (10 AMP ‘ES-D’ Series)	91-3163SP

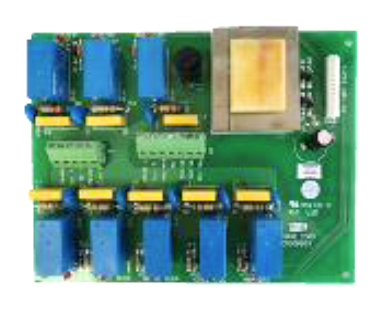

94		Relay board Power Supply PCB	91-3103SP

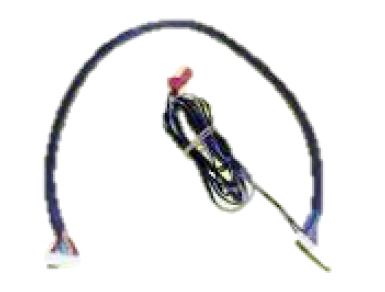

96		Harness 12 Way Board	91-3106SP

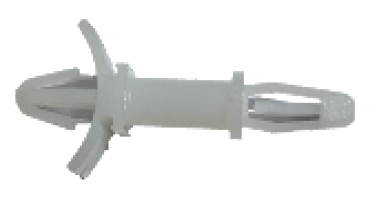

99		Circuit Board Pillar-Standoff (Pkt 5)	81-2308SP

Item	Image	Description	P ⁄ N

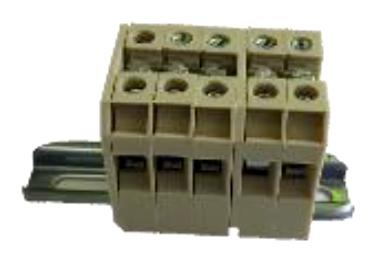

100		Terminal Block Assembly	91-4036SP

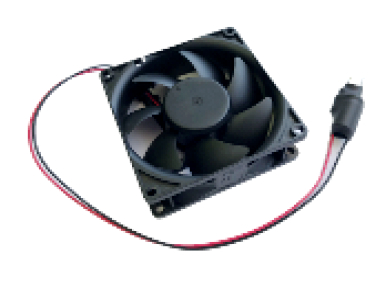

103		Fan Sunon 80 x 80 x 25 24V DC	91-4068SP

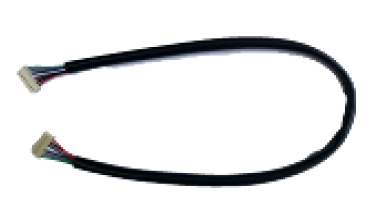

112		Harness Display to Control PCB	91-3107SP

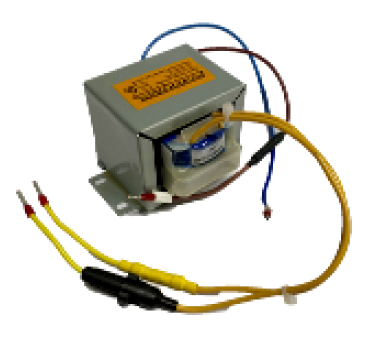

142		Transformer Assembly	91-4072SP

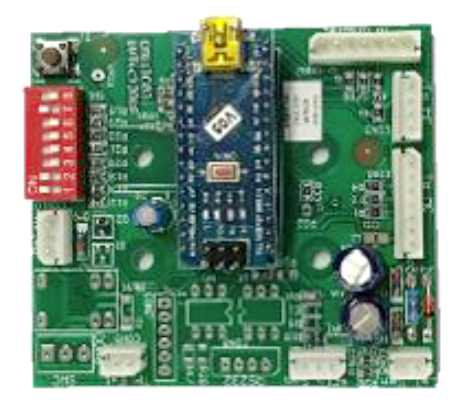

150		Interceptor PCBA (CM111002)	81-2404SP

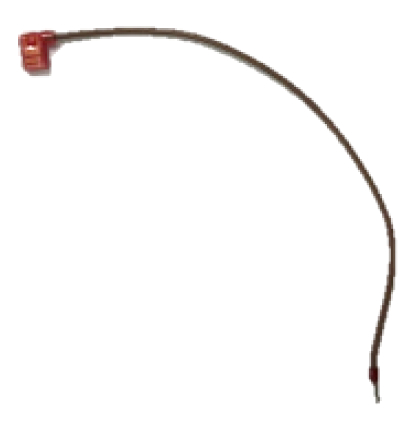

153		Detergent Parallel 24V Relay and Harness	91-3126SP

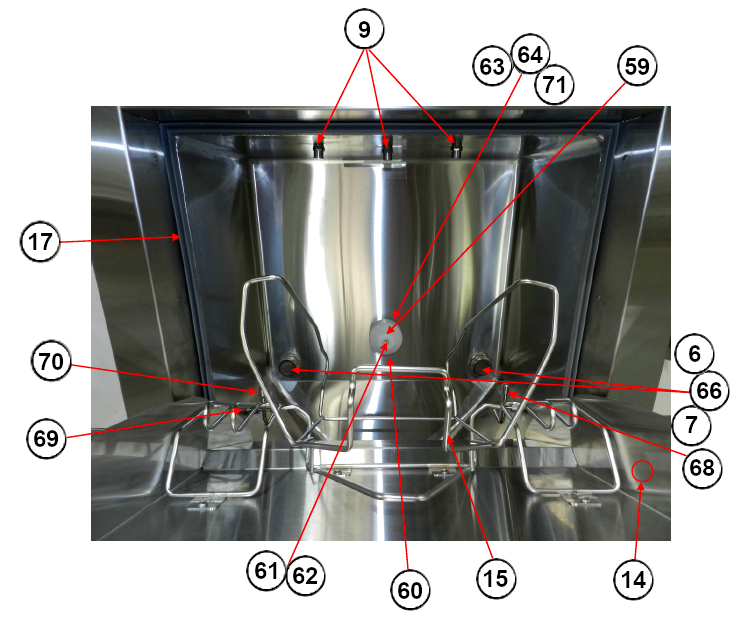

Inside door view of components

Inside Door View


Item	Image	Description	P ⁄ N

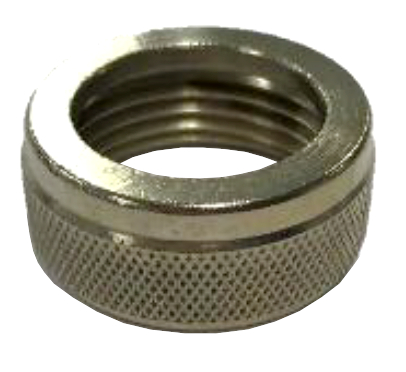

6		Steam Fitting Mesh Nut	91-3048SP

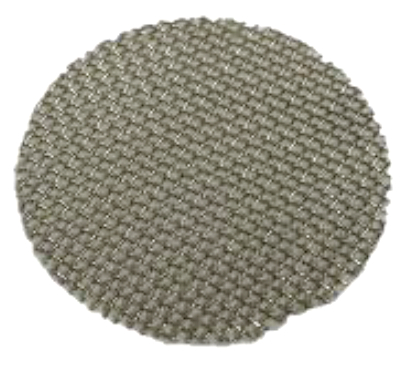

7		Steam — In ⁄ Out Mesh (Pk 10)	91-2093SP

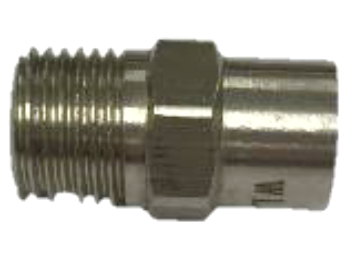

9		Spray SS 303 ¼” BIM16	81-4152SP

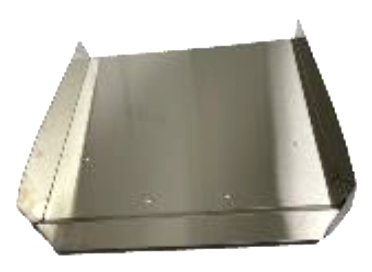

14		Door Splash Guard	91-2023SP

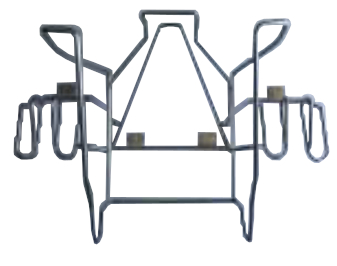

15		Large Cradle (ES Series)	91-3053SP

Item	Image	Description	P ⁄ N

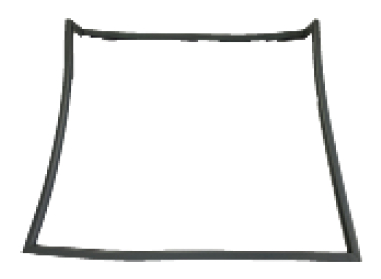

17		Door Gasket Complete	91-3072SP

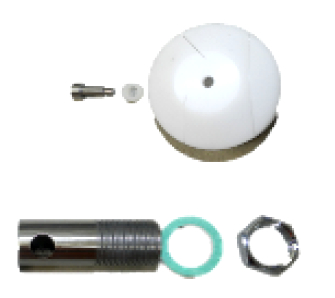

59		Nozzle — Rotary 3 Slot Assembly (ES-D Series)	91-4061SP

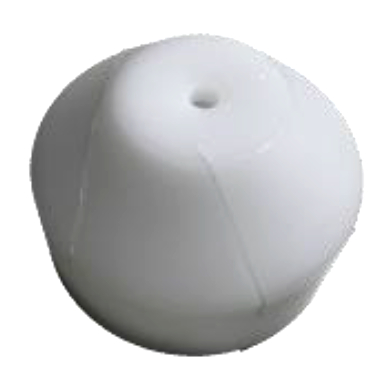

60		Nozzle — Rotary 3 Slots (D1)	91-2130SP

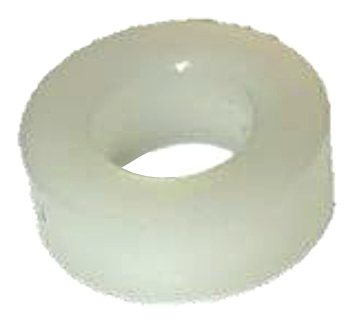

61		Washer Nylon 16FW010125 (Pkt 10)	8-5765SP

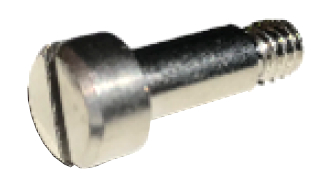

62		Screw Shoulder SS 8⁄32”	8-5248SP

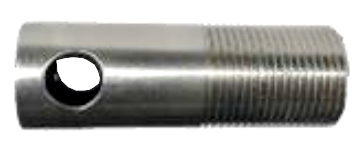

63		Nozzle — Axle Assembly	91-4062SP

Item	Image	Description	P ⁄ N

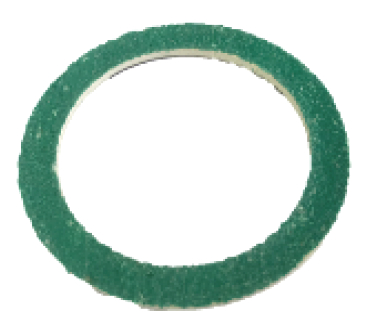

64		Washer Teflon 25mm (Pkt 2)	91-3037SP

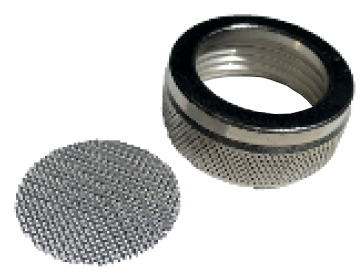

66		Steam Fitting Mesh & Nut Assembly	91-4035SP

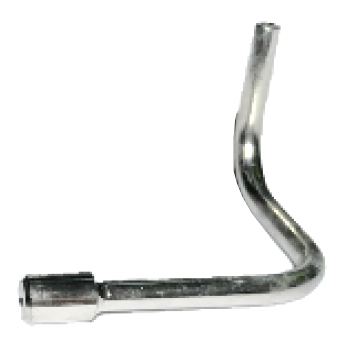

68		RH Bottle Spray with Nut & Olive	91-4027SP

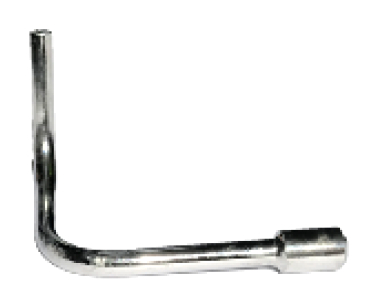

69		LH Bottle Spray with Nut & Olive	91-4028SP

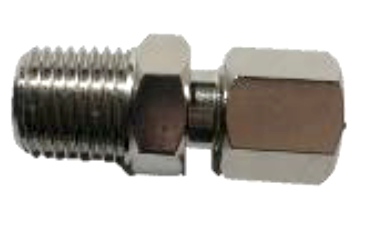

70		Nut & Olive ¼” BSP Chrome	91-3033SP

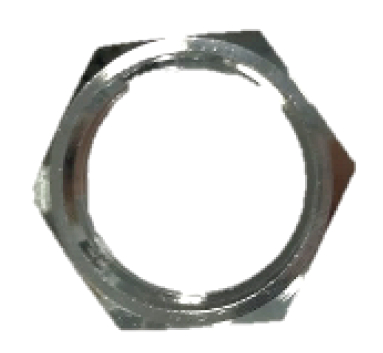

71		Backnut Chromed ¾” BSP	8-5383SP

Detergent line assembly components

Detergent line assembly

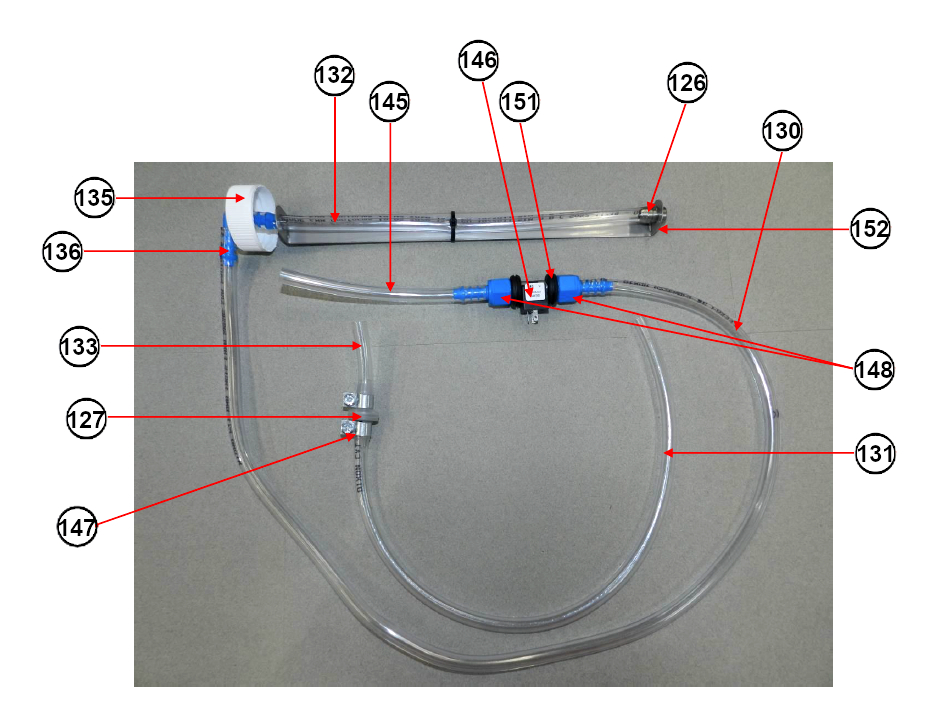

Detergent Line Assembly 910-D ⁄ 930-D

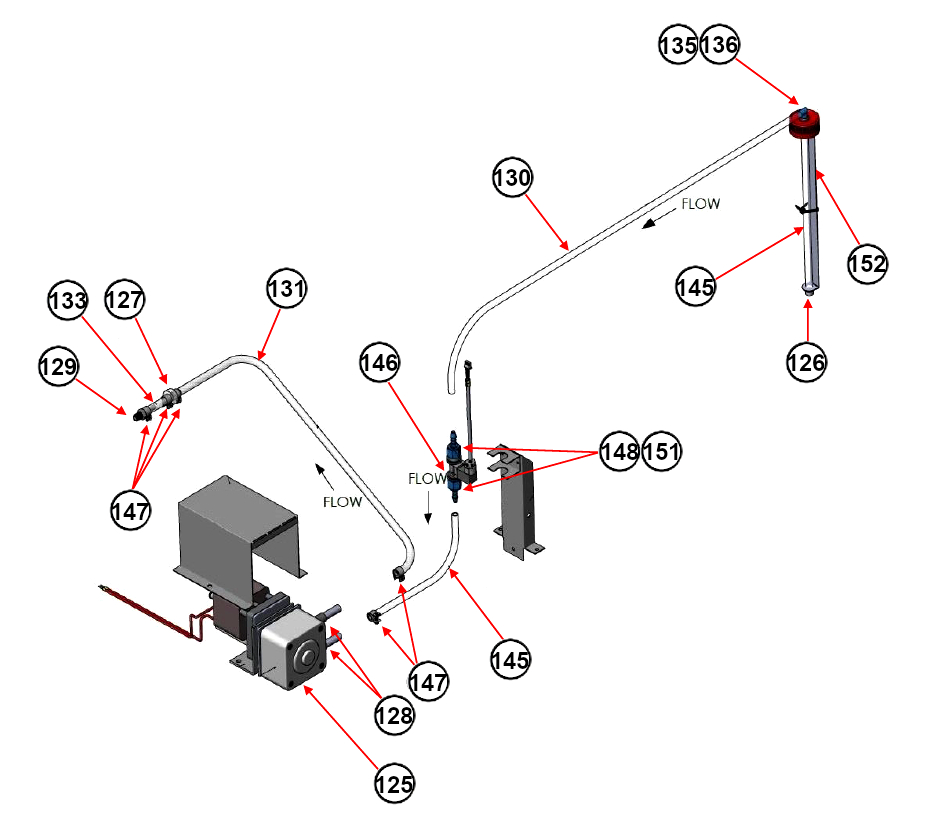

Detergent Line Assembly 915-D ⁄ 935-D

Item	Image	Description	P ⁄ N

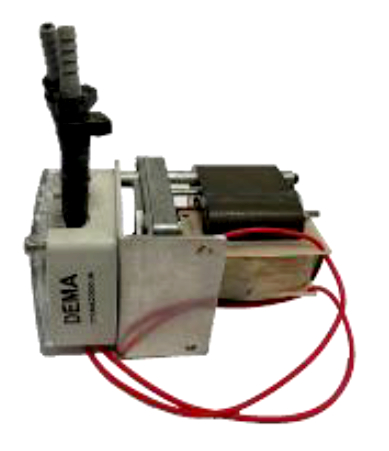

125		Pump Coltec Detergent	81-9049SP

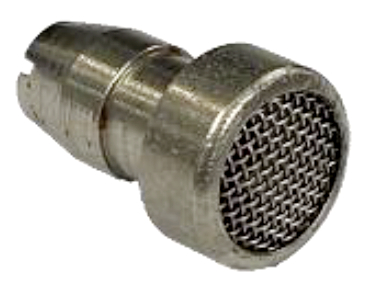

126		Valve Pump Detergent	81-9054SP

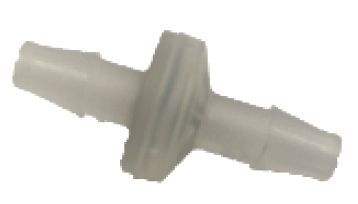

127		Check Valve P/Prop-Viton ¼”	91-3226SP

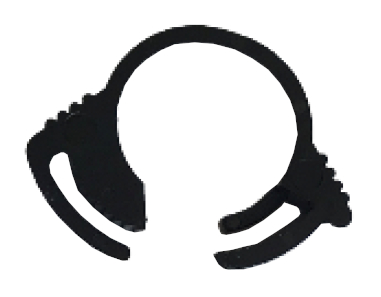

128		Hose Clamp CT10 Tube Clip 10mm	91-3157SP

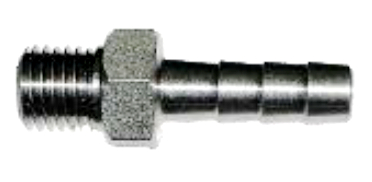

129		Hose tail ¼” to M10 (1.25) Male	91-3183SP
130		Tube — Cap Elbow to Pump — 840mm (ordered per metre)	82-8425SP
131		Tube — Det Pump to Check Valve — 540mm (ordered per metre)	82-8425SP
132		Tube — Det ⁄ Foot Valve to Cap — 380mm (ordered per metre)	82-8425SP
133		Tube — Pump Tail to Check valve — 40mm (ordered per metre)	82-8425SP
100		Terminal Block Assembly	91-4036SP
103		Fan Sunon 80 x 80 x 25 24V DC	91-4068SP

Item	Image	Description	P ⁄ N
142		Transformer Assembly	91-4072SP
150		Interceptor PCBA (CM111002)	81-2404SP

Item	Image	Description	P ⁄ N
153		Detergent Parallel 24V Relay and Harness	91-3126SP

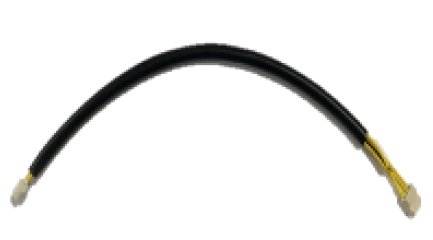

154		Harness Interceptor PCB 4-Way	91-3131SP

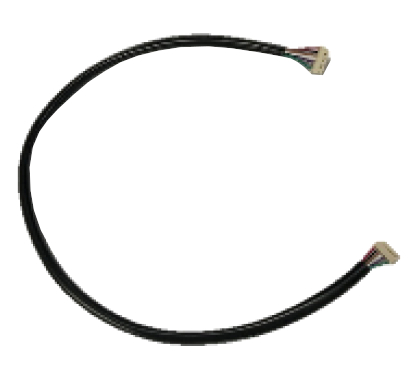

155		Harness Display to Interceptor 7 Way	91-3132SP

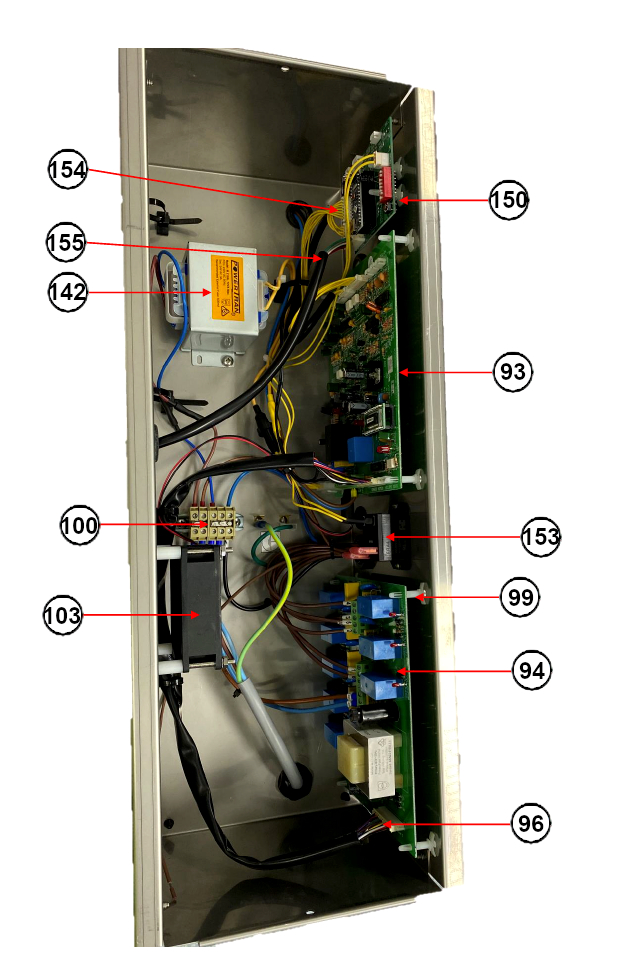

Electrical Tray 915-D ⁄ 935-D components

Electrical Tray


Item	Image	Description	P ⁄ N
93a		PCB + OTP (20 AMP ‘ES’ Series)	91-3160SP
93b		>PCB + OTP (20 AMP ‘ES-D’ Series)	91-3161SP
93c		PCB + OTP (10 AMP ‘ES’ Series)	91-3162SP
93d		PCB + OTP (10 AMP ‘ES-D’ Series)	91-3163SP
94		Relay board Power Supply PCB	91-3103SP
96		Harness 12 Way Board	91-3106SP
99		Circuit Board Pillar-Standoff (Pkt 5)	81-2308SP
100		Terminal Block Assembly	91-4036SP
103		Fan Sunon 80 x 80 x 25 24V DC	91-4068SP
142		Transformer Assembly	91-4072SP

Item	Image	Description	P ⁄ N
150		Interceptor PCBA (CM111002)	81-2404SP
153		Detergent Parallel 24V Relay and Harness	91-3126SP

Item	Image	Description	P ⁄ N
154		Harness Interceptor PCB 4-Way	91-3131SP
155		Harness Display to Interceptor 7 Way	91-3132SP

Components parts not shown in views

Item	Image	Description	P ⁄ N

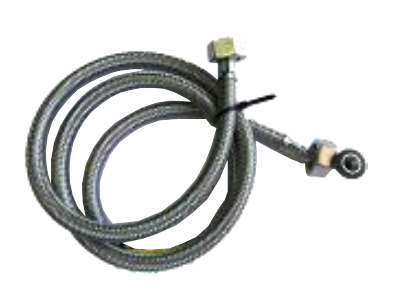

		Hose SS Braided 10mm x 1.5m G¾” Straight x G¾” 90° Elbow	81-8046SP

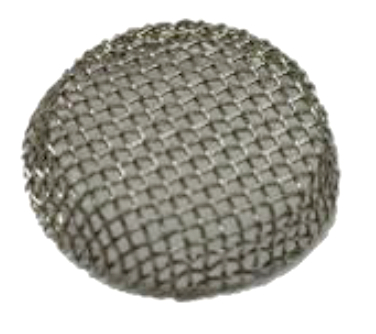

		Mesh S ⁄ S 30mm x 30mm (Pkt 10) (Prior February 2006 Unit S ⁄ N: 010600191)	822-4461SP

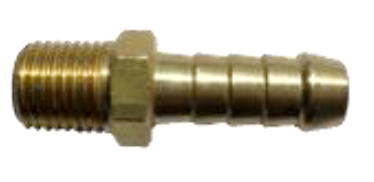

		Airline Fitting 3⁄8 x ¼” (Top Centre Spray)	8-0070SP

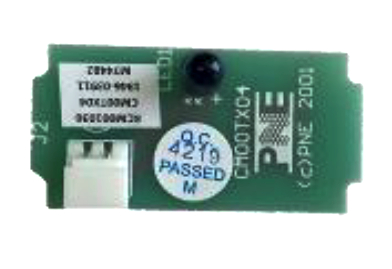

		Transmitter PCB	91-3104SP

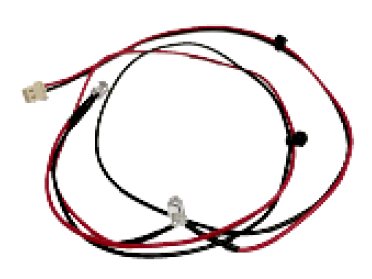

		Cycle Start LED Lead	91-3110SP
		External Front Panel	91-2053SP
		External Side Panel RH Assembly	91-4041SP
		S Trap Rear Panel Assembly	91-4002SP

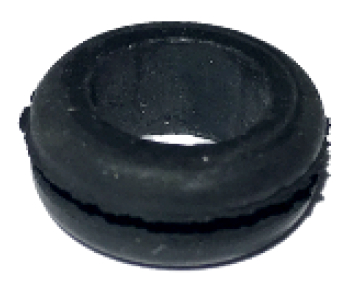

		Grommet Rubber ½” (Pkt 5)	5-30-405SP
		Temperature Probe Duplex Thermisters	91-3130SP

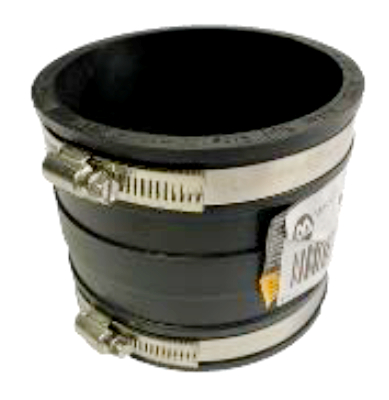

		Rubber Coupling 100mm	82-4800SP

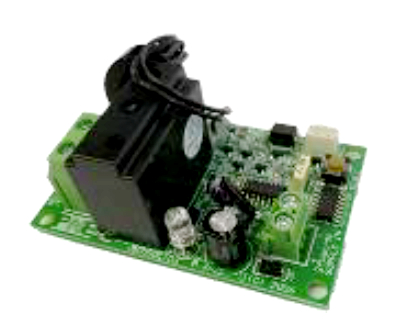

		Over ⁄ Temp PCB	91-3098SP

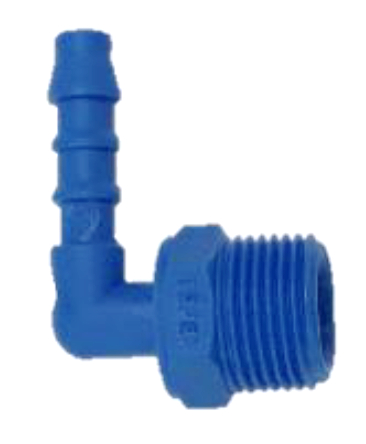

		Male Threaded Elbow 6mm X ⅜ BSPT	91-3159SP

Item	Image	Description	P ⁄ N

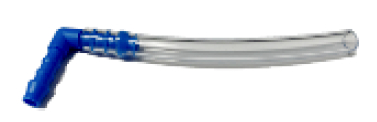

		Detergent Flow Sensor Relocation Kit	91-5215SP

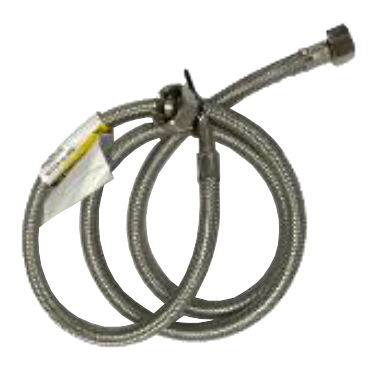

		Hose SS Braided 1.5m G½” Straight x G¾” 90° Elbow	81-8047SP

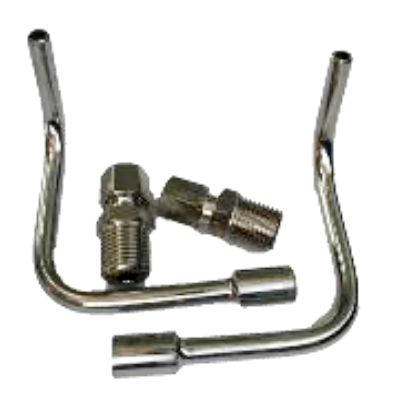

		Bottle Spray Complete LH & RH Set	91-4029SP

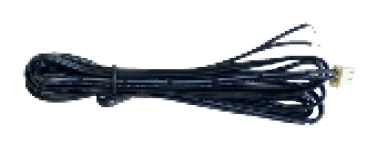

		Harness Door Switch	91-3111SP

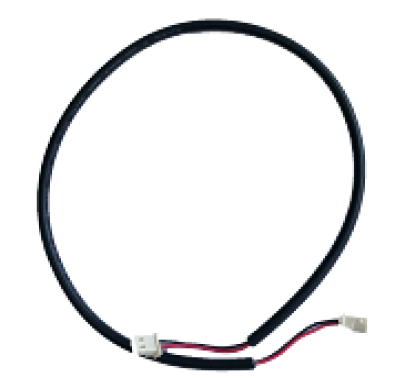

		Harness Infra-Red LED Display	91-3109SP
		External Top Panel	91-2041SP
		External Side Panel LH Assembly	91-4042SP
		P Trap Rear Panel Assembly	91-4003SP

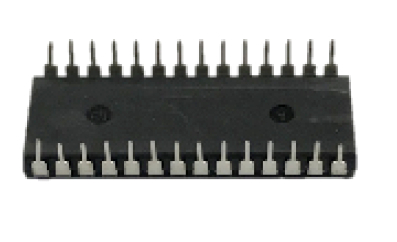

		OTP D-Flush (special)	91-3143SP

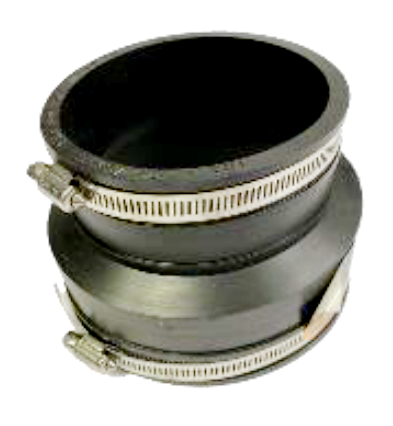

		Rubber Coupling 101mm to 116mm	82-3001SP

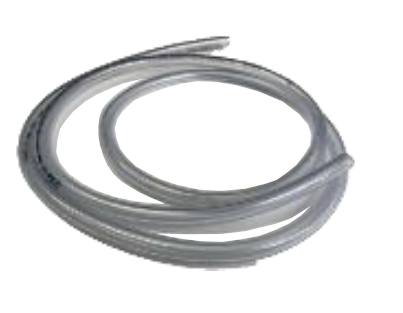

		Tube Beverage 6mm Clear (ordered per metre)	82-8425SP

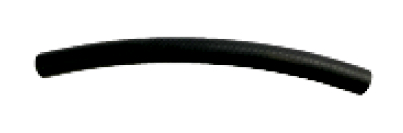

		Hose — Cold Water to Steam Generator (230mm — for ES with Copper Steam Generator)	91-2078SP

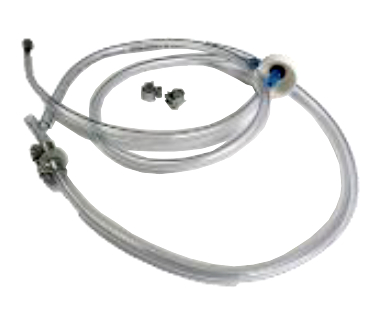

		Detergent Line Kit (ES-D Series)	91-5205SP

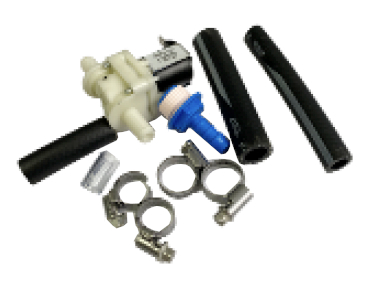

		ES Steam Generator ⅜ Valve Fill Line Retrofit Kit (for ES910 & ES915	91-5220SP
