Utensil Washer Disinfector
Front Loading

• Front loading accessibility: The WDF frees up bench space for waist-height work or storage for easier workflow.
• Easy to read controls for simple operation: Streamlined controls allow the user to see indicators for operation status and temperature, faults, and door open/close — with speed and ease.
• Independently microbiologically tested by a NATA certified laboratory: You can rely on the same gold standard in infection prevention for which Malmet is known.
• Operation controls set to suit your inventory: Minimising your risk of accidental stock damage.
• No venting or external hot water required: For smarter, more efficient DUR design options.
• Disinfection to higher Ao600 level, in accordance with AS 5369:2023, Section 6.3, Table 6.1.
• ARTG Identifier: 381412
• Malmet’s quality management system is certified to ISO 13485 & ISO 9001

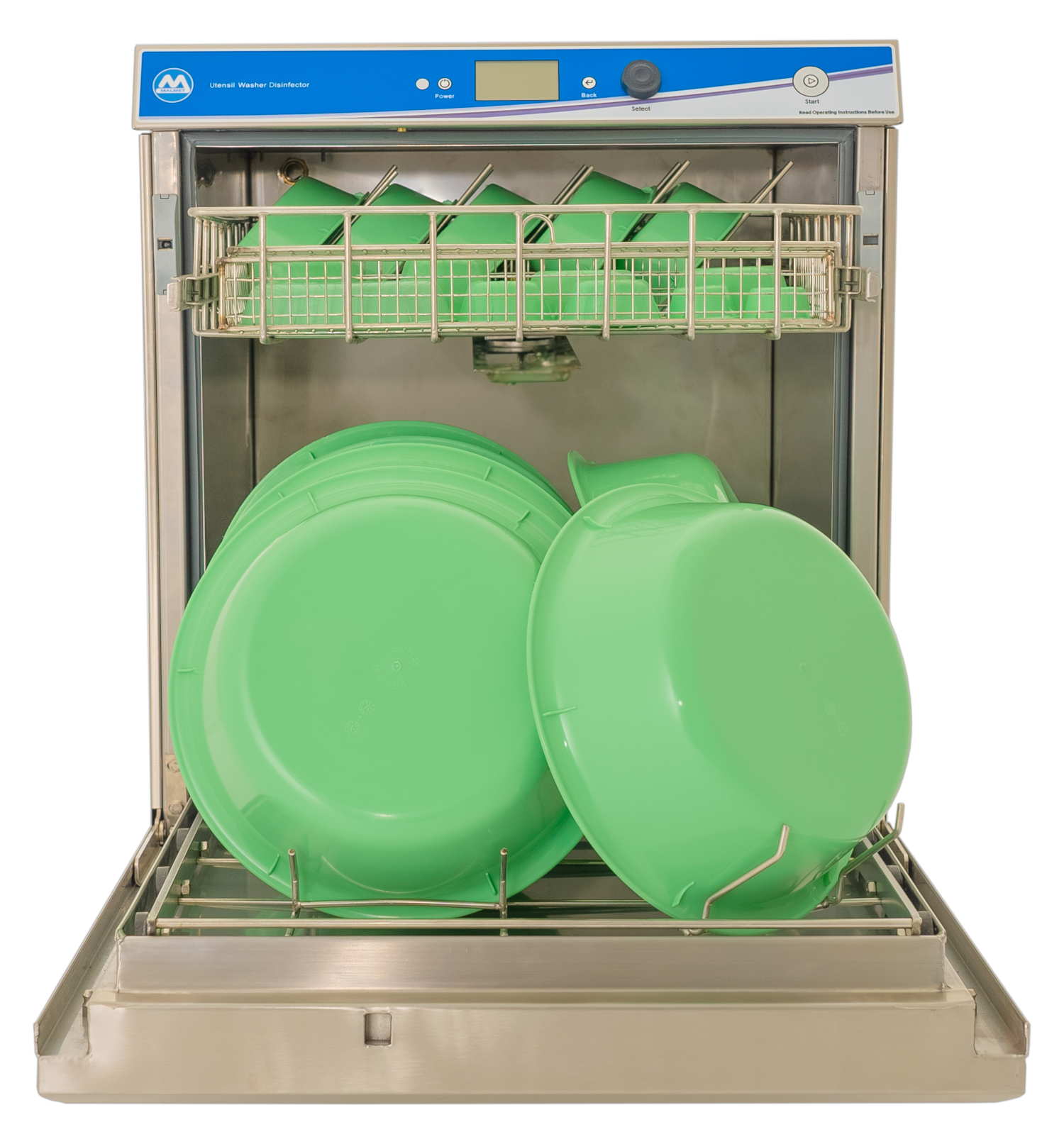

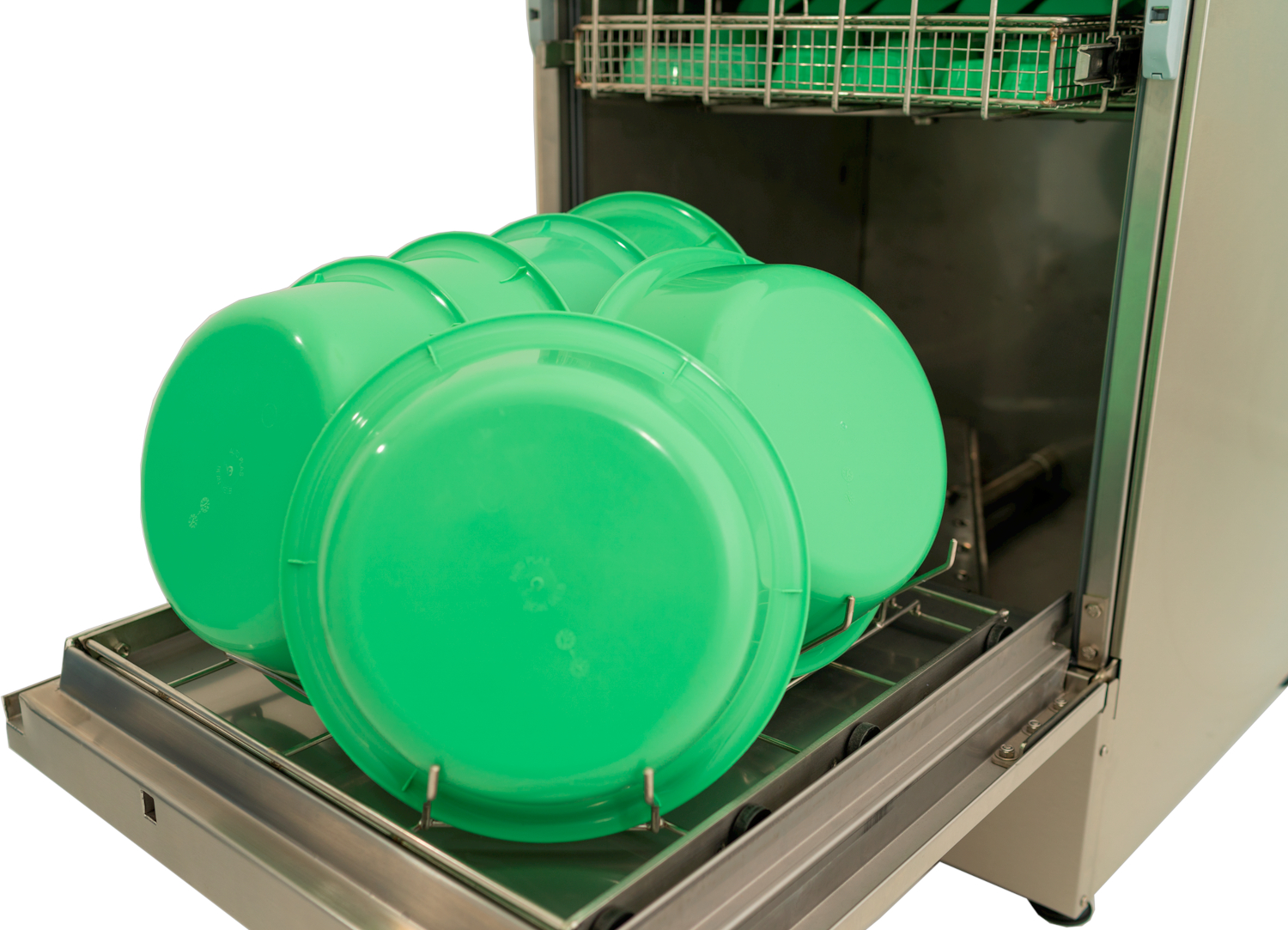

Bowls arranged inside Malmet Front Loading Washer Disinfector

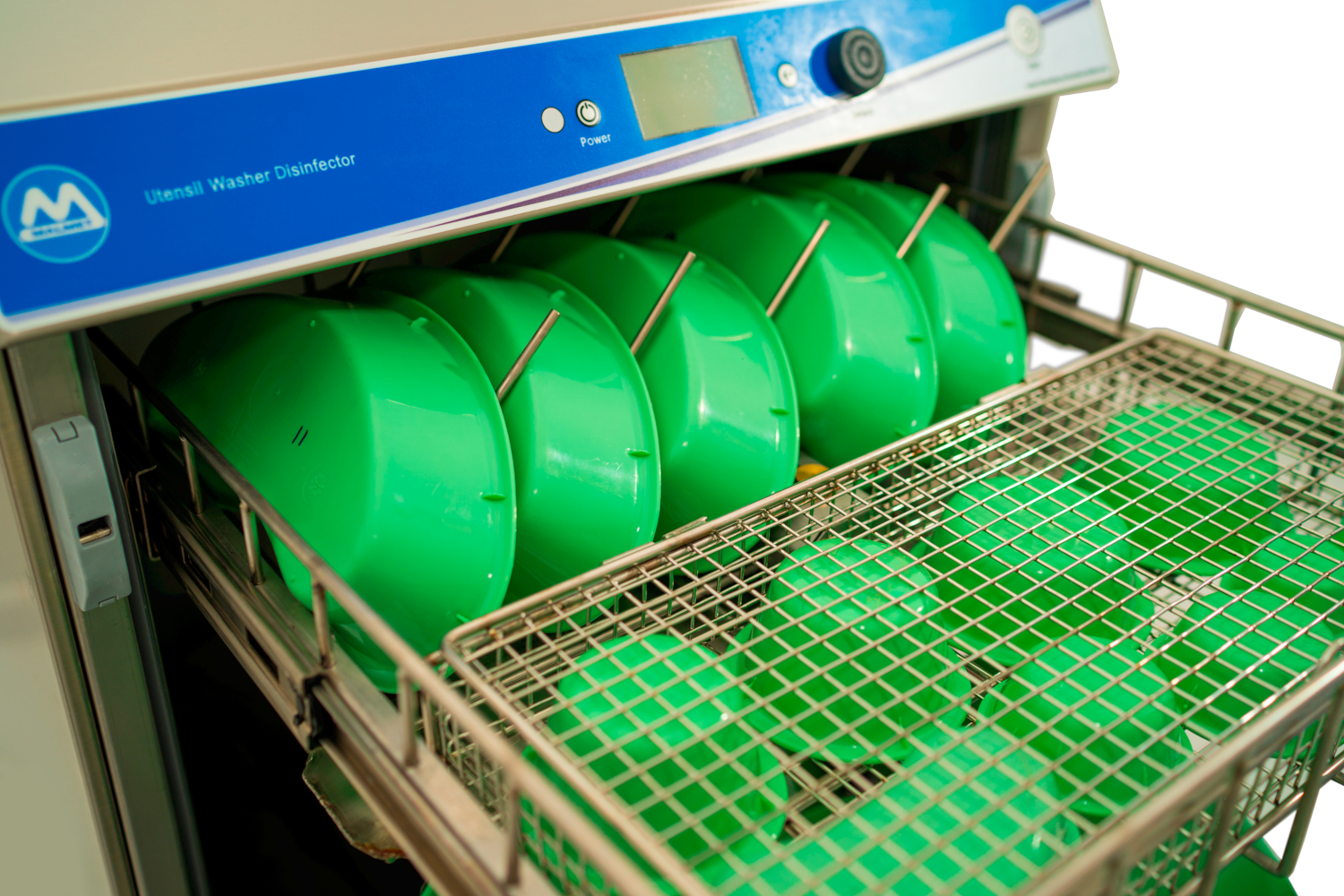

Top shelf arrangement inside Malmet Front Loading Washer Disinfector

• The WDF is designed and manufactured in Leeton, Australia: The WDF has been designed with the clinical care setting in mind.

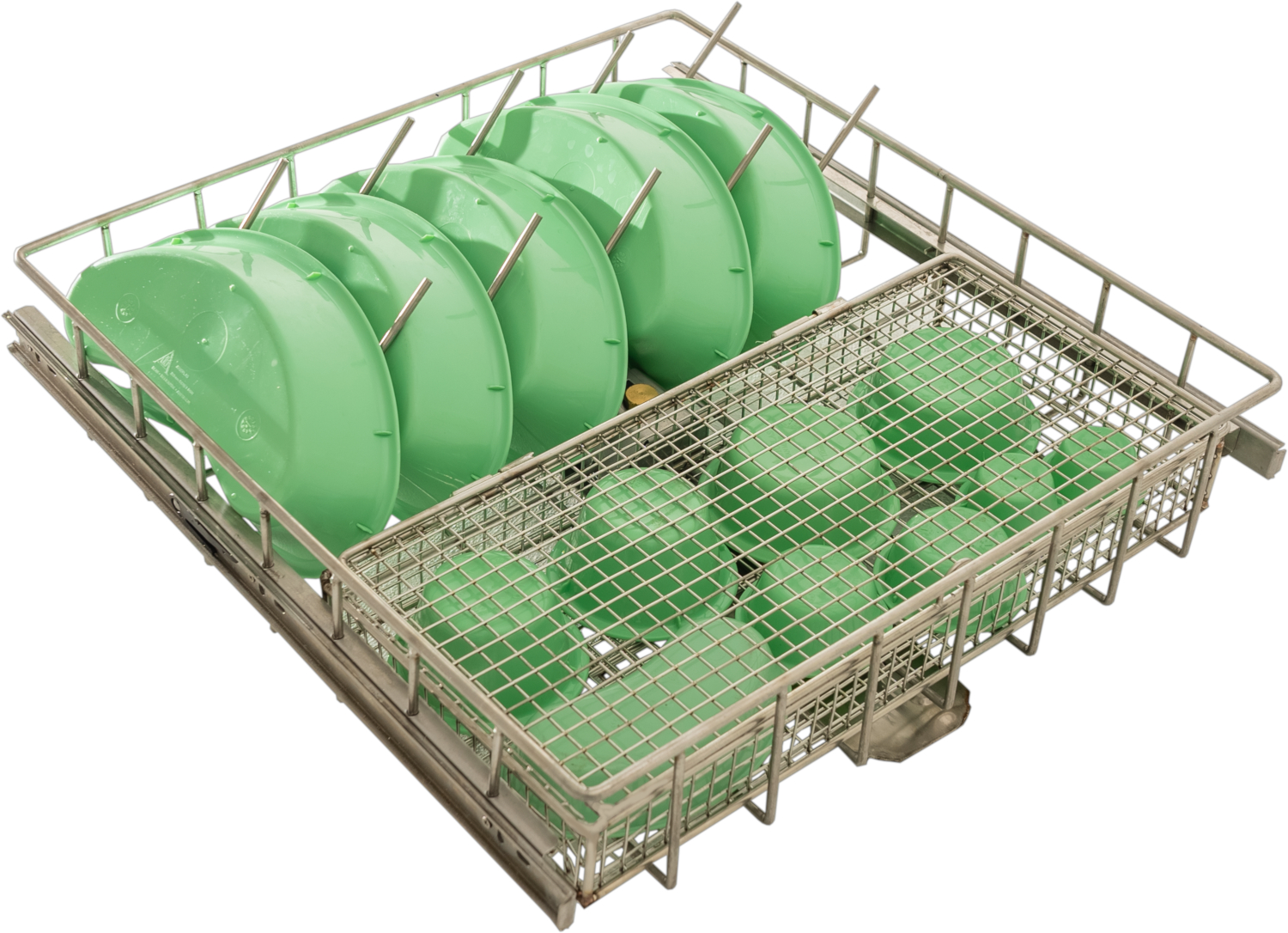

• Wash chamber and baskets: Two baskets allow processing for reusable medical devices including bowls of various sizes (lower), kidney dishes, and other small utensils and receivers (upper).
• Control panel: Simple, streamlined controls allow the user to quickly see and set the machine for reliable disinfection every cycle. Users can see the unit on⁄off status and wash cycle indication, internal chamber temperature, as well as indicators for operation status, faults and door open or close — all visible at a glance with smart indicator placement and design.
• Workflow and Storage: The WDF features underbench installation, meaning that precious dirty utility room space is freed up for ease of workflow or storage if needed.

The detergent system delivers 30ml of concentrated detergent during the Hot Wash stage.

Detergent Datasheet

• Designed with people in mind: Making life simpler for care staff and managers, easier for designers and engineers, and hassle-free for maintenance staff. But most of all — ensuring reliable, safe care for patients and residents when it comes to utensil processing.
• Specifications:
• Unit weight: Net 75kg ⁄ Operating 90kg

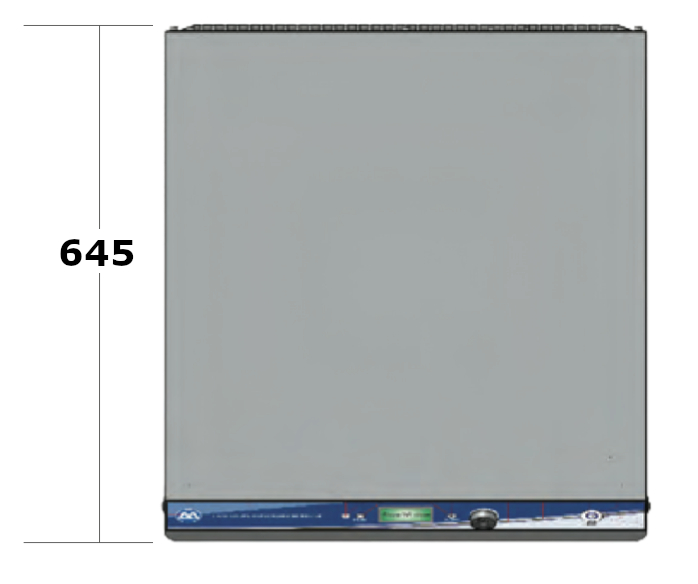

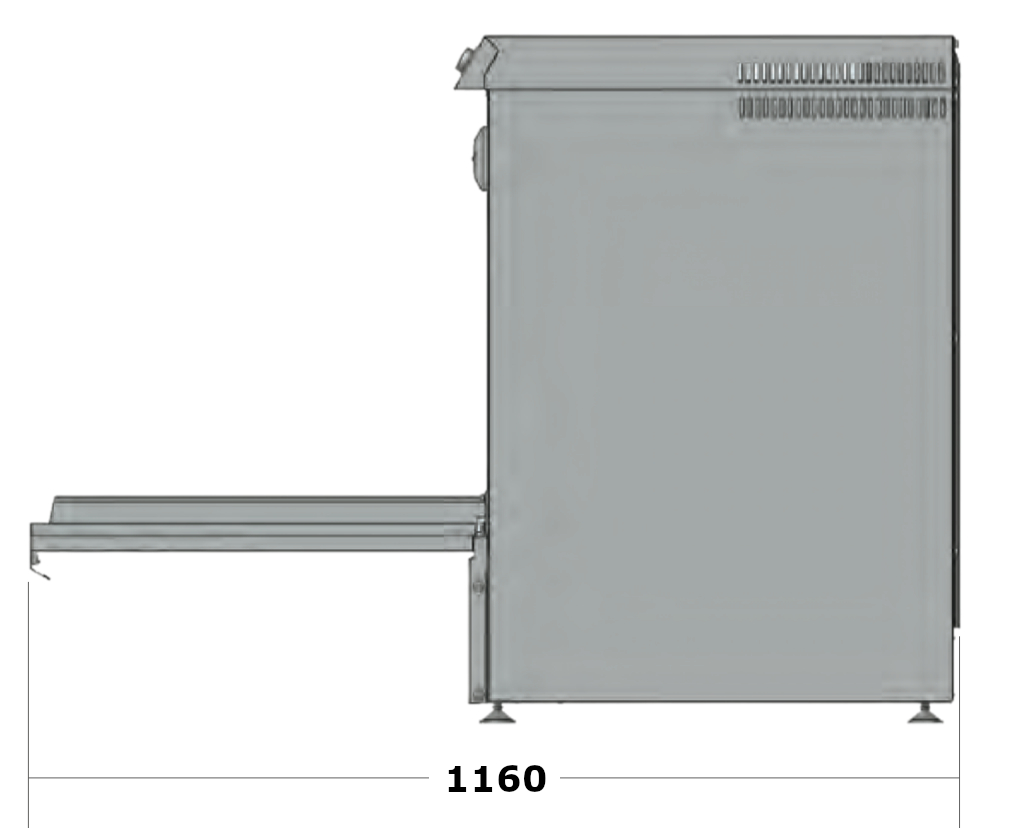

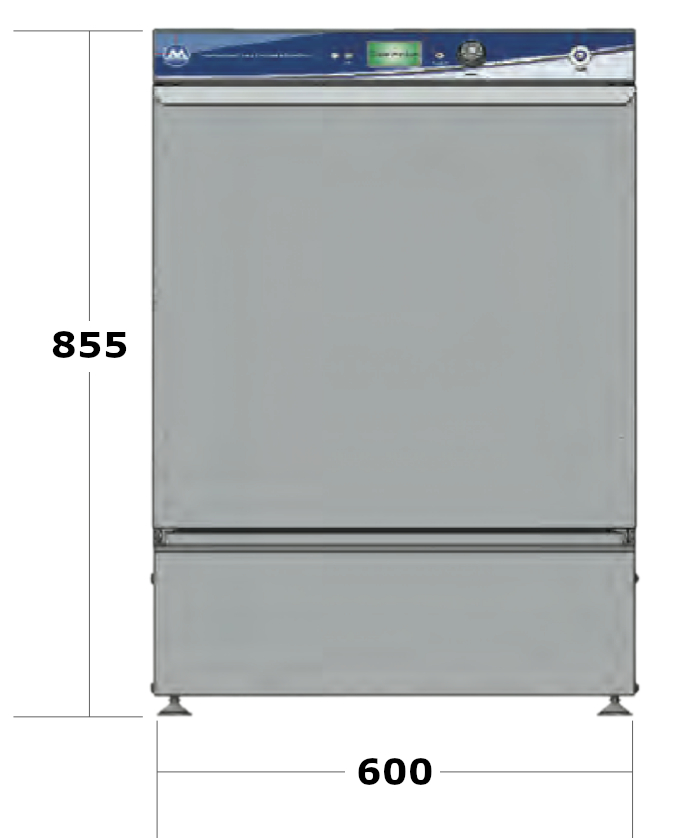

• Unit dimentions (WxDxH mm):
  Machine only: 600 x 645 x 855
  Machine with Storage Cabinet — Plinth: 600 x 645 x 1360
  Machine with Storage Cabinet — Side: 820 x 645 x 855
• Revit 3D drawing blocks: Available upon request
• Service Connections: See ‘Operation, Maintenance and Installation Manual’

N.B. Drawings not to scale
