Spare Parts for Westfalia Klassik Care Bed
Click to select view:
Chassis, Mattress Base,
Drive System, Safety Sides,
Side Board, Head ⁄ Foot Board,
Lifting Pole, Accessories,
Westfalia Klassik Care Bed |

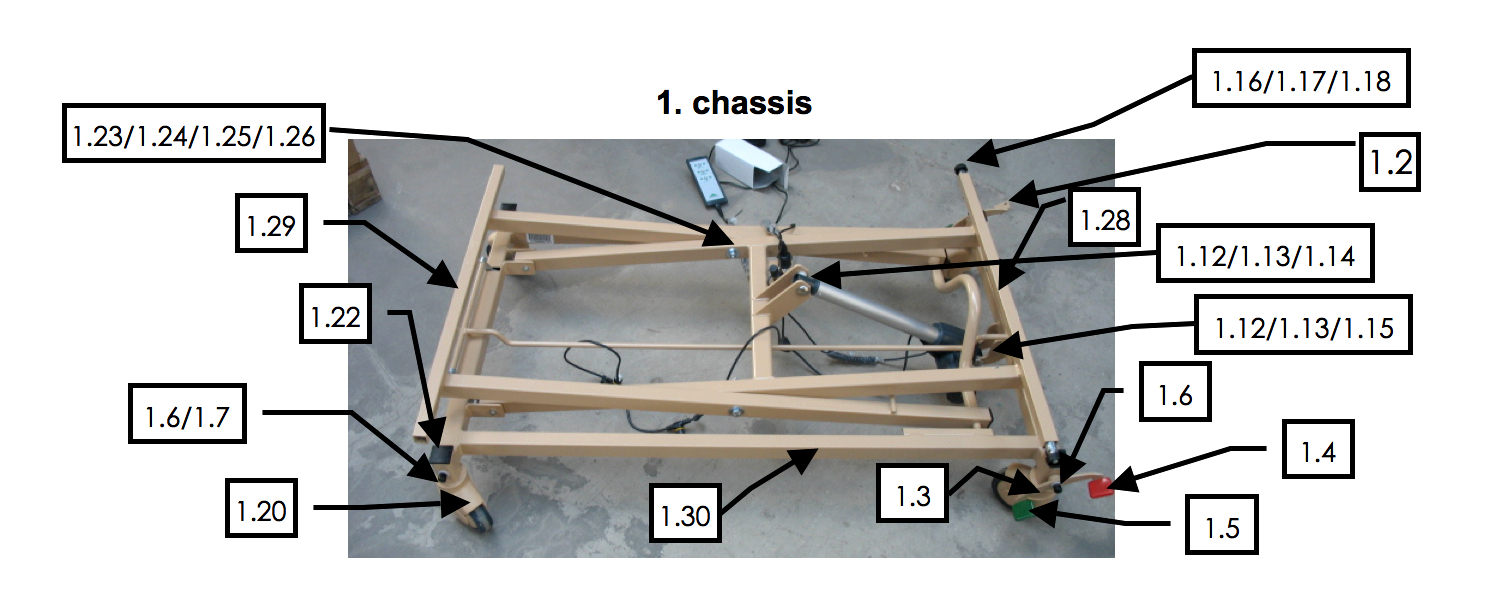

1. Chassis |
1.1 |
|
chassis including motor |
210402 |
1.2 |
|

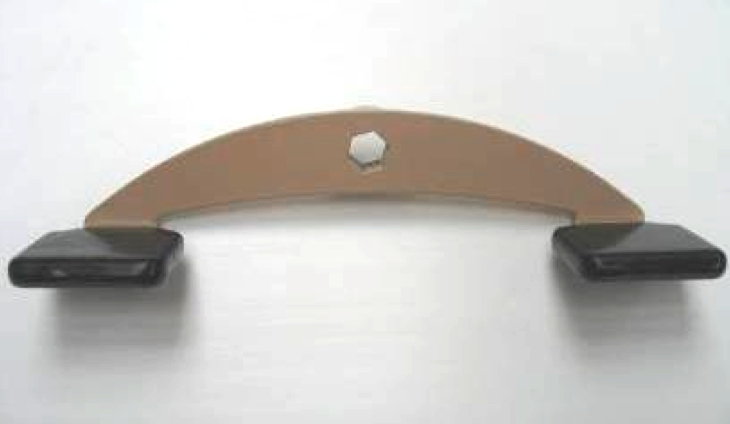

brake lever on the right |
178869 |
1.3 |
|

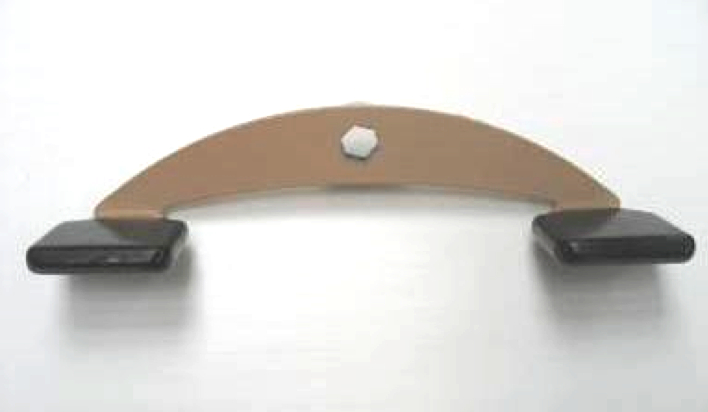

brake lever on the left |
178875 |
1.4 |
|

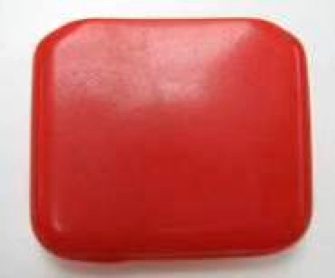

red cap |
193771 |
1.5 |
|

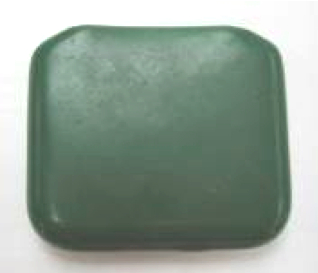

green cap |
193772 |

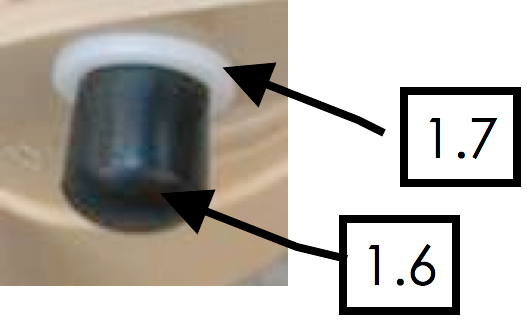

1.6 |
|
round cap, black |
176307 |

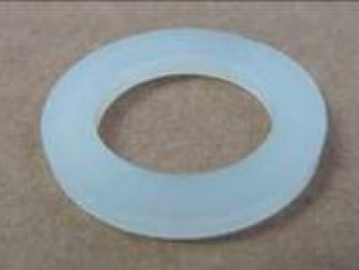

1.7 |
|
spacer, plastic Ø20 ⁄ 12.5 x 2mm |
102222 |
1.8 |
|

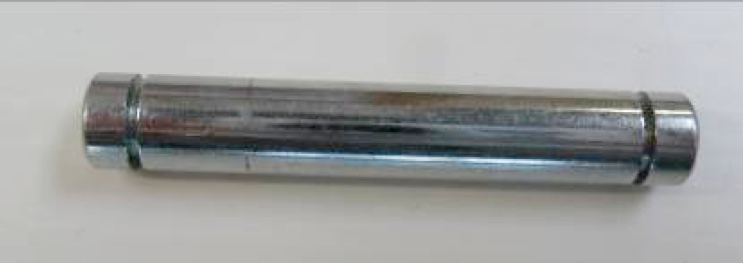

bolt with notch Ø10 x 62 ⁄ 52mm |
149367 |
1.9 |
|
circlip, lock washer Ø10mm ⁄ size7 DIN6799 |
149371 |

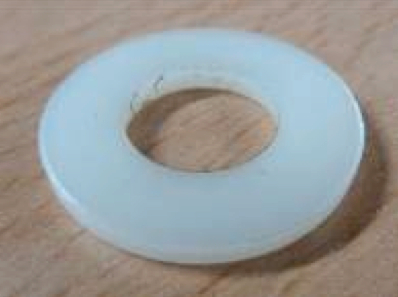

1.10 |
|
spacer, plastic Ø21 ⁄ 10.5 x 2mm |
100066 |

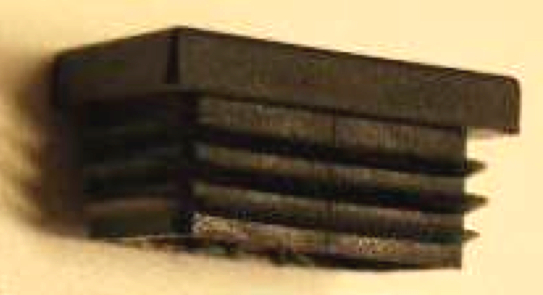

1.11 |
|
black square plug, plastic 40 x 30 x 2mm (scissor) |
100111 |
1.12 |
|

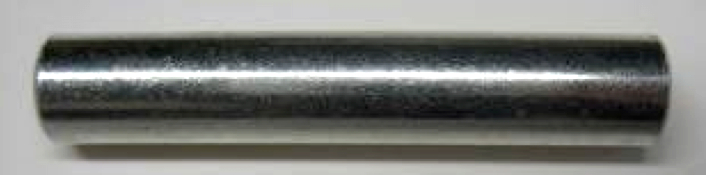

bolt for lifting motor Ø12 x 65mm |
152206 |
1.13 |
|
lock washer (closed) for lifting motor Ø12mm |
102223 |
1.14 |
|
spacer (above) for lifting motor Ø20 ⁄ 12.5 x 6mm |
103424 |
1.15 |
|
spacer (below) for lifting motor Ø20 ⁄ 12.5 x 2mm |
102222 |
1.16 |
|

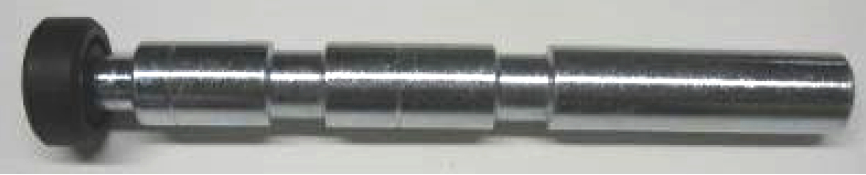

bolt with black roller Ø20 ⁄ 10 x 185mm (connection mattress base ⁄ chassis) |
148274 |
1.17 |
|
lock washer (open) Ø10mm |
102555 |
1.18 |
|

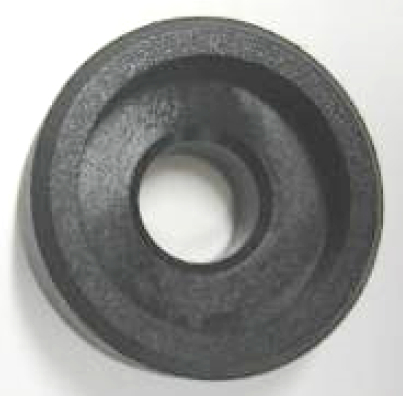

black roller, plastic Ø31mm |
148275 |
1.19 |
|

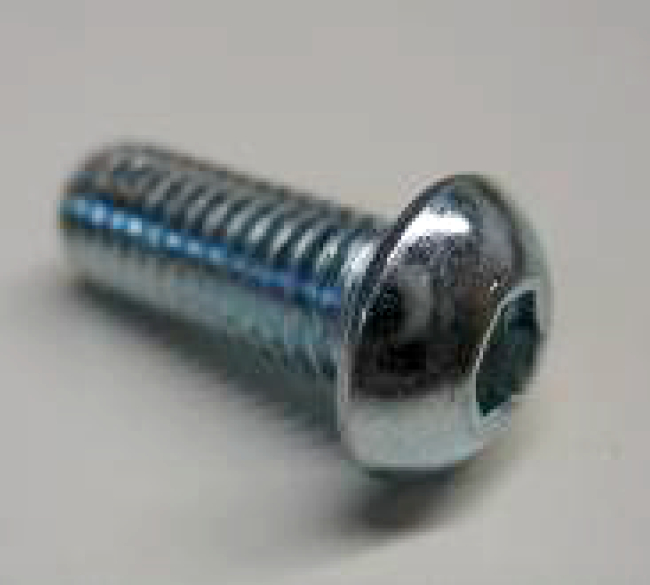

rounded head screw (allen) M8 x 20mm |
167770 |
1.20 |
|

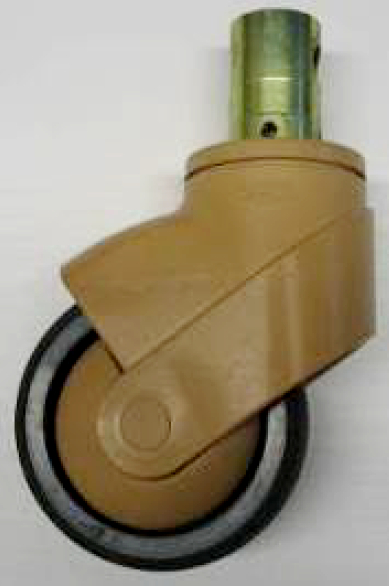

castor Ø100mm |
170477 |

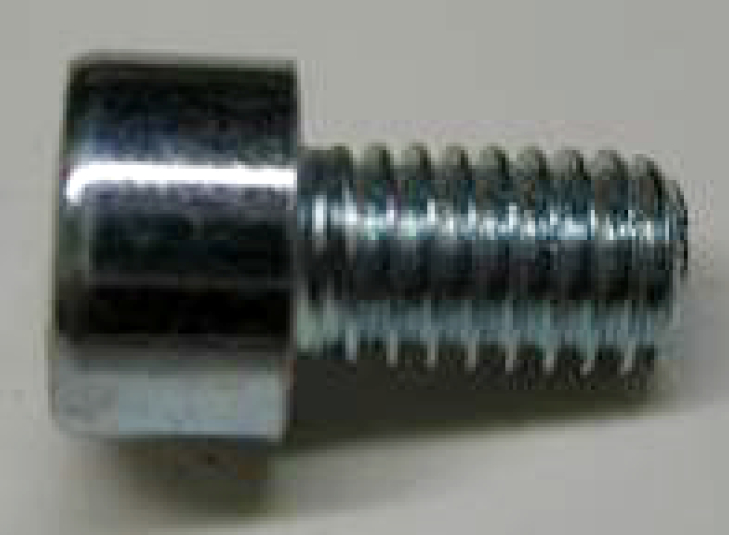

1.21 |
|
screw ISK M6 x 10mm |
101621 |
1.22 |
|

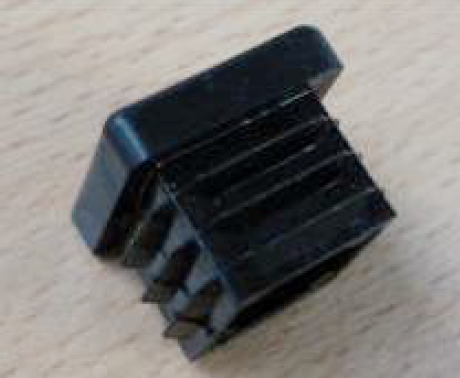

black square plug, plastic 40 x 40 x 18mm |
208042 |
1.23 |
|

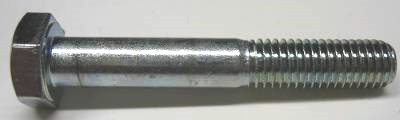

screw M10 x 80mm |
101022 |
1.24 |
|
self-locking nut M10 |
102235 |
1.25 |
|
spacer (below) for lifting motor Ø20 ⁄ 12.5 x 2mm |
102222 |
1.26 |
|
washer, metal Ø10.5mm |
100065 |
1.27 |
|
rounded head screw (allen) M8 x 20mm |
167770 |
1.28 |
|

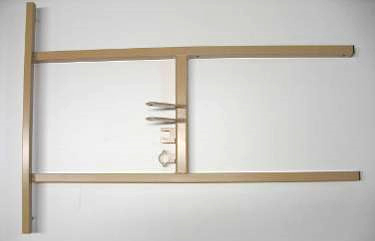

½ scissor on the foot side |
208052 |
1.29 |
|

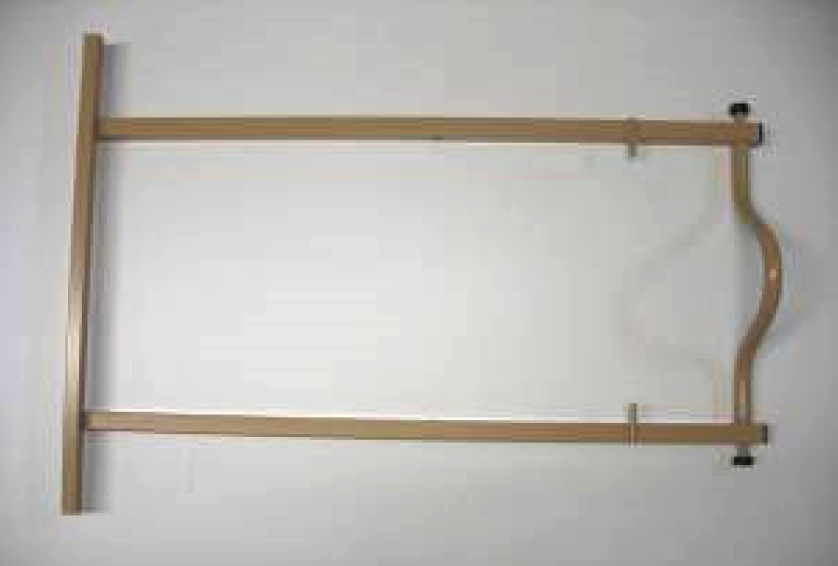

½ scissor on the head side |
208051 |
1.30 |
|

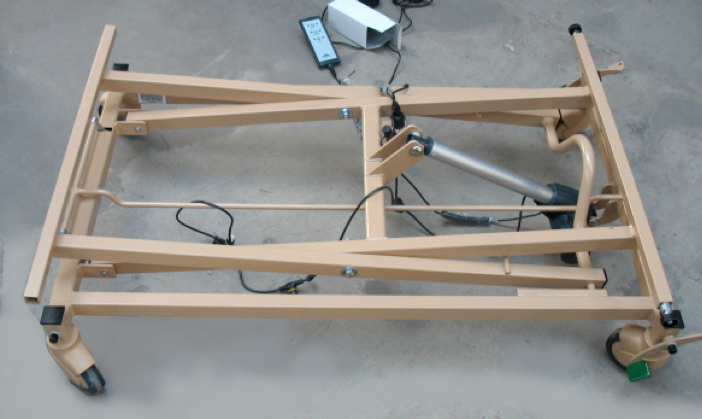

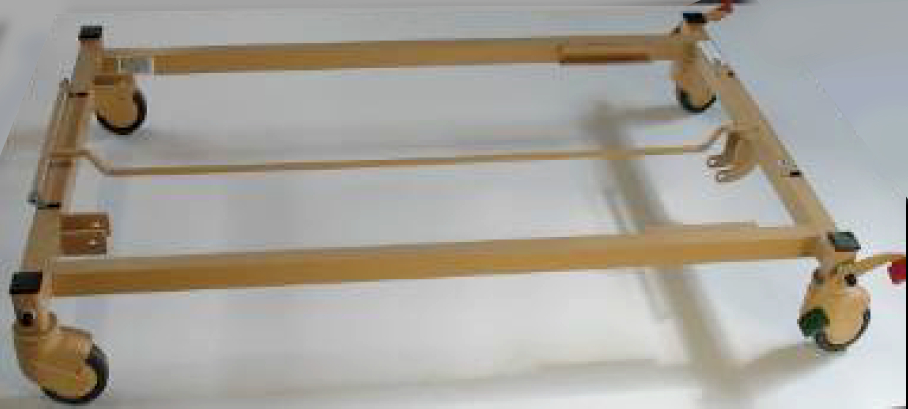

chassis (frame) incl. castors |
208056 |
Return to top of page
2. mattress base

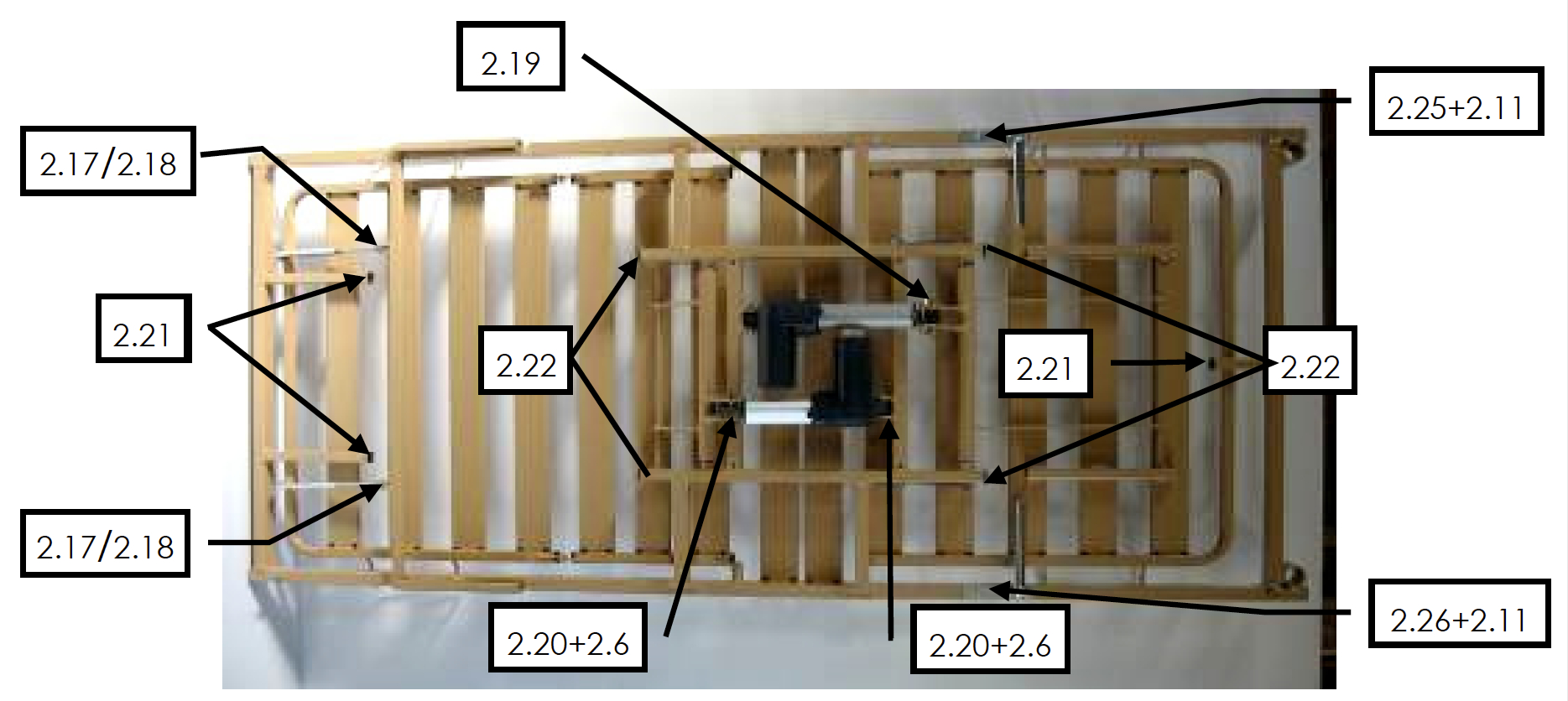

2. Mattress Base |
2.1 |
|

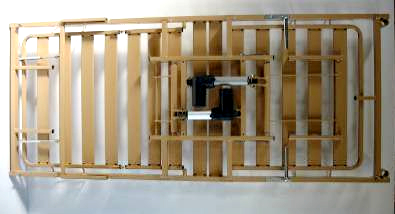

mattress base 90 x 200cm complete, metal profiles, with motors |
171360 |
2.2 |
|
back rest (735 x 700mm), metal profiles, without motor |
176305 |

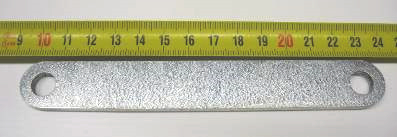

2.3 |
|
connection piece 150 x 20 x 5mm |
208059 |

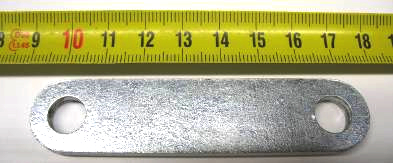

2.4 |
|
connection piece 90 x 20 x 5mm |
208060 |
2.5 |
|
spacer, plastic Ø21 ⁄ 10.5 x 2mm |
100066 |
2.6 |
|
lock washer (open) Ø10mm |
102555 |
2.7 |
|

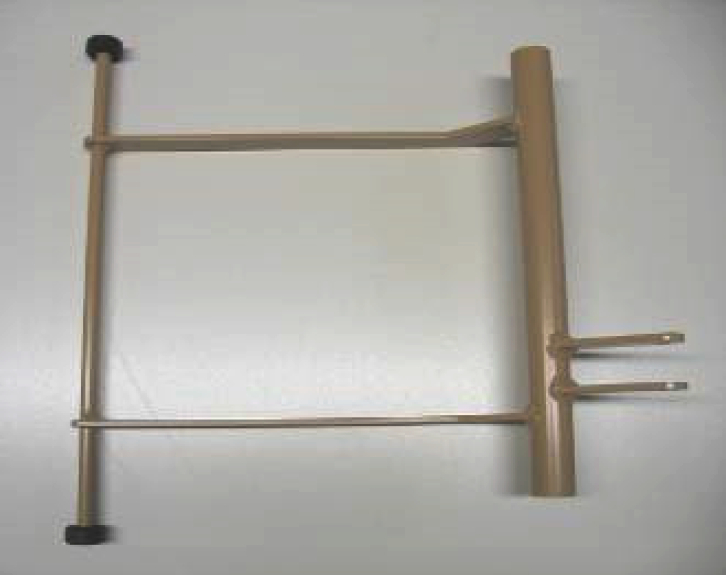

back rest fork |
208053 |
2.8 |
|
black roller, plastic Ø31mm |
148275 |
2.9 |
|
circlip, metal ⁄ size15 DIN6799 |
167385 |
2.10 |
|

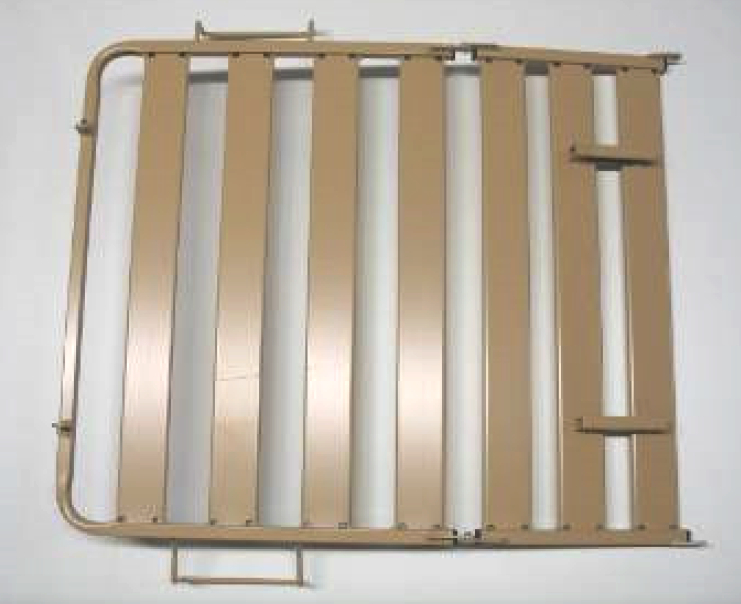

thigh ⁄ lower leg rest (inner frame), with metal profiles, without motor |
208054 |
2.11 |
|
rounded head screw (allen) M8 x 20mm |
167770 |
2.12 |
|
washer, metal Ø8.4mm |
100062 |
2.13 |
|
spacer, plastic Ø16 ⁄ 8.4 x 1.6mm |
111803 |
2.14 |
|

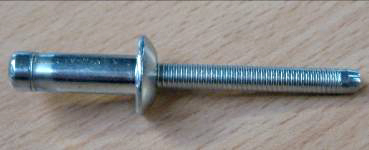

blind rivet Ø6.4 x 16.5mm, (connection thigh ⁄ lower leg rest) |
179334 |
2.15 |
|
washer, metal Ø6.4mm (connection thigh ⁄ lower leg rest) |
106043 |

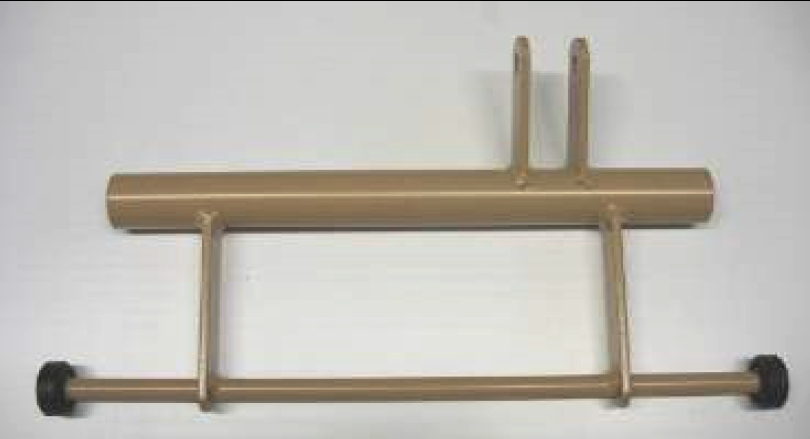

2.16 |
|
thigh rest fork |
184312 |
2.17 |
|

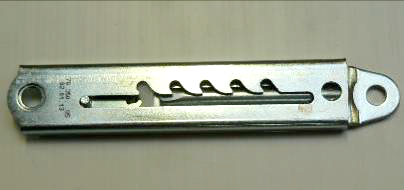

ratchet, short 140-230 x 30mm |
704070 |
2.18 |
|
lock washer (open) Ø 8mm (for ratchet) |
181858 |
2.19 |
|
quick release bolt Ø10 x 60mm |
200395 |
2.20 |
|
collar stud Ø10 x 50mm (for back rest and thigh rest motor) |
171801 |
2.21 |
|
black square plug, plastic 20 x 20 x 17mm |
100105 |
2.22 |
|
black square plug, plastic 40 x 20 x 18mm |
185239 |
2.23 |
|
self-adhesive buffer Ø10mm |
106738 |
2.24 |
|
self-adhesive white stripe 200 x 18 x 1mm |
248191 |
2.25 |
|
retaining bracket on the right |
152226 |
2.26 |
|
retaining bracket on the left |
152228 |
Return to top of page
3. Drive System |
3.1 |
|

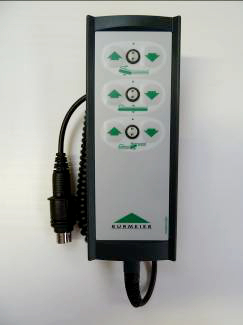

hand control with locking function |
172233 |
3.2 |
|
locking key |
167882 |
3.3 |
|
hook for hand control |
158919 |
3.4.1 |
|

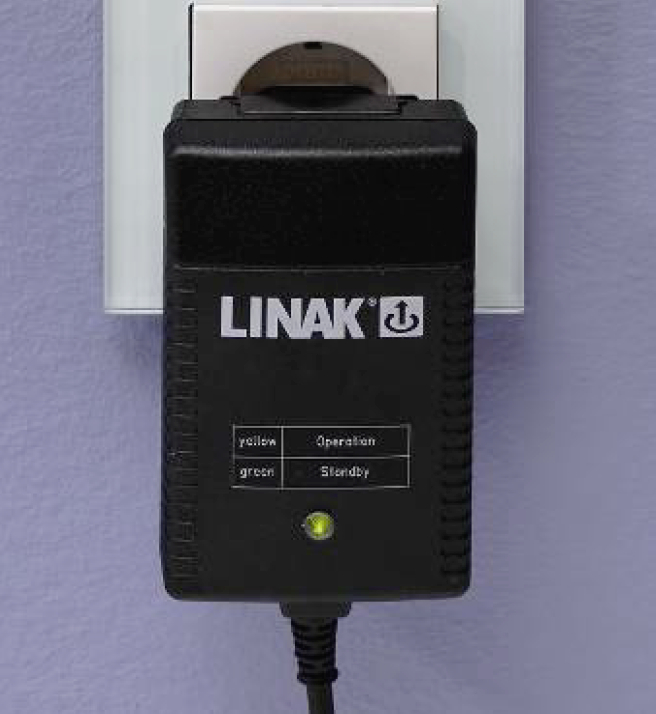

Switch Mode SMC6 (previous model — IPX0 ⁄ till 06 ⁄ 2010) |
187376 |
3.4.2 |
|

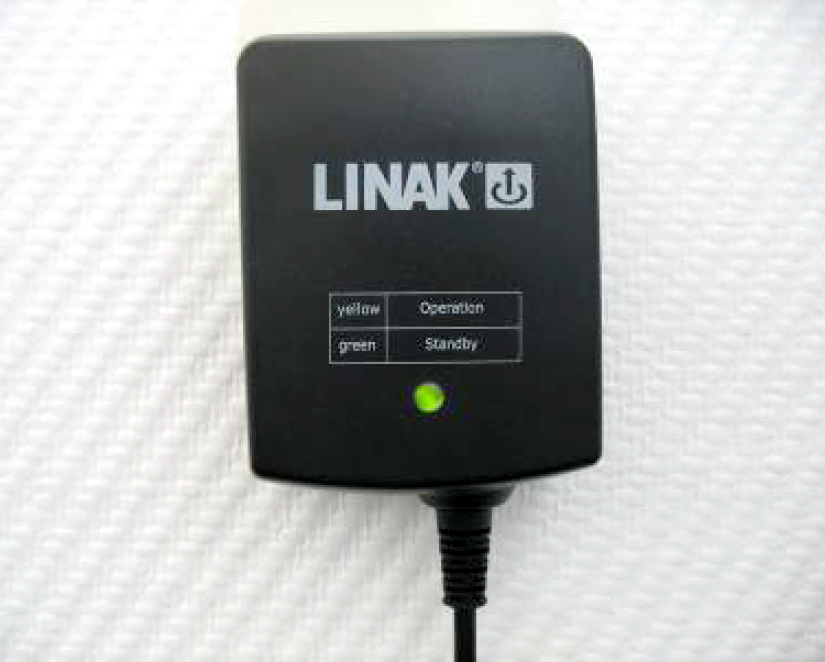

Switch-Mode SMPS4 (IP44) (follow-up model — incl. net cable holder) |
253183 |
3.5 |
|

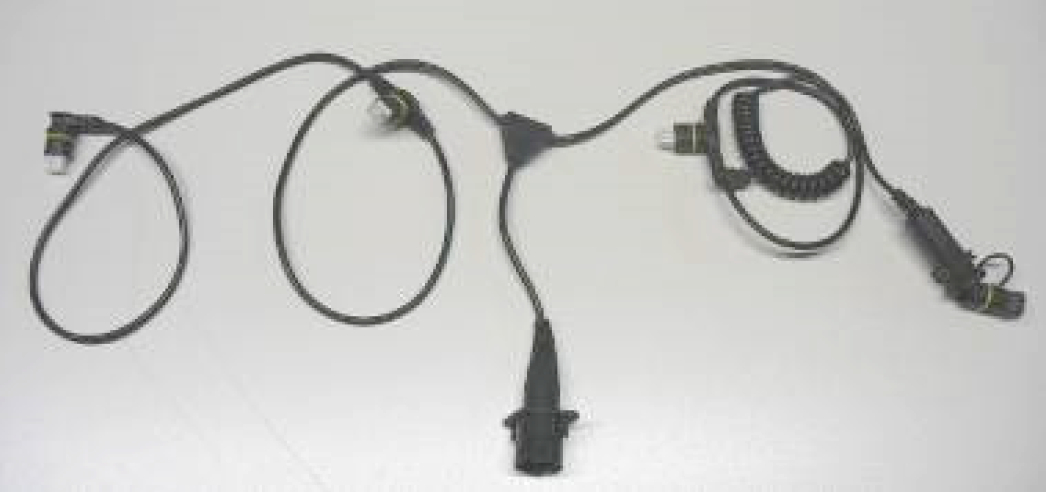

cable harness 3-motors (24Volt) |
188967 |
3.6 |
|
backrest motor Linak LA27 (24Volt) |
185070 |
3.7 |
|
thigh rest motor Linak LA27 (24Volt) |
170701 |
3.8 |
|

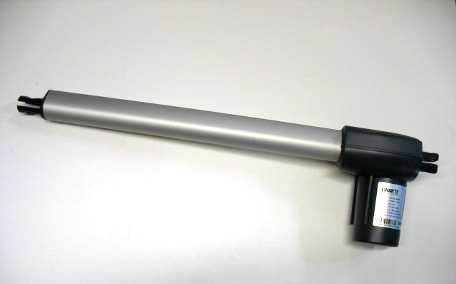

lifting motor Linak LA27 (24Volt) |
172232 |
3.9 |
|
locking clip cable ⁄ motor LA24 |
221461 |
Return to top of page
4.2 safety sides |
4 |
|
packet of side rails 80mm and side boards complete for a bed incl. fastening material |
177994 |
4.1 |
|
packet of side rails 95.5mm and side boards complete for a bed incl. fastening material |
196520 |
4.2.1 |
|

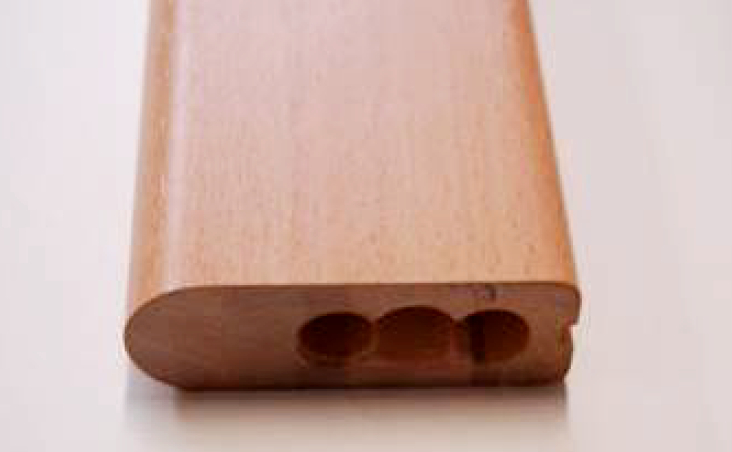

safety side bar in wood 2020 x 80 x 28mm |
155525 |

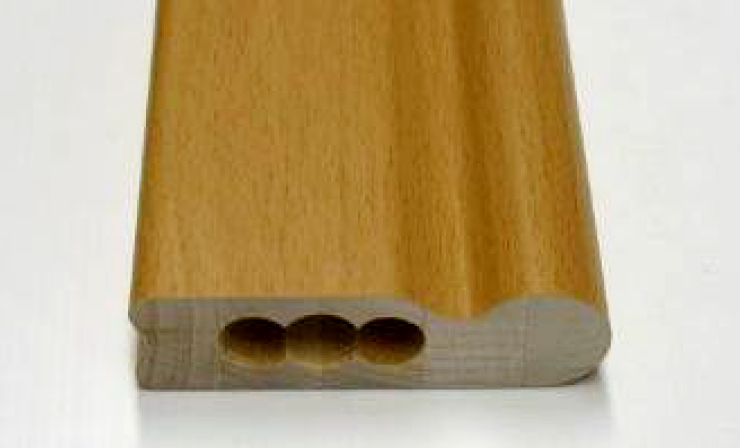

4.2.2 |
|
safety side bar in wood 2020 x 95.5 x 28mm |
196516 |
4.3 side board |

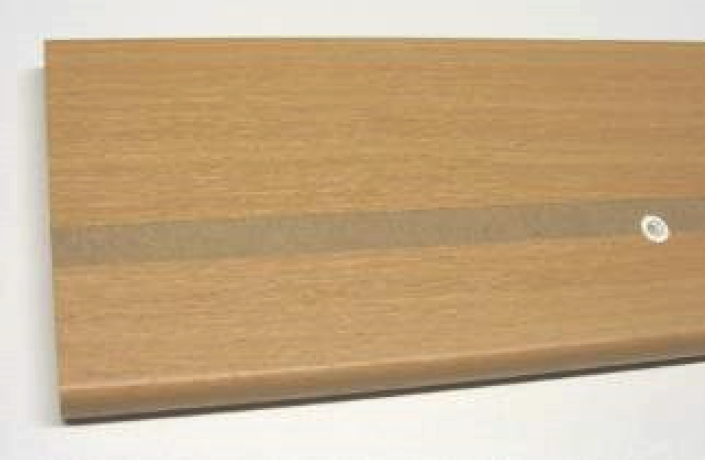

4.3 |
|
Side board |
177993 |
4.3.1 |
|

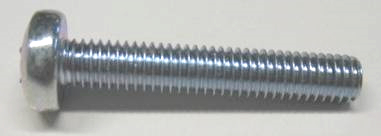

fastening screws for side board M6 x 35 |
106009 |
4.3.2 |
|
washer, metal Ø6.4mm |
106043 |
Return to top of page
5. head ⁄ foot board |
5.1 |
|

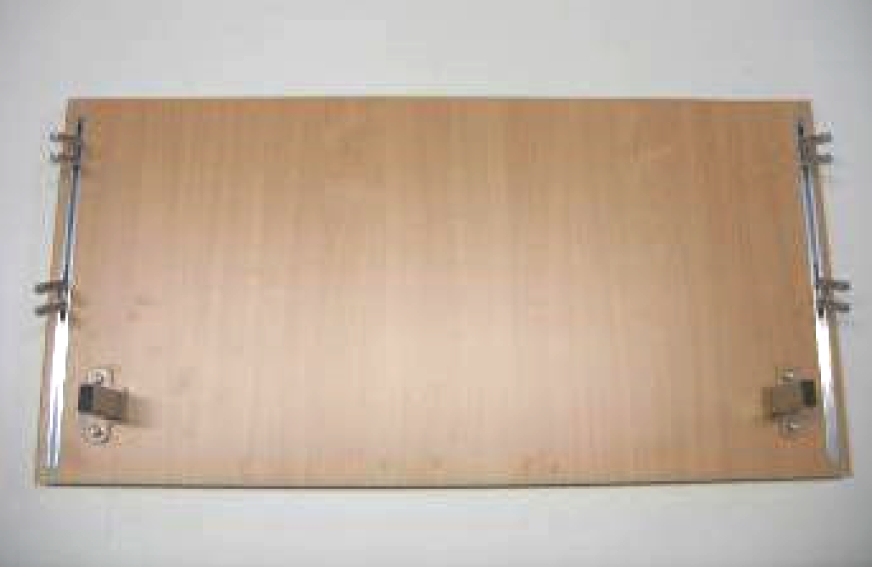

”Standard“, 90cm without round bars |
180123 |
|
|
”Standard“, 90cm (packet containing a head and foot board) |
177995 |
5.2 |
|

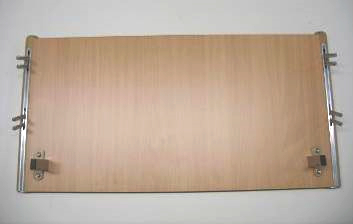

”Comodo“, 90cm with lateral round bars |
196052 |
|
|
”Comodo“, 90cm (packet containing a head and foot board) |
177996 |
5.2.1 |
|
aluminum guide rail on the right 15 x 15 x 428 x 1.5mm |
107070 |
5.2.2 |
|
aluminum guide rail on the left 15 x 15 x 428 x 1.5mm |
107071 |

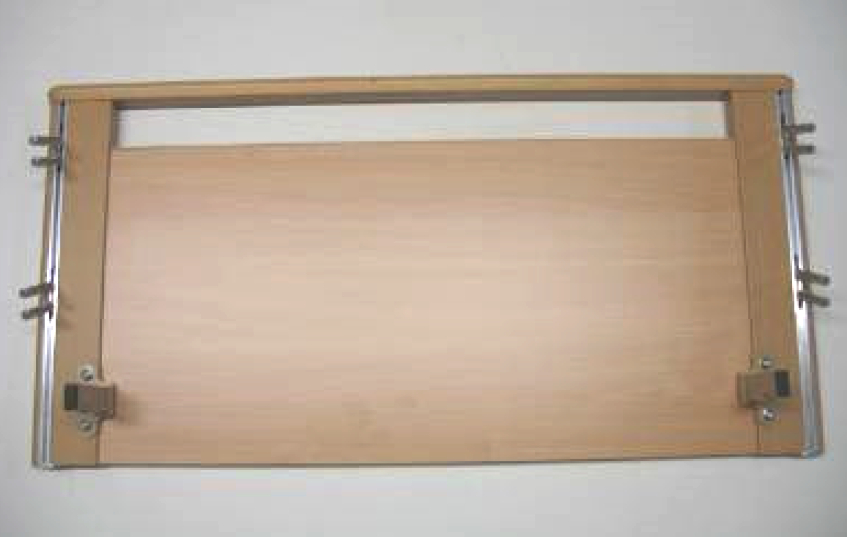

5.3 |
|
”Primero“, 90cm with grip rail |
176304 |
|
|
”Primero“, 90cm (packet containing a head and foot board) |
186344 |
5.3.1 |
|

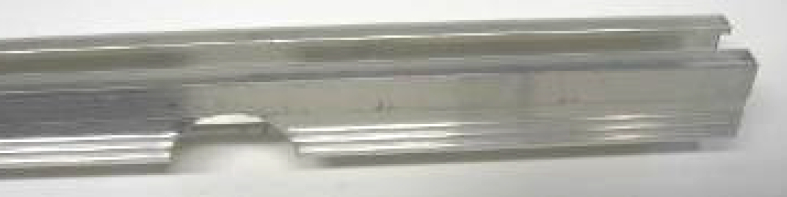

aluminum guide rail on the right 15 x 15 x 460 x 1.5mm (Primero) |
107196 |
5.3.2 |
|
aluminum guide rail on the left 15 x 15 x 460 x 1.5mm (Primero) |
107195 |
5.4 |
|
countersunk screw spax 3 x 12mm for fastening the aluminum guide rail |
106088 |

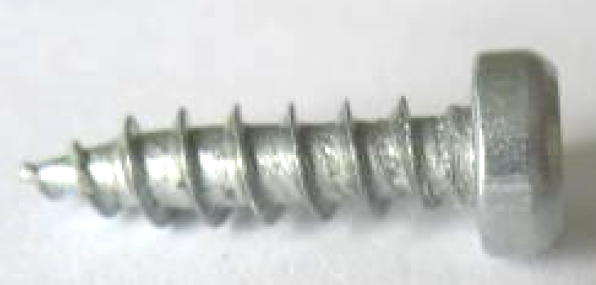

5.5 |
|
cylindrical screw 3 x 12mm |
167820 |

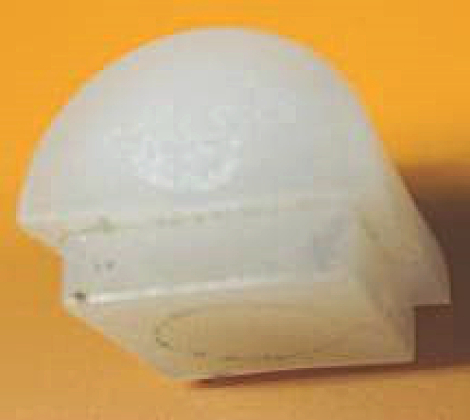

5.6 |
|
end plug for aluminum guide rail |
111745 |
5.7 |
|

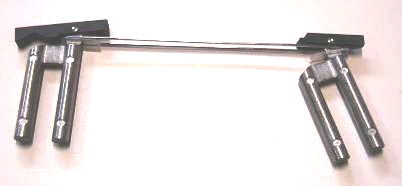

assembly set for side rail guidance complete |
181729 |
5.7.1 |
|

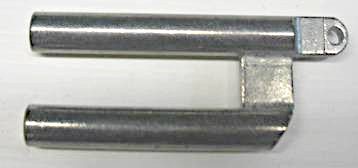

double bolt |
112108 |

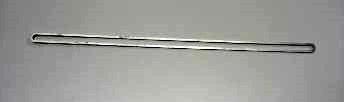

5.7.2 |
|
bracket buckle 212 x 6x 1.6mm |
168353 |
5.7.3 |
|
black square guide below, plastic |
181902 |
5.7.4 |
|
black square guide on the right, plastic |
111770 |
5.7.5 |
|

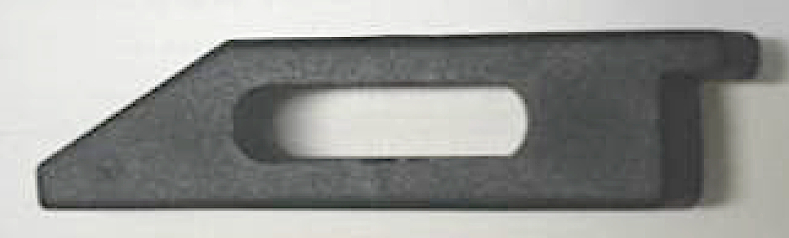

black square guide on the left, plastic |
111771 |
5.7.6 |
|

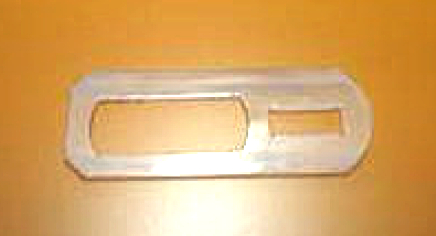

spacer for side rail guidance, plastic |
170759 |
5.7.7 |
|

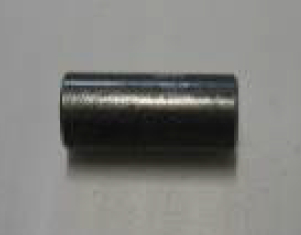

bolt Ø5 x 11mm |
106933 |
5.8 |
|

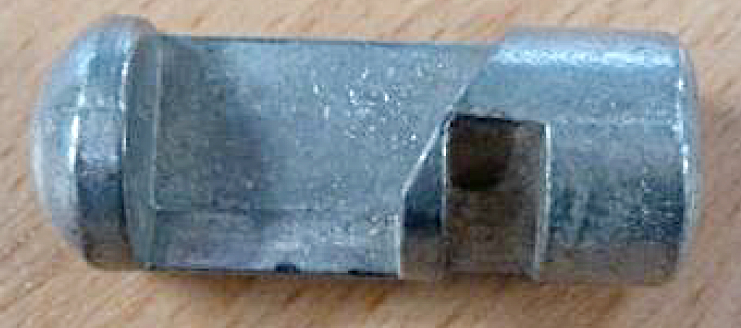

release bolt, left Ø14 x 36mm |
107170 |
5.9 |
|

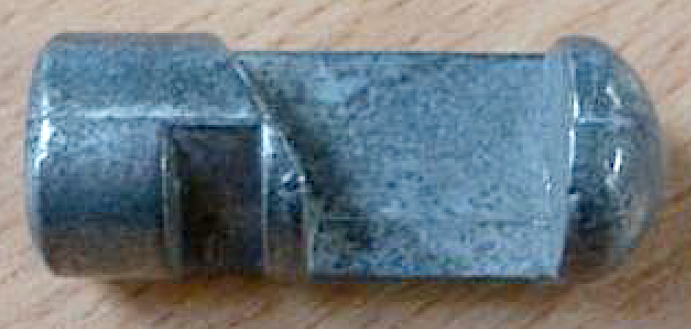

release bolt, right Ø14 x 36mm |
107171 |
5.10 |
|

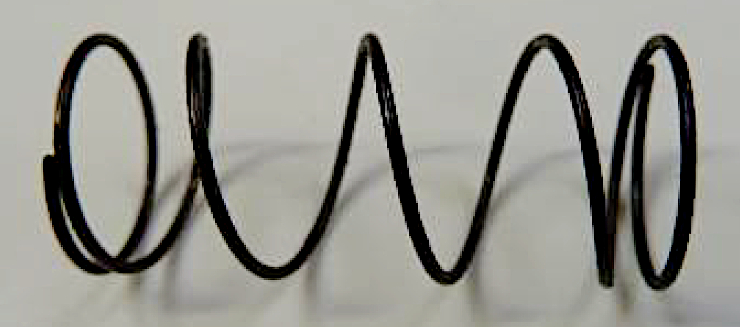

spring for release bolt |
106120 |
5.11 |
|
spax screw Ø4.5 x 45mm |
115059 |
5.12 |
|

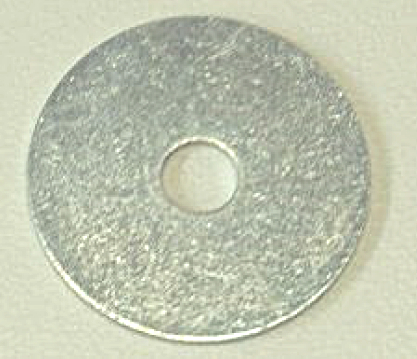

washer, metal Ø30 ⁄ 6.4 x 1.25mm (previous model — no longer available) |
106050 |
5.13 |
|
washer, metal 38 x 25 x 3mm (follow-up model — from 36/2009) |
199797 |
5.14 |
|

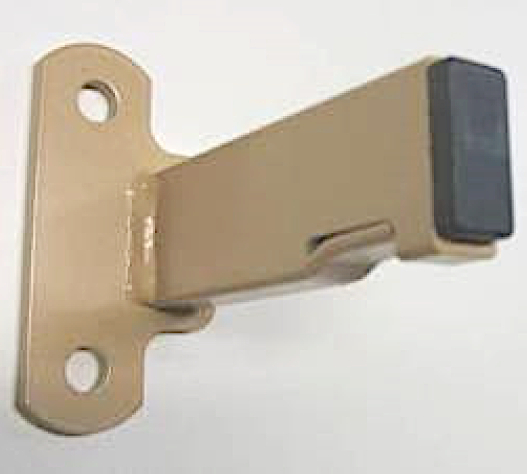

holder for head ⁄ foot board on the left |
177507 |
5.15 |
|
holder for head ⁄ foot board on the right |
177506 |
5.16 |
|
rounded head screw (allen) M8 x 20mm |
167770 |
Return to top of page
6. lifting pole |
6 |
|
lifting pole |
146602 |
6.1 |
|
lifting pole without grab handle |
160802 |
6.2 |
|
grab handle |
222225 |
6.3 |
|
lifting pole end cap, topas |
182111 |
Return to top of page
Accessories |
Number |
designation |
article number |
A |
lifting pole with grab handle |
146602 |
B |
padded side rail cover for 2-bar side rail |
225921 |
C |
serving tray to lay on the wooden side rail |
174296 |
D |
bed extension approx. 20cm, incl. 4 longer side rail bars 95.5mm + 2 side boards |
701215 ⁄ 203806 |
E |
bed extension approx. 20cm, incl. 4 longer side rails cross beams 80mm + 2 side boards |
701215 ⁄ 181889 |
F |
reading lamp with fastening (claw) at lifting pole |
175591 ⁄ 174231 |
G |
reading lamp with adapter for the lifting pole sleeve |
196221 |
H |
infusion holder (5200-28-50) |
116354 |
I |
wall deflection roller on the left |
176490 |
J |
wall deflection roller on the right |
176511 |
Click here to enquire about the Westfalia Klassik Care Bed Spare Parts.
