Oxford Presence Patient Hoist
Competent enough to handle almost any patient transfer task.
Oxford Presence Patient Hoist
The Oxford® Presence is a heavy-duty mobile patient lift, competent enough to handle almost any patient-handling task. Its incredible lifting range ensures it can cope easily with the most critical of transfers from the floor to high level surfaces.
Click here for Extensive range of slings
Ergonomic design considerations
The Presence was designed with the five key principles of moving and handling in mind.

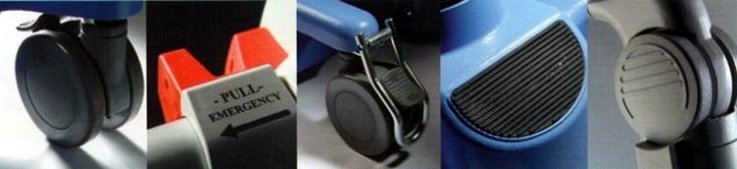

Hand control clip ensures convenient storage when not in use.
Foot ‘push pad’ helps reduce the force needed to initiate forward movement.
Over-sized push handle for improved handling and manoeuvrability.
Outstanding lifting range
Whether from the floor or onto a high surface the Presence has an astonishing range of movement.
The minimum height with the six point spreader bar is just 440mm, which ensures excellent off the floor transfers.
Conversely, if you wish to access high beds or nursing surfaces, the Presence will lift up to 1910mm.
This is especially useful where you have variable height beds, special lift mattresses.
Smart™ Monitor
The Smart™ Monitor control system records the exact amount of work completed by the actuator each and every time the lift is used, regardless of a patient’s weight or lift height covered. The intelligent system advises the user to schedule key maintenance helping to ensure your lift remains in optimum condition.
Greater spatial area for carer and patient
The additional space promotes better ergonomics for the carer,
as it is possible to interact more closely with the patient.
The Presence’s unique Swan-neck leg design also allows the lift to get close to the widest of
obstacles. This is especially useful when encountering large chairs, bulky commodes and wheel
chairs.
Sculptured design allows you to get closer to the lift

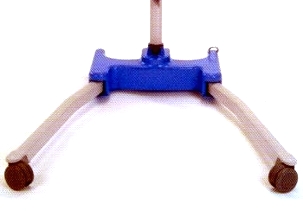

Tapered ‘swan neck’ leg design
Allows greater internal area, whilst not compromising overall product width.
Low Leg Option
The low leg Presence maintains the exact same functionality of the standard Presence with the added benefit of a lower leg height to allow better access under low bed frames and other furniture.
Lift height, safe working load and all other elements remain unchanged.
Powered Leg Positioning
The Presence has two powerful electric motors which open and close the legs automatically.
Low-Profile Digital Weigh Scale
The Presence can be supplied with a low-profile digital weigh scale (A).
The digital weigh scale offers a number of significant benefits for the user:-
The new weigh scale is available in 3 different attachment versions:
With 6-point spreader bar (UNISCALE101)
With 4-point manual cradle (UNISCALE100)
With 4-point adjustable power cradle (UNISCALE102)
Interchangeable spreader bar/cradle
One of the restrictions of using certain lifts are the slings which you can use on the product.
The Presence however, gives you a choice of sling systems.
You can use the conventional 6 point Oxford spreader bar (C), or the manual (D) or powered 4 point positioning
cradle (B). This choice provides the carer with a greater option of slings to use when considering support,
comfort and flexibility for the patient.
(Click here for a Manual Cradle brochure
)
(Click here for a Power Cradle brochure )
With 6-point spreader bar (UNISCALE101)
With 4-point adjustable power cradle (UNISCALE102)
With 4-point manual cradle (UNISCALE100)
Product Codes:
OXF–PRESENCE: Presence Hoist with 6 point spreader bar
OXF–PRESENCE+4PTAPC: Presence Hoist With powered Pivot Frame
OXF–PRESENCE+OY0050: Presence Hoist With manual Pivot Frame
Email for more information.
Call us 07 3355 8000
Presence Technical Specifications
| Specifications | |
| Safe Working Load | 227 kg |
|---|---|
| Maximum Overall Length | 1460 mm |
| Minimum Overall Length | 1400 mm |
| Maximum Overall Height | 2065 mm |
| Minimum Overall Height | 1460 mm |
| Spreader Bar Maximum Height | 1910 mm |
| Spreader Bar Minimum Height | 430 mm |
| Height at Maximum Reach | 1310 mm |
| Reach at Maximum Height | 650 mm |
| Reach at Minimum Height | 400 mm |
| Maximum Reach* | 930 mm |
| * Reach = centre of spreader bar to the front of the mast | |
| Turning Radius | 1630 mm |
| Legs Open - External Width | 1150 mm |
| Legs Open - Internal Width | 1020 mm |
| Legs Closed - External Width | 670 mm |
| Legs Closed - Internal Width | 550 mm |
| Overall Height of Legs | 120 mm |
| Overall Height of Legs (low leg option) | 59 mm |
| Ground Clearance | 35 mm |
| Ground Clearance (low leg option) | 20 mm |
| Front Twin Castors | 100 mm |
| Front Twin Castors (low leg option) | 50 mm |
| Rear Braked Castors | 100 mm |
| 4 Point Position Cradle (measurement to top of location pins) | |
| Cradle Max. Height | 1550 mm |
| Cradle Min. Height (usable) | 390 mm |
| Weights | |
| Mast, Base & Boom Assembly | 37 kg |
|---|---|
| Power Pack | 3 kg |
| Total | 40 kg |
| Base Assembly (not inc battery) | 20 kg |
| Mast & Boom (not inc battery) | 17 kg |
| 4 Point Position Cradle (manual) | 6 kg |
| 4 Point Position Cradle (powered) | 9 kg |
| Electrical Specifications |
| Battery 1 x 24 volt rechargeable sealed lead acid type |
| Battery capacity 2.9 Ampere hours |
| Charger rated input 240V AC 50/60Hz |
| Charger rated output 29.5 V DC Max 19W ⁄ IPX5 |
| Electric Shock Protection |
| Charger — class II |
| Lift — internal power source |
| Degree of Shock Protection |
| Charger — Type B |
| Lift — Type B |
| Intended operating environment >+5° <+40°. |
| Outside this environment, functionality and safety may be comprimised |
