Etac Manual Transfer Systems

Solutions for easy transfers



The Etac manual transfer products are developed according to the principles that rely on the natural pattern of movement, weight transfer, knowledge about friction points and ethics.

  • A transfer board is intended to bridge short gaps when performing seat to seat transfers.
  • The board's low friction upper surface allows the user to transfer either independently or with assistance.
  • Transfer boards can be used when transferring between bed and wheelchair / shower chair, between wheelchair / chair / commode chair or to and from the car.





mouseover for larger image

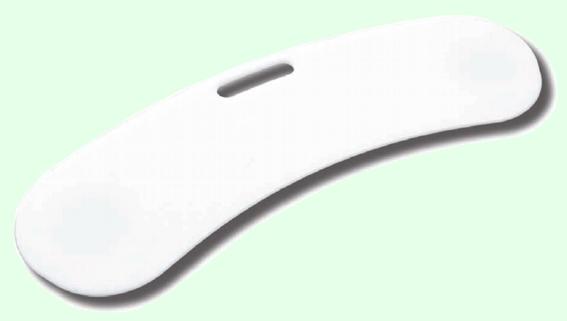

Etac 3B–Board Etac 3B–Board used with PediTurn

Etac 3B–Board

  • The Etac 3B–Board is a stable and simple transfer board with a traditional curved shape.
  • The board can be placed either curve forward or curve backward depending on the transfer situation and surrounding obstacles.
  • The 3B–Board's length allows transfer across wider gaps. (e.g. in and out of a car)
  • Safe Working Load: 150kg

Transferring from Bed to Wheelchair

Etac 3B-Board
Etac 3B-Board

Etac 3B-Board


email Click here to enquire about the Etac 3B–Board.


Product Code Description Construction Length (mm) Width (mm)
IM403 (available now) 3B–Board, transfer board white Polyethylen 770 230
Washing Instructions Can be cleaned with soapy water or disinfectant.
Click here for a Brochure pdf Click here for a Manual pdf

top Return to top of page



mouseover for larger image

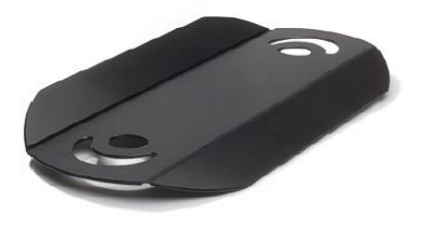

Etac E–Board

Etac E–Board with Wings

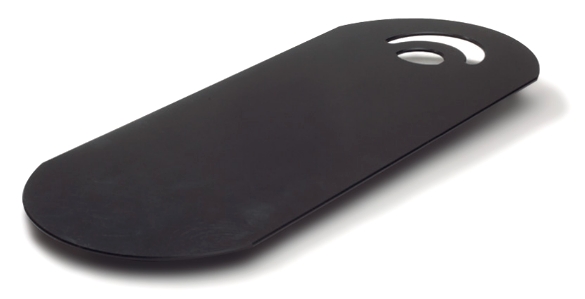

Etac E–Board without Wings

Etac E–Board without Wings


Etac E–Board

  • The Etac E–Board is a thin and flexible transfer board that allows easier application and removal.
  • The E–Board Compact is smaller and lighter. As it is easily carried, it is suitable for the more active and independent user.
  • Available in 2 models and 4 sizes: E–Board has wings along the sides, which can be bent up or down.
  • This provides more sturdiness and stability, and the upward wing is used to protect against the wheel of the wheelchair.
  • Available in 2 lengths, 60 and 75 cm.
  • The E–Board Compact is smaller and lighter and is easily carried making it suitable for the more active and independent user.
  • Available in 2 lengths, 60 and 45 cm.
  • The 45 cm board is more suitable for active and independet users, while the 60 cm boards suits the most common transfer situations.
  • A 75 cm board is suitable for longer transfer, eg. in and out of a car.
  • Safe Working Load: 150kg

Transferring from Bed to Wheelchair

Etac E-Board
Etac E-Board

Etac E-Board


email Click here to enquire about the Etac E–Board.


Product Code Description Construction Length (mm) Width (mm) Thickness (mm)
IM410 E-Board, transfer board Polyethylen 450 200 5
IM408 E-Board, transfer board Polyethylen 600 250 5
IM404 E-Board, transfer board wings Polyethylen 600 330 5
IM405 E-Board, transfer board wings Polyethylen 750 330 6
Washing Instructions Can be cleaned with soapy water or disinfectant.
Click here for a Brochure pdf Click here for a Manual pdf

top Return to top of page



mouseover for larger image

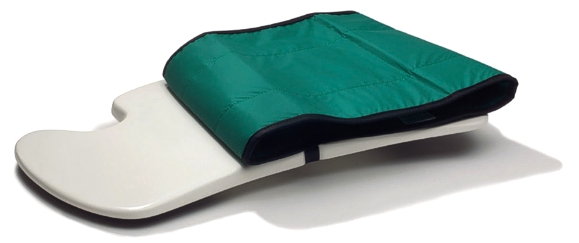

Etac Butterfly

Shown with Glide Wing attached

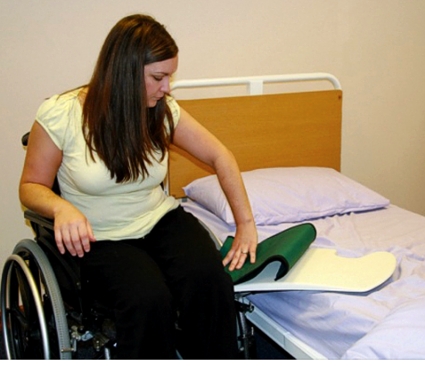

Etac Butterfly in use

Etac Butterfly in use


Etac Butterfly


  • The Etac Butterfly is a long, wide and stable transfer board.
  • It has cut outs for positioning against the wheel of the wheelchair and non-slip pads on the underside, which allows for good positioning and to help prevent it from sliding out of place.
  • The Etac Butterfly has a larger sitting and sliding area, which is helpful when the transfer needs to be made in short movements.
  • The Etac Butterfly can be used with the special Butterfly GlideWing, which is mounted on the board.
  • The Glide Wing slides along the board and provides an additional sliding function during the entire transfer.
  • Safe Working Load: 250kg

Transferring from Bed to Wheelchair & Independent Transfer

Etac Butterfly
Etac Butterfly

Etac Butterfly


email Click here to enquire about the Etac Butterfly.


Used with Support Belt

Specifications
Board Fibreglass
Glide Wing Material: Nylon
Padding: Polyester
Product Code Description Size Length (mm) Width (mm)
IM401 (available now) Butterfly, transfer board Standard 660 320
IM4001 (available now) Butterfly, glide wings Large 400 350
IM4002 Butterfly, glide wings XL 475 350
Click here for a Brochure pdf Click here for a Manual pdf

top Return to top of page



mouseover for larger image

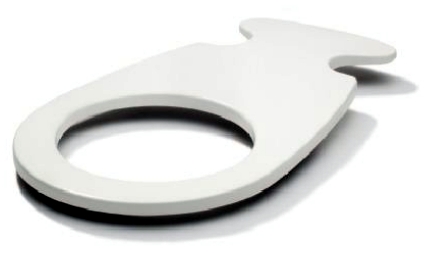

Etac Dolphin

Etac Dolphin

  • The Etac Dolphin is a sturdy and stable transfer board designed for transfer to the toilet.
  • This board has cut outs for positioning against the wheel of the wheelchair.
  • Non-slip pads on the underside allow good positioning and avoids sliding out of place.
  • The cut out allows the user to remain on the board while on the toilet.
  • Safe Working Load: 150kg



Transferring from Wheelchair to Toilet

Etac Dolphin
Etac Dolphin

Etac Dolphin


email Click here to enquire about the Etac Dolphin.


Click here for a Brochure pdf

Click here for a Manual pdf

Product Code Description Construction Length (mm)
IM409 (available now) Dolphin, toilet board, white Fibreglass 690
Washing Instructions Can be cleaned with soapy water or disinfectant.

top Return to top of page



mouseover for larger image

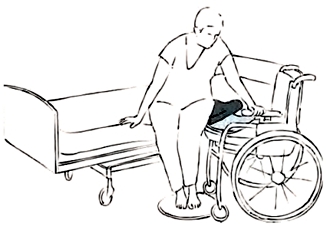

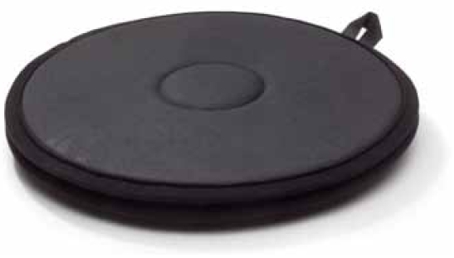

Etac PediTurn Etac PediTurn in use

Etac PediTurn

A swivel cushion for the floor

  • The Etac PediTurn is a swivel cushion that facilitates transfer between sitting positions, such as bed to wheelchair.
  • Useful for transfers in and out of a car.
  • It is used when the user cannot move their feet during the transfer.
  • Etac PediTurn is a soft cushion suitable when the user is not wearing shoes.
  • It has a non-slip surface on both sides to avoid sliding out of position.
  • Safe Working Load: 150kg

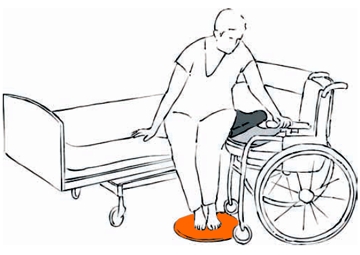

Using the PediTurn



email Click here to enquire about the Etac PediTurn.


Product Code Description Diameter (mm)
IM99836GT (available now) PediTurn SOFT, for floor 400
Specifications
Top Toughtek
Inside Nylon
Underside Toughtek
Middle Polyetylen
Washing Instructions Can be wiped with a damp cloth.
