Improving the comfort and safety for both the carer and user.

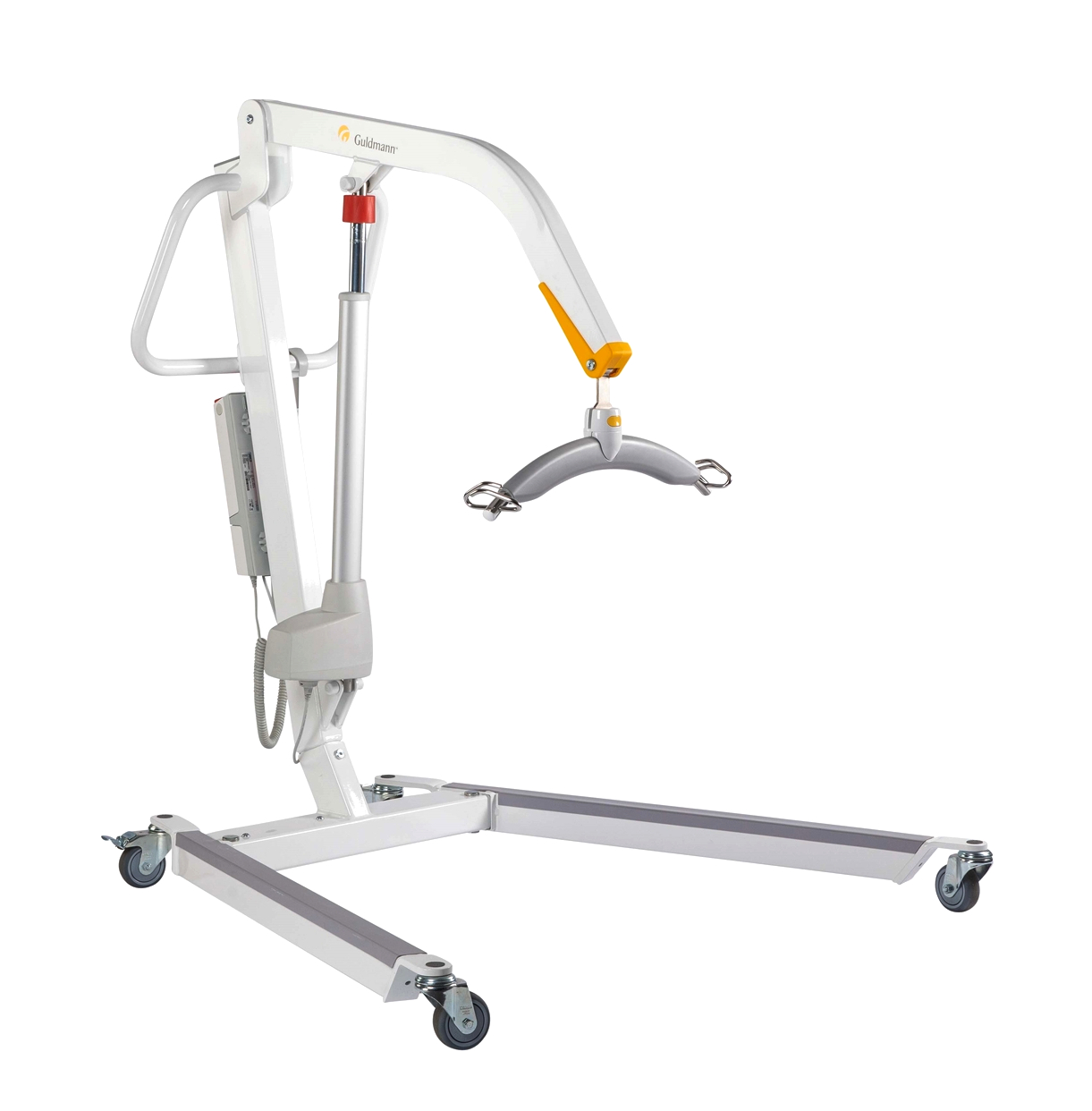

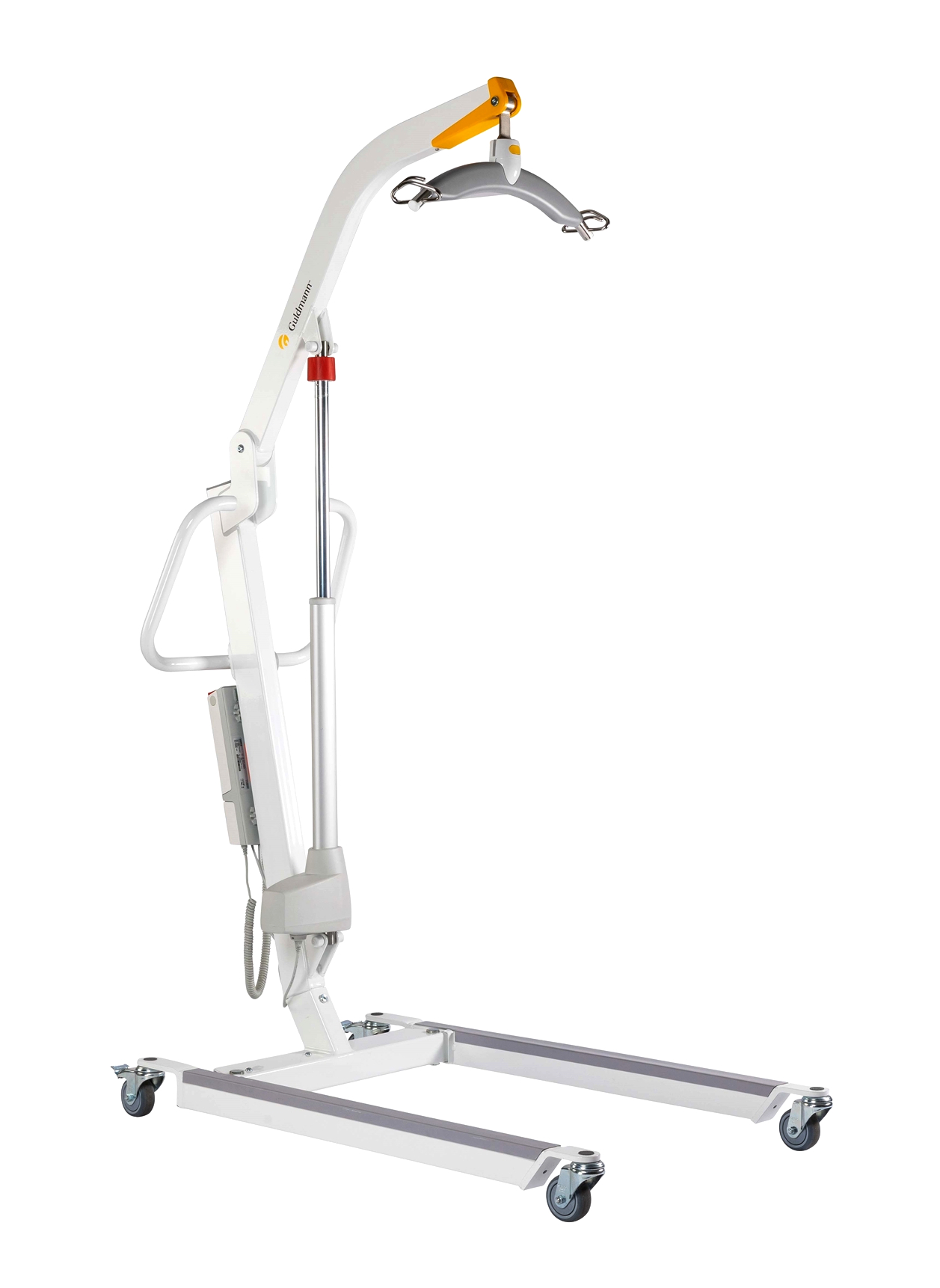

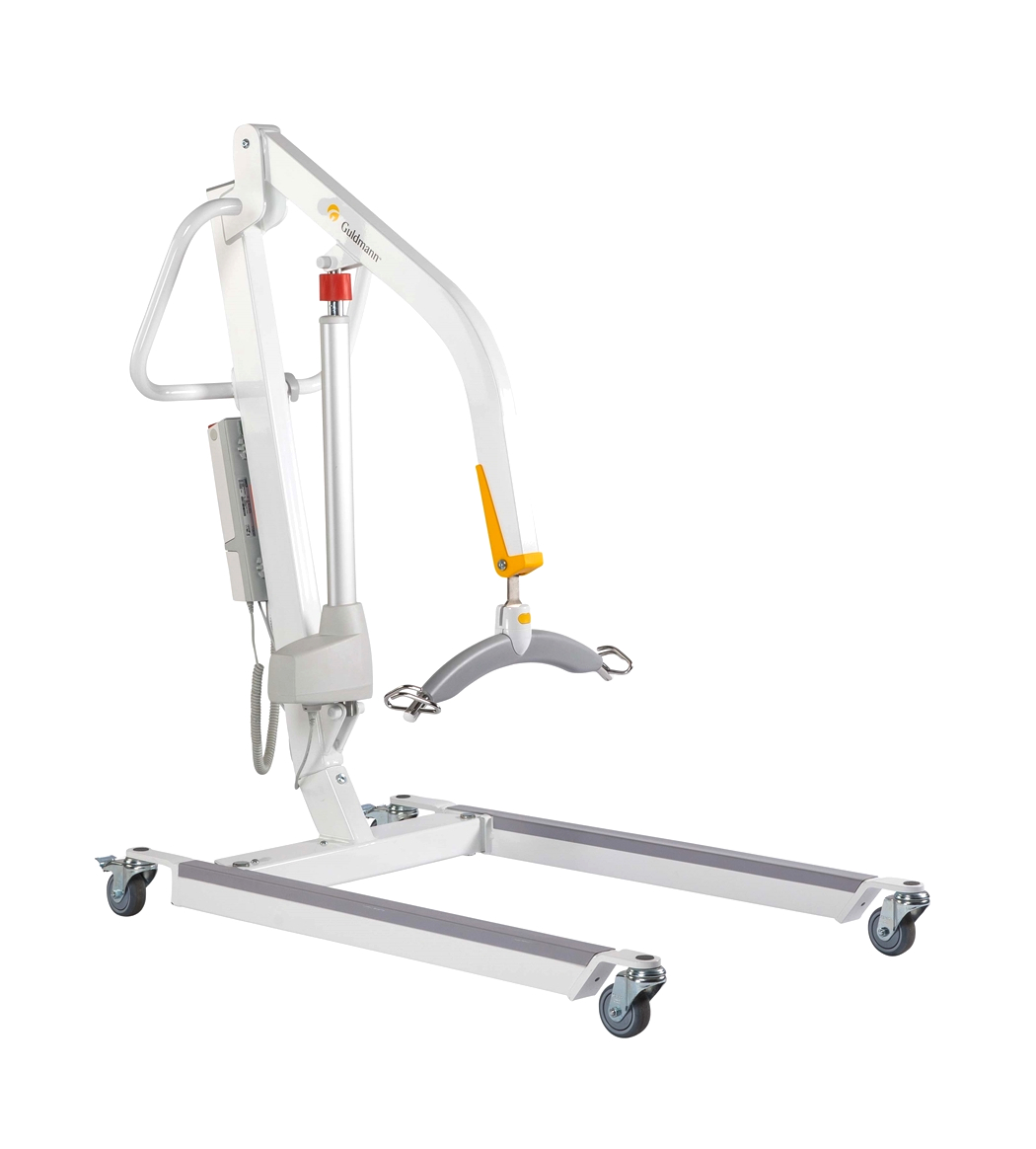

GL5.2 Floor Hoist
GL5.2 Characteristics
Low reach — ability to lift directly from the floor
High reach — ability to lift tall users in large slings, without difficulty
Flexible — with the appropriate type of sling ⁄ accessories the GL5
can deal with all moving and handling requirements
User friendly — easy for both tall and short people to use. Can be operated either by the
hand control or by the operating panel
Reliable — the GL5 is strong, stable, reliable and safe — designed for intensive use
in professional working environments
Intelligent — latest technology that provides access to statistics via SIC (service information console) showing
Number of lifts
Number of lifts since last service
Life span of components (actuator, battery)
Reports of errors
Modern design — offering on or off board charging, to suit the environment in which the
GL5 is used. The GL5 has been matched to the “Red Dot” award winning
design of the GH3 ceiling hoist ⁄ system
All–round capabilities — the GL5 makes it easy to deal with a wide range
of moving and handling situations while being ergonomically sound and safe for both the care provider and user.
GL5.2 Models and Accessories
Item number—model
GL5.2–562308
205kg, 100mm Castors
GL5.2–562309
155kg, 100mm Castors
GL5.2–562312
205kg, 100mm Castors, manual lowering
GL5.2–562313
155kg, 100mm Castors, manual lowering
GL5.2–562310
205kg, 80mm Castors
GL5.2–562311
155kg, 80mm Castors
GL5.2–562314
205kg, 80mm Castors, manual lowering
GL5.2–562315
155kg, 80mm Castors, manual lowering
With medium Spreader Bar included
Guldmann GL5 and Ceiling Hoist Spreader bars are interchangeable
“This mobile lifter makes it easier for both users and carers to
deal with daily situations involving lifting and moving. It may well help prevent work strains and back injuries for our care staff”
Manager, Long Term Care Facility
“Mobile lifters are particularly suitable in places and situations where there is no ceiling-mounted hoist system within reach.
Maybe there is no room for a stationary installation. Maybe the place does not normally involve lifting. Whatever the reason,
a mobile lifter is a practical and cost-effective lifting aid and a great means of extra safety”
Safe patient handling carer
GL5.2 Advantages
The GL5 mobile lifters are the floor based alternatives to the ceiling mounted lifting solutions offered
in the Guldmann range of products.
What makes the GL5 mobile floor lifters unique is the attention to detail that makes the lifter easy to use and
provides comfort and a safer lifting process.
The GL5 lifter has a lifting capacity of 205kg and features electric lifting and width adjustment
to allow easy access around chairs, baths and the ability to lift from the floor.
The configuration means lifting capacity is more than adequate, and GL5 lifters are very stable.
GL5.2 Mobile lifters can be charged using the lifter itself or externally via a battery. The low friction castors,
ergonomically designed push handle and the lifting design make the lifters easier to manoeuvre. User friendly features include easy
to use buttons and indicators and safety features with automatic on⁄off and easy to reach emergency stop ⁄ lowering functions.
ARTG Number 223094
GL5.2 handles all the lifting tasks

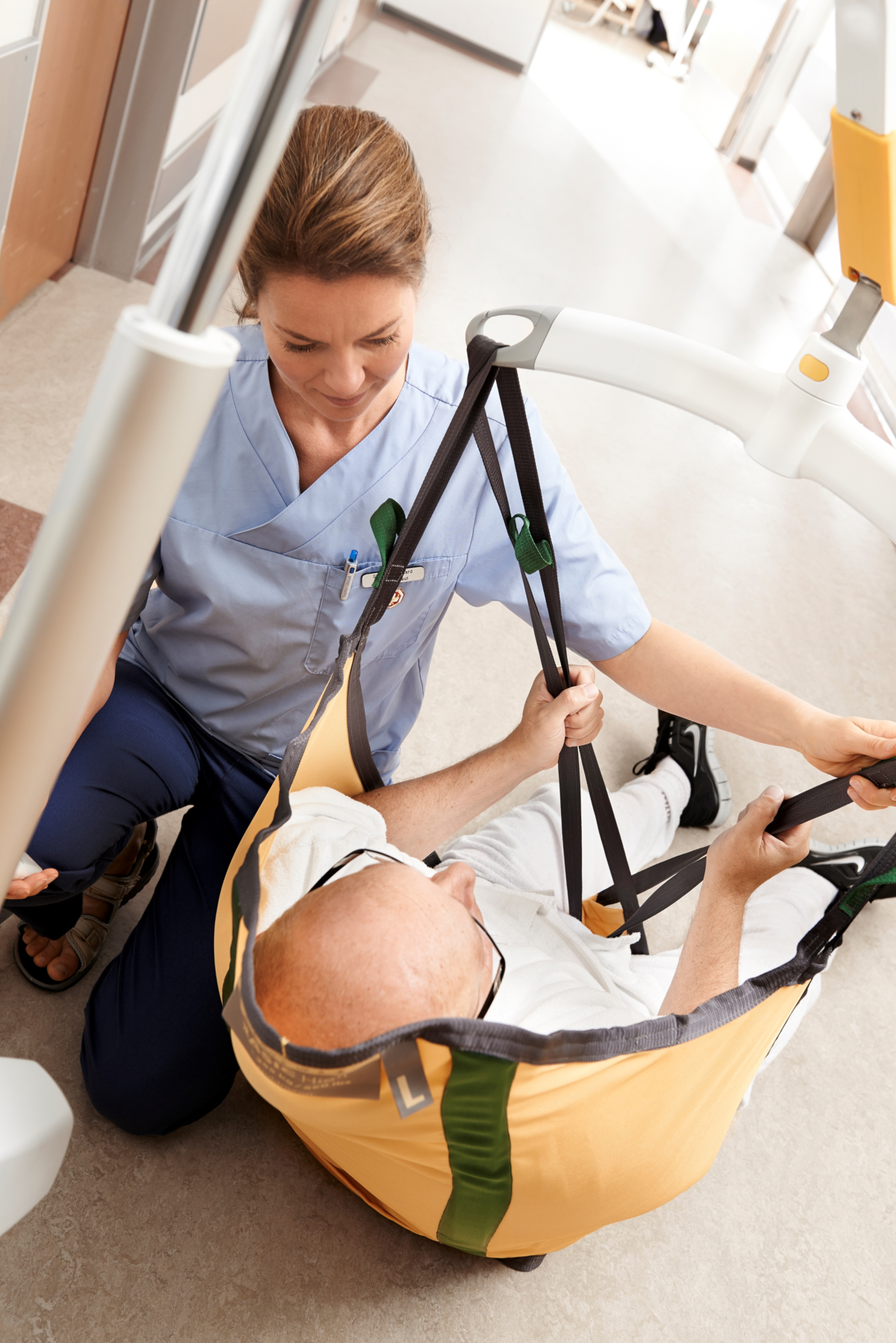

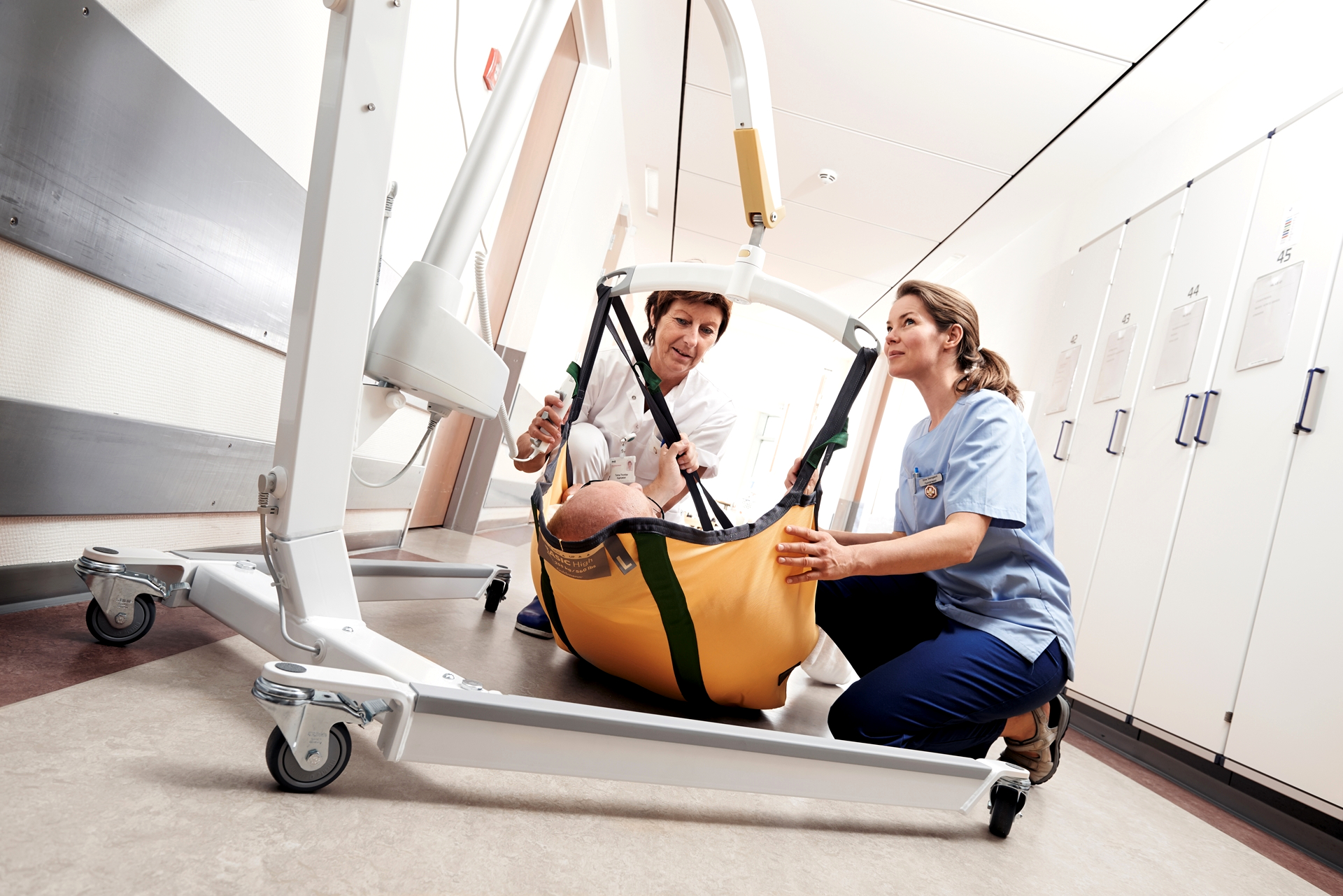

Lifting to and from the floor — GL5 can lift directly from the floor to a chair or bed.
This makes a GL5 the ideal solution if an unforeseen lifting need occurs where there is no ceiling mounted hoist available.
The lower section of the lifter is designed to give the user ample room and the considerable reach of the lifting arm means
the user doesn’t feel boxed in.
GL5 is ideal for use in physiotherapy, where users have to be lifted from, for example, a chair down onto an
exercise mattress. The lower section can be placed in the wide position to make sure there is enough room to make the lift directly above the mattress.

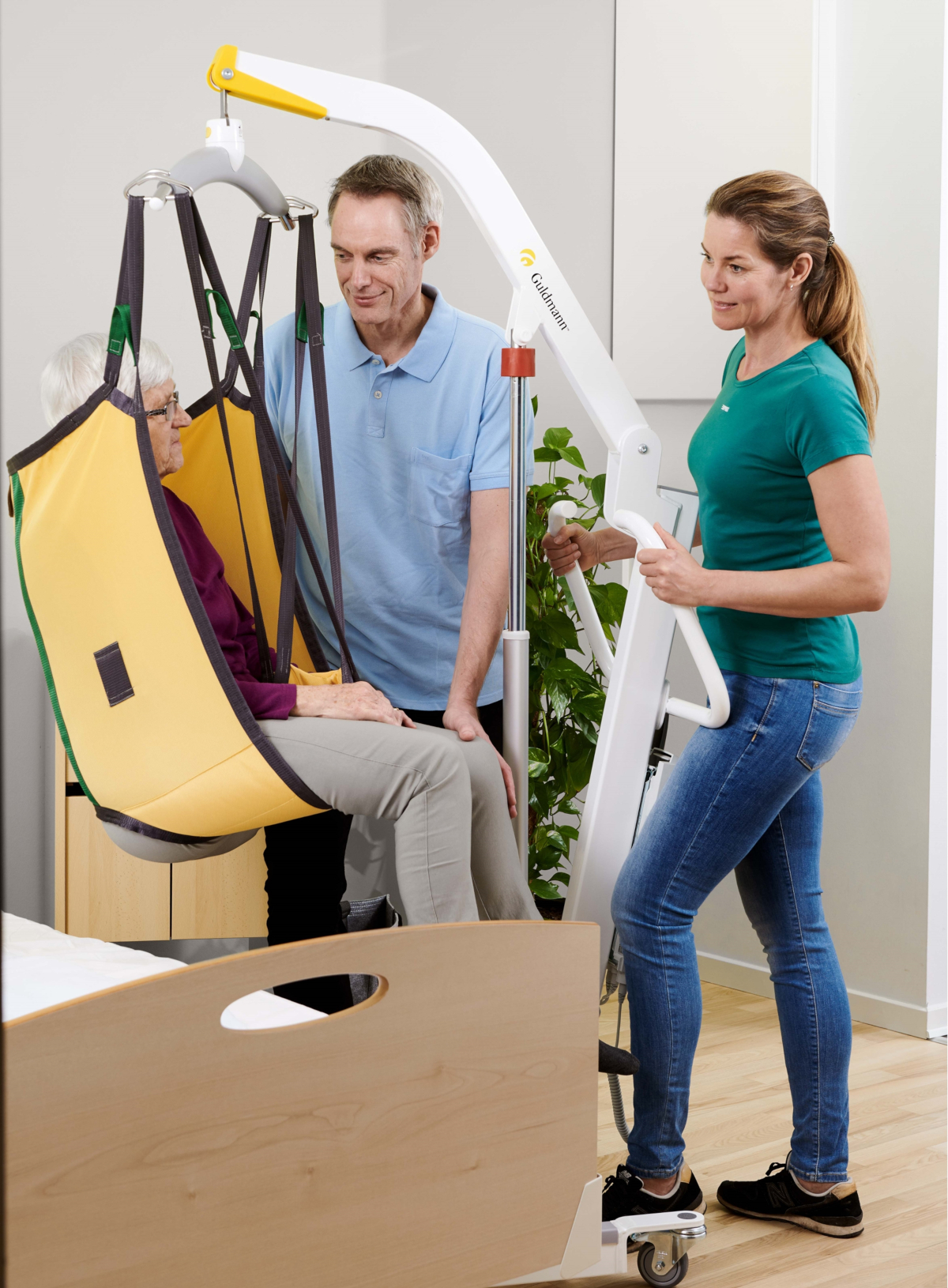

Lifting to and from the bed — GL5 ensures effective lifting to and from the bed.
The ability to lift high and the long reach result in the user can be placed correctly into the middle of the bed, or be positioned correctly into a wheelchair.
Heavy lifting — With the capacity to lift 205kg the GL5 is ideal for lifting bariatric patients.
It has ample room for the user, a high lifting capacity and exceptional stability that leaves the user without any discomfort or anxiety.

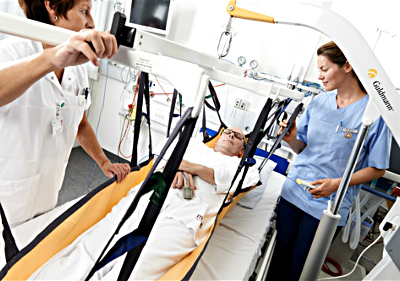

Horizontal lifting — With the advanced design of the lifting height and reach the GL5 is well
suited for horizontal lifting with the Guldmann stretcher style accessories.

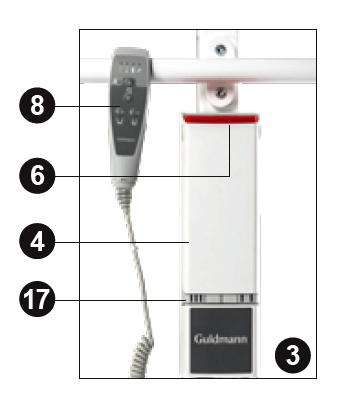

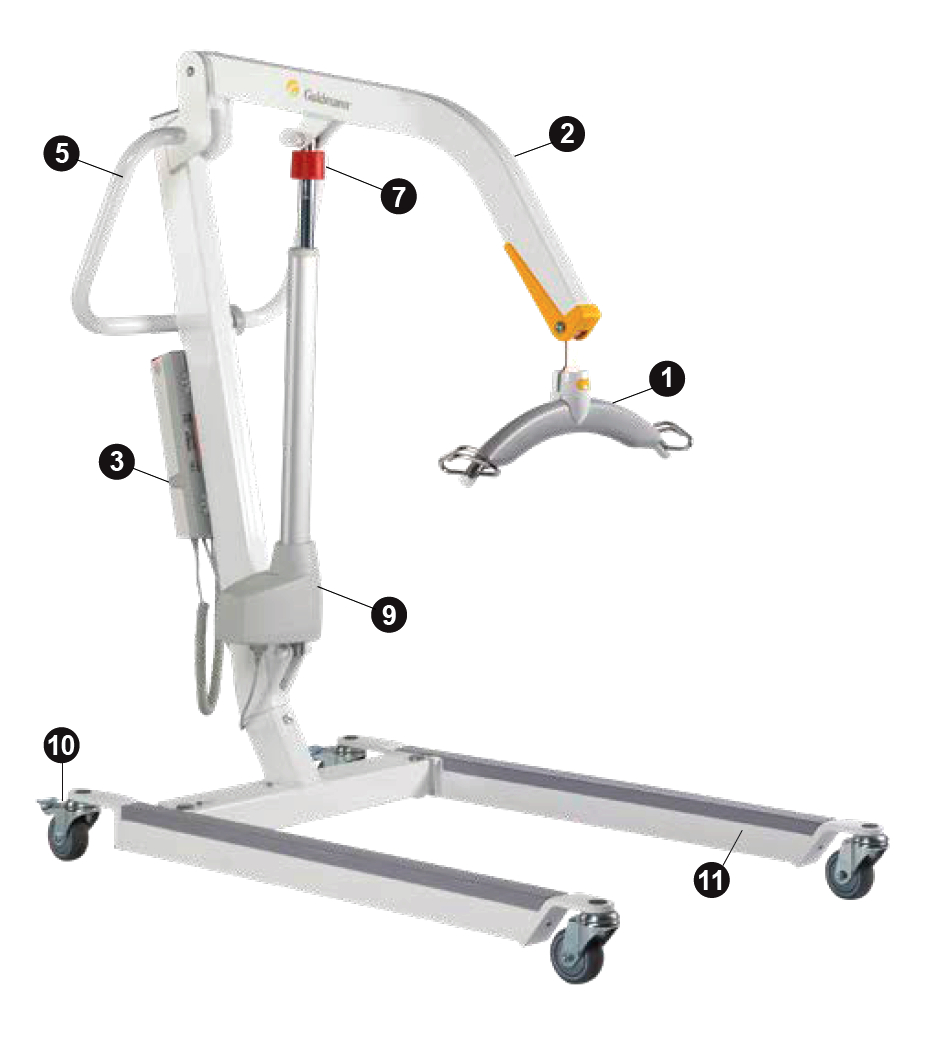

GL5.2 component list
1. Hanger
2. Lifting boom
3. Control box
4. Battery
5. Push handle
6. Emergency stop
7. Emergency lowering manual (option)
8. Hand control
9. Lifting actuator
10. Brake ⁄ release
11. Chassis leg

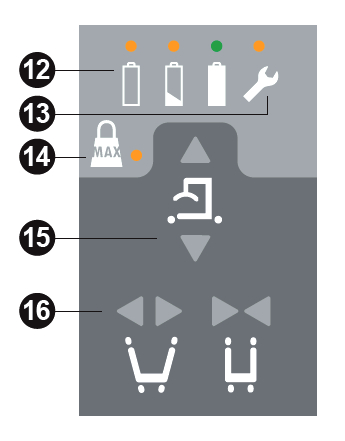

12. Battery indicator
13. Service indicator
14. Overload indicator
15. Lifting boom up ⁄ down
16. Base adjustment
17. Emergency function: up ⁄ down, battery–, service– and overload indicator

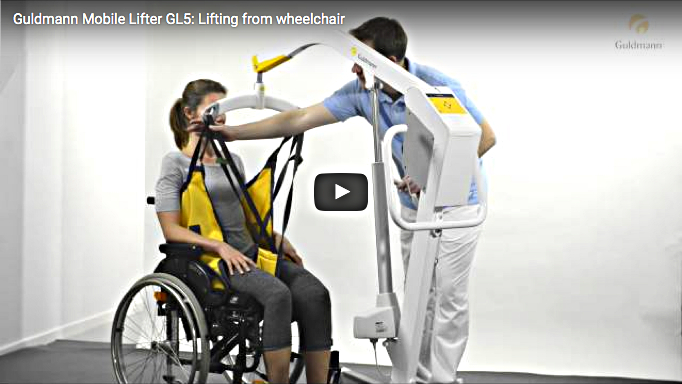

Watch a video of the Guldmann Mobile Lifter GL5: Lifting from wheelchair. (not current model)

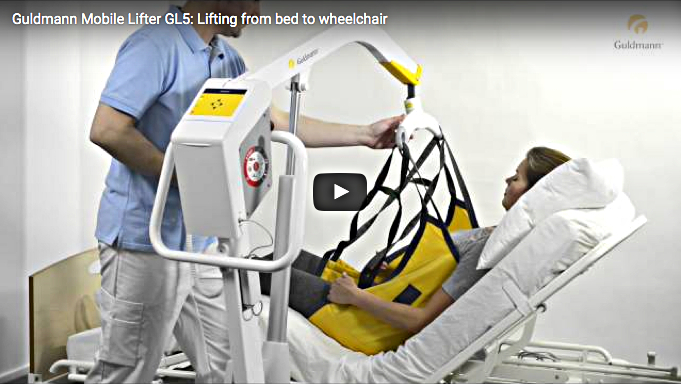

Watch a video of the Guldmann Mobile Lifter GL5: Lifting from bed to wheelchair. (not current model)
The GL5 mobile lifter is an all–round lifter that meets the majority of moving and handling requirements when used
with the Guldmann range of slings and accessories.
