Guldmann Patient Hoist Slings

Guldmann design and quality gives comfortable, functional slings.



Guldmann Slings — General Information

Remember: To be able to work efficiently and safely, you have to choose, in every case, the correct type of product in the right size and you also have to understand how to use it in the best possible way.

Guldmann designed slings make it easy, practical and quick for the carer to support the user while being lifted and moved from one point to another, as well as ensuring that the carer can undertake such operations with a minimum of effort and strain.

All Guldmann slings are designed for comfort, dignity and ease of use with both mobile and ceiling hoist systems, and are ideal for moving people to and from beds and wheelchairs, as well as in sitting and lying positions, as required.

The maximum lifting capacity for all Guldmann slings is 255kg — except Basic Basic and Basic High XXXL which can lift up to 500kg.


Click here for a Sling Size Guide pdf

Sling Cleaning pdf




mouseover for larger image

Micro Sling

Micro Sling

Sling Code Size
284031 Extra Small
284041 Small
284051 Medium
284061 Large
284071 Extra Large
284081 XXL

Function:
Supports the upper part of the body (from upper pelvis to under the shoulders) around the chest and upper thigh. The belt has a re–tightening function if necessary to adjust the support around the body.

Suitable for:

  • lifting persons with head control, but with reduced muscular strength of upper part of the body and above hip joint and thighbone
  • for some persons with extension spasms
  • in situations where the sling should be put on and taken off easily
    • lifting to and from seated position
  • situations where a large opening at the bottom is required, such as access for toileting and hygiene
  • See Video of Use of Micro Sling

email Click here to enquire about the Guldmann Micro Sling.





mouseover for larger image

Micro Plus Sling

Micro Plus Sling

Sling Code Size
281531 Extra Small
281533 Belt Only for XS
281541 Small
281551 Medium
281553 Belt Only for Medium
281561 Large
281563 Belt Only for Large
281571 Extra Large
281573 Belt Only for XL & XXL
281581 XXL

Function:
Supports the upper part of the body (from upper pelvis till under the shoulders) around the chest and upper thigh. The support belt can be adjusted.

Suitable for:

  • lifting people with head control, but with reduced muscular strength of upper part of the body and above hip joint and thighbone
  • in situations where the sling should be put on and taken off easily
  • lifting to and from seated position
  • situations where a large opening at the bottom is required, such as access for toileting and hygiene
  • See Video of Use of Micro Sling

Click here for a User Manual pdf

Click here for a User Instructions pdf


email Click here to enquire about the Guldmann Micro Plus Sling.





mouseover for larger image

Basic Basic Sling

Basic Basic Sling

Sling Code
(Polyester)
Sling Code
(Net)
Size
270031 270132 Extra Small
270041 270142 Small
270051 270152 Medium
270061 270162 Large
270071 270172 Extra Large
270081 270182 XXL
270091   XXXL (500kg)

Function:
Supports the whole body excluding the head.

Suitable for:

  • lifting persons with head control and with or without body control
  • lifting to and from a seated or half–seated position (bed and wheelchair etc)
  • lifting and transfers from all patient furniture surfaces

Click here for a User Manual pdf

Click here for a User Instructions pdf


email Click here to enquire about the Guldmann Basic Basic Sling.





mouseover for larger image

Basic Low Sling

Basic Low Sling

Sling Code
(Polyester)
Sling Code
(Net)
Size
271031 271132 Extra Small
271041 271142 Small
271051 271152 Medium
271061 271162 Large
271071 271172 Extra Large
271081 271182 XXL

Function:
Supports the body up to shoulder height.

Suitable for:

  • lifting persons with head and body control
  • lifting to and from a seated position, (chair and bed etc.)
  • lifting and transfers from all patient furniture surfaces

Click here for a User Manual pdf

Click here for a User Instructions pdf


email Click here to enquire about the Guldmann Basic Low Sling.





mouseover for larger image

Basic High Sling

Basic High Sling

Sling Code
(Polyester)
Sling Code
(Net)
Size
272031 272132 Extra Small
272041 272143 Small
272051 272153 Medium
272061 272163 Large
272071 272173 Extra Large
272081 272183 XXL

Function:
Supports the whole body including the head.

Suitable for:

  • lifting persons with little control over their head and body
  • lifting to and from a lying position (bed and floor etc.)
  • lifting to and from a seated position
  • lifting and transfers from all patient furniture surfaces and the floor

Click here for a User Manual pdf

Click here for a User Instructions pdf


email Click here to enquire about the Guldmann Basic High Sling.





mouseover for larger image

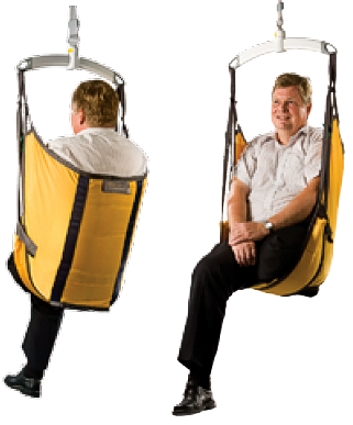

Amputee Sling

Amputee Sling

Sling Code
(Polyester)
Size
290041 Small
290051 Medium
290061 Large

Function:
Supports the whole body up to shoulder height and the pelvis region.

Suitable for:

  • lifting both single and double (above knee joint) amputees
  • lifting double and high amputees
  • lifting from a lying position

Head support should be used to support head when required.


Click here for a User Manual pdf

Click here for a User Instructions pdf


email Click here to enquire about the Guldmann Amputee Sling.





mouseover for larger image

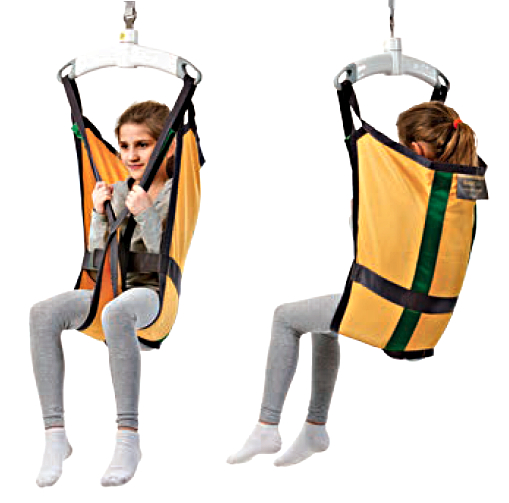

Basic Basic Kids Sling

Basic Basic Kids Sling

Sling Code
(Polyester)
Sling Code
(Net)
Size
270001 270102 Kids 4–6
270011 270112 Kids 6–10
270021 270122 Kids 10–14

Function:
Supports the whole body excluding the head. The inside belt offers an extra support of the body.



Suitable for:

email Click here to enquire about the Guldmann Basic Basic Kids Sling.





mouseover for larger image

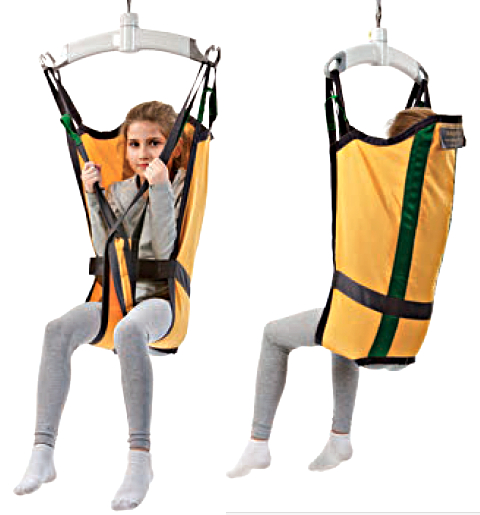

Basic High Kids Sling

Basic High Kids Sling

Sling Code
(Polyester)
Sling Code
(Net)
Size
272103 272102 Kids 4–6
272113 272112 Kids 6–10
272123 272122 Kids 10–14

Function:
Supports the whole body including the head. The inside belt offers an extra support of the body.



Suitable for:

  • lifting persons with little control over their head and body
  • lifting to and from a lying position (bed, changing bench and floor etc.)
  • lifting to and from a seated position

email Click here to enquire about the Guldmann Basic High Kids Sling.
