Electric Tilt-in-Space Shower Commodes

The comfort and security of tilt for the bariatric patient.


mouseover for larger image

4H415E60 Electric Tilt in Space Shower Commode

4H415E60

4H415E60 Electric Tilt in Space Shower Commode

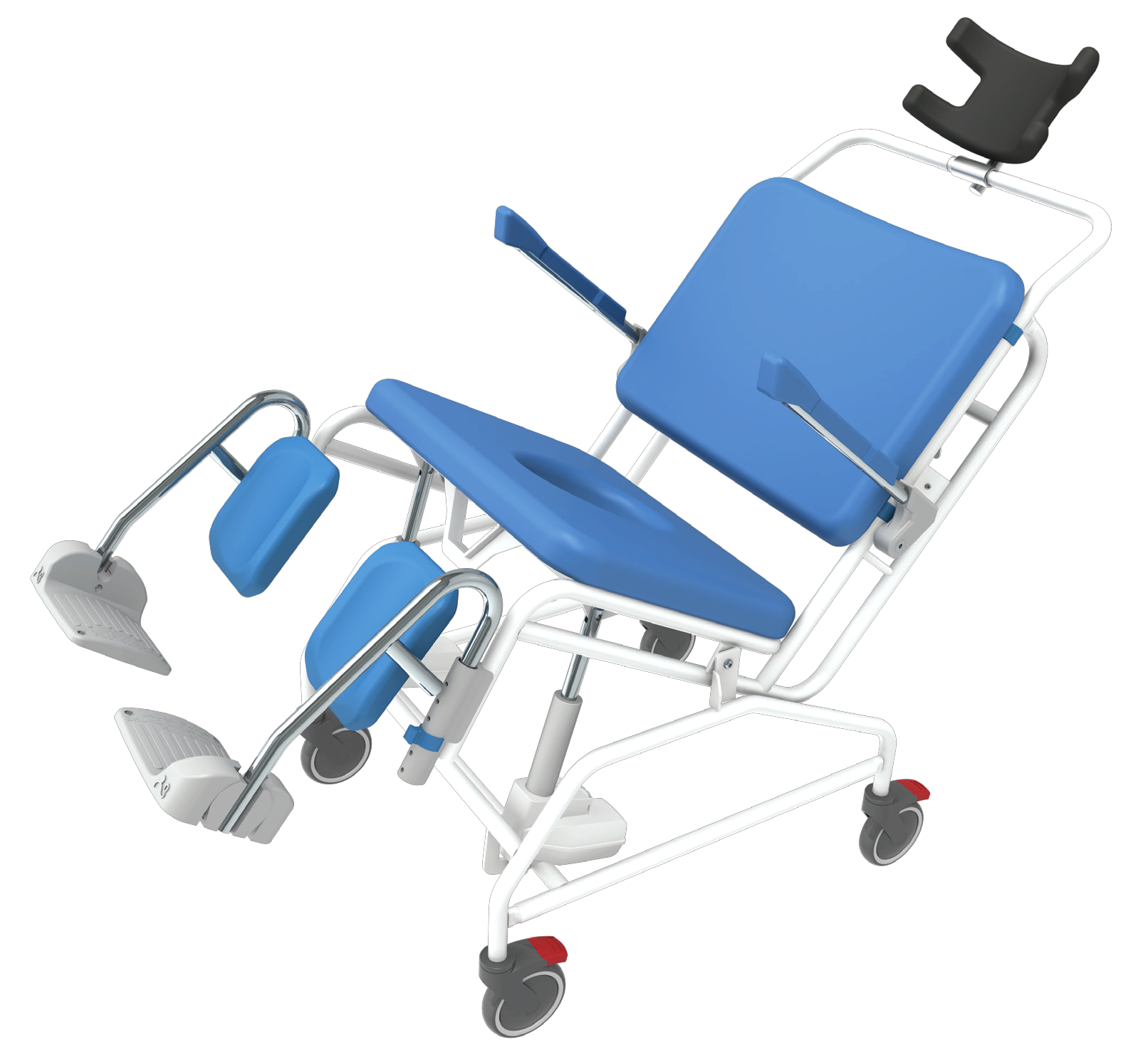

4H415E60 Tilted

4H415E60 Electric Tilt in Space Shower Commode

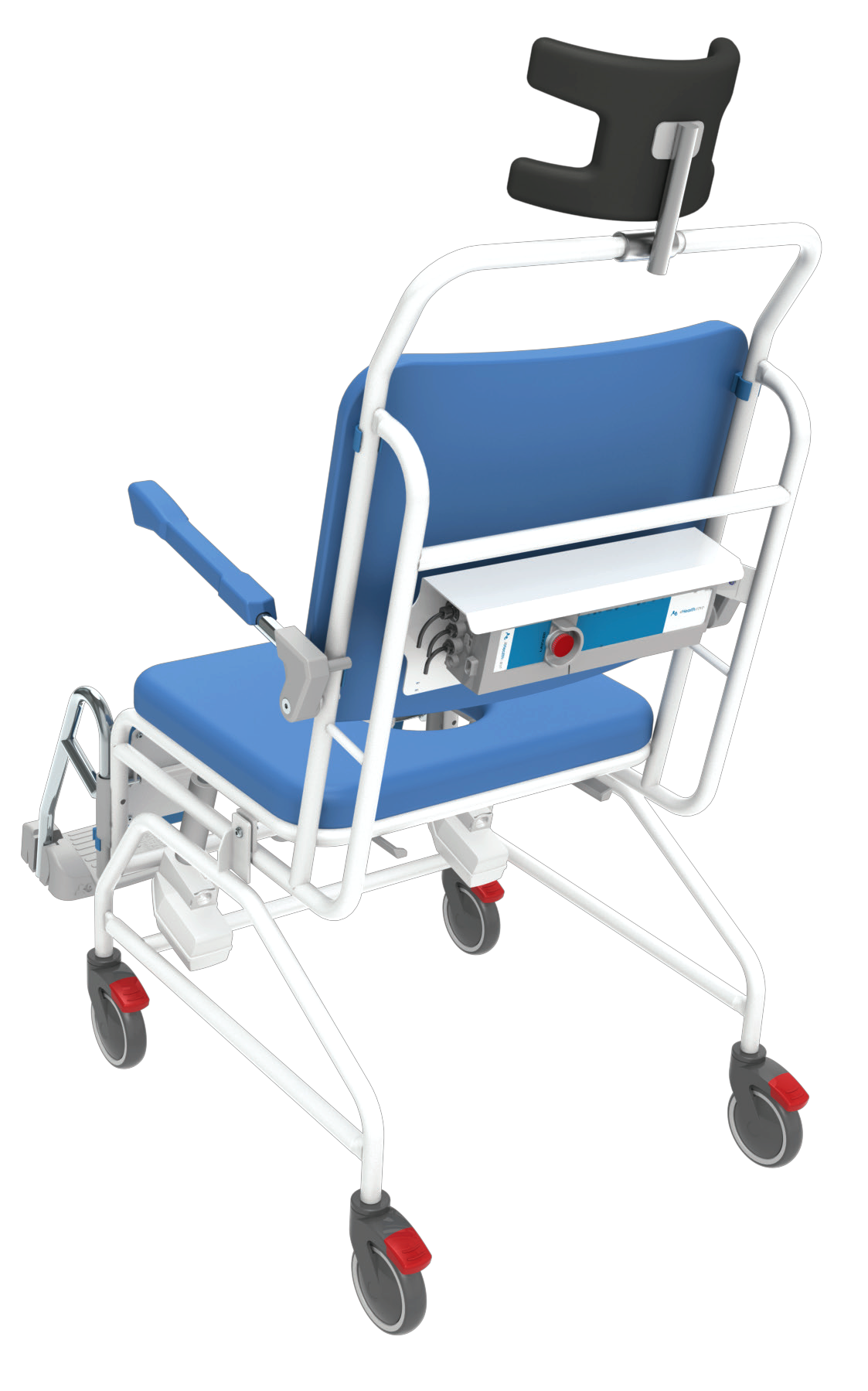

Back



4H415E Electric Tilt in Space Shower Commode – Bariatric

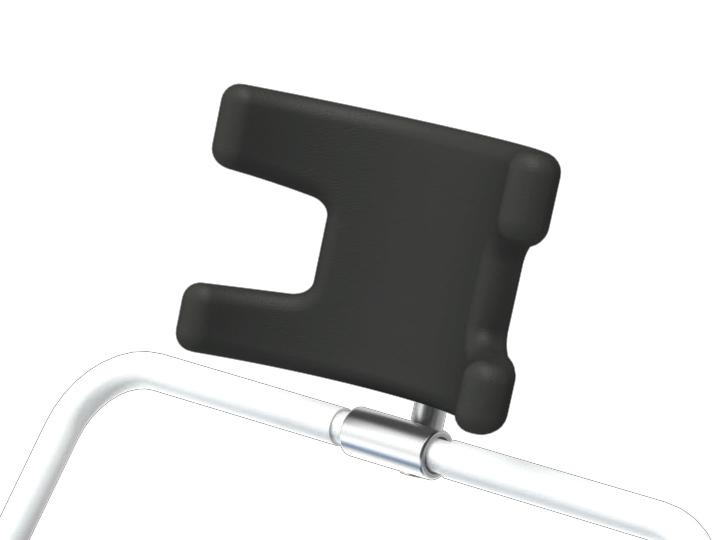

4H415E60 Headrest

Adjustable Headrest

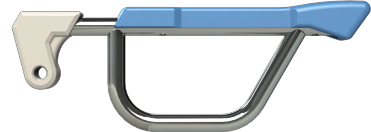

4H415E60 Padded Arm

Optional Lateral support Swing Up Arm Rests

  • Maximum User Weight:
    • 4H415E60 600mm wide 255kg
    • 4H415E70 700mm wide 250kg
  • Height adjustable handmade clip on ⁄ off pressure management padded backrest.
  • Electric assisted tilt anywhere between 10 to 35 degrees.
  • Handset controller for freedom to operate around commode.
  • Removable rechargeable battery pack – Linak electrical system
  • Water resistant IPX6 electric actuators for a smooth and effortless tilt action.
  • Robust, lightweight design, manufactured from durable 304 stainless steel.
  • Epoxy powder coated frame.
  • Polyurethane swing up armrests.
  • Multi-position padded headrest.
  • Ergonomic Multi height vertical push handles.
  • ‘Clip on’ seat can be easily removed for cleaning.
  • All seats come complete with plastic pan runners
  • Swing–up polyurethane padded armrests for comfort and easy side transfer.
  • Polyurethane swivel calf supports.
  • Swing away, height adjustable and ergonomic swivel tilt foot plates.
  • Height adjustable clip pin for easy foot plate adjustment
  • Optional pan & bowl carrier
  • Optional pressure management seat. Open front, open left or right side, closed front (as shown).
  • 125mm diameter maintenance free braking total lock castors.
  • ARTG number: 291803

email Click here to enquire about the 4H415E60 Electric Tilt in Space Shower Commode. email Click here to enquire about the 4H415E70 Electric Tilt in Space Shower Commode.


  • Seat width: 600mm
  • Seat depth: 480mm
  • Seat height from floor: 590mm
  • Backrest height: 630mm
  • Width between arms: 600mm
  • Tilt: 10° to 35°
  • Overall width: 700mm
  • Overall depth: 1000mm
  • Overall height: 1475mm
  • Seat width: 700mm
  • Seat depth: 480mm
  • Seat height from floor: 590mm
  • Backrest height: 630mm
  • Width between arms: 700mm
  • Tilt: 10° to 35°
  • Overall width: 800mm
  • Overall depth: 1000mm
  • Overall height: 1475mm
  • Closed front – 4H411SCPM60 ⁄ 4H411SCPM70 (sold separately)
  • Open front – 4H411SOPM60 ⁄ 4H411SOPM70 (sold separately)
  • Side open, left – 4H411SLPM60 ⁄ 4H411SLPM70 (sold separately)
  • Side open, right – 4H411SRPM60 ⁄ 4H411SRPM70 (sold separately)


PLEASE NOTE:  All our shower commodes are sold without seats.

Seats may be purchased separately but are not included with the commodes.
For purposes of illustration, all commodes on this page are shown fitted with seats.
